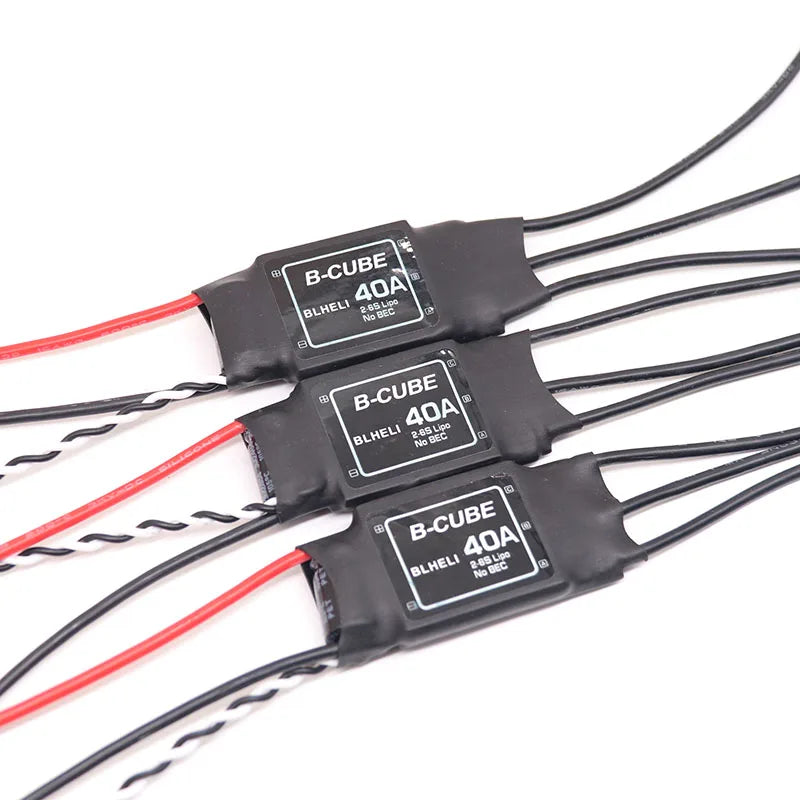

1/2/4/6PCS BLHELI 40A Brushless ESC 2-6S Lipo No EBC Speed Controller For RC FPV Airplane UAV Drone Quadcopter
1/2/4/6PCS BLHELI 40A Brushless ESC 2-6S Lipo No EBC Speed Controller For RC FPV Airplane UAV Drone Quadcopter
Regular price
$15.66 USD
Regular price
$15.66 USD
Sale price
$15.66 USD
Unit price
per
Couldn't load pickup availability
BLHELI 40A APAC Brushless ESC 2-6S
Specifications:
Model:BLHELI 40A
Con. Current: 40A
Peak Current (10s): 60A
BEC: NO
LiPo: 2-6S
Programmable Item:Timing (High/Intermediate)
Weight: 26g
Size: 68 x 25 x 9 mm
Applications (For reference): 250 Class (Multi-rotor)250 Class (Multi-rotor)
Features:
- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;
- Firmware was optimized specifically for disc motor, and it has a very good compatibility;
- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;
- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;
- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);
- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;
- Ultra-low resistance MOSFET, strong flow capacity.
