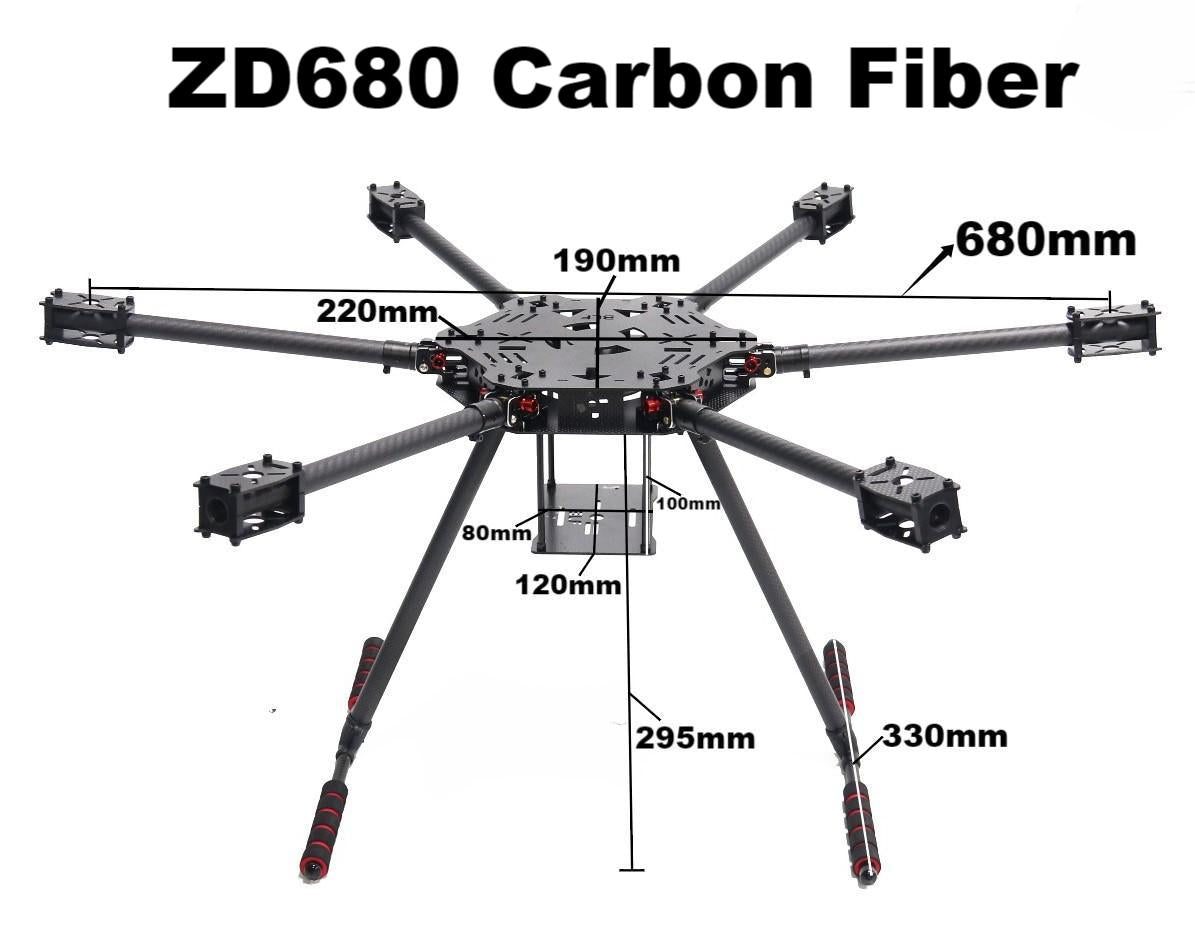

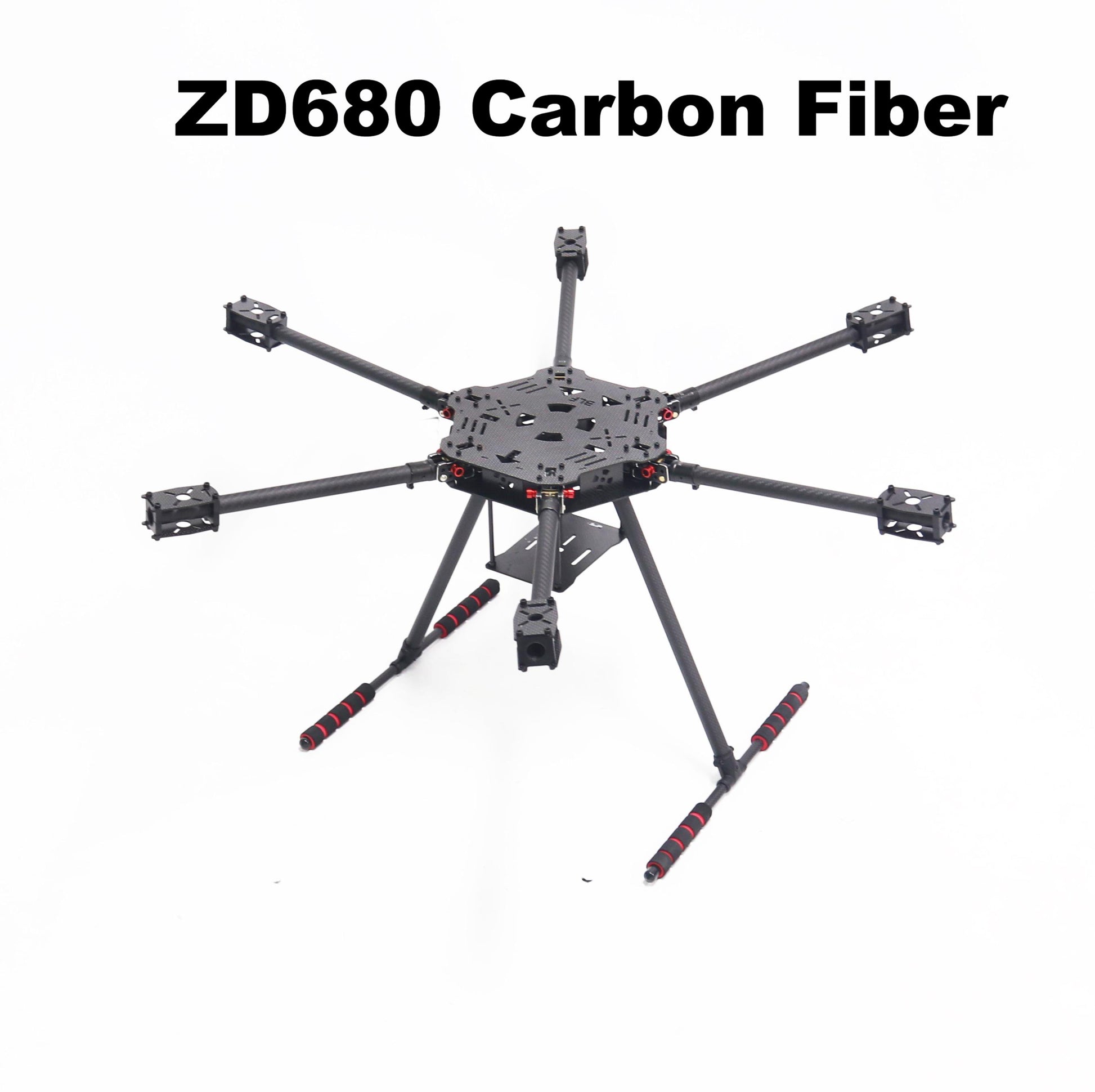

B-CUBE ZD680 PRO M10 Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit PIXHAWK with Unflodable Landing Gear

B-CUBE ZD680 PRO M10 Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit PIXHAWK with Unflodable Landing Gear

$411.74 USD
$411.74 USD $411.74 USD
Sale Ausverkauft
Color
PIXHAWK PRO
Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
Specifications:
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface

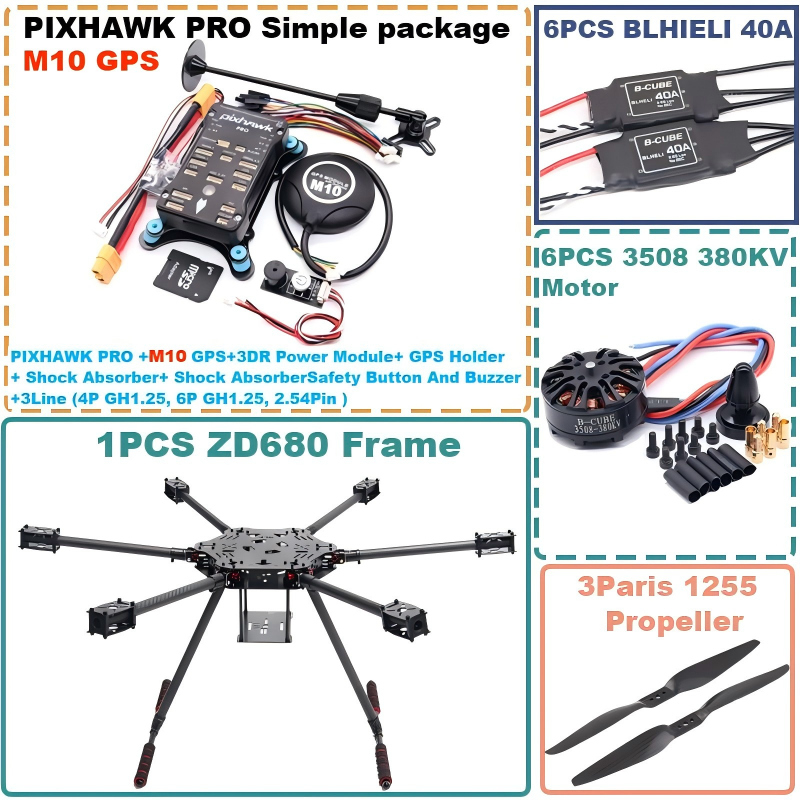

Simple Package:

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK PRO+M10 GPS+3DR Power Module+ GPS Holder + Shock Absorber+ Shock Absorber Safety Button And Buzze+3Line(4PGH1.25,6PGH1.25,2.54Pin)

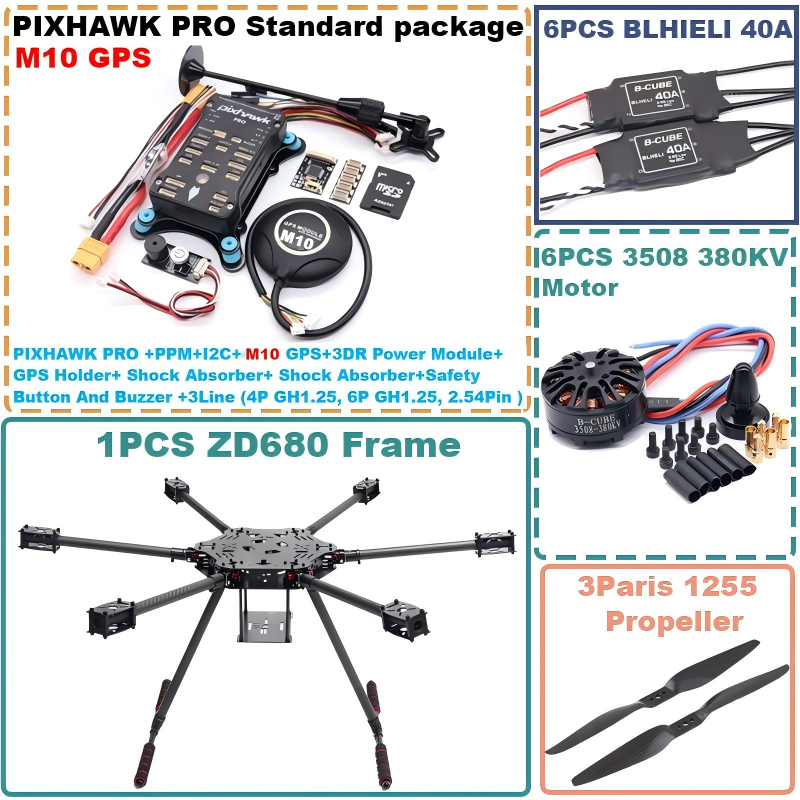

Standard Package:

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK PRO+PPM+I2C+M10 GPS+3DR Power Module+GPS Holder+Shock Absorber+Safety Button And Buzzer+3Line(4P GH1.25,6PGH1.25,2.54Pin)

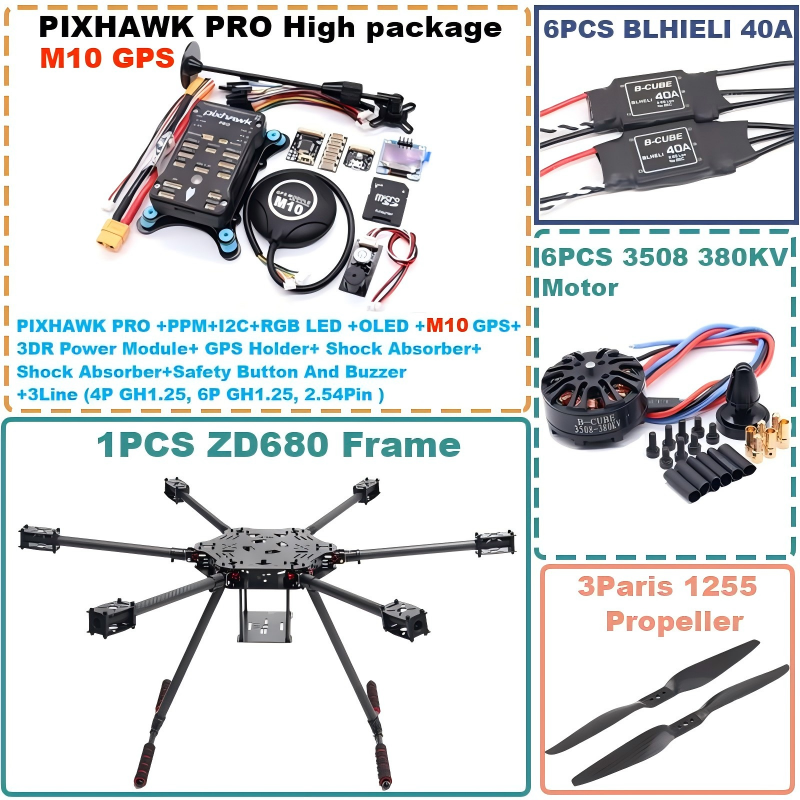

High Package:

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK PRO +PPM+I2C+RGBLED+OLED+M10 GPS+3DR Power Module+ GPS Holder+ Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)

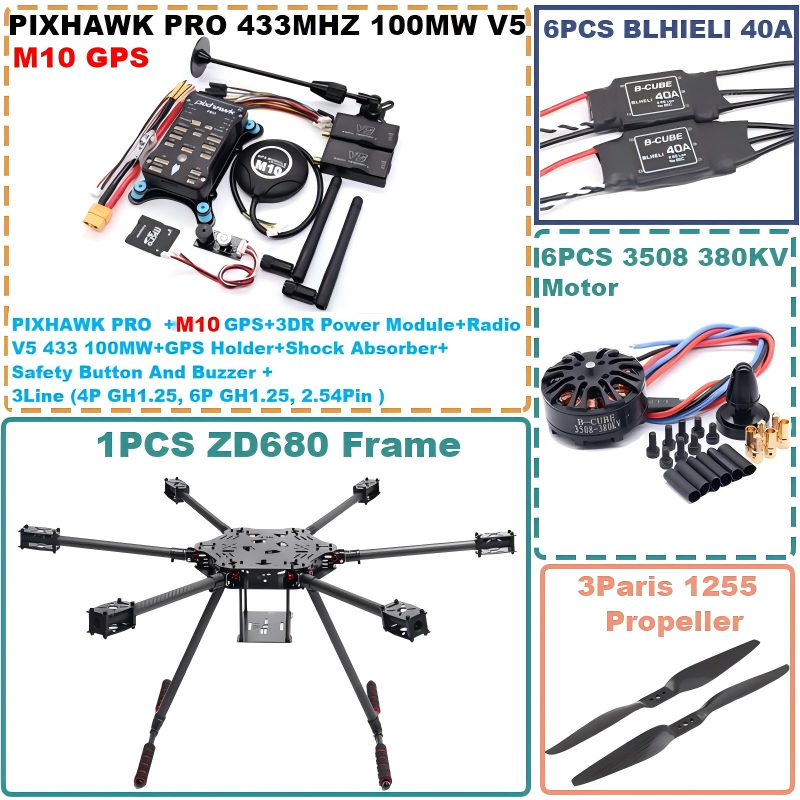

433/915MHZ 100MW :

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK PRO+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M10 GPS+ GPS Holder+  3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry V5

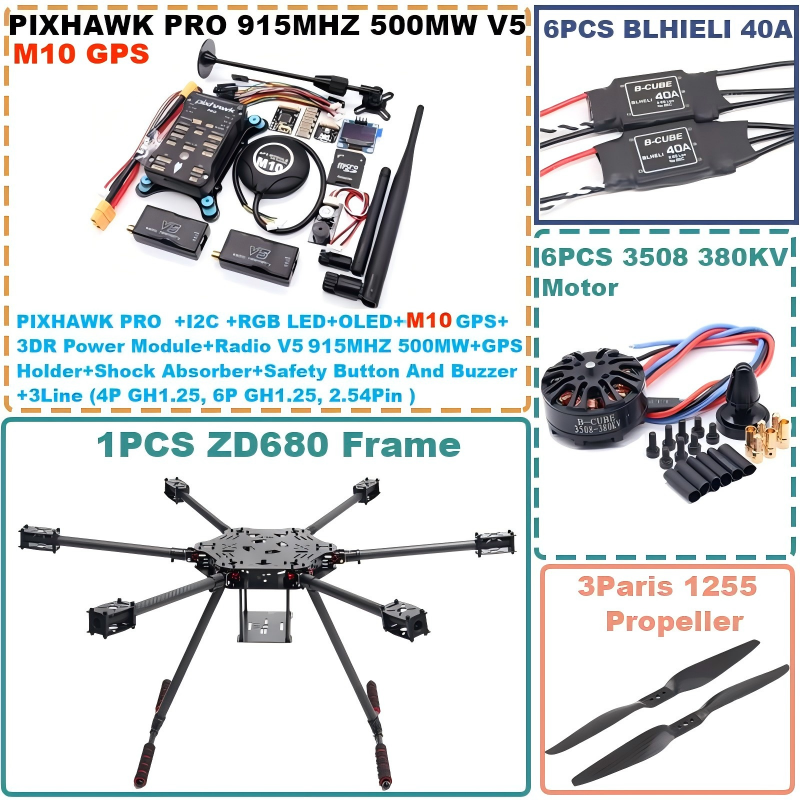

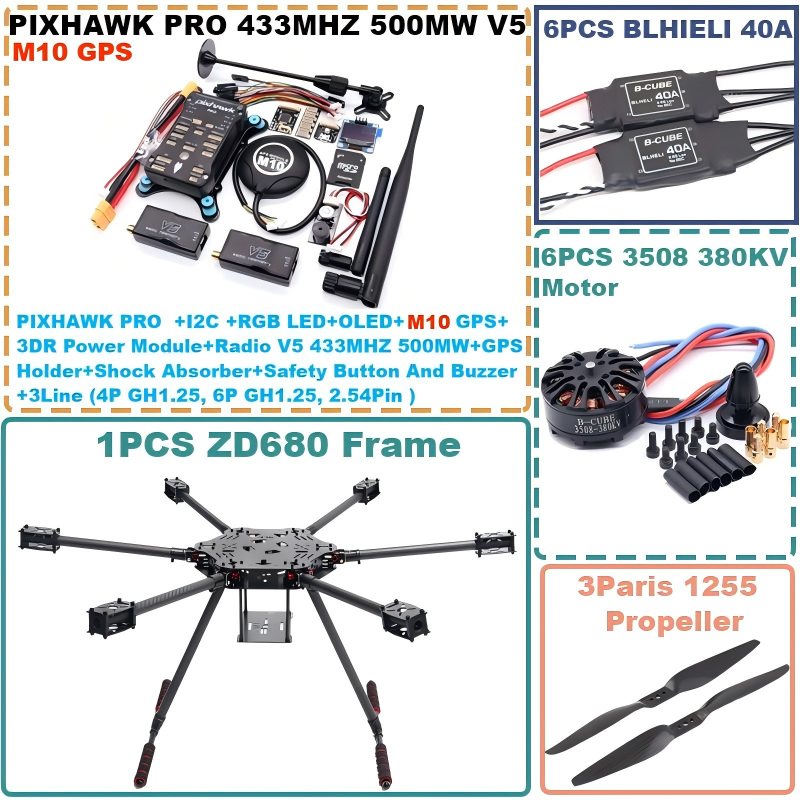

433/915MHZ 500MW :

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M10 GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry V5

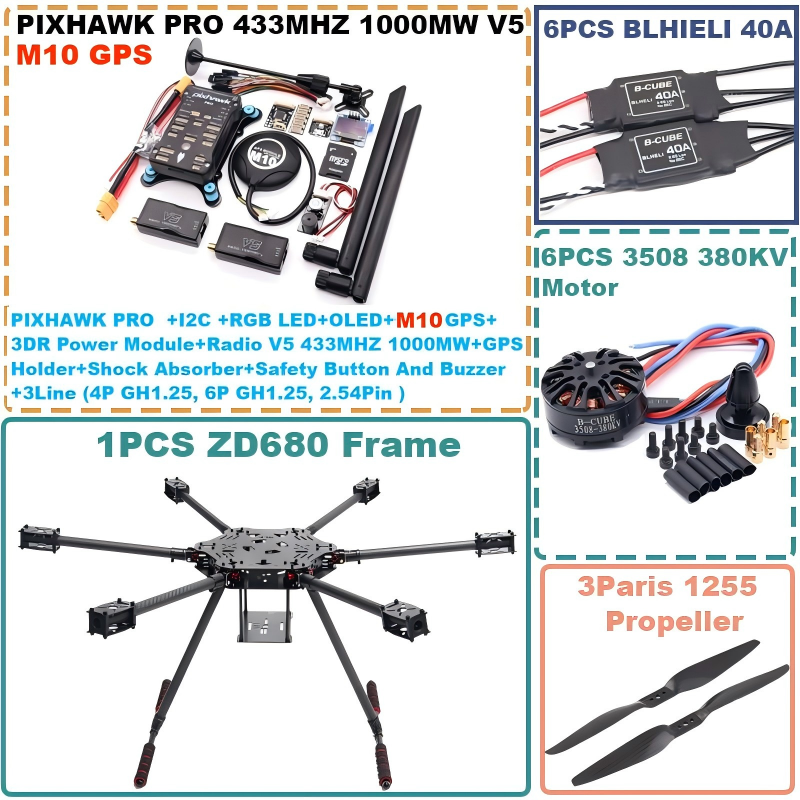

433/915MHZ 1000MW :

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M10 GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433/915MHZ 1000MW Radio telemetry V5

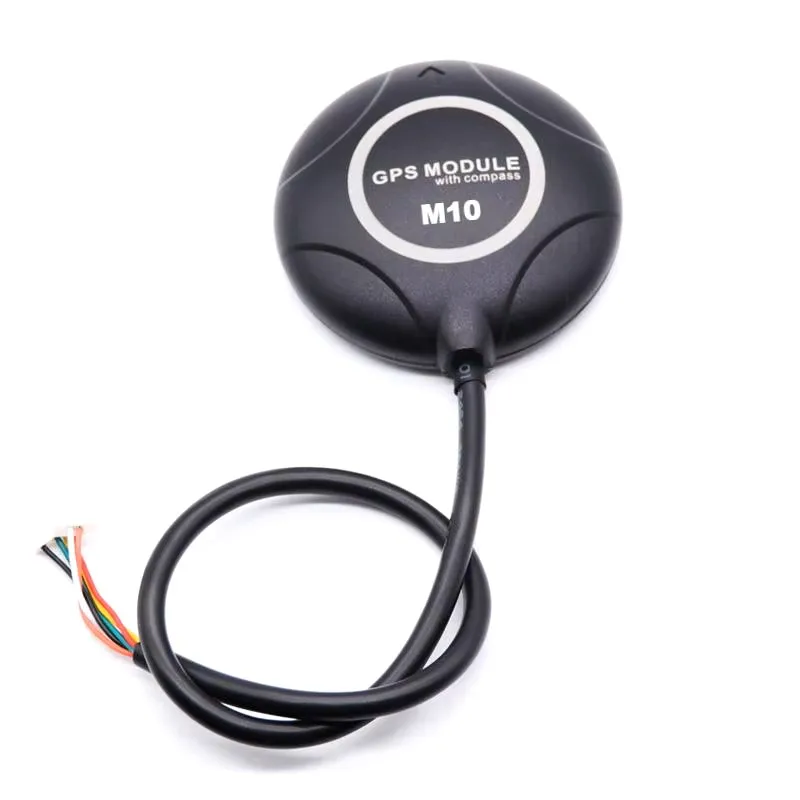

F680M10 GPS Module With IST8310 Compass


M10 GPS for Pixhawk2.4.8: used for Pixhawk2.4.8

M10 GPS for Pixracer R15:used for Pixracer R15

M10 GPS for Pixhawk 6C :used for PIXHAWK 6C


The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

It also comes with the IST8310 compass.This module ships with a baud rate of 115200 5Hz.

The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Firmware Support for M10 GPS:

  • PX4 1.14, ArduPilot 4.3, or newer is required

Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.

3508 380KV Motor

Brand:B-CUBE

Color Classification:Black Motor Technical Parameters:

  • KV Value:KV380

  • Model:MX3508

  • Motor Diameter:42mm
  • Motor Length (No Shaft):24mm
  • Stator Diameter:35mm
  • Stator Length:8mm
  • Shaft Diameter:4mm
  • Weight:90g
  • Recommended Battery:3-6 Cells
  • Idle Current:0.3A
  • Top Mounting Hole:12mm x 12mm
  • Bottom Mounting Hole:25mm x 25mm

Suitable for:

  • Quadcopters
  • Hexacopters
  • Octocopters
  • Agricultural drones (plant protection machines)

Regarding Dynamic Balance:

We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.

Note:No 3-socket pad is provided. Please refer to the diagram for specific components.

MX3508 Motor Features:

  • Flat design
  • Multiple slot extreme outer brushless motor
  • High torque and efficiency
  • Competitive price
  • Compatible with most market-leading drone frames (with multiple mounting holes)
  • Aesthetically pleasing design

Propeller Installation:

We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.

Motor Dynamic Test Results:

Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.

OLED Module can display some message.

Features:

- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;
- Firmware was optimized specifically for disc motor, and it has a very good compatibility;
- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;
- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;
- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);
- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;
- Ultra-low resistance MOSFET, strong flow capacity.

3 Pairs T-Motor 3K Carbon Fiber Propeller 1255
