B-CUBE ZD680 PIXHAWK 2.4.8 Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit forCopter with Unflodable Landing Gear

B-CUBE ZD680 PIXHAWK 2.4.8 Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit forCopter with Unflodable Landing Gear

$411.95 USD
$411.95 USD $411.95 USD
Sale Ausverkauft
Color

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller

Features:
Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;

Specifications:
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface

Simple Collocation:

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK 2.4.8+ 4G TF Card + Safety Button + Buzzer+Shock Absorber

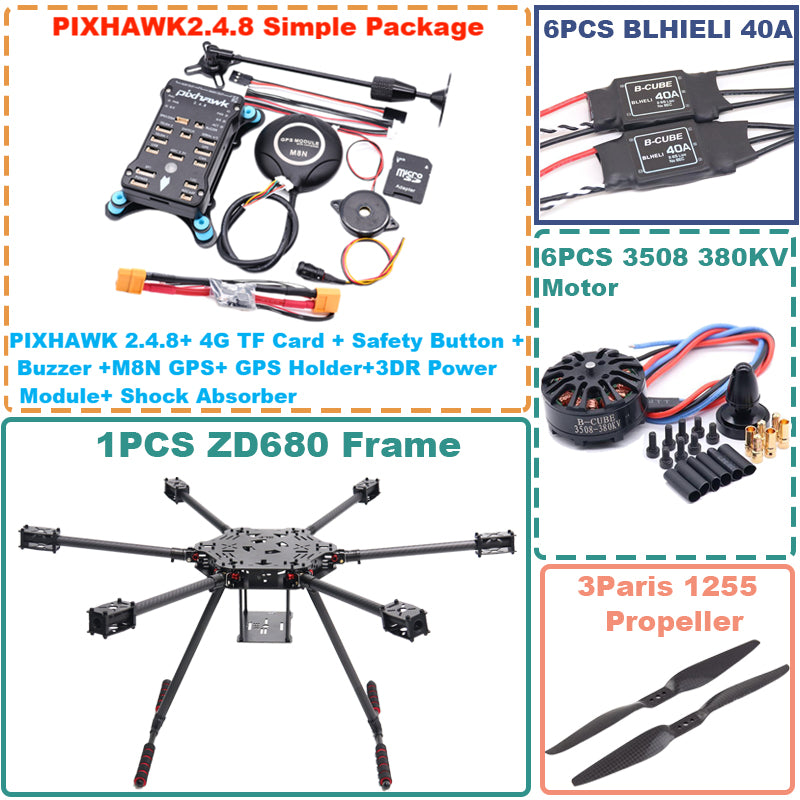

Simple Package:

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK 2.4.8+ 4G TF Card + Safety Button + Buzzer +M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber

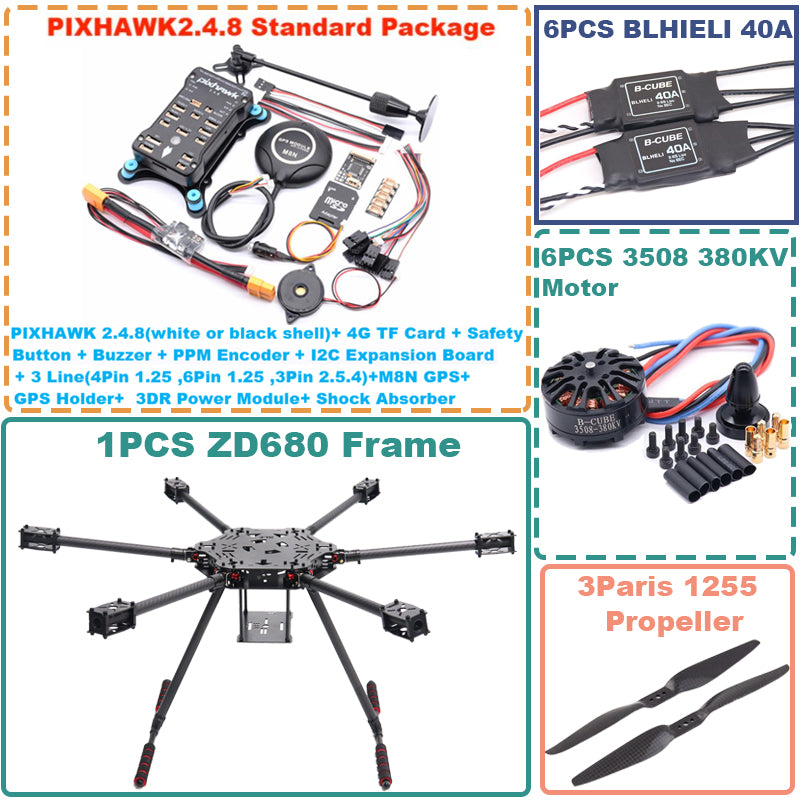

Standard Package:

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber

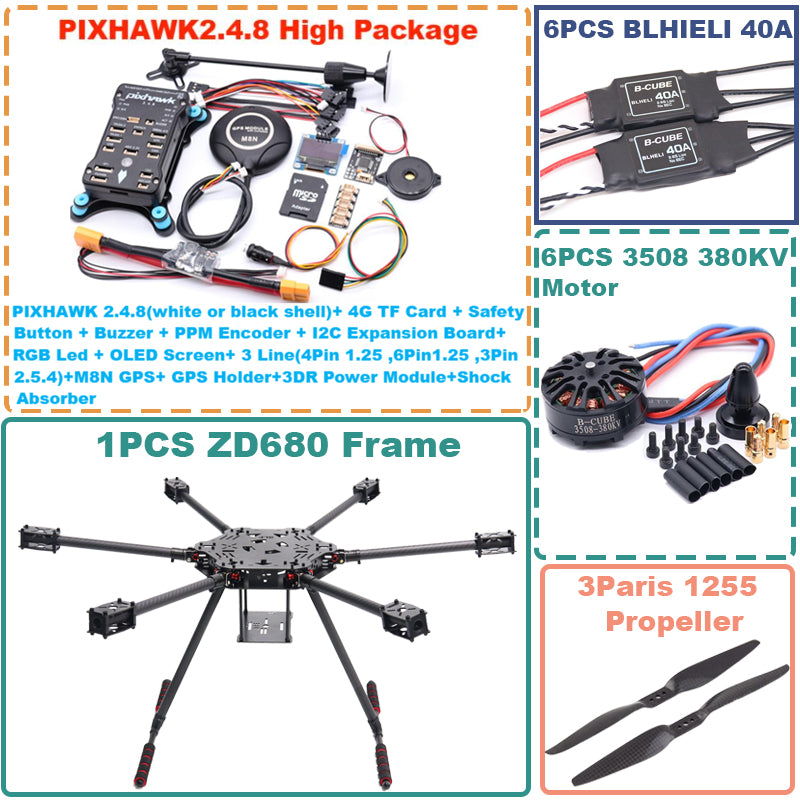

High Package:

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber

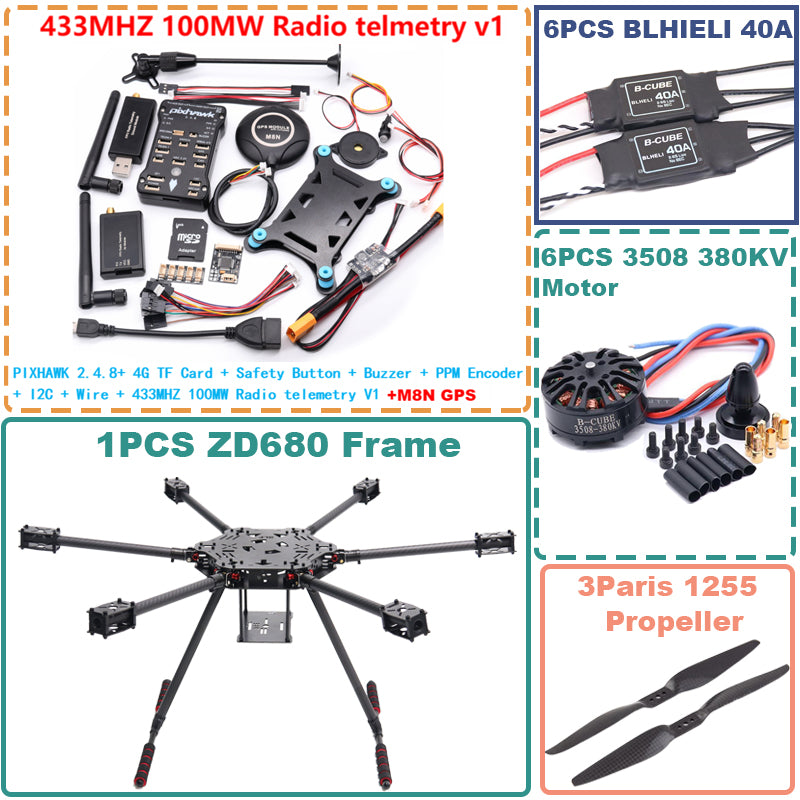

433/915MHZ 100MW :

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK 2.4.8+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry

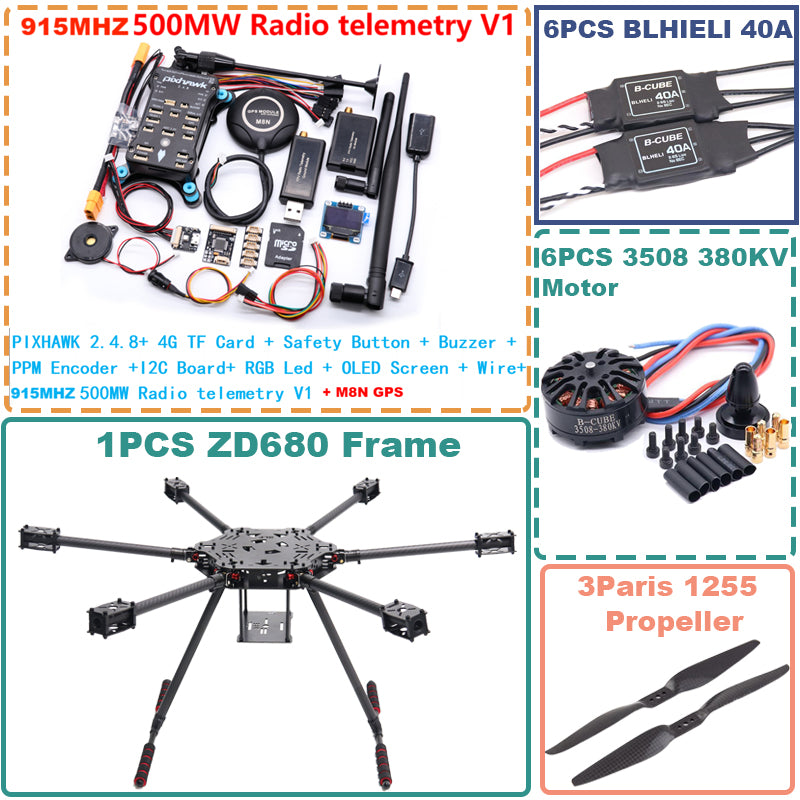

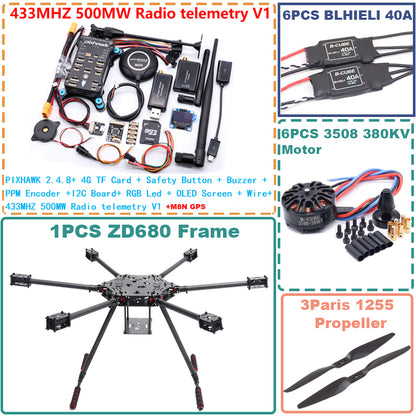

433/915MHZ 500MW :

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry

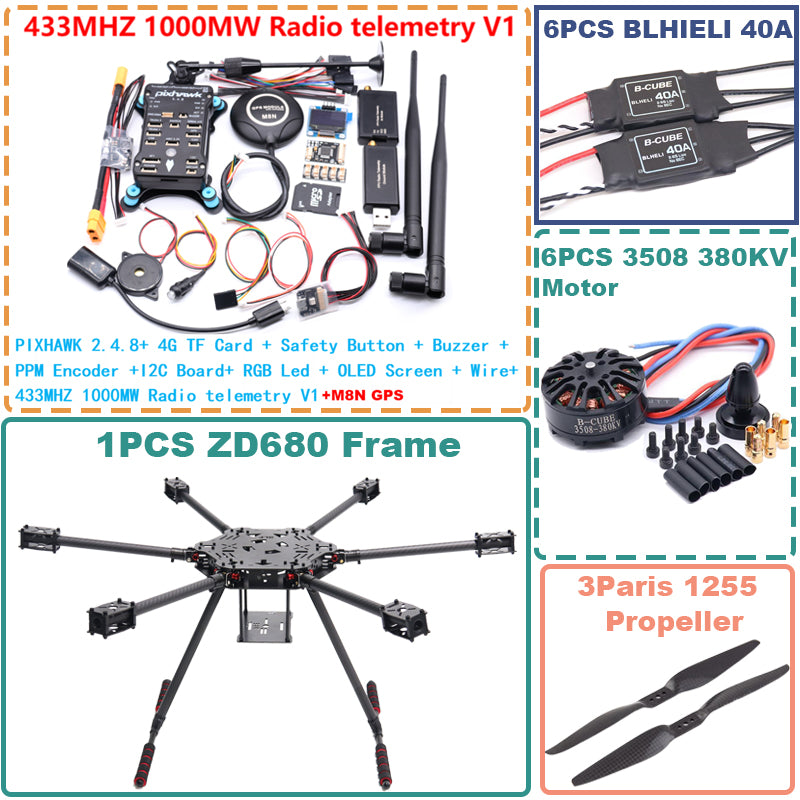

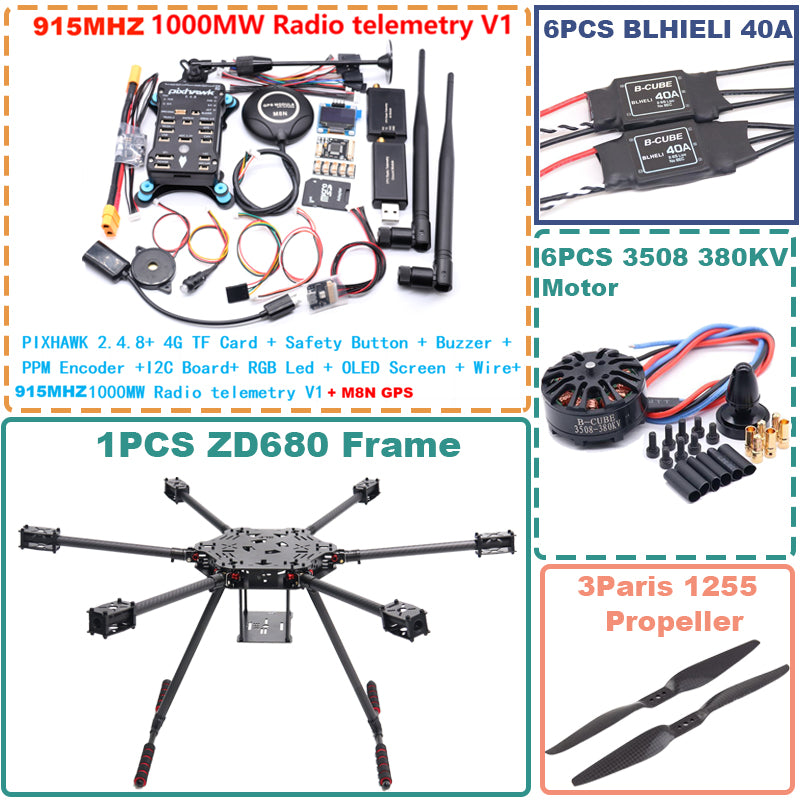

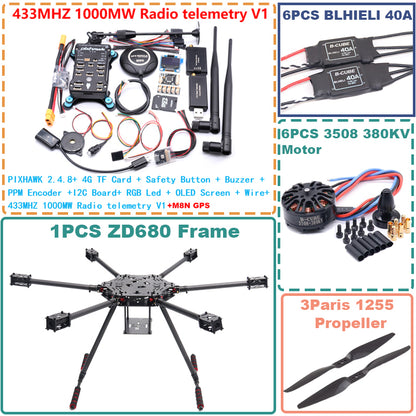

433/915MHZ 1000MW :

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433/915MHZ 1000MW Radio telemetry

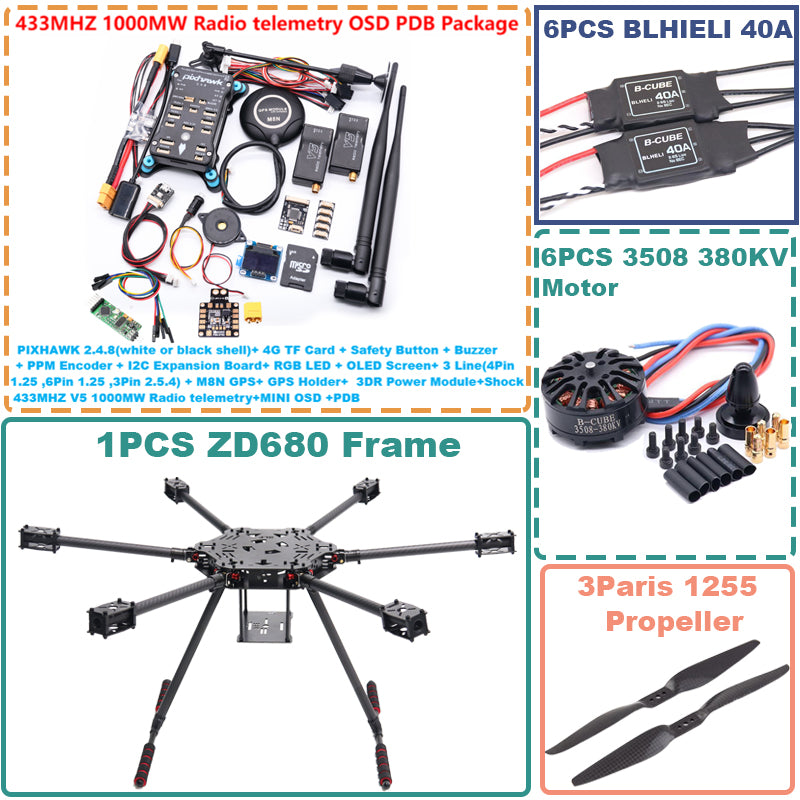

433MHZV5 1000MW OSD:

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+Shock Absorber+433MHZ V5 1000MW Radio telemetry+MINI OSD +PDB

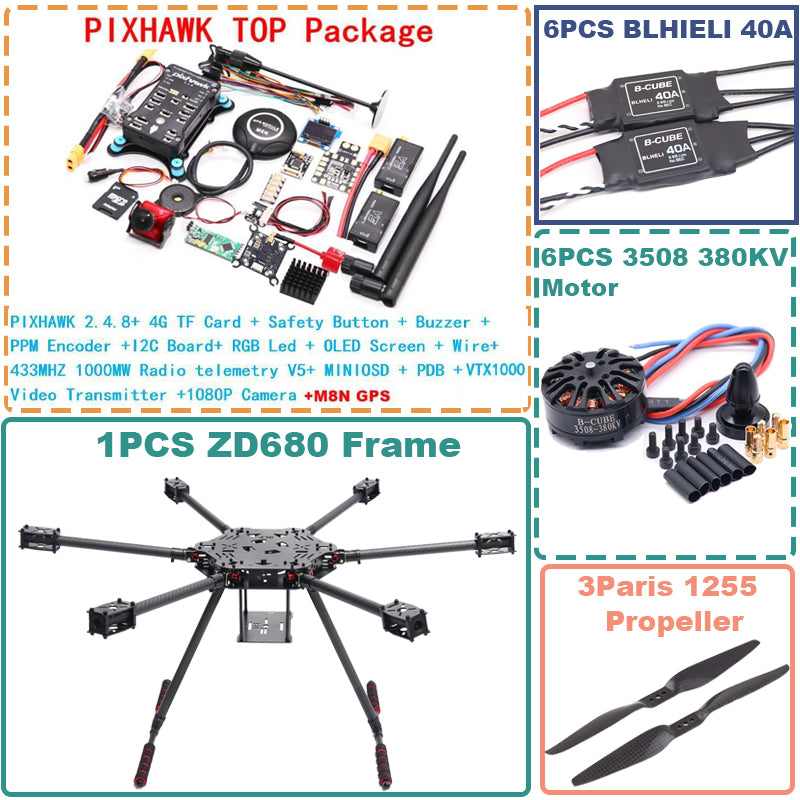

TOP Package:

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK TOP Package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber +433MHZ 1000MW 3DR Radio Telemetry V5+ MINIOSD + PDB +VTX1000 +1080P Camera

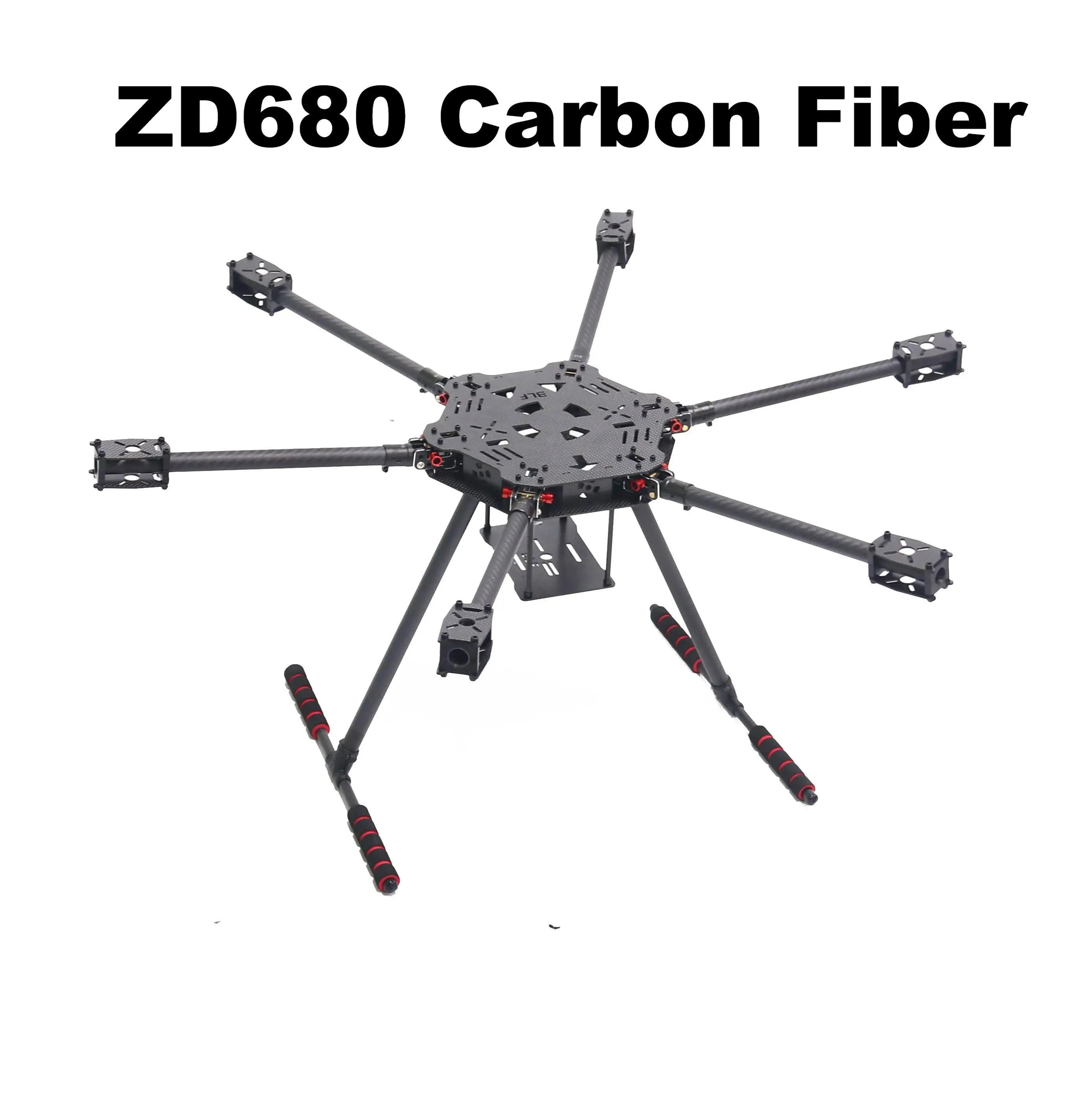

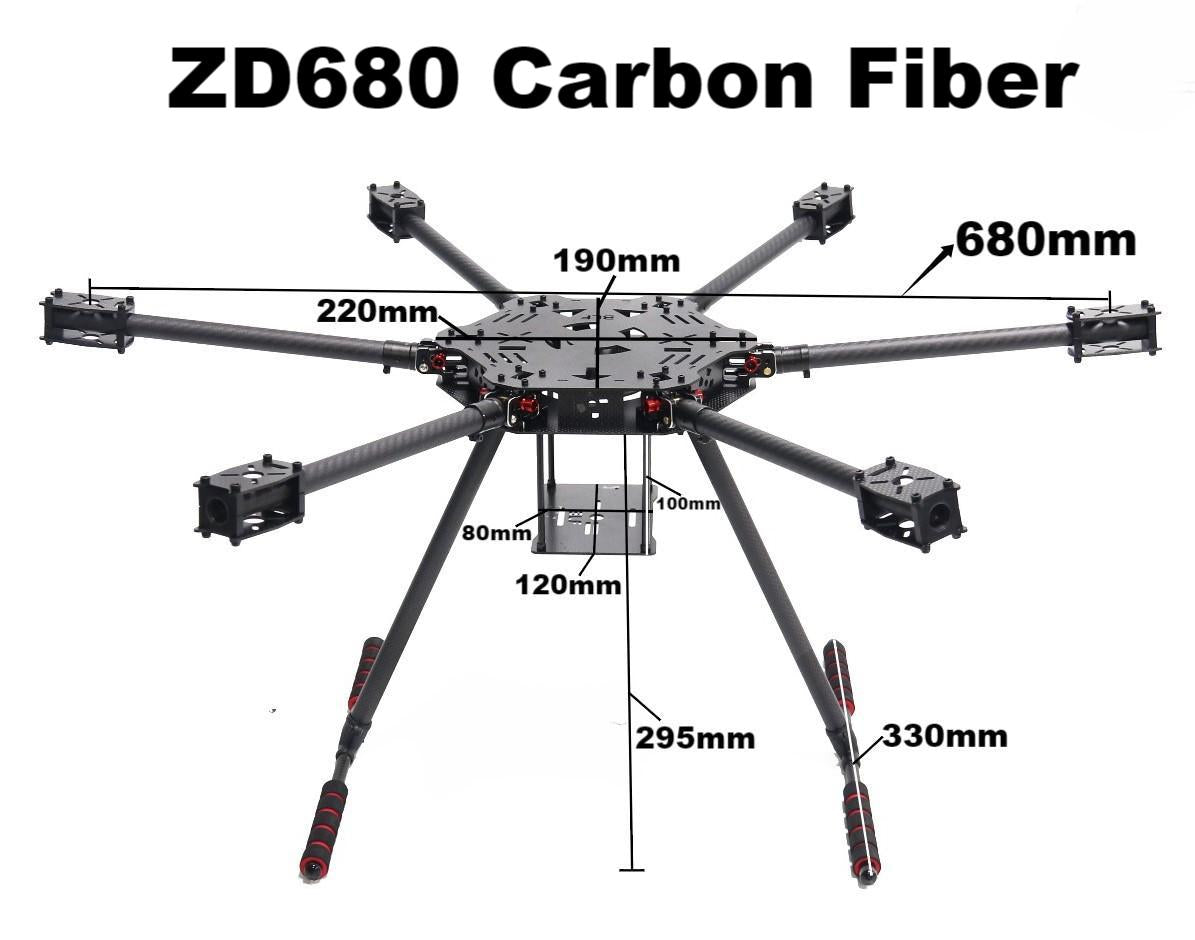

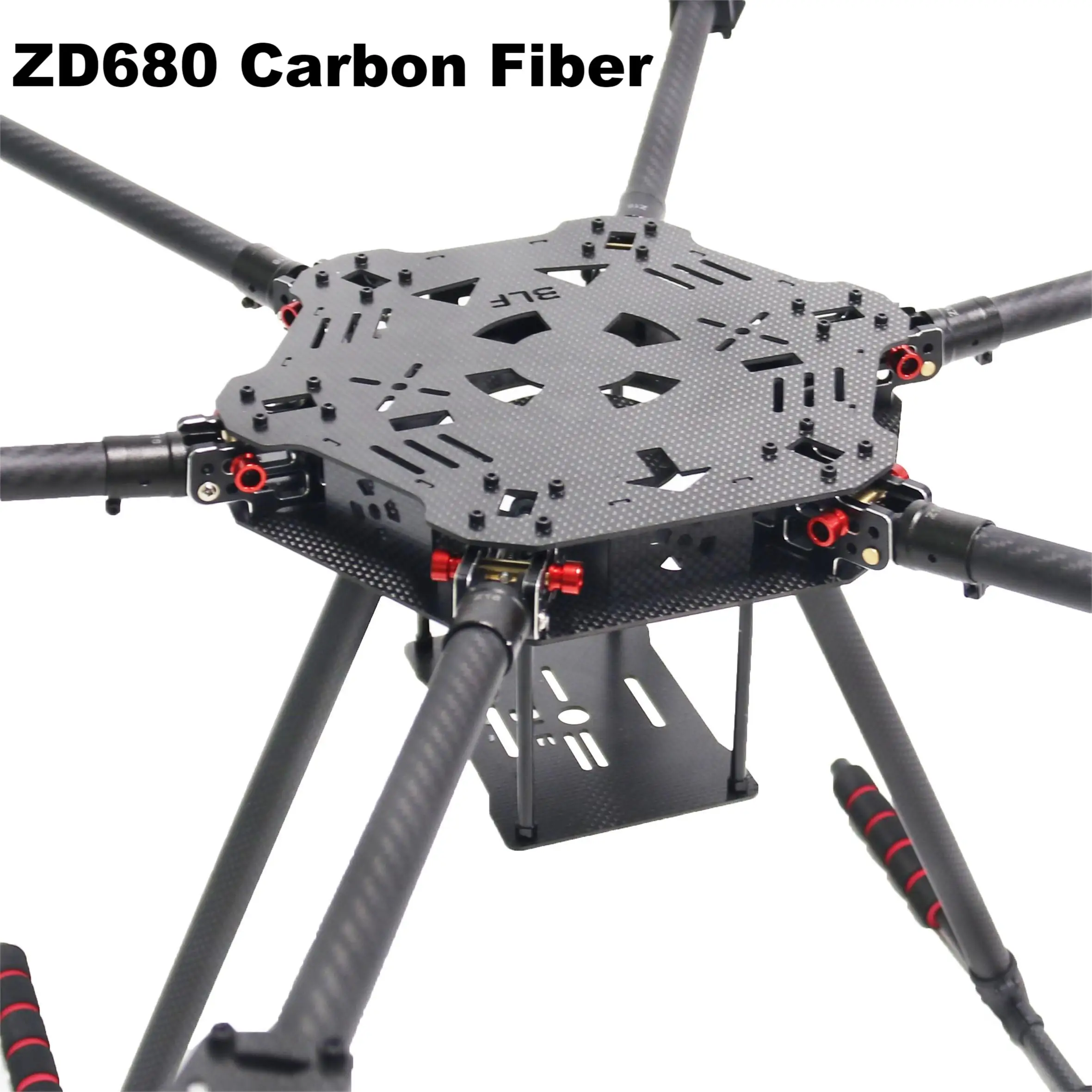

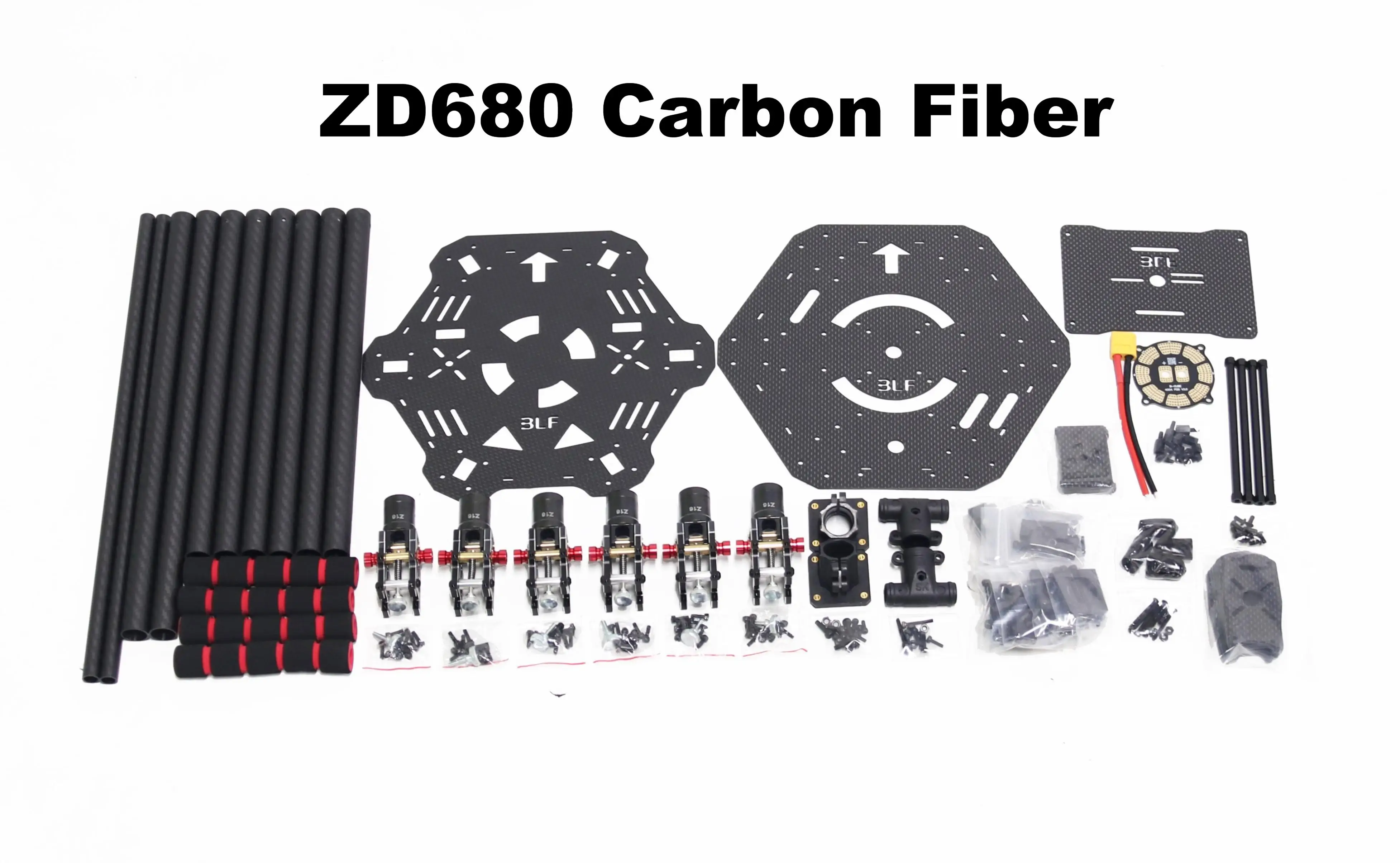

ZD680 Full Carbon FiberRadio telemetry V1

OLED Module can display some message.
MINI OSD
PDB:

VTX1000 is video transmitter,support 25MW-600MW,48 channel (with heat sink abd 3DB antenna )

Description:
Model: MINI MS-1672 FPV cameras
Sensor: 1/1/8 "CMOS D1080H
Horizontal resolution: 2000TVL
Horizontal field of view: 165
Lens: 2.1mm lens
Video format: NTC&PAL (adjustable)
Image scale: 4:3&16:9 (automatic recognition)
Wide Dynamic Range: Super WDR
Noise reduction: 3DNR
Low illumination: 0.001LUX
Video output: CVBS
Day and night: external/internal/black and white/color
Language: (English/Chinese/Traditional Chinese/pyccnna)
ESOABIK/TTASSNO/FRABCAUS/
POSDIM/PORTUGUES/Japanese
Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000
Wide voltage input: 5-36V
Working temperature: -20-60
Weight: 110g
Dimensions: 19 19 19mm
Resolution: 960 * 1080

Feature:
Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.

Package included:
1 x Upgraded Mista FPV Camera

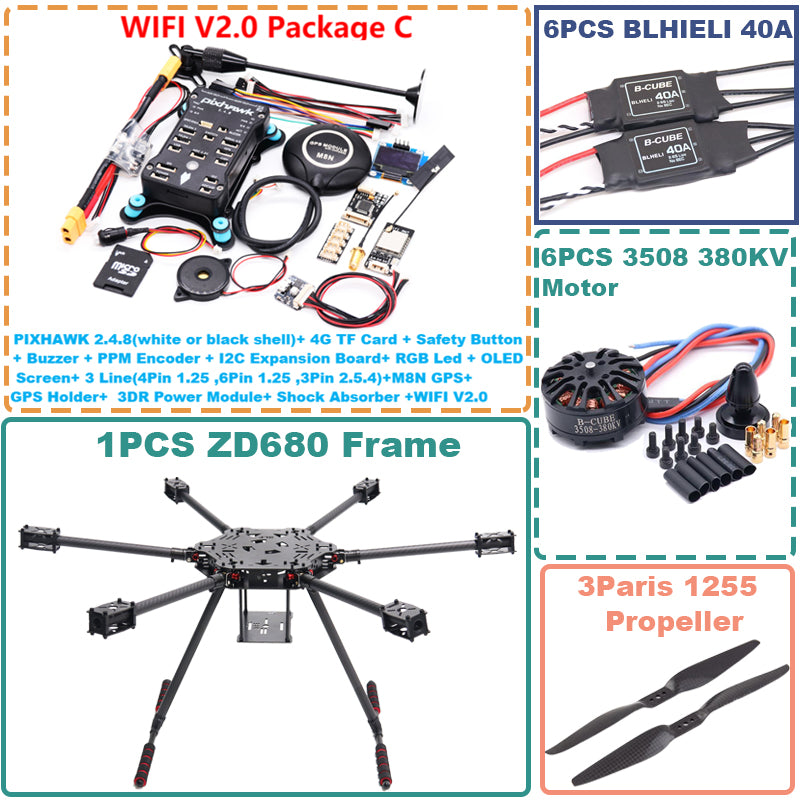

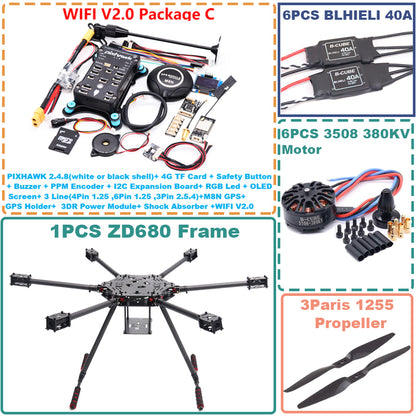

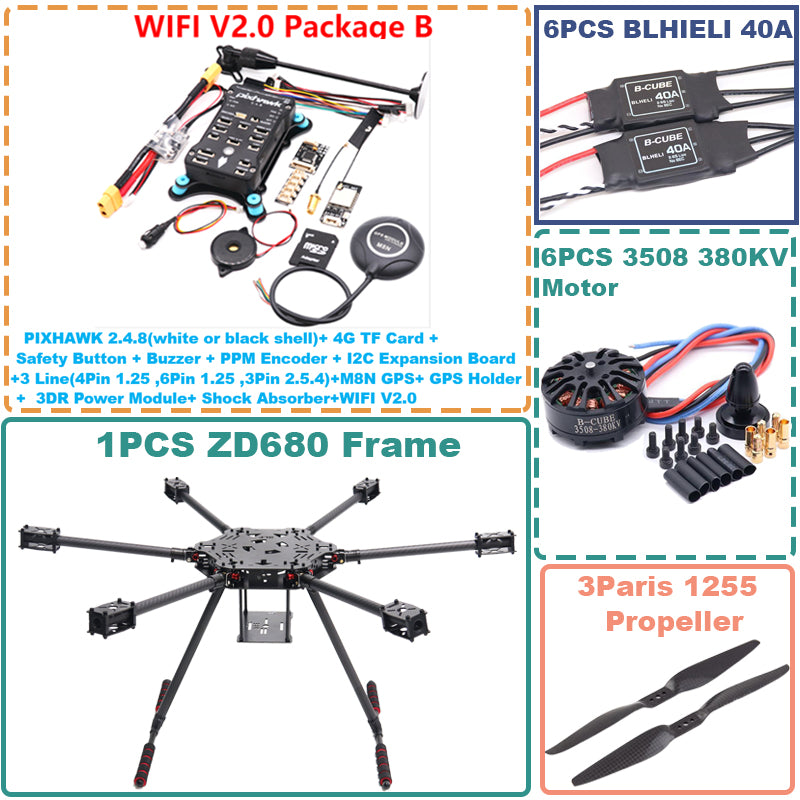

WIFI V1.0 and V2.0 use 8bit CPU, only support UDP

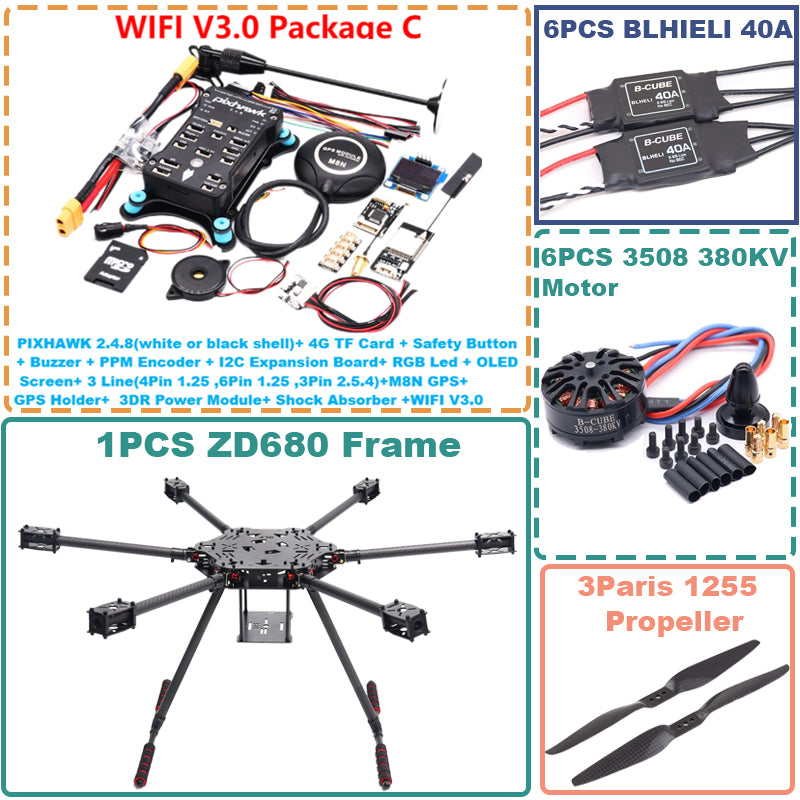

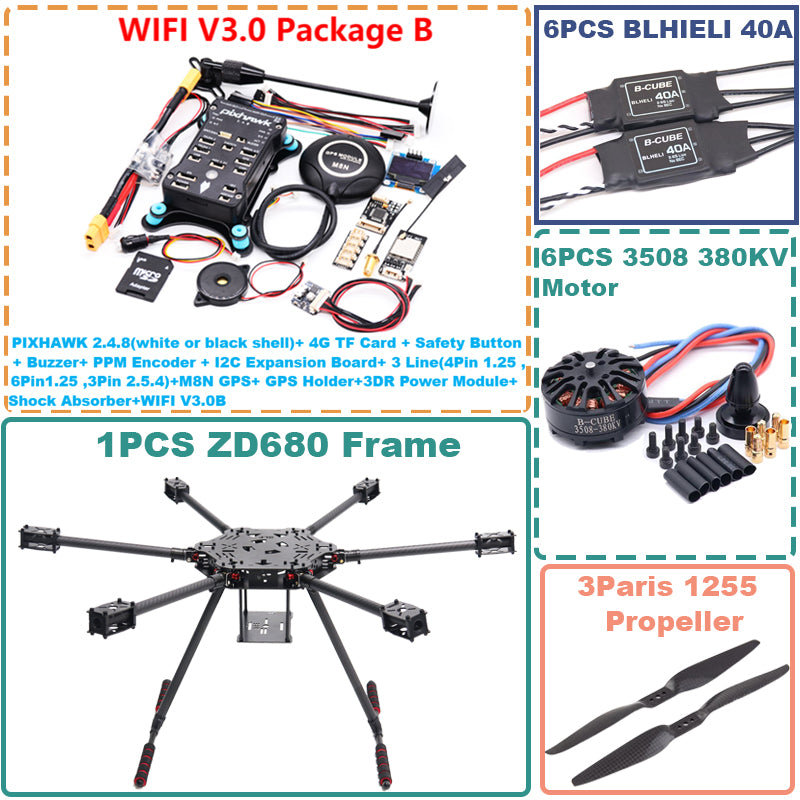

WIFI V3.0 use 32 BIT CPU, support TCP and UDP.
WIFI V2.0 and V3.0 use external antenna (5DB)

3508 380KV Motor

Brand:B-CUBE

Color Classification: Black Motor Technical Parameters:

  • KV Value: KV380
  • Model: MX3508
  • Motor Diameter: 42mm
  • Motor Length (No Shaft): 24mm
  • Stator Diameter: 35mm
  • Stator Length: 8mm
  • Shaft Diameter: 4mm
  • Weight: 90g
  • Recommended Battery: 3-6 Cells
  • Idle Current: 0.3A
  • Top Mounting Hole: 12mm x 12mm
  • Bottom Mounting Hole: 25mm x 25mm

Suitable for:

  • Quadcopters
  • Hexacopters
  • Octocopters
  • Agricultural drones (plant protection machines)

Regarding Dynamic Balance:

We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.

Note: No 3-socket pad is provided. Please refer to the diagram for specific components.

MX3508 Motor Features:

  • Flat design
  • Multiple slot extreme outer brushless motor
  • High torque and efficiency
  • Competitive price
  • Compatible with most market-leading drone frames (with multiple mounting holes)
  • Aesthetically pleasing design

Propeller Installation:

We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.

Motor Dynamic Test Results:

Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.

Features:
- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;
- Firmware was optimized specifically for disc motor, and it has a very good compatibility;
- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;
- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;
- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);
- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;
- Ultra-low resistance MOSFET, strong flow capacity.

3 Pairs T-Motor 3K Carbon Fiber Propeller 1255

The new T-motor propeller-type aerial dedicated full carbon paddle paddle-type three-hole installation
Using carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.
