B-CUBE ZD680 Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit for PIXHAWK 2.4.8 Radio with Unflodable Landing Gear

B-CUBE ZD680 Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit for PIXHAWK 2.4.8 Radio with Unflodable Landing Gear

$495.53 USD
$495.53 USD $495.53 USD
Sale Ausverkauft
Color

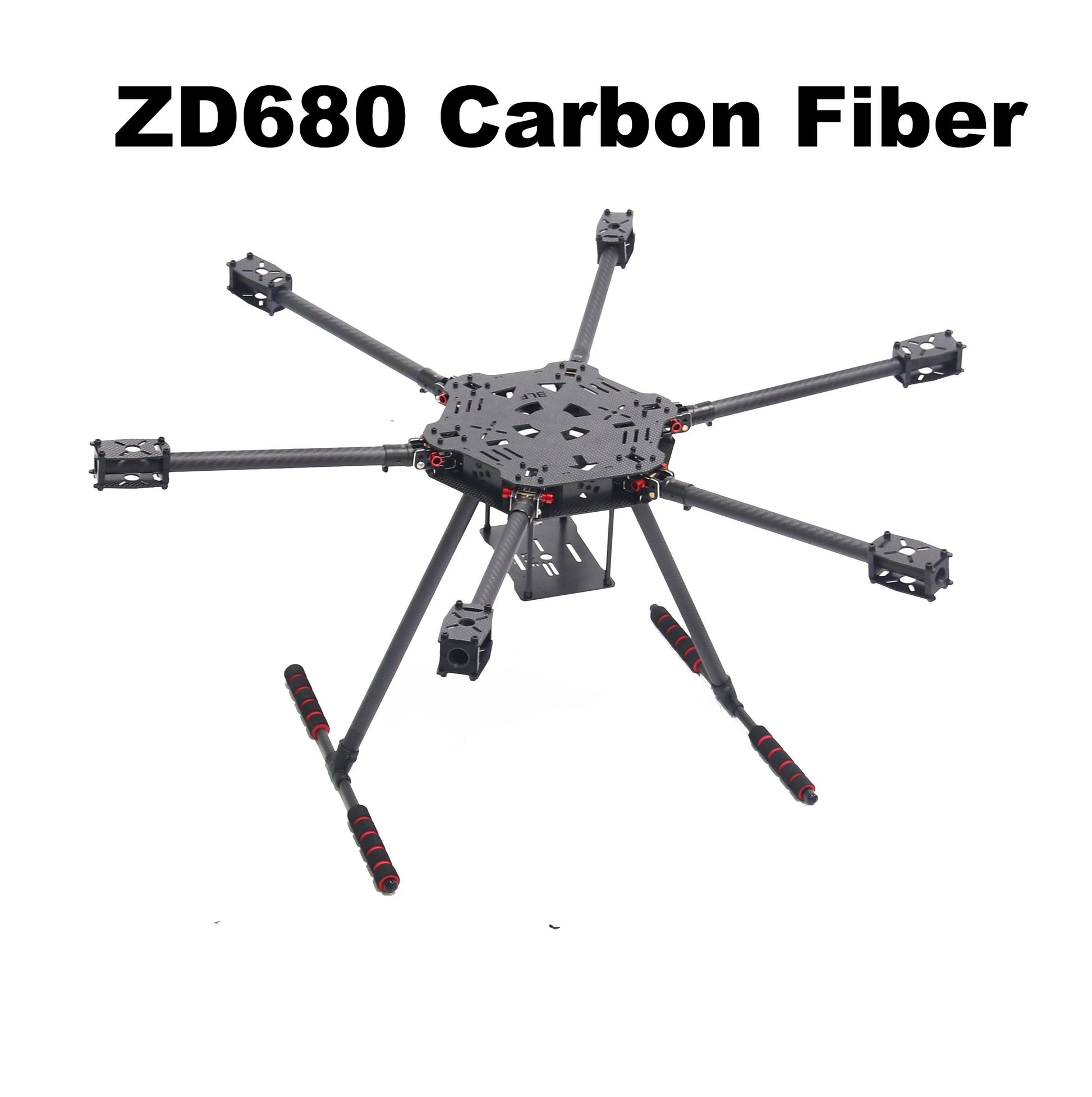

ZD680 Full Carbon Fiber Hexa-Rotor Frame Kit Hexacopter Frame Kit with Unflodable Landing Gear for FPV

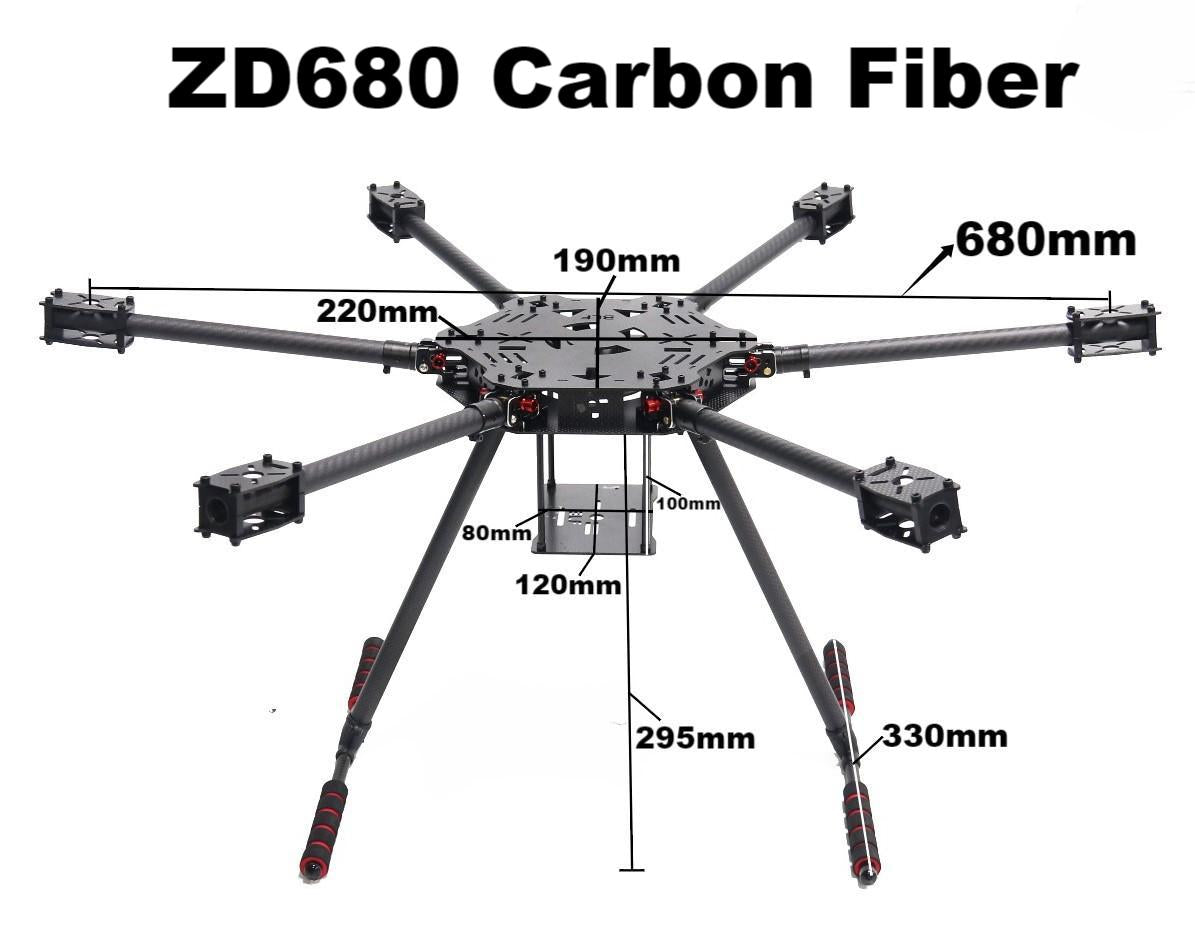

Parameters:
- Diagonal wheelbase:
- Weight: about 1210 g
- Material: full carbon fiber

ZD680 Package can lift 2KG

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller

Features:
Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;

Specifications:

Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface

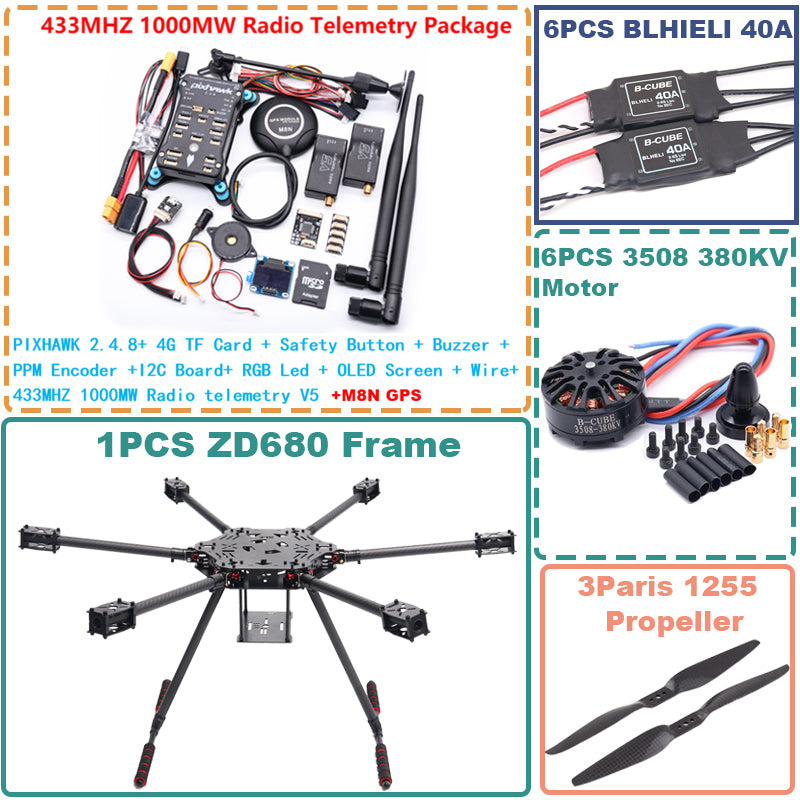

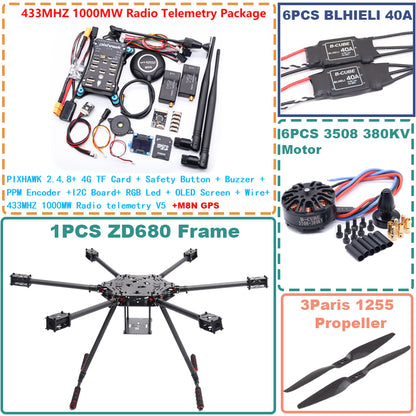

Package include:

ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+

3 Pairs 3K Carbon Fiber Propeller 1255  + 6 PCS 3508 380KV Motor  +

PIXHAWK 2.4.8 Flight Control + 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+  3DR Power Module+ Shock Absorber +433MHZ 1000MW 3DR Radio Telemetry V5
ZD680 Full Carbon Fiber




PIXHAWK 2.4.8 Package:



4PCS BLHELI 40A

Features:

- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;
- Firmware was optimized specifically for disc motor, and it has a very good compatibility;
- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;
- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;
- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);
- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;
- Ultra-low resistance MOSFET, strong flow capacity.

 3508 380KV Motor

Brand:B-CUBE

Color Classification: Black Motor Technical Parameters:

  • KV Value: KV380
  • Model: MX3508
  • Motor Diameter: 42mm
  • Motor Length (No Shaft): 24mm
  • Stator Diameter: 35mm
  • Stator Length: 8mm
  • Shaft Diameter: 4mm
  • Weight: 90g
  • Recommended Battery: 3-6 Cells
  • Idle Current: 0.3A
  • Top Mounting Hole: 12mm x 12mm
  • Bottom Mounting Hole: 25mm x 25mm

Suitable for:

  • Quadcopters
  • Hexacopters
  • Octocopters
  • Agricultural drones (plant protection machines)

Regarding Dynamic Balance:

We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.

Note: No 3-socket pad is provided. Please refer to the diagram for specific components.

MX3508 Motor Features:

  • Flat design
  • Multiple slot extreme outer brushless motor
  • High torque and efficiency
  • Competitive price
  • Compatible with most market-leading drone frames (with multiple mounting holes)
  • Aesthetically pleasing design

Propeller Installation:

We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.

Motor Dynamic Test Results:

Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.

Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.

OLED Module can display some message.



3 Pairs T-Motor 3K Carbon Fiber Propeller 1255


The new T-motor propeller-type aerial dedicated full carbon paddle paddle-type three-hole installation
Using carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.
