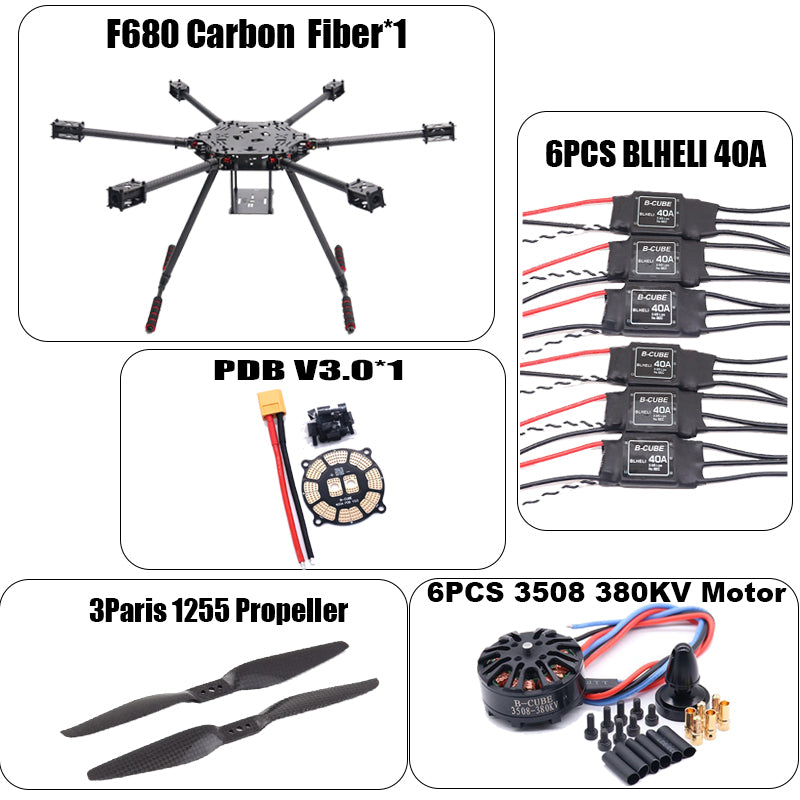

Carbon Fiber 680 Frame Kit:
ZD680 Full Carbon Fiber Frame + 6 pcs BLHELI 40A Brushless ESC+
3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 380KV Motor + PDB V3.0

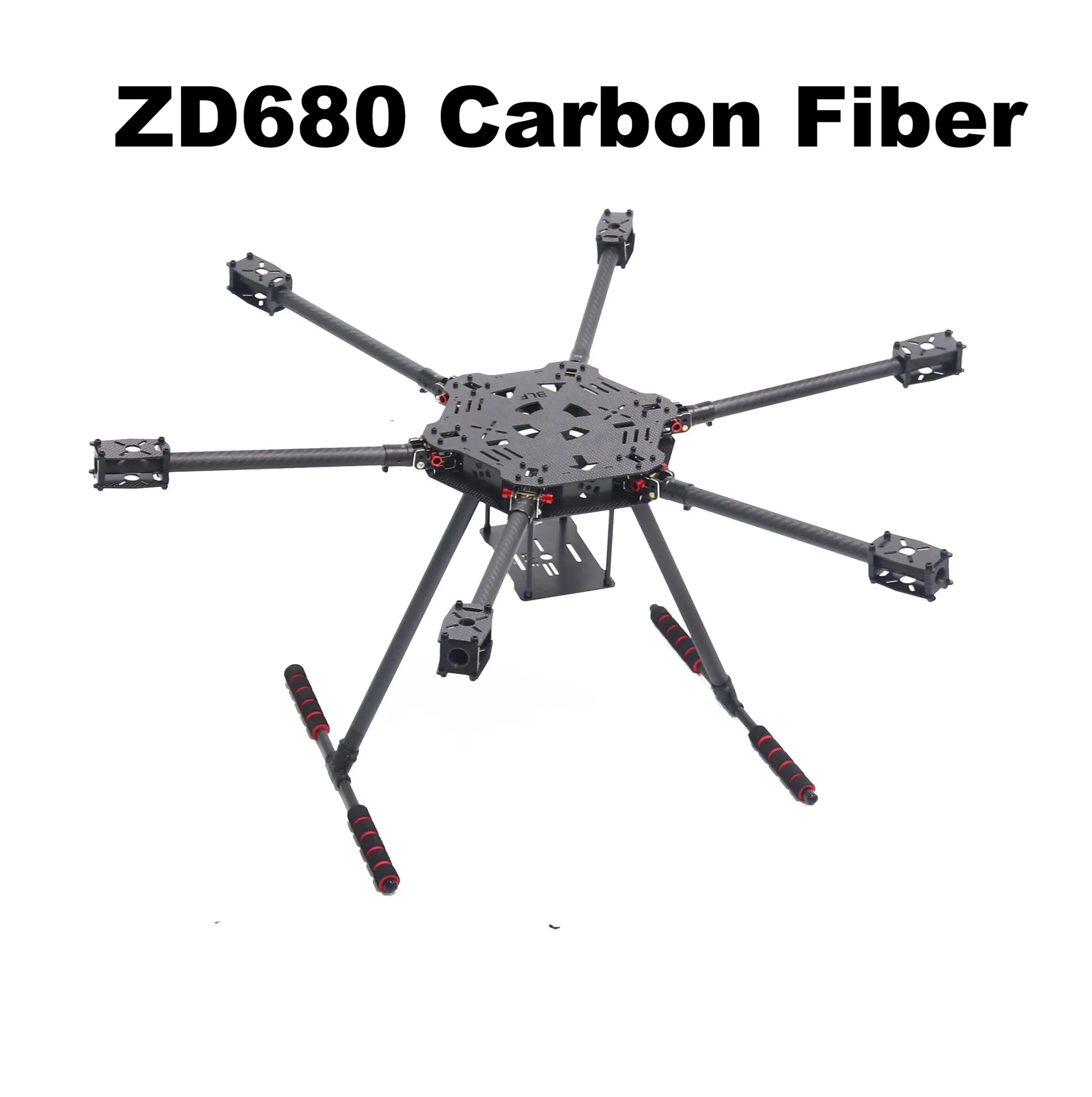

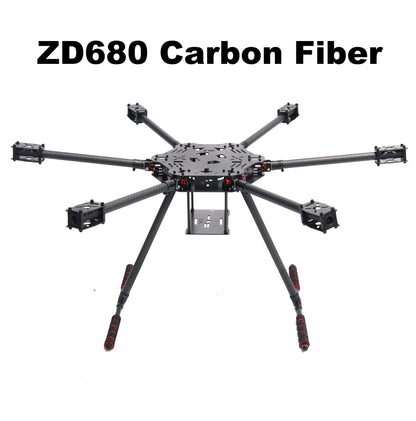

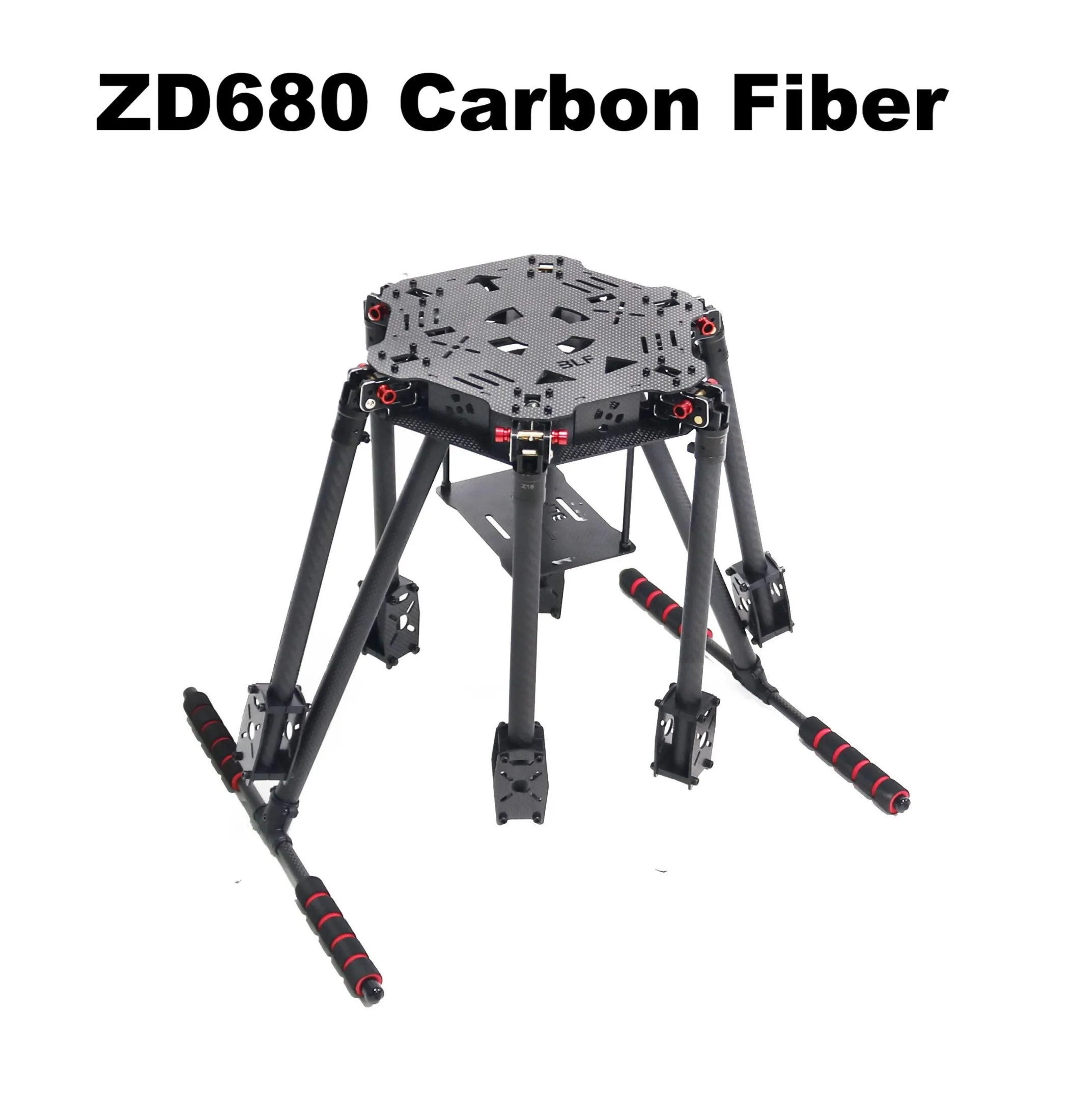

F680 Full Carbon Fiber Hexacopter Frame Kit - Ideal for FPV Enthusiasts
Built from premium full carbon fiber, the F680 hexacopter frame kit weighs just 1210g, delivering a lightweight yet robust foundation for FPV adventures. With foldable landing gear, it’s designed for portability and convenience.

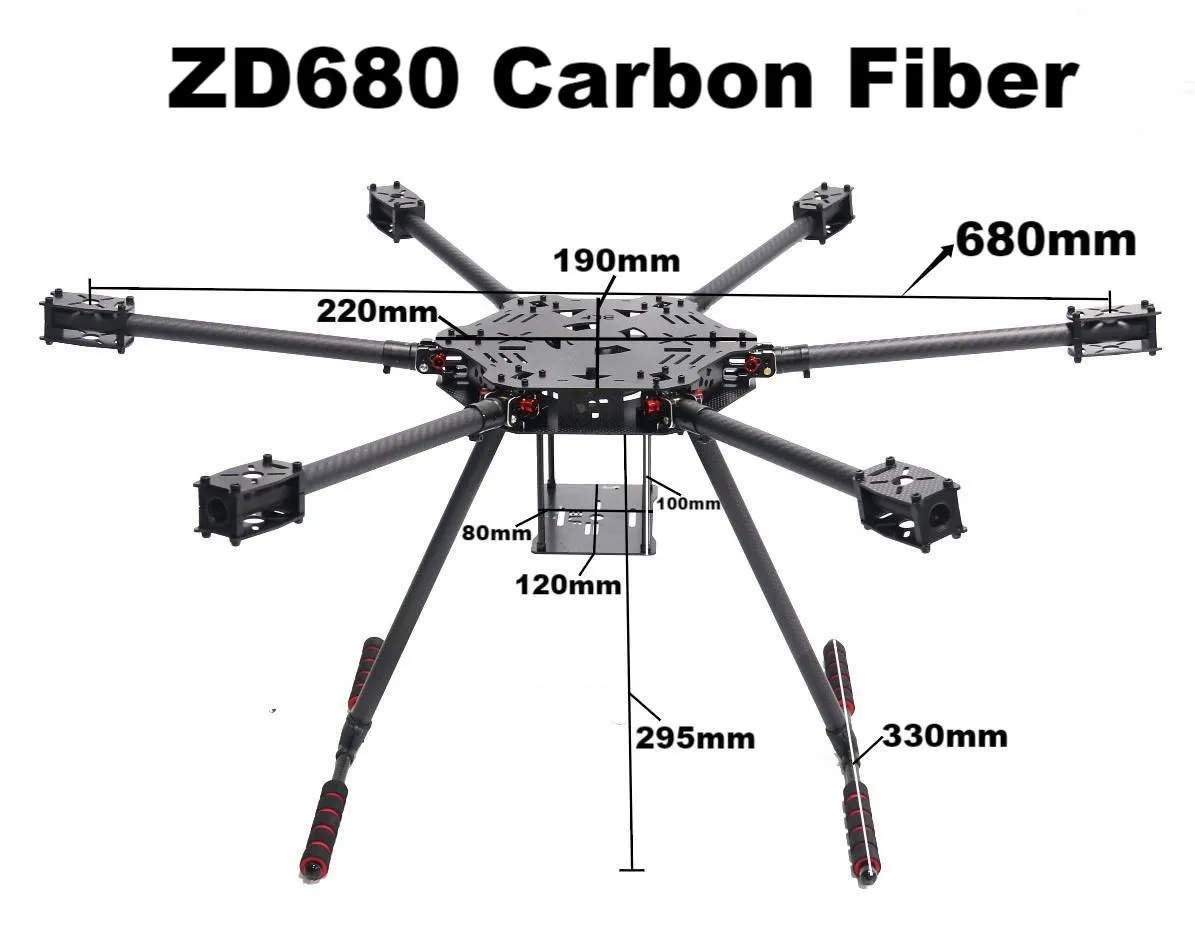

Specifications:
Diagonal Wheelbase: 680mm

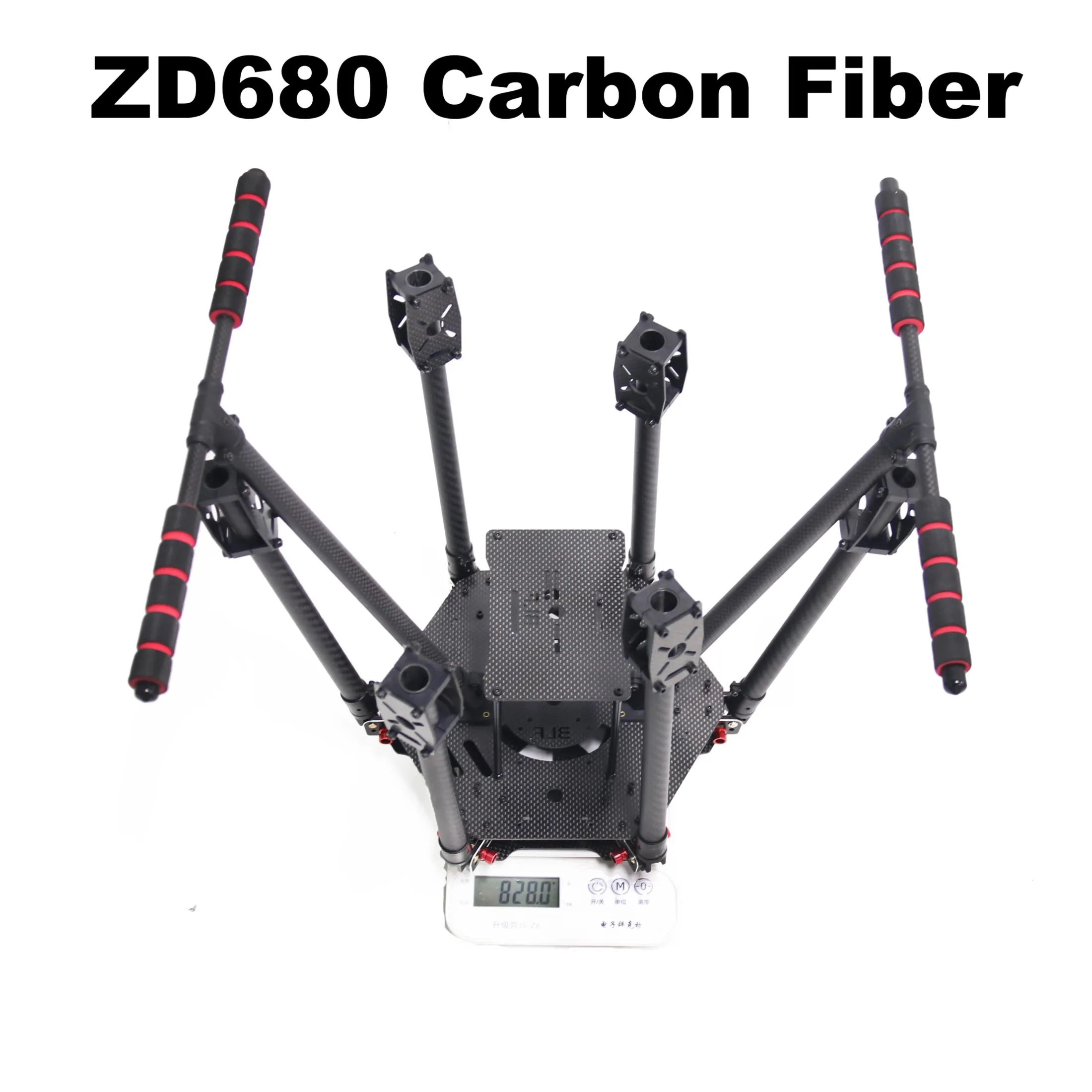

Weight: ~1210g
Material: Full Carbon Fiber
Recommended Setup:
Motors: 3508 380KV
ESCs: 40A
Propellers: 12-inch (1255)
Battery: 4S-6S
Flight Controller: PIXHAWK This combo ensures powerful performance and precise control for any flight style.
Whether you’re capturing stunning aerial footage or racing through FPV courses, the F680 is your perfect DIY hexacopter base. Order now and elevate your flying game!
Package Includes:

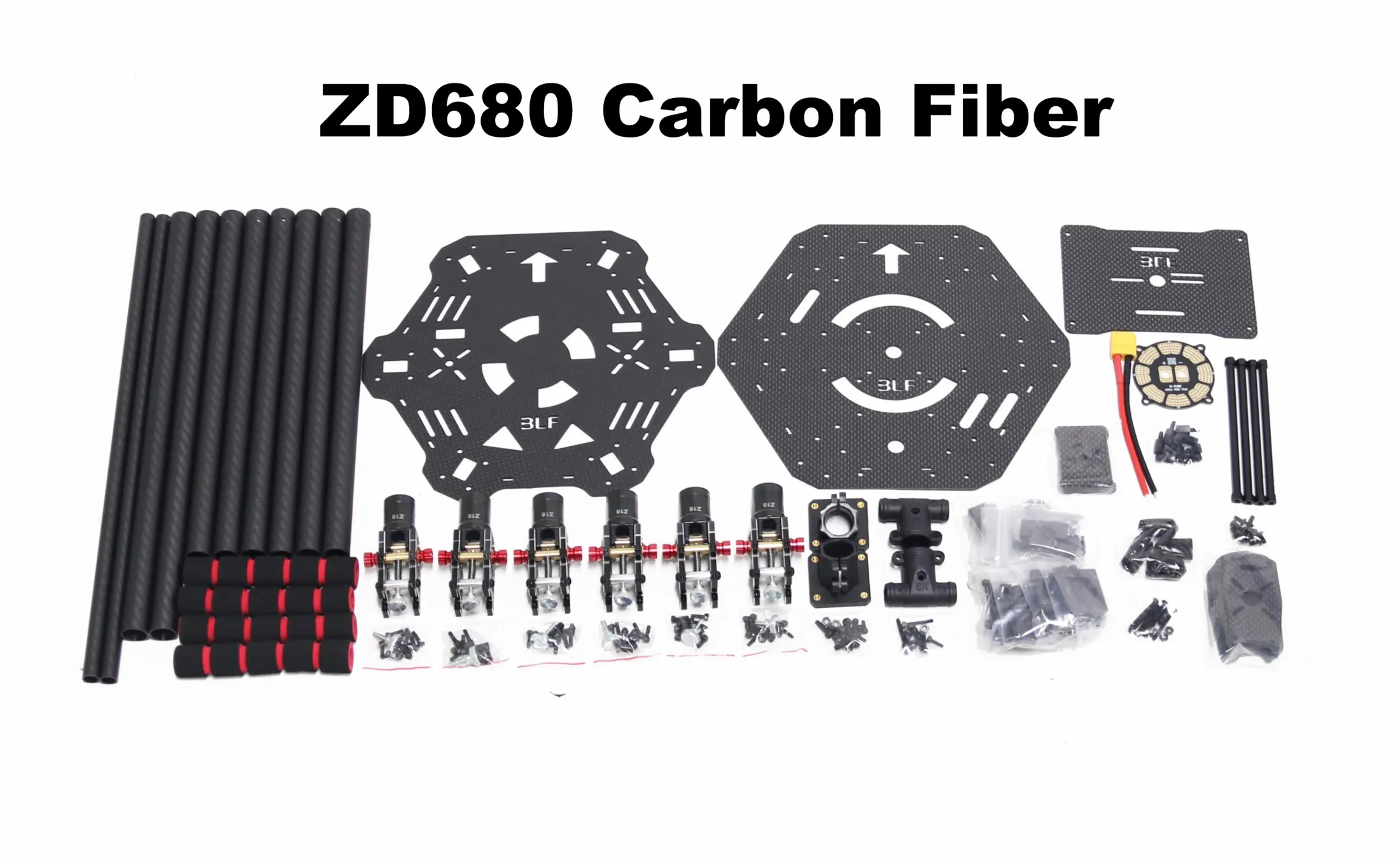

1 Unassembled F680 Full Carbon Fiber Frame

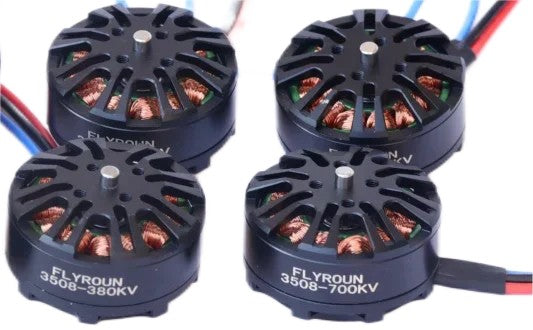

3508 380KV Motor
Color Classification:Black Motor Technical Parameters:
- KV Value:KV380
- Model:MX3508
- Motor Diameter:42mm
- Motor Length (No Shaft):24mm
- Stator Diameter:35mm
- Stator Length:8mm
- Shaft Diameter:4mm
- Weight:90g
- Recommended Battery:3-6 Cells
- Idle Current:0.3A
- Top Mounting Hole:12mm x 12mm
- Bottom Mounting Hole:25mm x 25mm
Suitable for:
- Quadcopters
- Hexacopters
- Octocopters
- Agricultural drones (plant protection machines)
Regarding Dynamic Balance:
We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.
Note:No 3-socket pad is provided. Please refer to the diagram for specific components.
MX3508 Motor Features:
-
Flat design
-
Multiple slot extreme outer brushless motor
- High torque and efficiency
- Competitive price
- Compatible with most market-leading drone frames (with multiple mounting holes)
- Aesthetically pleasing design
Propeller Installation:
We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.
Motor Dynamic Test Results:
Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.

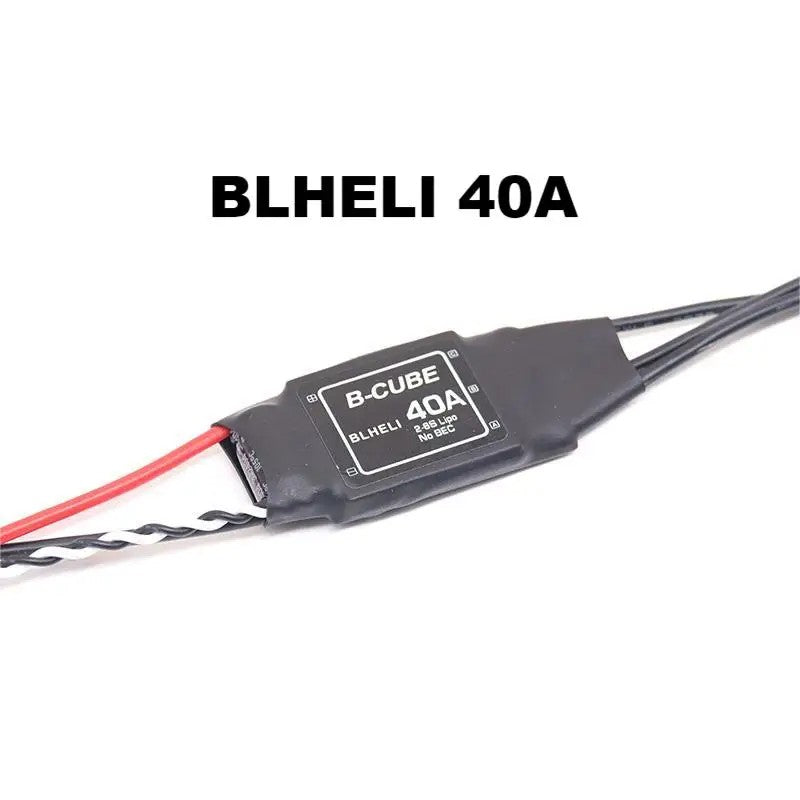

Features:
- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;
- Firmware was optimized specifically for disc motor, and it has a very good compatibility;
- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;
- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;
- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);
- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;
- Ultra-low resistance MOSFET, strong flow capacity.

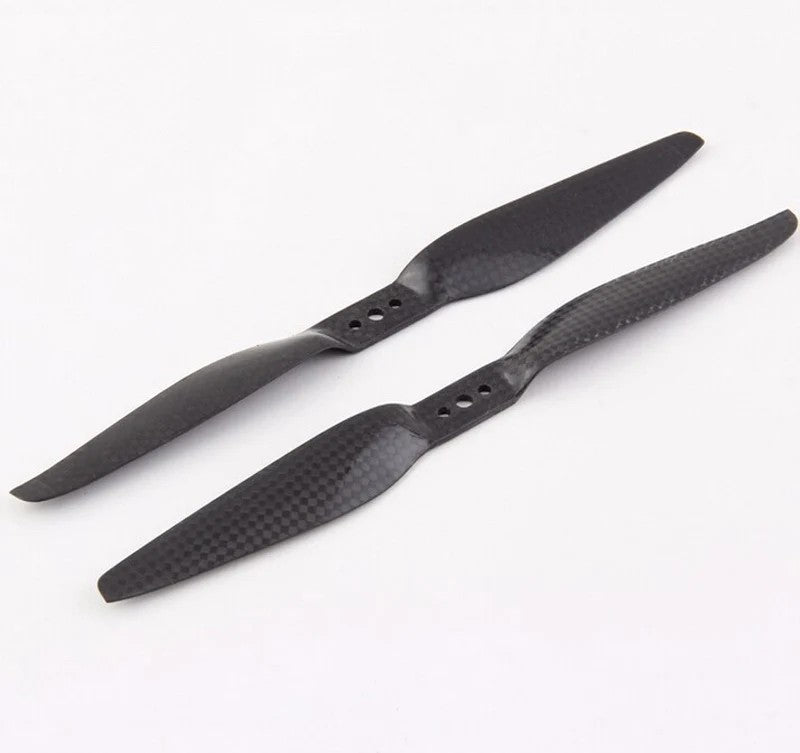

3 Pairs T-Motor 3K Carbon Fiber Propeller 1255

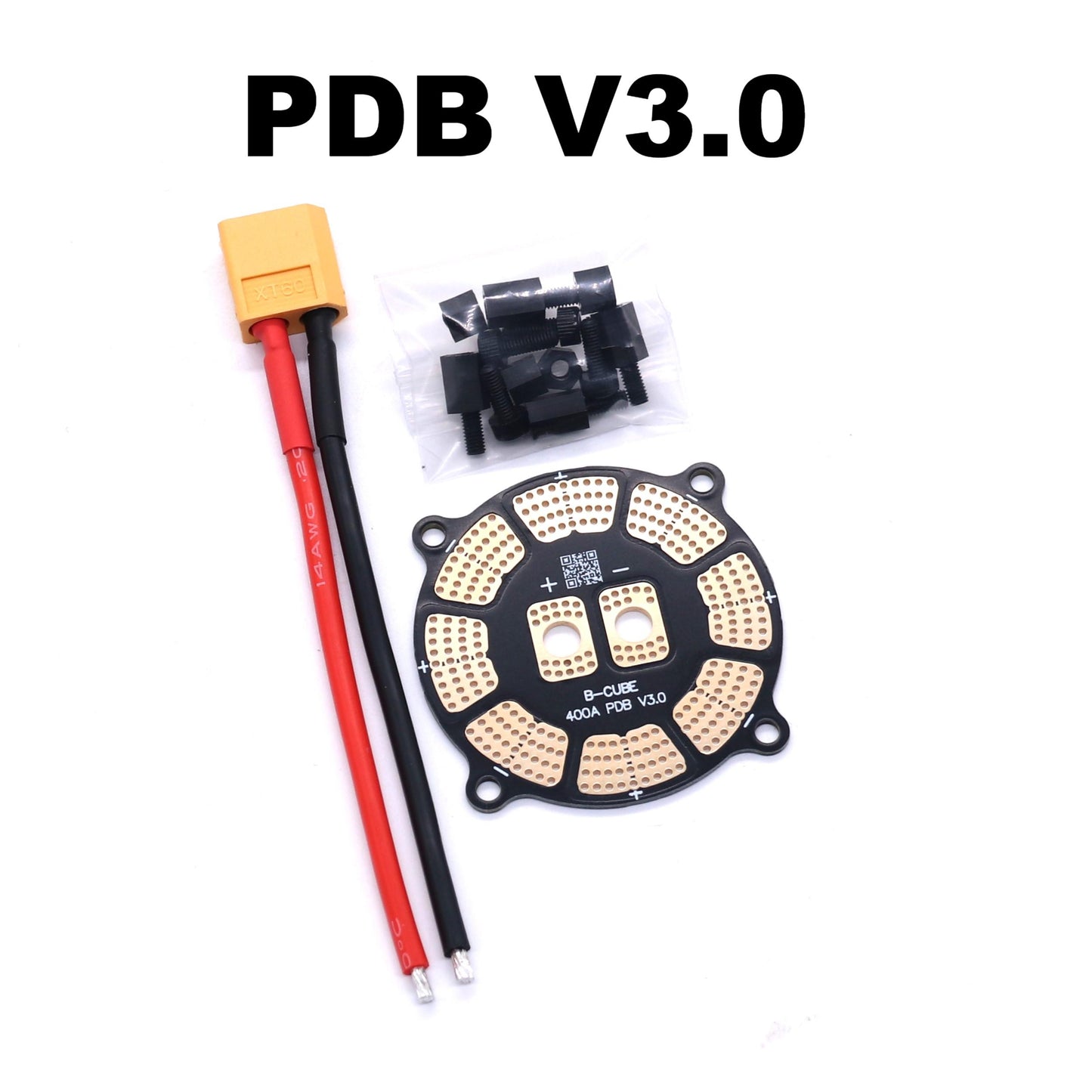

PDB V3.0
