PIXHAWK 6C PRO

The Pixhawk® 6C PRO is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk® 6C PRO's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

The Pixhawk 6C PRO includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.

The Pixhawk® 6C PRO is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.

Key Design Points

High performance STM32H743 Processor with more computing power & RAM

Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case

New cost-effective design with low-profile form factor

Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings

IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

Technical Specification

Processors & Sensors

FMU Processor: STM32H743
32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM

IO Processor: STM32F103
32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

On-board sensors

Accel/Gyro: ICM-42688-P

Accel/Gyro: BMI055

Mag: IST8310

Barometer: MS5611

Electrical data

Voltage Ratings:

Max input voltage: 6V

USB Power Input: 4.75~5.25V

Servo Rail Input: 0~36V

Current Ratings:

TELEM1 Max output current limiter: 1.5A

All other port combined output current limiter: 1.5A

Mechanical data

Dimensions: 85 * 45 * 10 mm

Weight (Plastic Case) : 33g

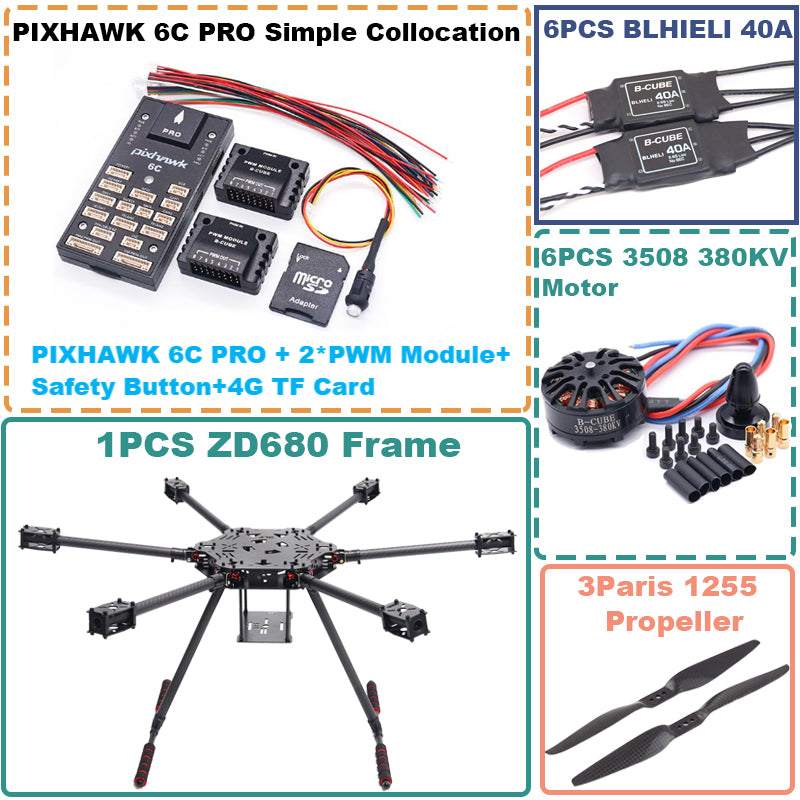

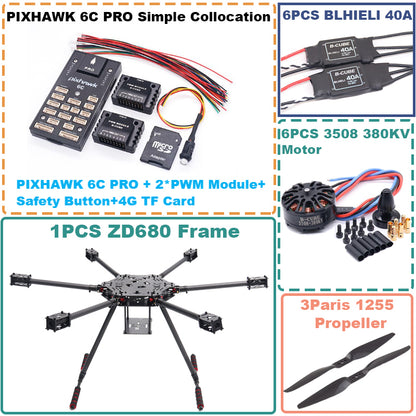

Simple Collocation:

PIXHAWK 6C PRO+2*PWM ModuIe+Safety Button+4G TF Card

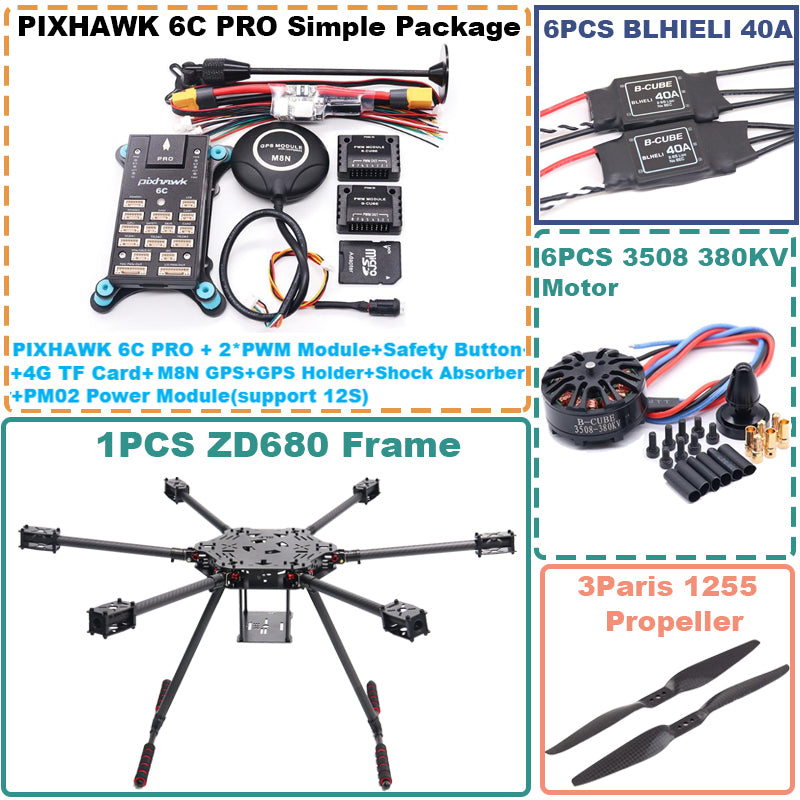

Simple Package:

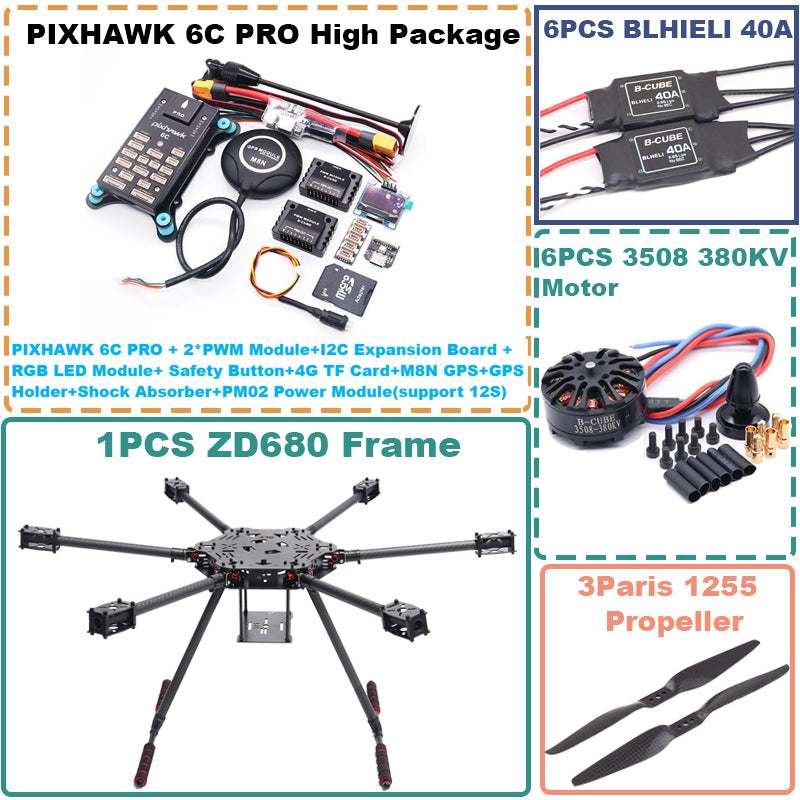

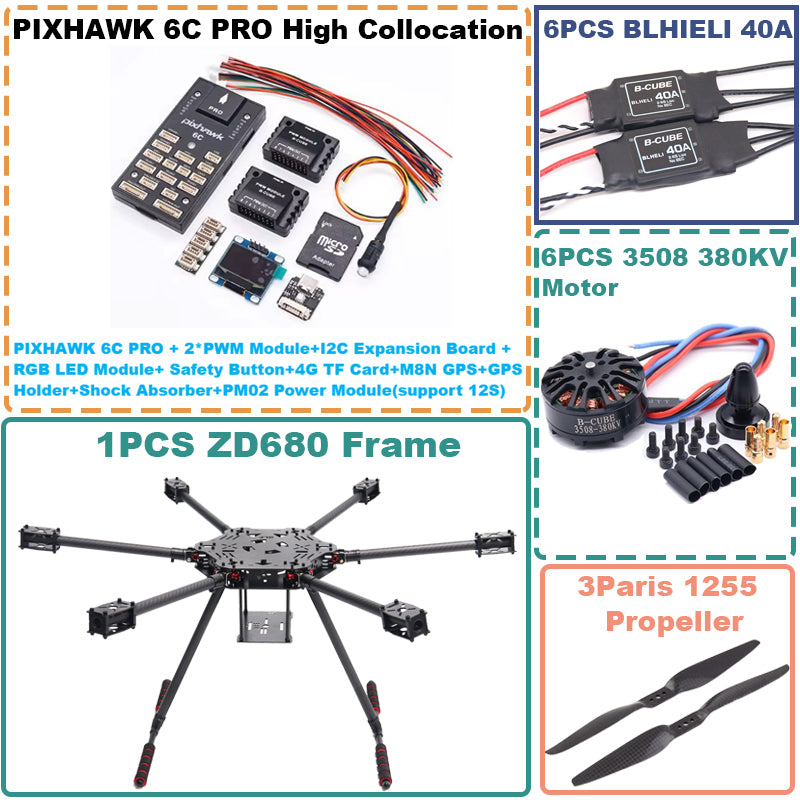

High Package:

PIXHAWK 6C PRO+2*PWM Module+I2C Expansion Board +RGB LED Module+ Safety Button+4G TF Card+M8N GPS+GPS Holder+Shock Absorber+PM02 Power Module(support 12S)

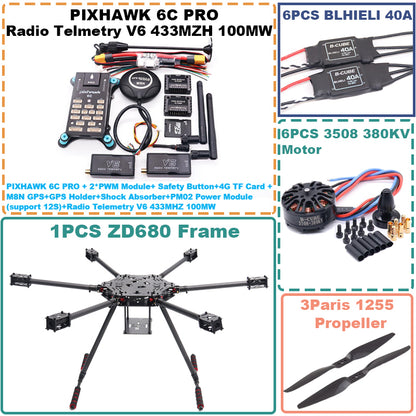

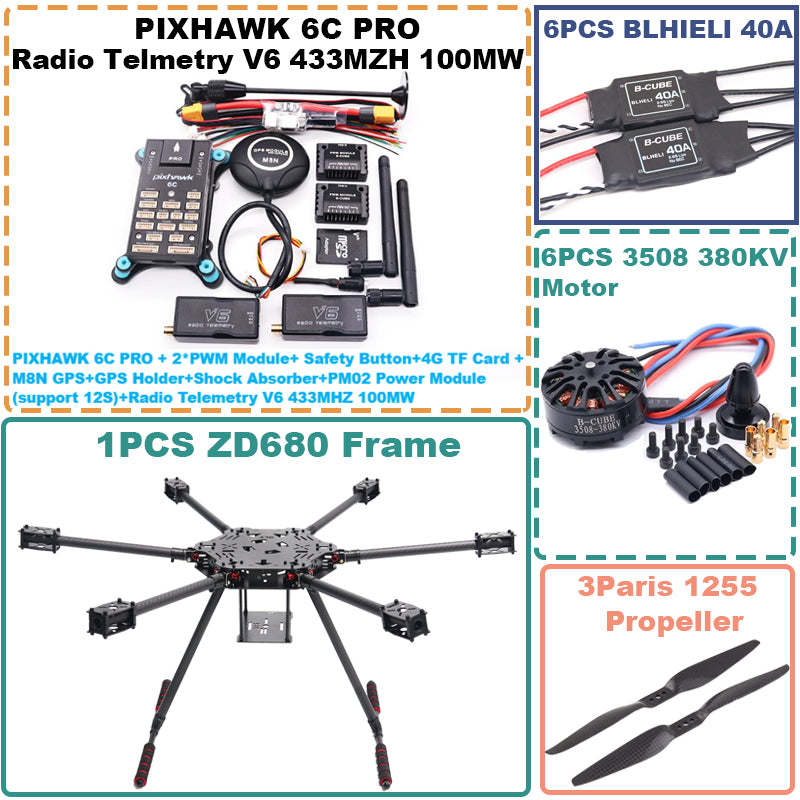

433MHZ 100MW :

PIXHAWK 6C PRO+ 2*PWM Module+ Safety Button+4G TF Card M8N GPS+GPS Holder+Shock Absorber+PM02 Power Module (support 12S)+Radio Telemetry V6 433MHZ 100MW

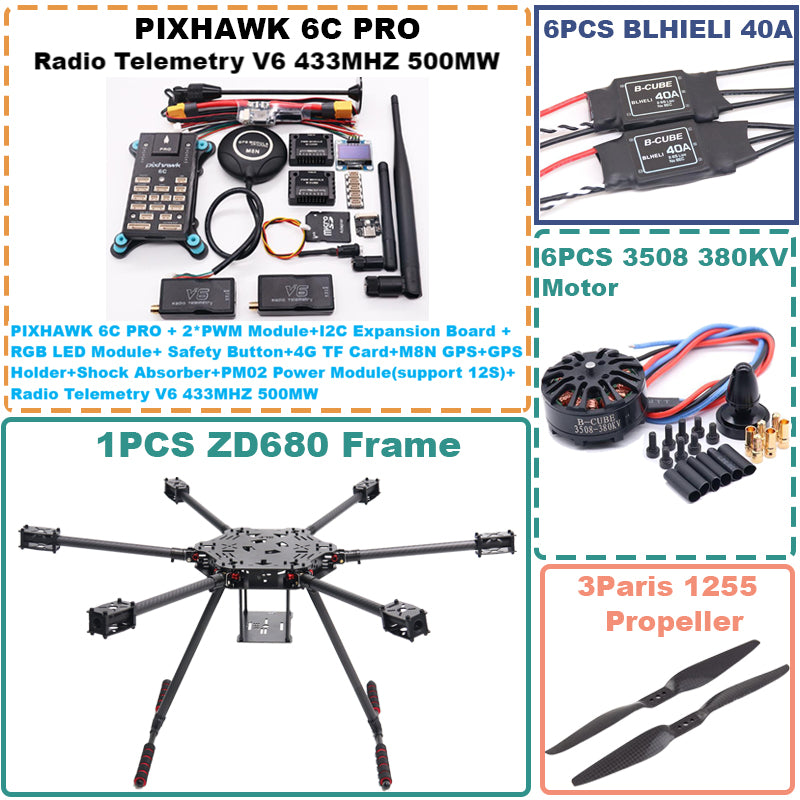

433MHZ 500MW :

PIXHAWK 6C PRO+ 2*PWM Module+ Safety Button+4G TF Card M8N GPS+GPS Holder+Shock Absorber+PM02 Power Module (support 12S)+Radio Telemetry V6 433MHZ 500MW

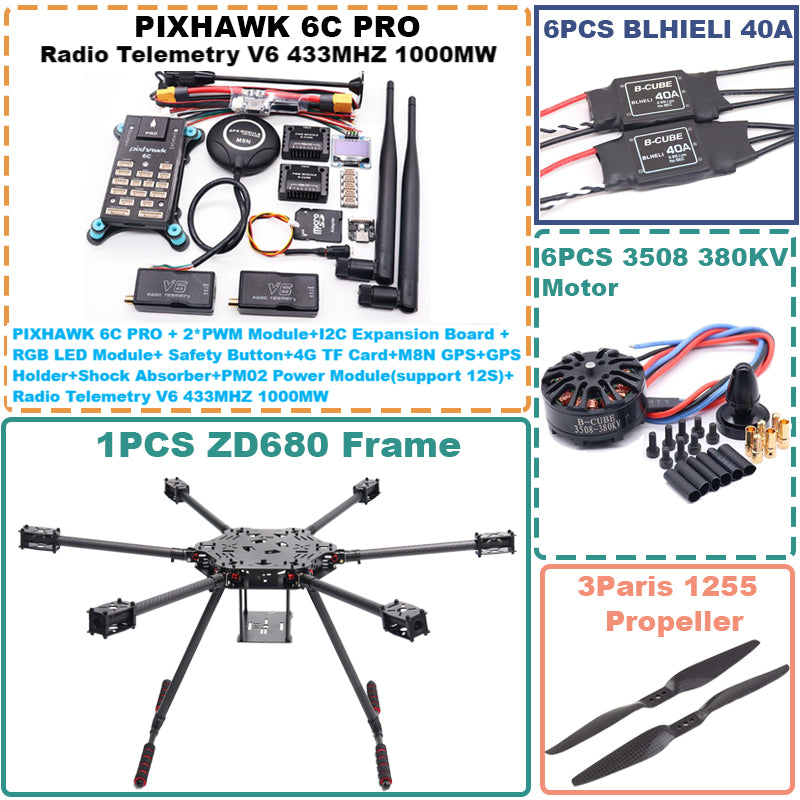

433MHZ 1000MW :

PIXHAWK 6C PRO+ 2*PWM Module+ Safety Button+4G TF Card M8N GPS+GPS Holder+Shock Absorber+PM02 Power Module (support 12S)+Radio Telemetry V6 433MHZ 1000MW

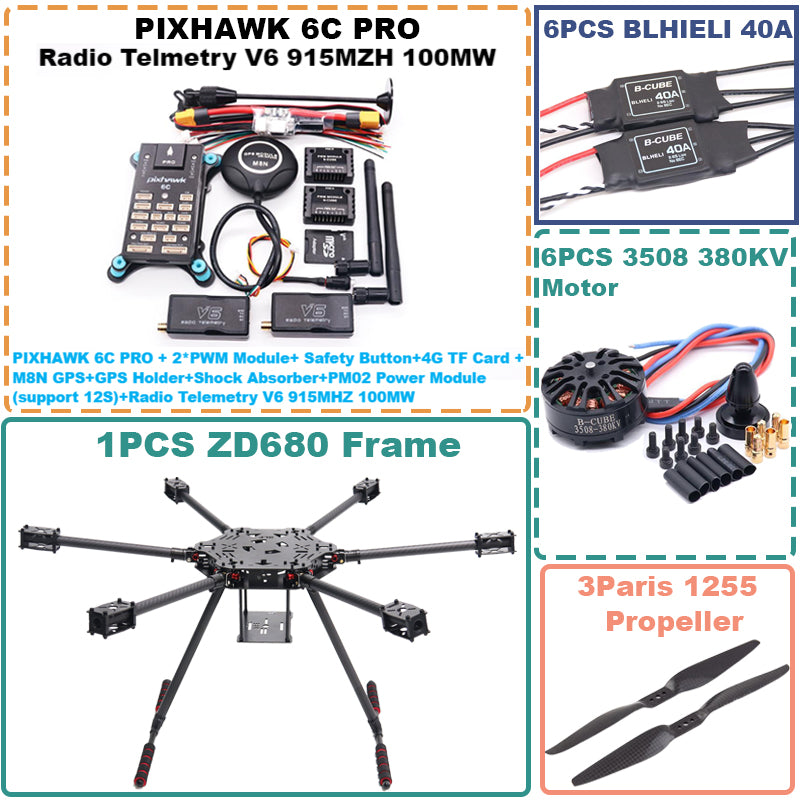

915MHZ 100MW :

PIXHAWK 6C PRO+ 2*PWM Module+ Safety Button+4G TF Card M8N GPS+GPS Holder+Shock Absorber+PM02 Power Module (support 12S)+Radio Telemetry V6 915MHZ 100MW

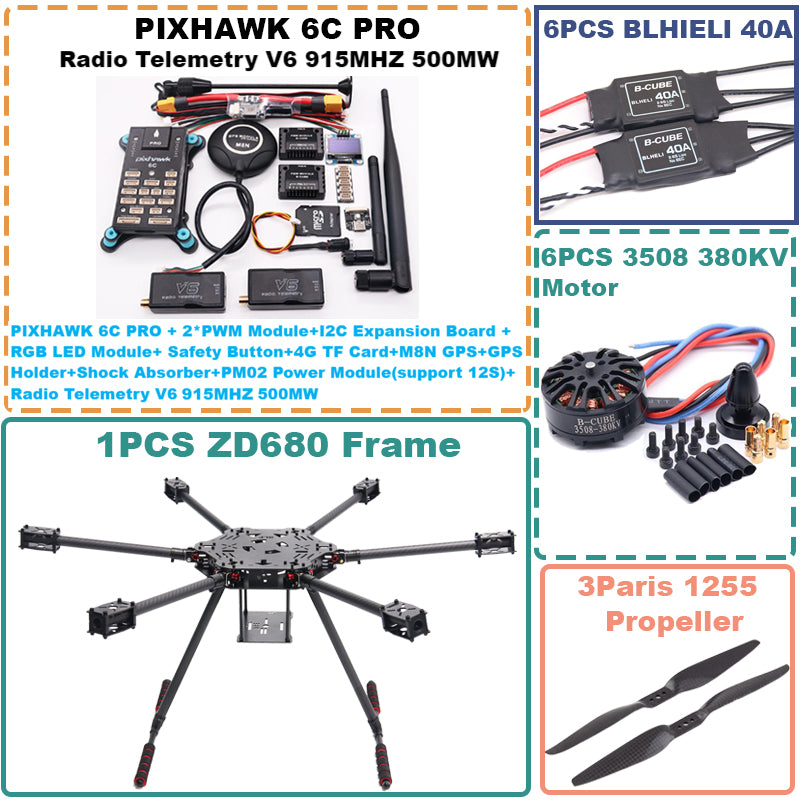

915MHZ 500MW :

PIXHAWK 6C PRO+ 2*PWM Module+ Safety Button+4G TF Card M8N GPS+GPS Holder+Shock Absorber+PM02 Power Module (support 12S)+Radio Telemetry V6 915MHZ 500MW

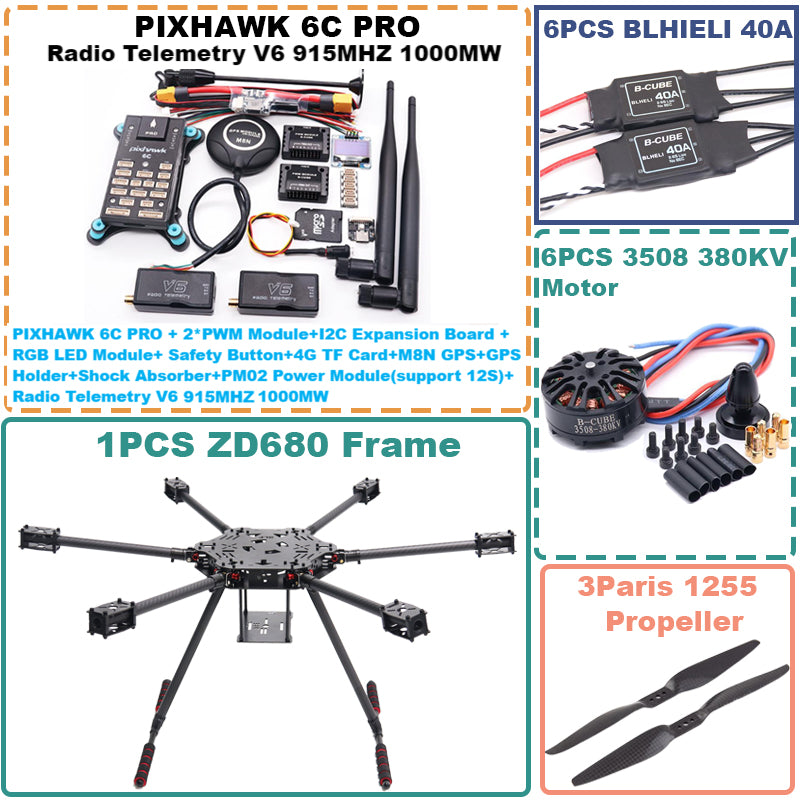

915MHZ 1000MW :

PIXHAWK 6C PRO+ 2*PWM Module+ Safety Button+4G TF Card M8N GPS+GPS Holder+Shock Absorber+PM02 Power Module (support 12S)+Radio Telemetry V6 915MHZ 1000MW

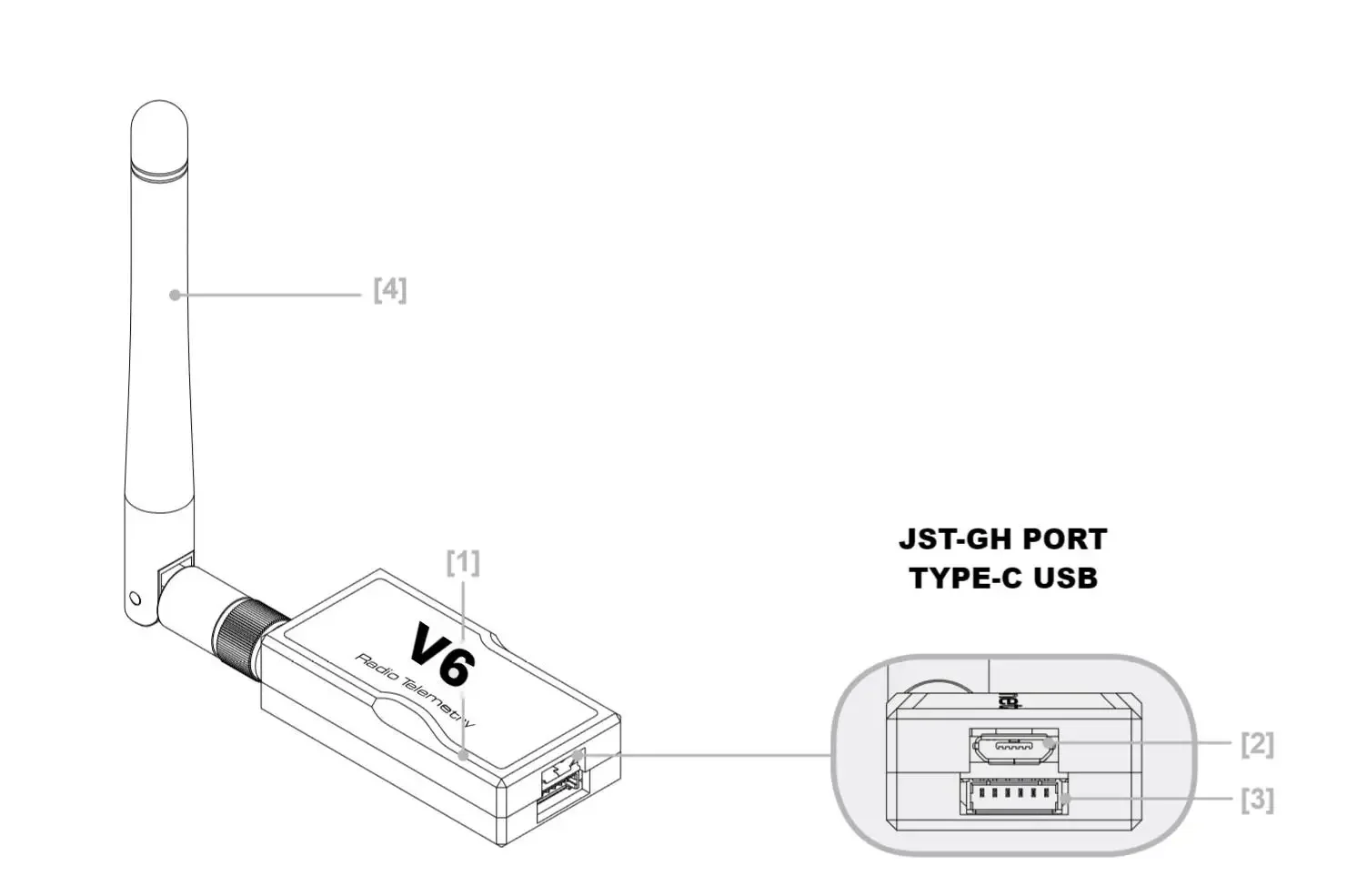

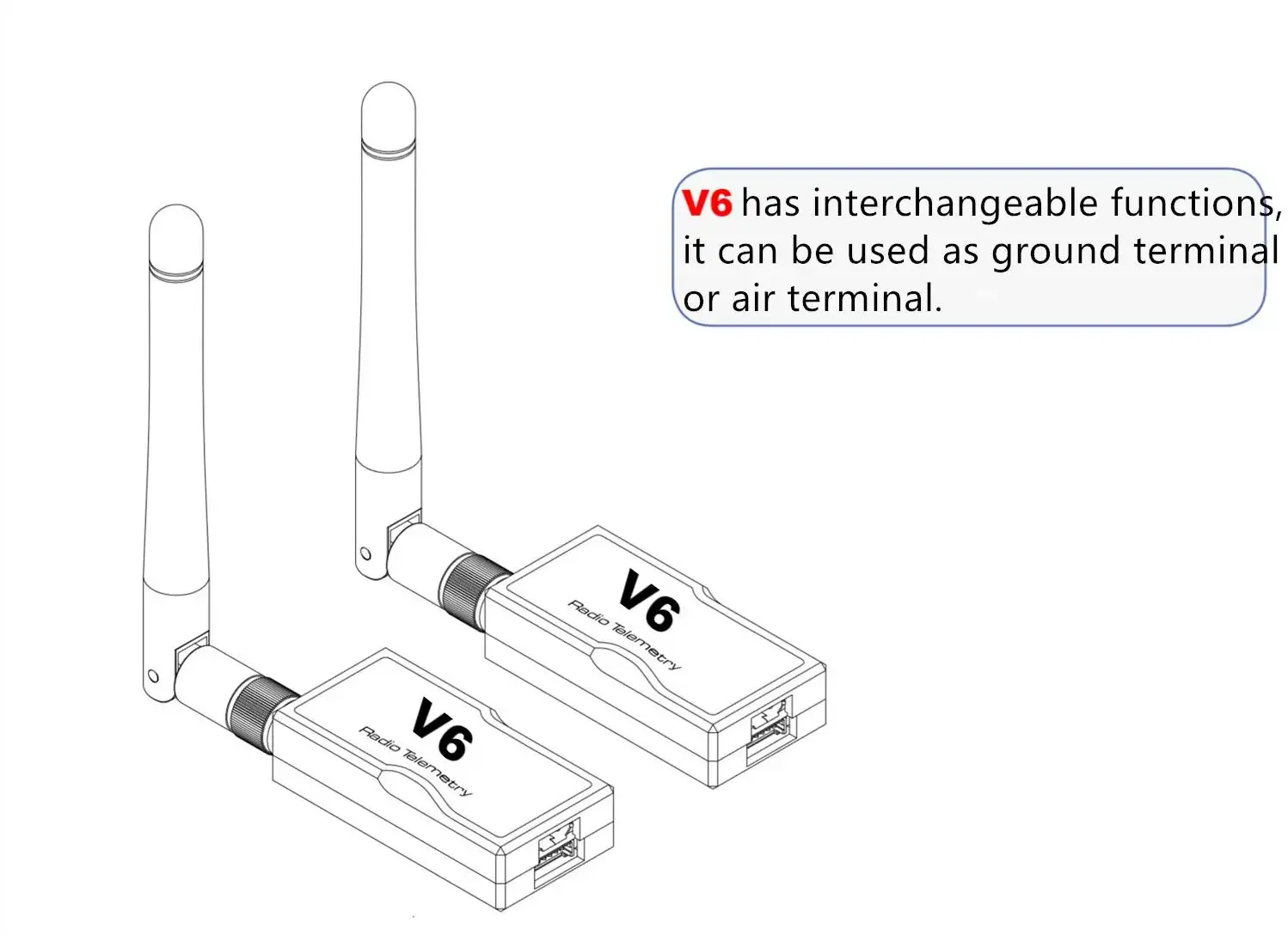

Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.
