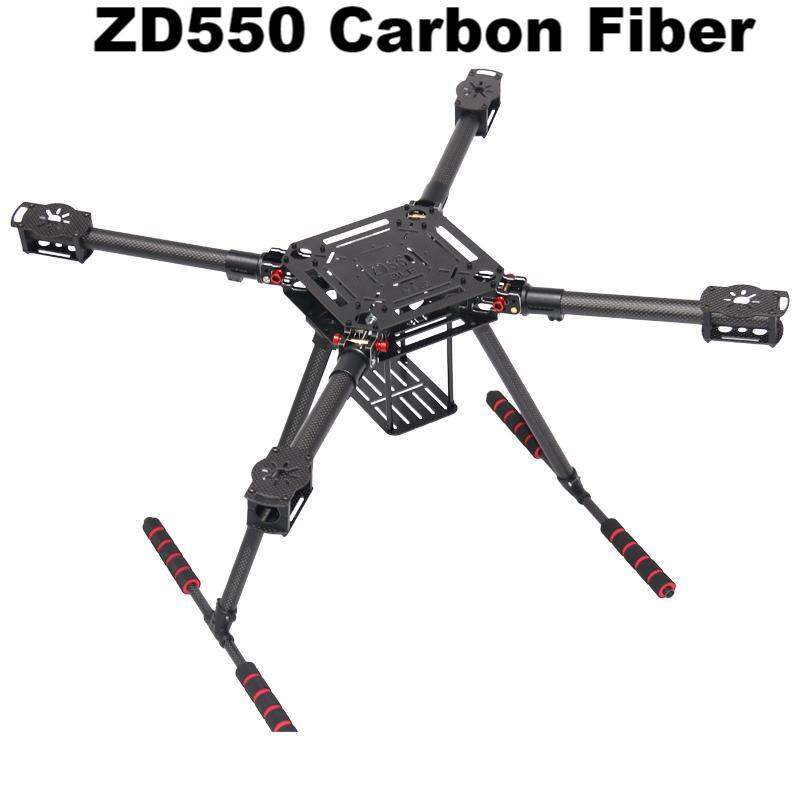

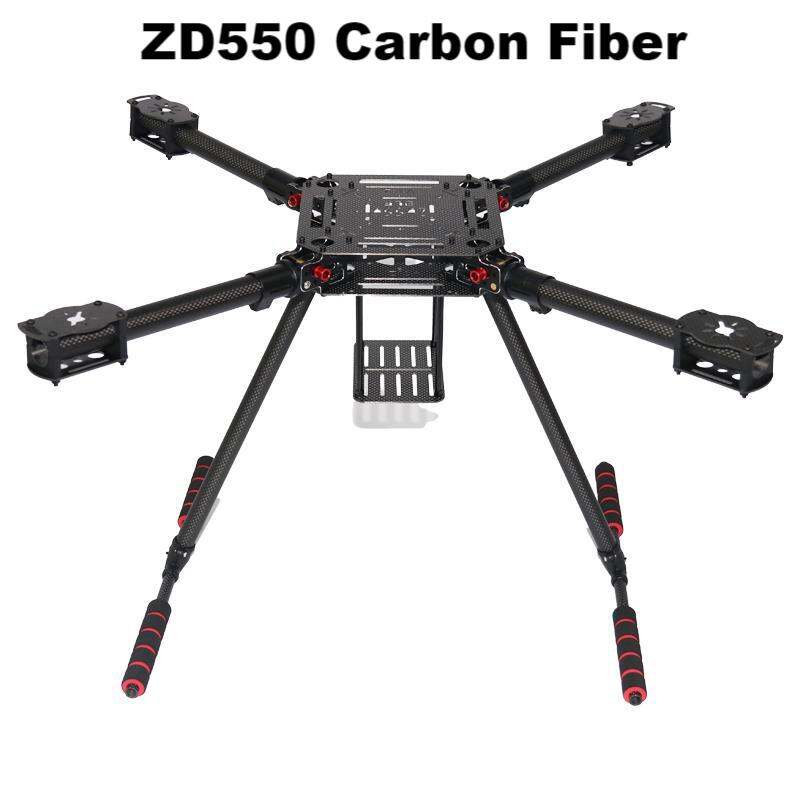

ZD550 Carbon Fiber
Parameters:

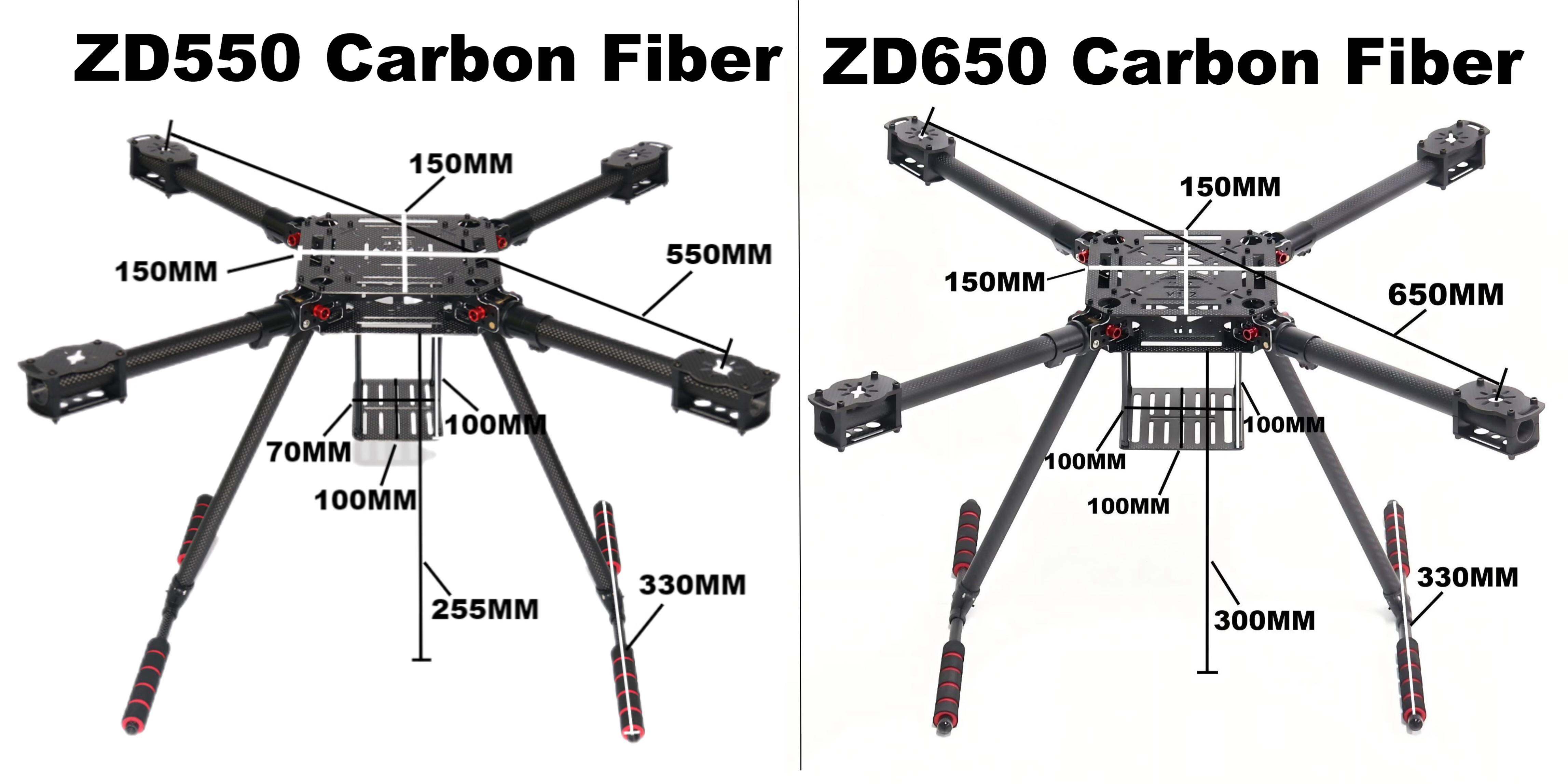

- Diagonal wheelbase: 550mm
- Landing gear height: 255mm

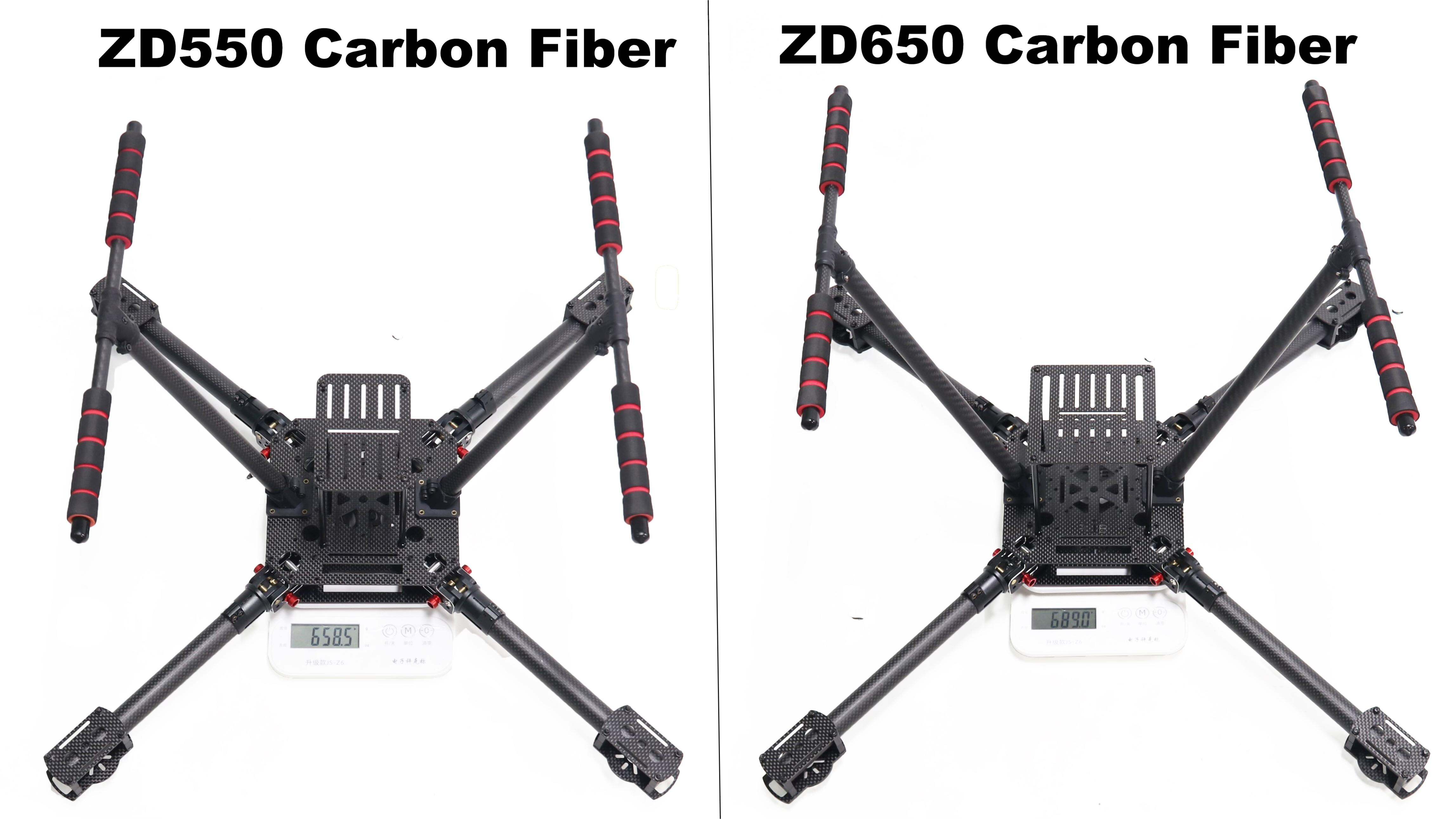

- Weight: 658 ±2 g
- Material of the main board : 3k full carbon fiber
- thickness of the main board : 1.5mm
- Arm diameter: 20MM
Recommended configuration: (Not inlcuded)
- Motor: 3508
- Prop: 12-14 inch CW CCW
- ESC: 30A(2-6s) ; 40A (2-4S)
- Flight control: APM opensource flight control
- Battery: 4-6S Lipo
Package includes:
-Carbon Fiber Quadcopter frame kits with Landing Gear x 1 (just a frmae kit, not assembled)
(note: the color of the landing gear pad is differenct because of the different prodcution batch, send the color at random)

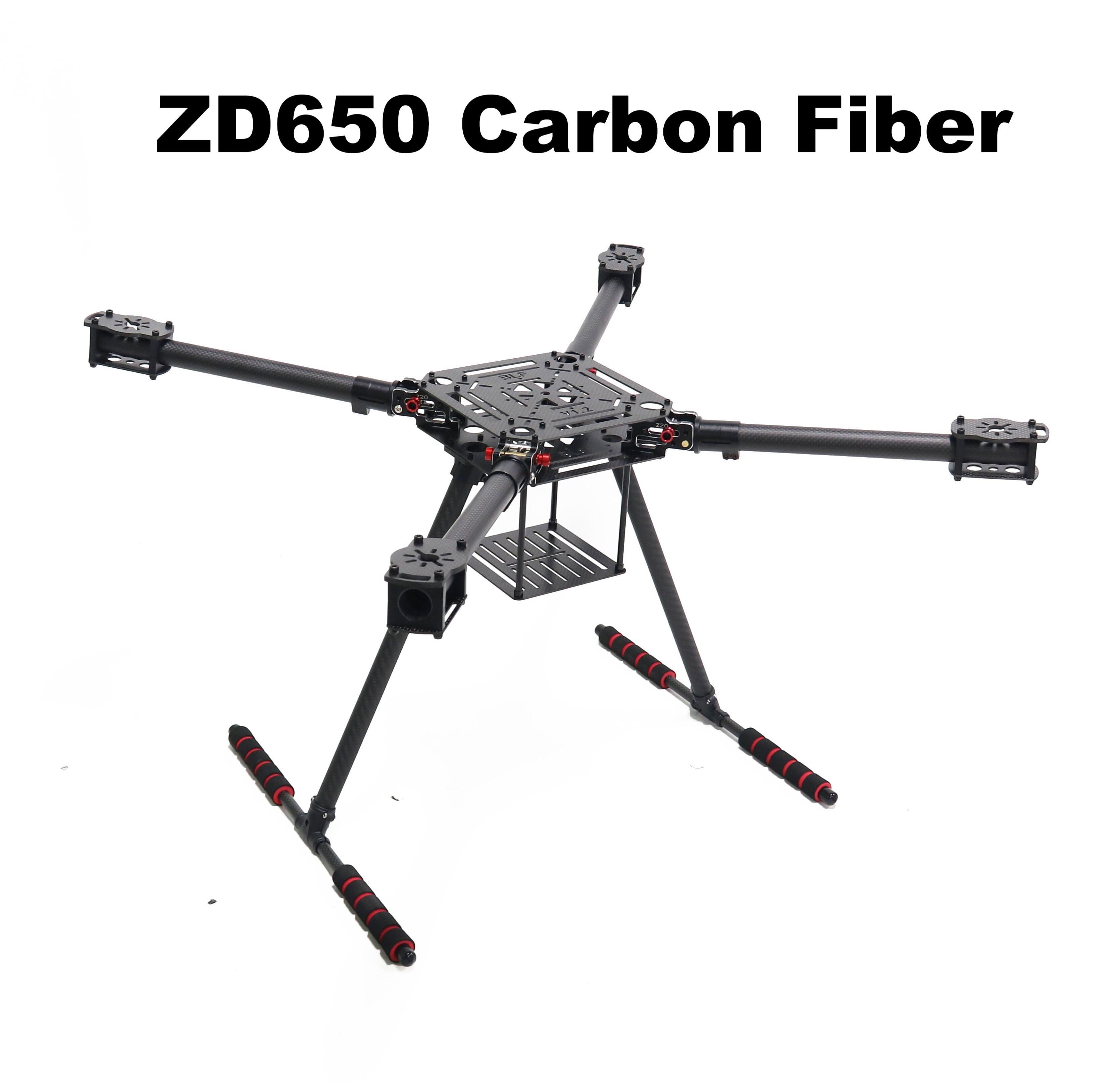

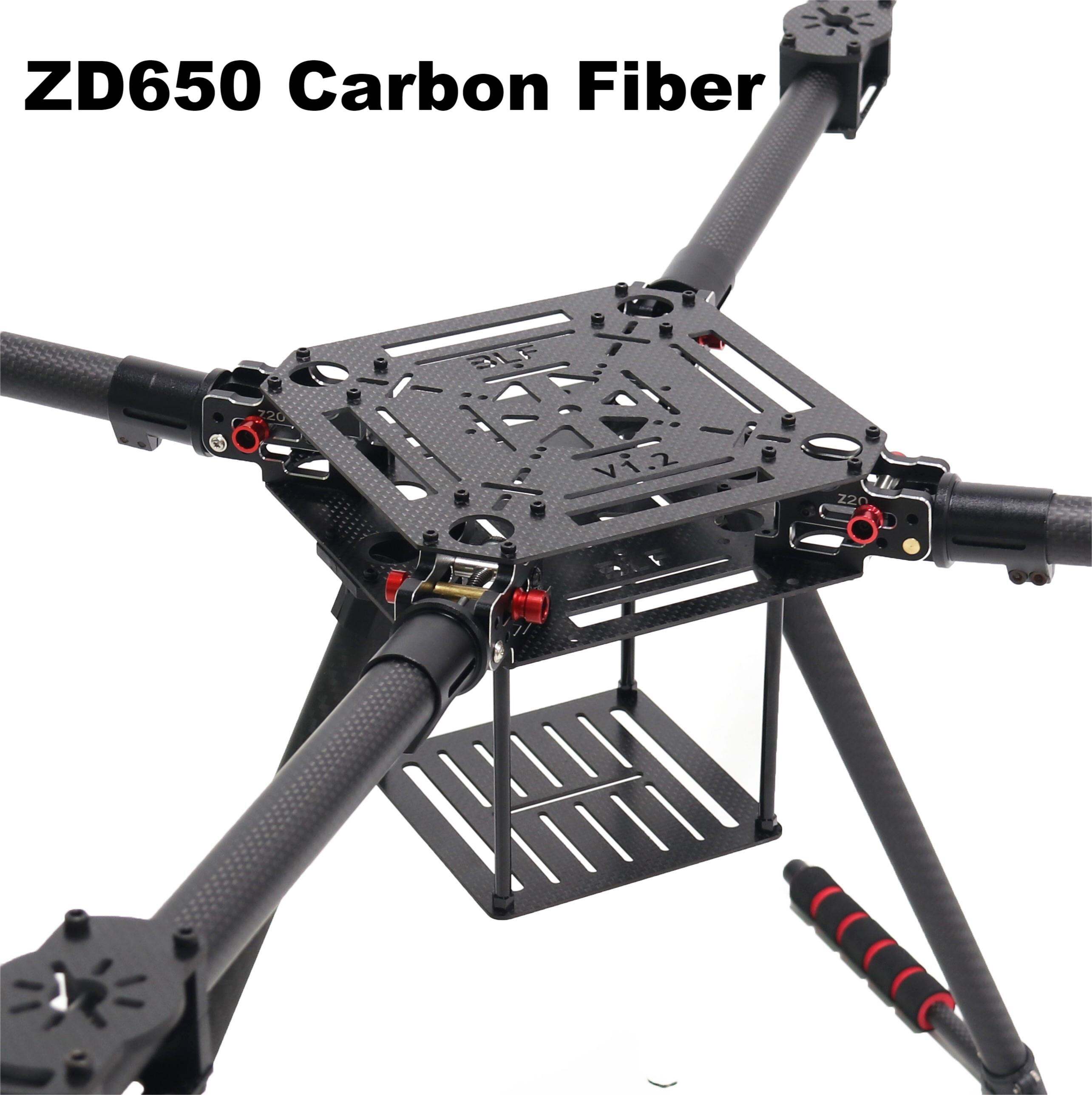

ZD650 Carbon Fiber
Parameters:
- Diagonal wheelbase: 650mm
- Landing gear height: 300mm
- Weight: 689 ±2 g
- Material of the main board : 3k full carbon fiber
- thickness of the main board : 1.5mm
- Arm diameter: 20MM
Recommended configuration: (Not inlcuded)
- Motor: 3508/D4114
- Prop: 14-16 inch CW CCW
- ESC: 40A (2-6S)
- Flight control:PIXHAWK Fightl Control
- Battery: 4-6S Lipo
Package includes:
-Carbon Fiber Quadcopter frame kits with Landing Gear x 1 (just a frmae kit, not assembled)
(note: the color of the landing gear pad is differenct because of the different prodcution batch, send the color at random)
