Carbon Fiber 650 Frame

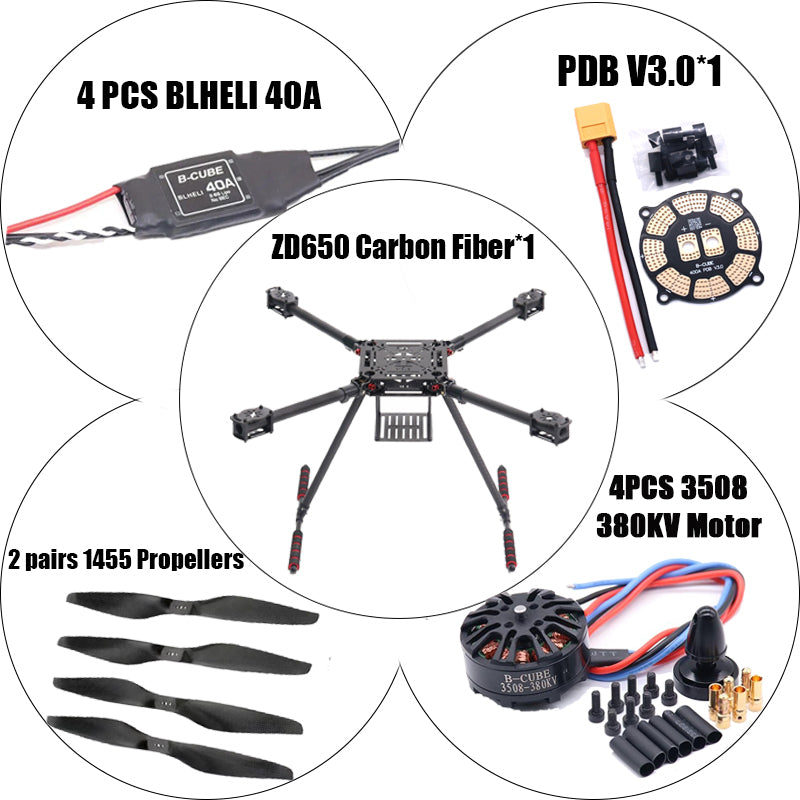

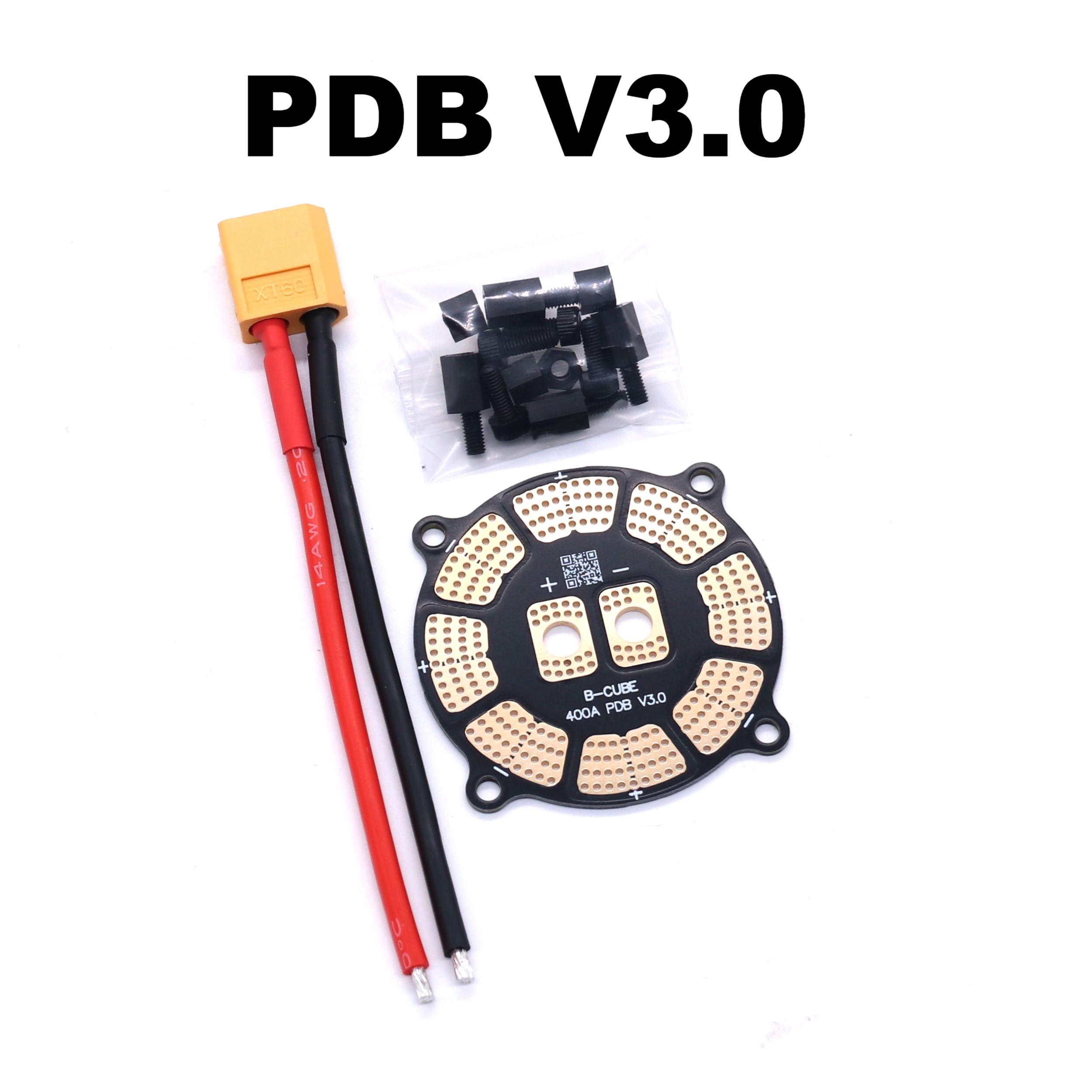

F650 Frame+ 4 PCS BLHELI 40A +2 pairs self-locking 1455 Propellers +4 PCS 3508 380KV Motor + PDB V3.0 Carbon Fiber 650 Frame

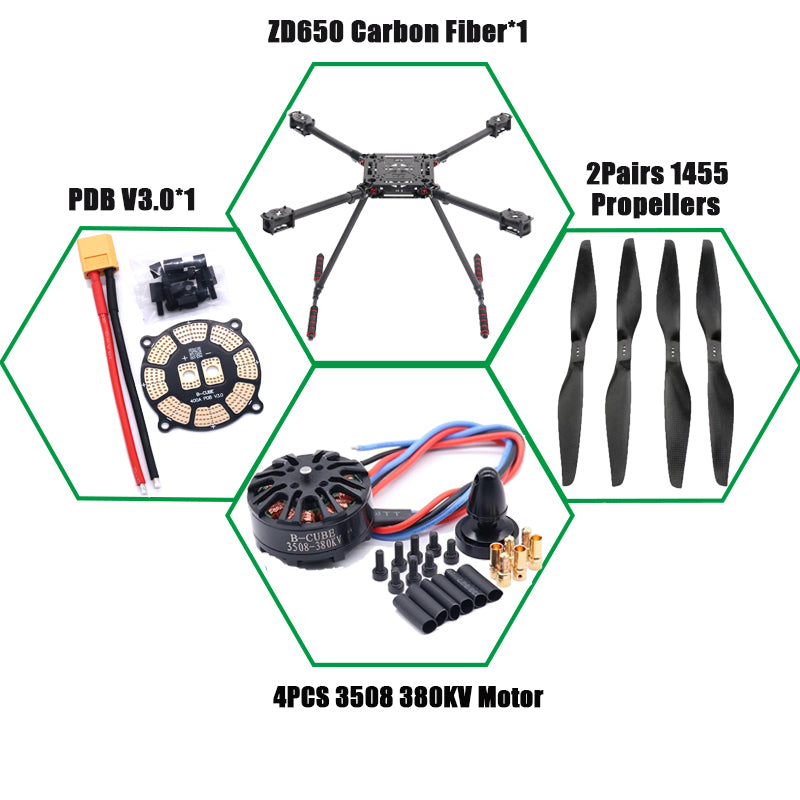

F650 Frame+2 pairs self-locking 1455 Propellers +4 PCS 3508 380KV Motor + PDB V3.0

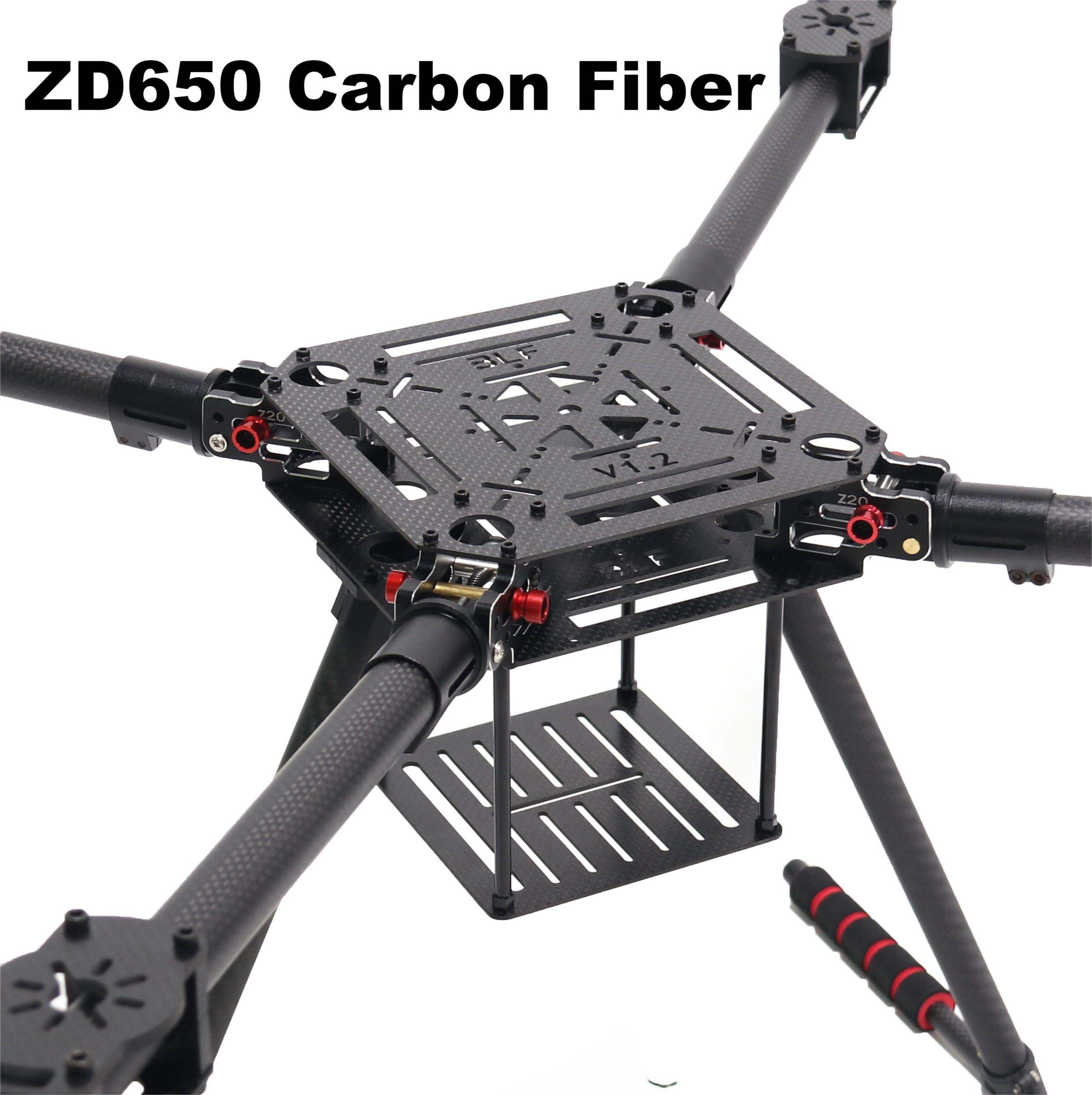

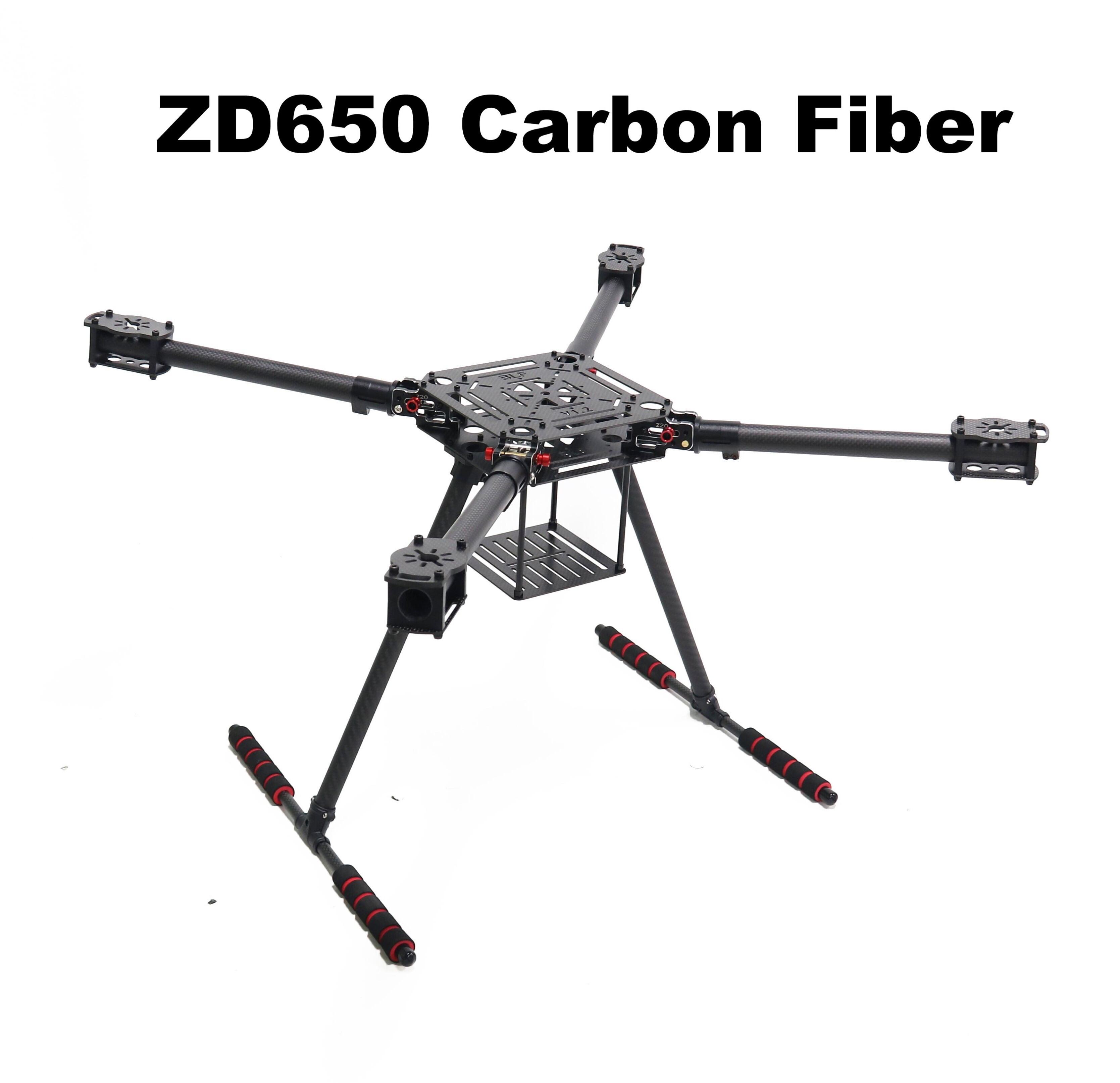

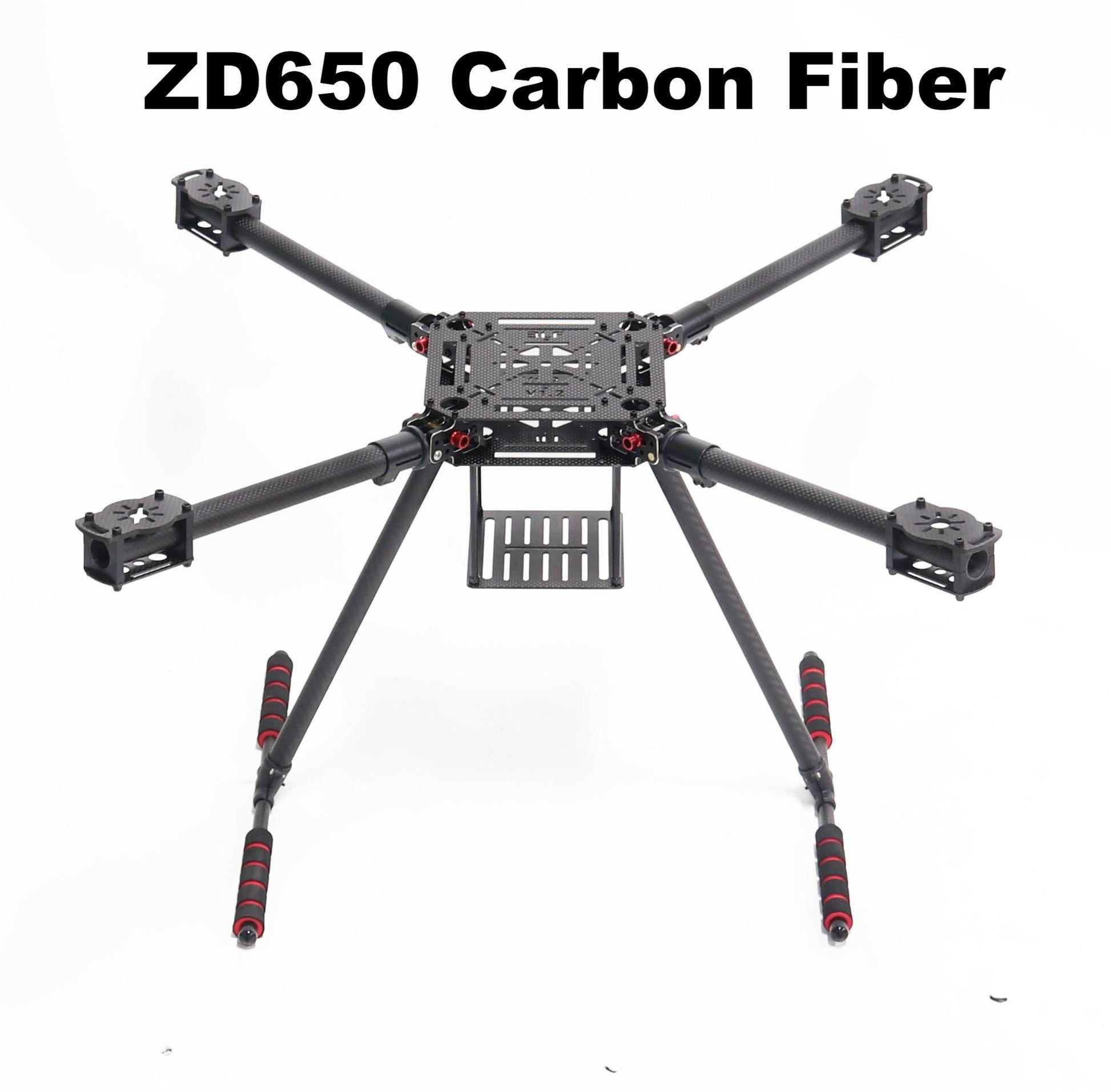

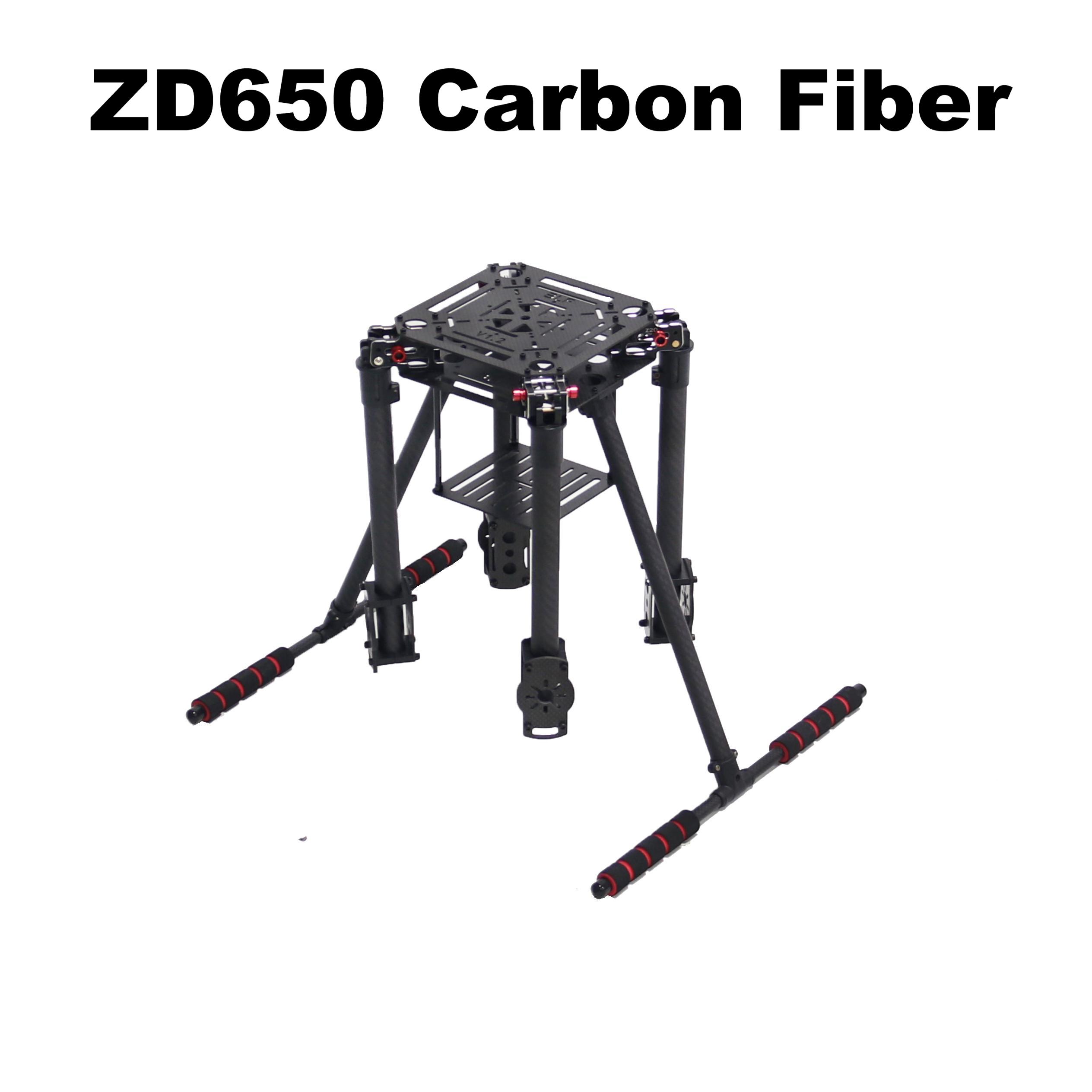

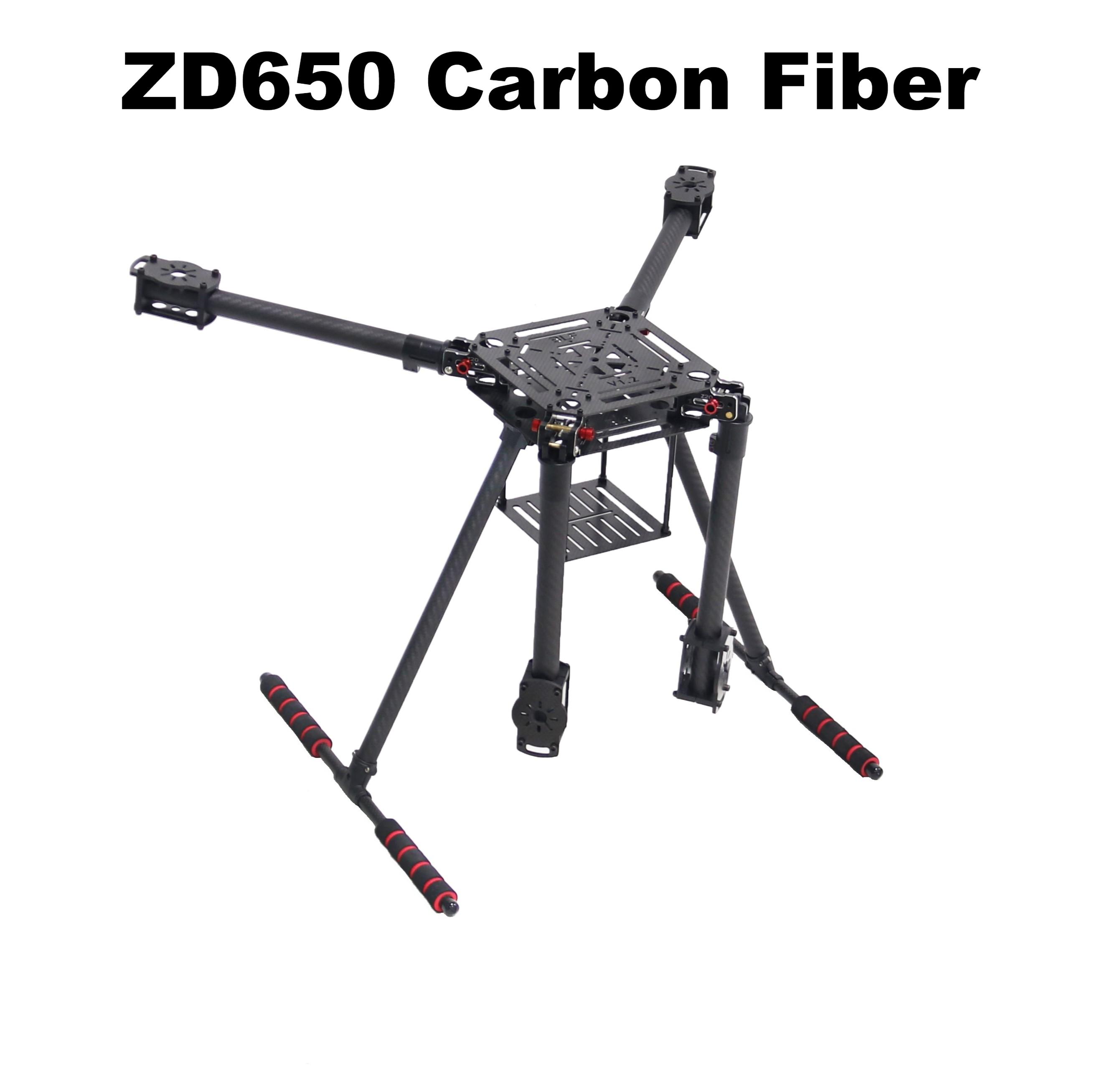

ZD650 Carbon Fiber

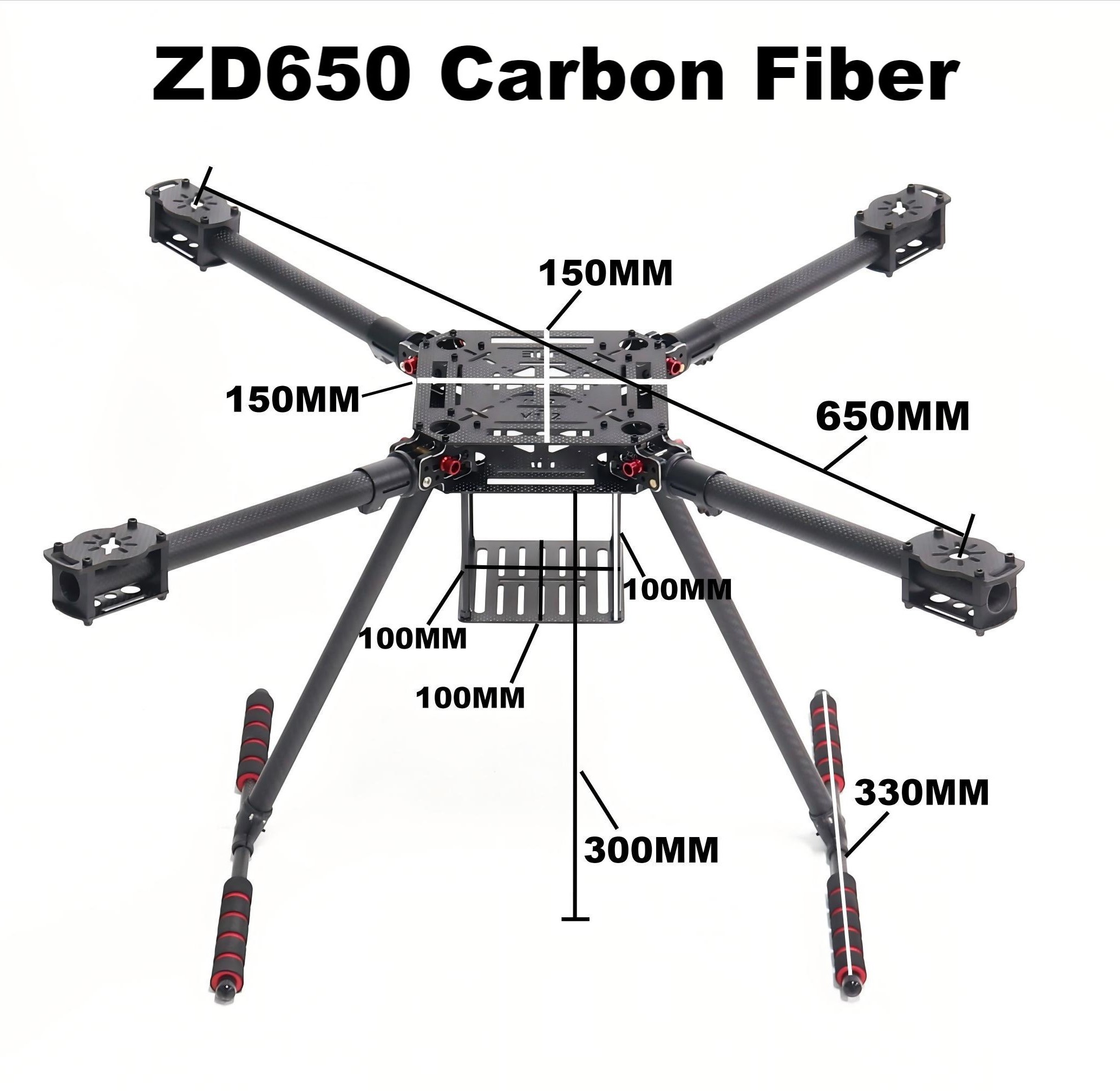

Parameters:

- Diagonal wheelbase: 650mm

- Landing gear height: 300mm

- Weight: 689 ±2 g

- Material of the main board : 3k full carbon fiber

- thickness of the main board : 1.5mm

- Arm diameter: 20MM

Recommended configuration: (Not inlcuded)

- Motor: 3508/D4114

- Prop: 14-16 inch CW CCW

- ESC: 40A (2-6S)

- Flight control:PIXHAWK Fightl Control

- Battery: 4-6S Lipo

Package includes:

-Carbon Fiber Quadcopter frame kits with Landing Gear x 1 (just a frmae kit, not assembled)

(note: the color of the landing gear pad is differenct because of the different prodcution batch, send the color at random)

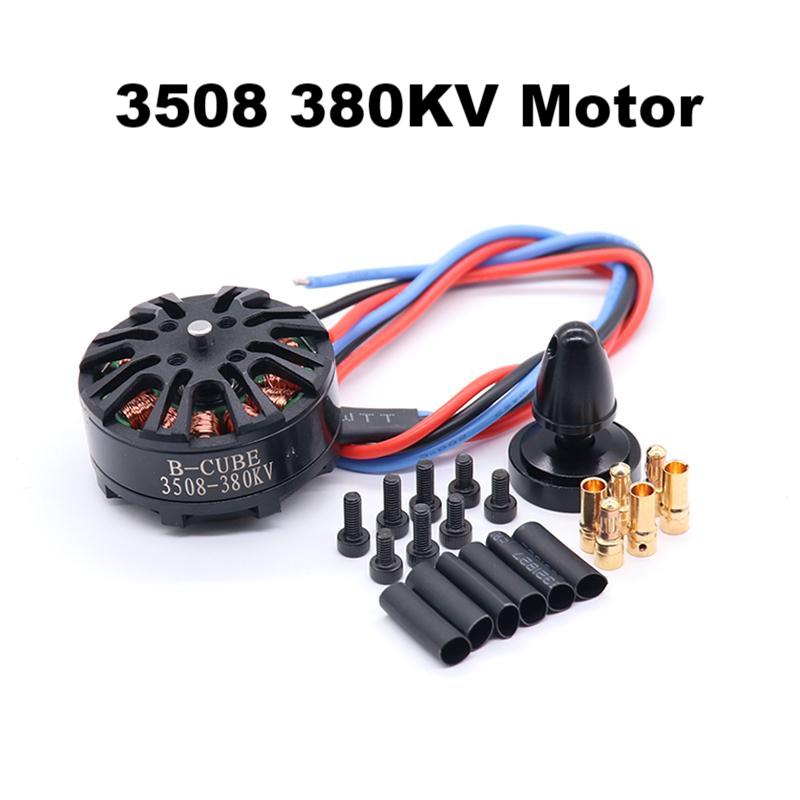

4PCS 3508 380KV Motor

Color Classification:Black

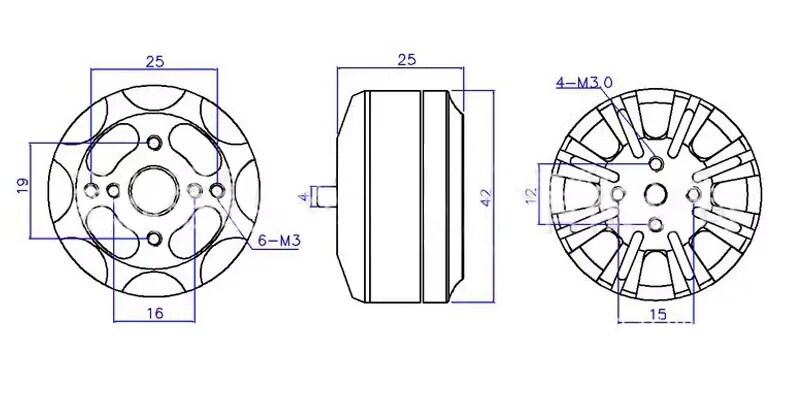

Motor Technical Parameters:

KV Value:KV380

Model:MX3508

Motor Diameter:42mm

Motor Length (No Shaft):24mm

Stator Diameter:35mm

Stator Length:8mm

Shaft Diameter:4mm

Weight:90g

Recommended Battery:4-6 Cells

Idle Current:0.3A

Top Mounting Hole:12mm x 12mm

Bottom Mounting Hole:25mm x 25mm

Suitable for:

Quadcopters

Hexacopters

Octocopters

Agricultural drones (plant protection machines)

Regarding Dynamic Balance:

We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.

Note:No 3-socket pad is provided. Please refer to the diagram for specific components.

MX3508 Motor Features:

Flat design

Multiple slot extreme outer brushless motor

High torque and efficiency

Competitive price

Compatible with most market-leading drone frames (with multiple mounting holes)

Aesthetically pleasing design

Propeller Installation:

We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.

Motor Dynamic Test Results:

Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.

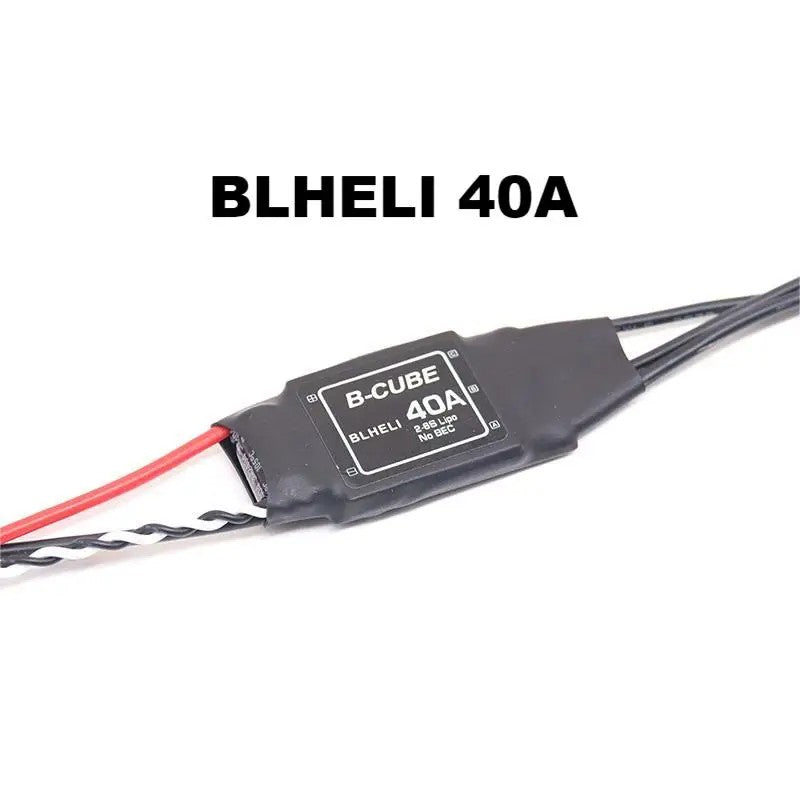

4PCS BLHELI 40A

Features:

-Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;

- Firmware was optimized specifically for disc motor, and it has a very good compatibility;

-Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;

-Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;

-Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);

-Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;

- Ultra-low resistance MOSFET, strong flow capacity.

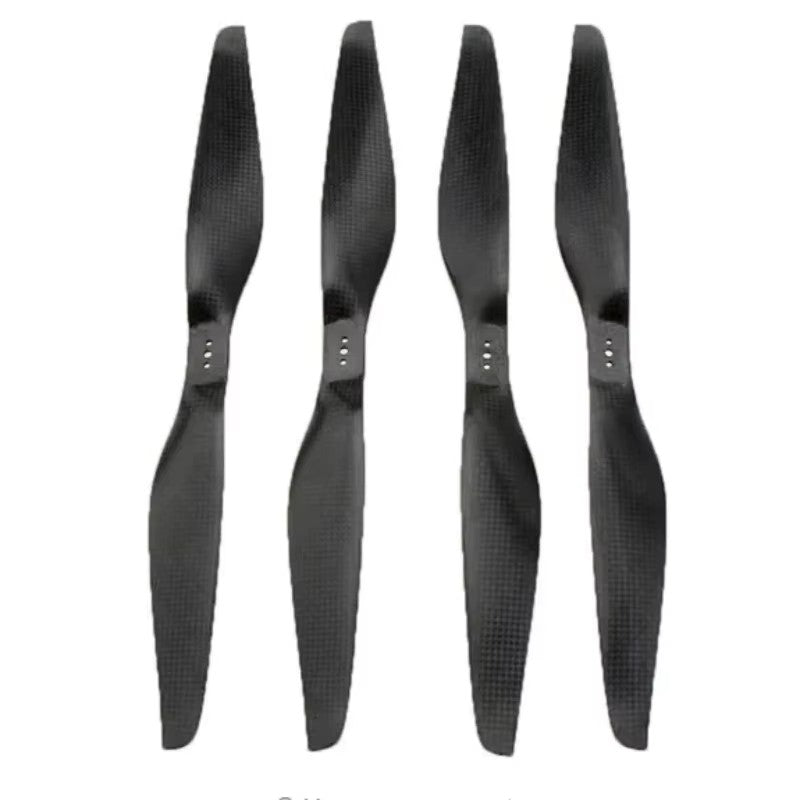

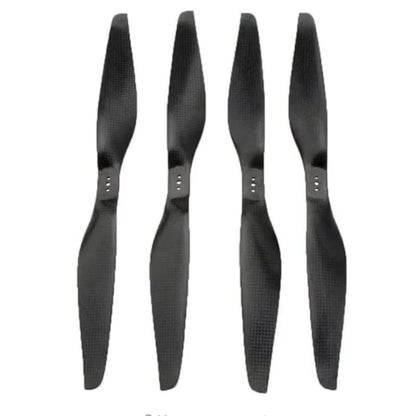

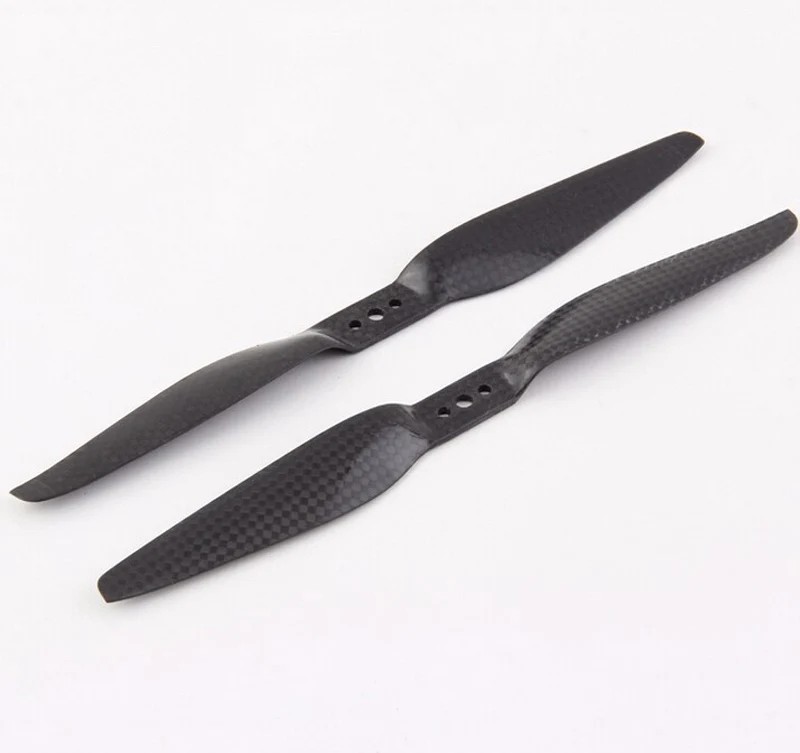

2Pairs T-Motor 3K Carbon Fiber Propeller 1455

The new T-motor propeller-type aerial dedicated full carbon paddle paddle-type three-hole installationUsing carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.
