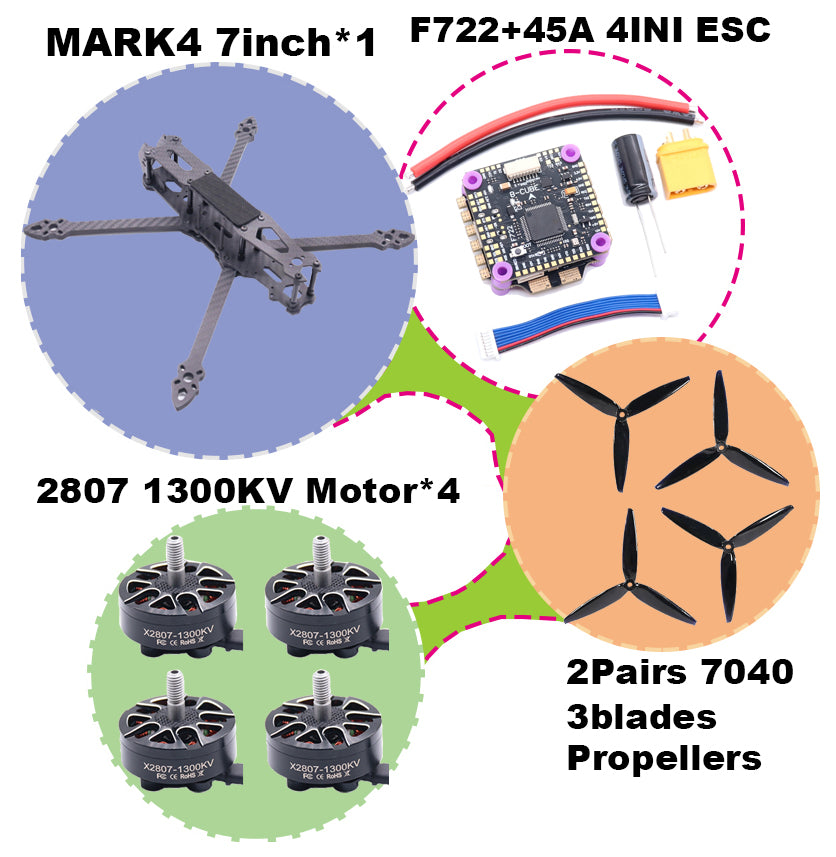

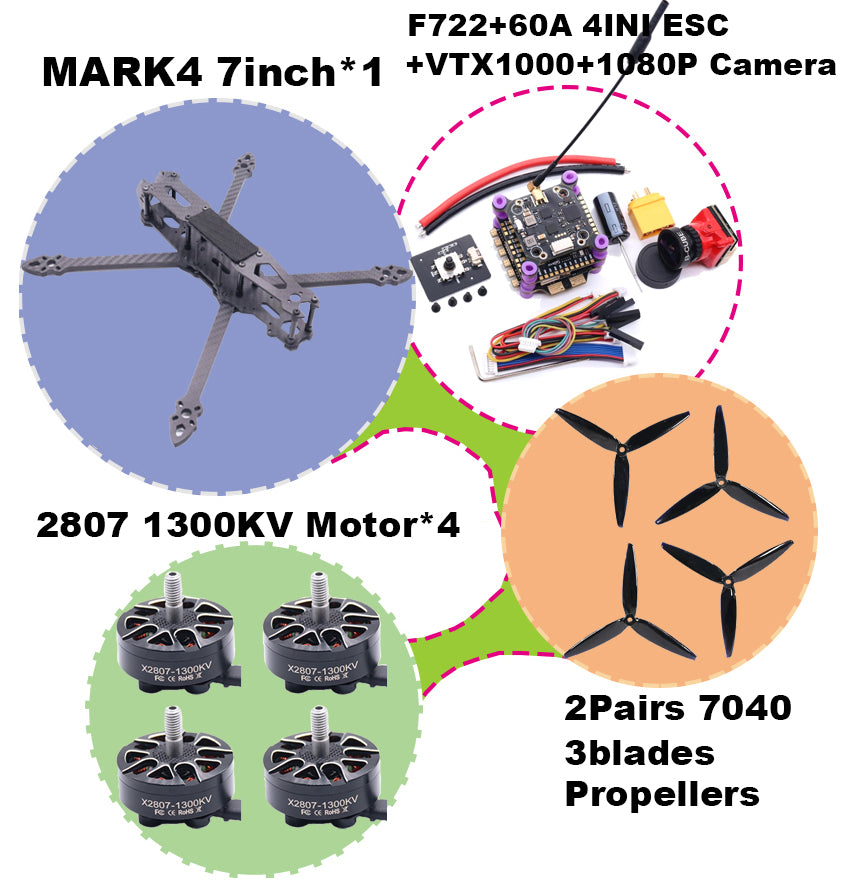

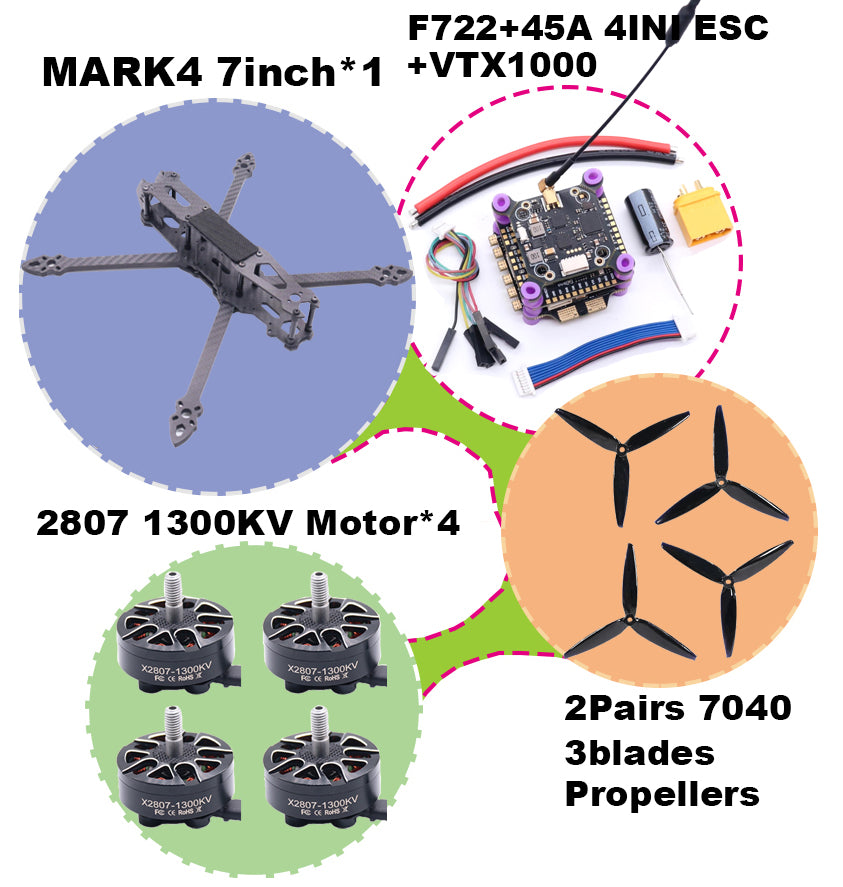

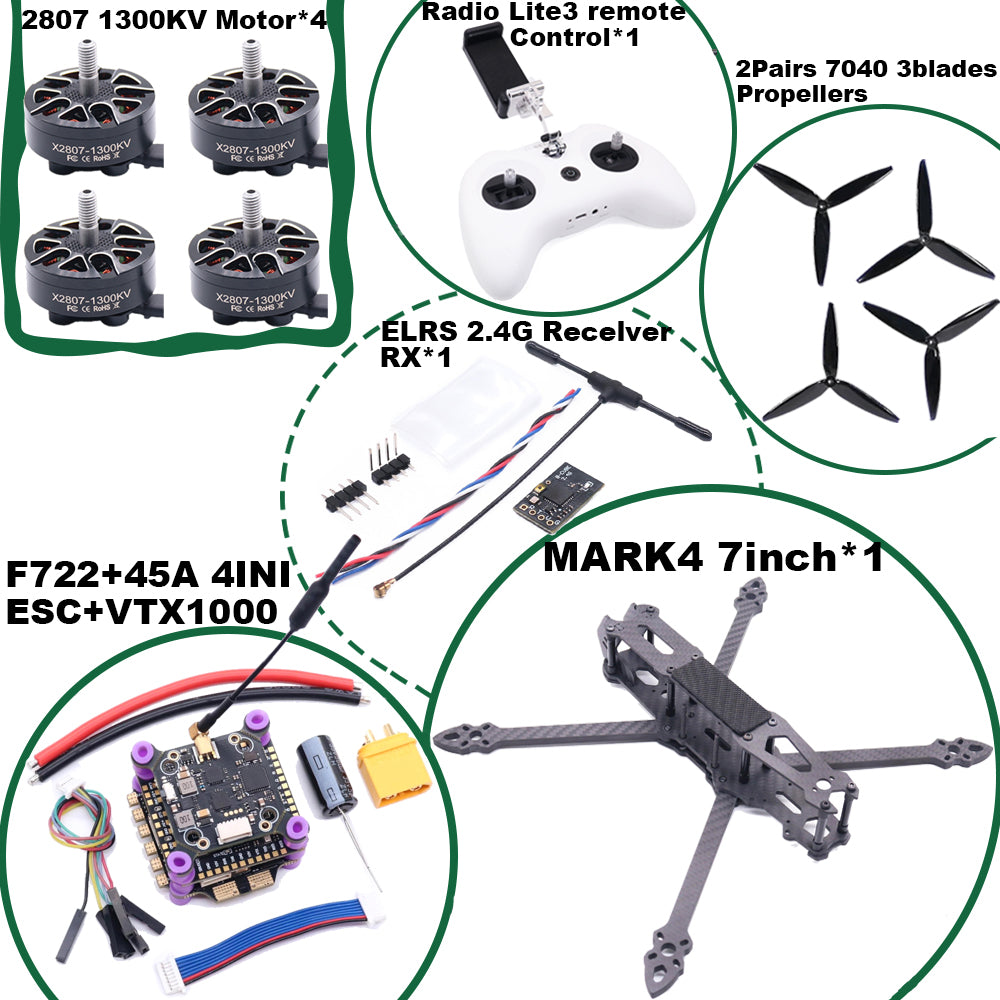

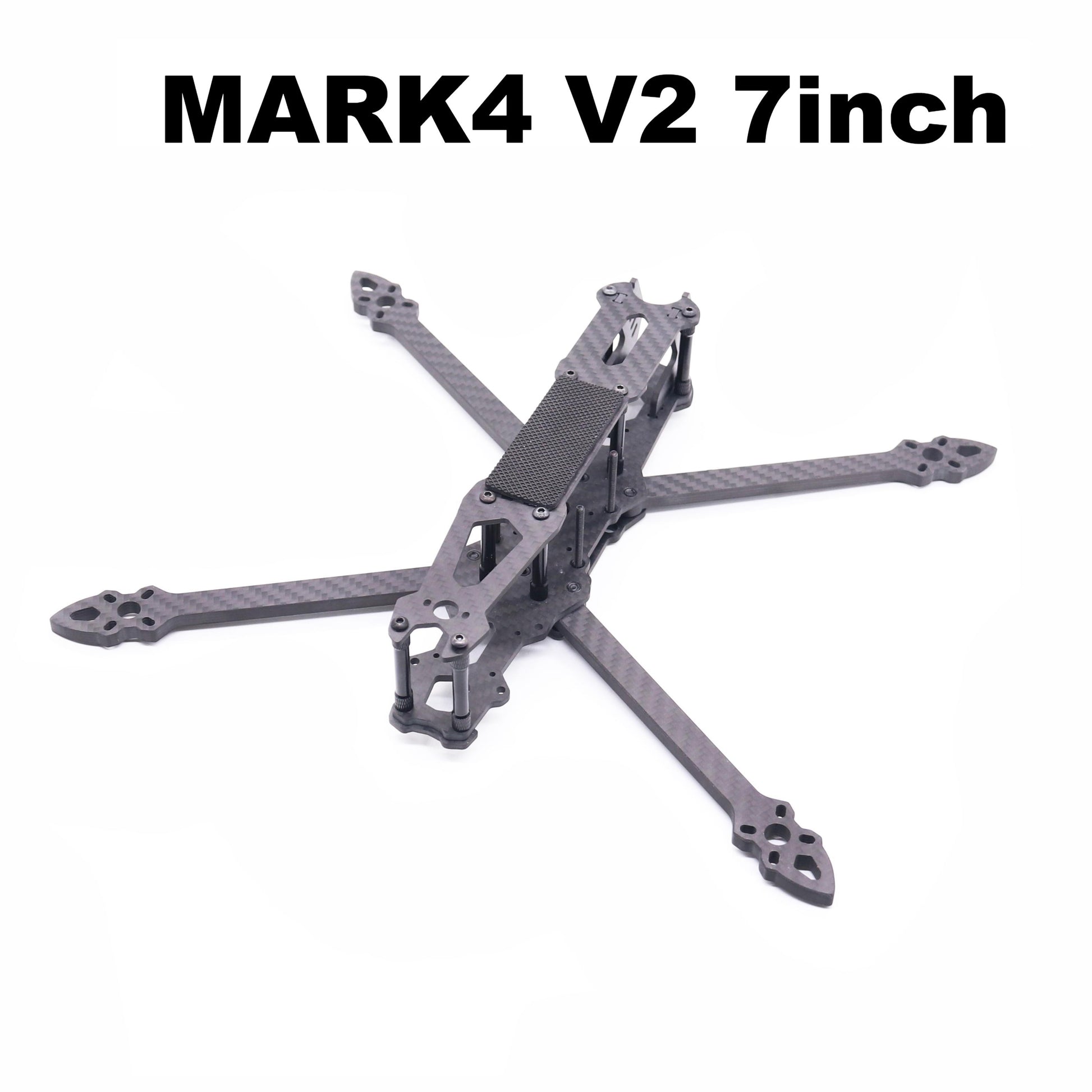

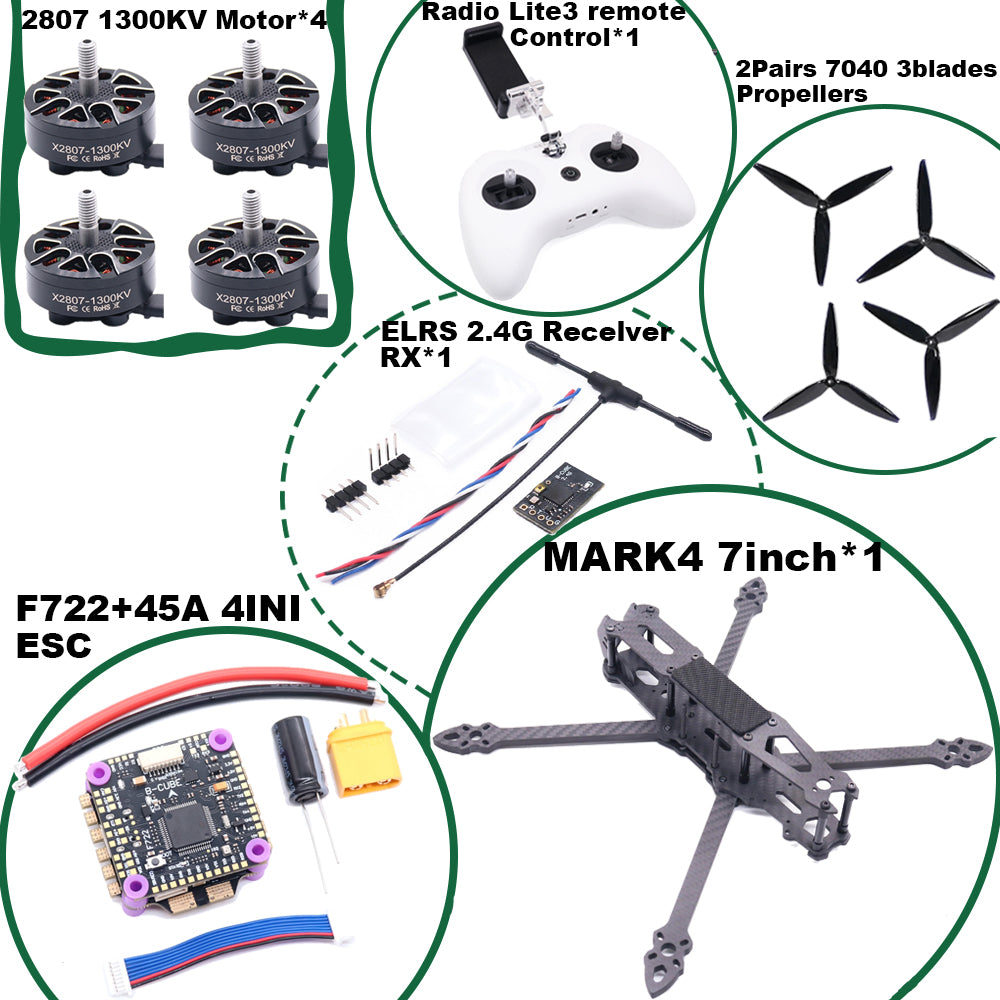

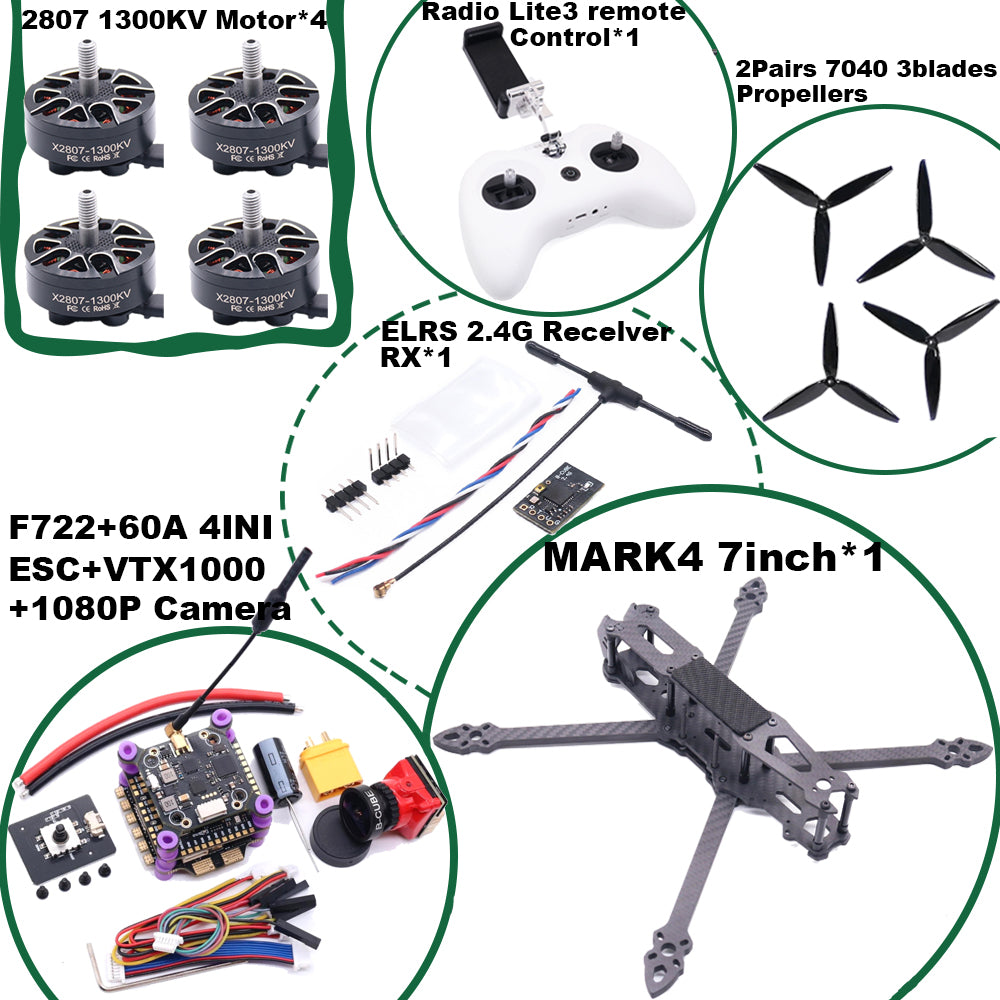

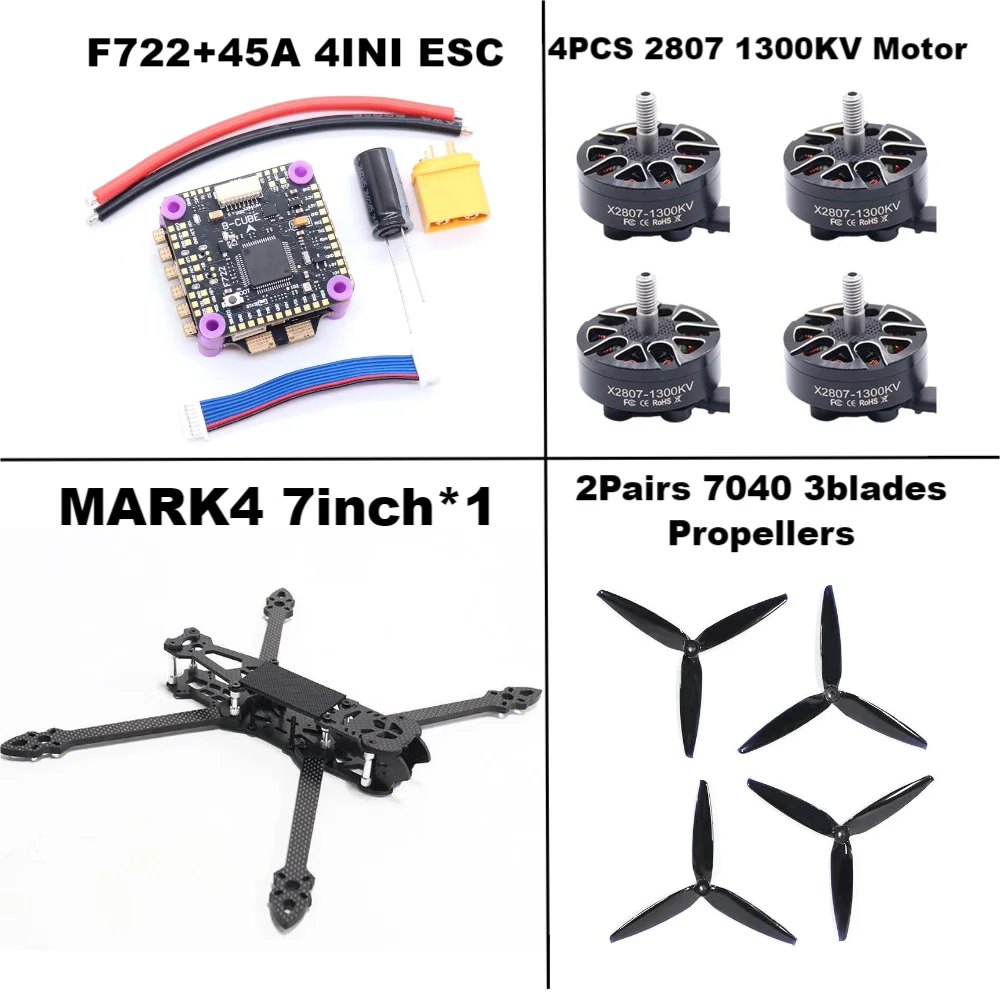

MARK4 V2 7-inch

B-CUBE F722 Flight Controller

Features:
1. The F722is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2.  The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:
F722 Flight controllerbaro: the fpv-freestyle flight controller has been designed for optimal control of flight, which allows you to have more control over the flight. The controller is equipped with fpv, ac adapter, and a power cable. it can be used to connect the drone to the controller.

Specifications:
(Model): F722 Flight Controller
(MCU) STM32F722RET6
(IMU) ICM-42688-P/Gyro/Accel
(OSD): AT7456E
(Baro) SPL06-001
(Blackbox): 16MB
(Input voltage): 3-8S Lipo(11.4-36V)
5V-BEC: 5V/2.5A ±0.1V
10V-BEC: 10V/2A(USER1)
IO2: USER2
(Receiver): ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX
UART: UART1/2/3/4/5/6
IIC: 12C1
Led Strip:YES
(Buzzer): 5V
(ESCsignal): Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600
USB: TYPE-C
(Current port): YES
(Voltage sensor) YES
DFU (DFU button): YES
(Firmware): Betaflight 4.3.1 JHEF7DUAL.HEX , inav_7.1.0_JHEMCUF722.hex
(Size): 36*36MM
(Mounting Hole) 30.5*30.5*4MM
(Weight) 8.8g

BLHELI_S 45A 4IN1 3-6S Brushless ESC

Size: 41*39.5*5mm

Hole distance: 30.5*30.5/5mm

Weight: 13g

Input voltage: LIPO 2-6S

Continuous current: 45A

Maximum current: 50A (10 seconds)

Processor: EFM8BB21F16G

Firmware: BLS J_H_30_REV16_7

Drive signal support: DShot300-600/Multishot/Oneshot/PWM

Current sensor: Support

The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision

BLHELI_S 60A 4IN1 3-6S Brushless ESC

Continuous current: 60A

Firmware: BLS J_H_30_REV16_7

VTX1000 1W Video Transmitter
