Note : F4V3S PLUS uses a TYPE-C USB port. Please ensure that you have a TYPEC USB cable that can communicate normally. Some USB cables can only be charged and cannot communicate data with flight control. If the USB cable you use cannot recognize the flight control USB port, it indicates that your USB cable cannot communicate with data normally. We upload firmware to the flight control through USB and conduct testing, so it can be very guaranteed that the USB port of the flight control is normal.

If you are unable to confirm if your USB cable is communicating properly, please purchase one.

Specification:

Item name: F4V3S PLUS Flight Controller

Firmware:OMNIBUSF4SD(AIRB)

USB Port: TYPE-C

Size: 36x36mm

Mounting holes: 30.5x30.5mm

STM32 F405 MCU

Dshot support

Drag and Drop OSD configured via Betaflight

MPU6500 6 axis SPI gyro & accelerometer

SBUS / PPM AND Spketrum DSMX ports

MicroSD card blackbox

Baro (BMP280)

5V3A 9V3A BEC

On-board video filters

Properties:

measured.

Boasting a F4 processor, on-board Betaflight OSD, MicroSD Black Box, 5v3a sbec, video filter, you'll be tuning PIDS with your transmitter and tear it to the track in no time!

Note ： F4V3S PLUS supports cleanflight ,betaflight and INAV firmware.

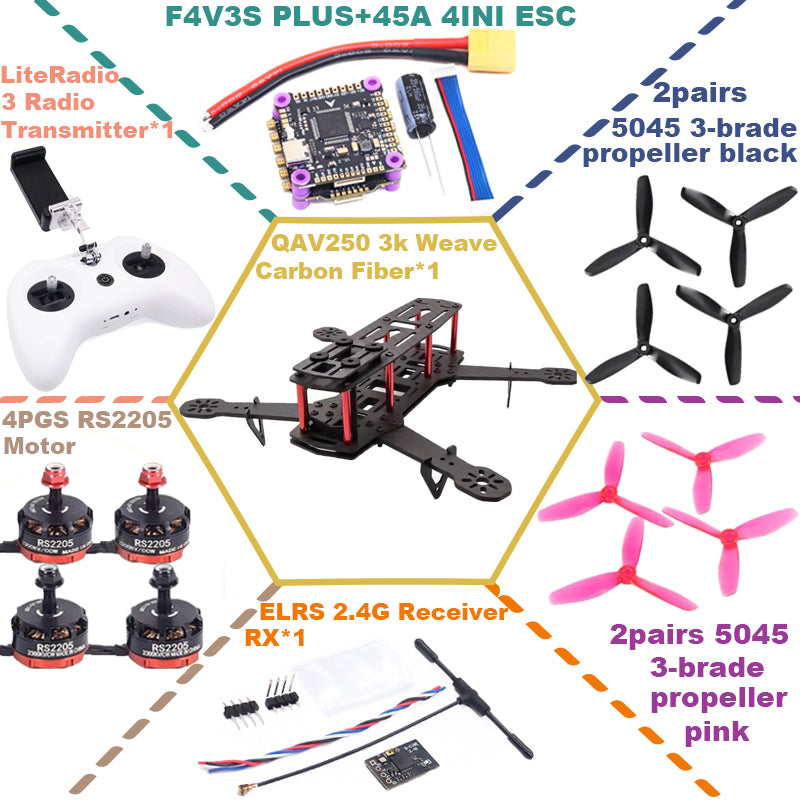

Package A:

F4V3S PLUS flight control+  3K Carbon fiber QAV250+ 45A 4INI ESC + 4  2205  2300KV Motor + 2pairs 5045 3-brad propeller black+2 pairs 5045 3-brade propeller pink

Package B:

F4V3S PLUS flight control+  3K Carbon fiber QAV250+ 45A 4INI ESC + 4  2205 2300KV Motor + 2pairs 5045 3-brad propeller black+2  pairs 5045 3-brade propeller pink+ELRS 2.4G Receiver RX + LiteRadio 3 Radio Transmitter

Package C:

F4V3S PLUS flight control + VTX1000 + 3K Carbon fiber QAV250 + 45A 4INI ESC+ 4  2205  2300KV Motor + 2pairs 5045 3-brad propeller black+2  pairs 5045 3-brade propeller pink

Package D:

F4V3S PLUS flight control+ VTX1000 +  3K Carbon fiber QAV250+ 45A 4INI ESC + 4  2205  2300KV Motor + 2pairs 5045 3-brad propeller black+2  pairs 5045 3-brade propeller pink+ELRS 2.4G Receiver RX + LiteRadio 3 Radio Transmitter

Package E:

F4V3S PLUS flight control+ VTX1000 + 1080P Camera + 3K Carbon fiber QAV250+ 45A 4INI ESC + 4  2205  2300KV Motor + 2pairs 5045 3-brad propeller black+2  pairs 5045 3-brade propeller pink

Package F:

Features:

Main material: 3K Weave Carbon fiber

Arm thickness: 3mm

Upper and lower plate:1.5mm

Wheelbase: 250mm

With rubber damper to decrease vibration during flight

Aluminum alloy spacer, light weight,reliable

Specifications:

Wheelbase: 250mm

Weight: About 139g

Prop suggest: 5*3

Motor suggest: 2205-2208

Battery suggest: 3S 1300-1800ma

it come with only a carbon frame.

BLHELI_S 45A 4IN1 3-6S Brushless ESC
