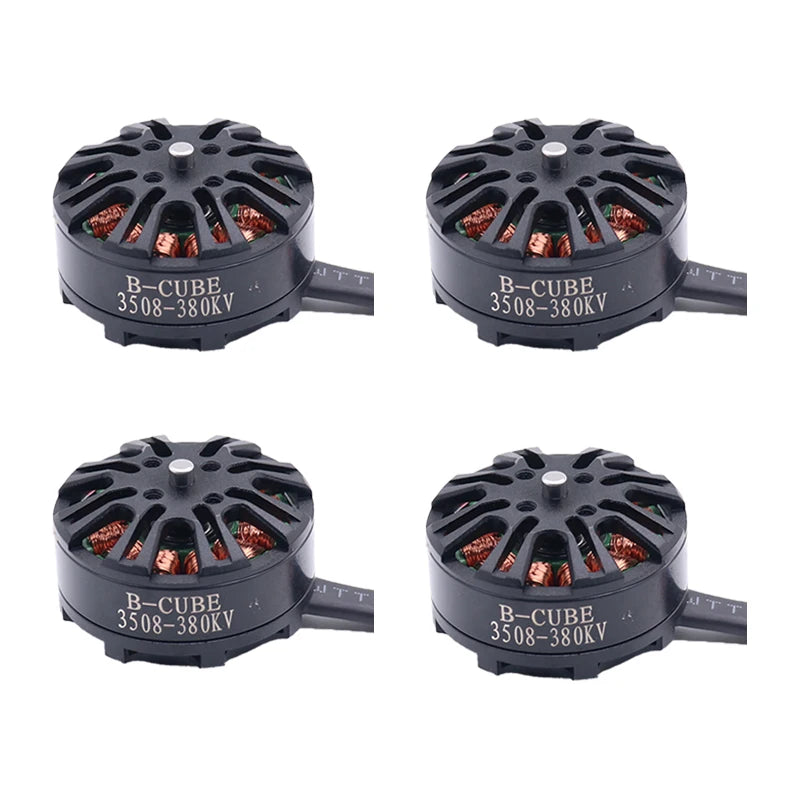

B-CUBE 4PCS 3508 380/700KV Brushless Motor for PIXHAWK FPV ZD550 850 Frame Long Range LR7 Drones DIY Parts Multicopter Flight

Brand:B-CUBE

Color Classification: Black
Motor Technical Parameters:

• KV Value: KV380, KV700

• Model: MX3508

• Motor Diameter: 42mm

• Motor Length (No Shaft): 24mm

• Stator Diameter: 35mm

• Stator Length: 8mm

• Shaft Diameter: 4mm

• Weight: 90g

• Recommended Battery: 3-6 Cells

• Idle Current: 0.3A

• Top Mounting Hole: 12mm x 12mm

• Bottom Mounting Hole: 25mm x 25mm

Suitable for:

• Quadcopters

• Hexacopters

• Octocopters

• Agricultural drones (plant protection machines)

Regarding Dynamic Balance:

We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.

Note: No 3-socket pad is provided. Please refer to the diagram for specific components.

MX3508 Motor Features:

• Flat design

• Multiple slot extreme outer brushless motor

• High torque and efficiency

• Competitive price

• Compatible with most market-leading drone frames (with multiple mounting holes)

• Aesthetically pleasing design

Propeller Installation:

We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.

Motor Dynamic Test Results:

Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.
