B-CUBE 550 Hexa Frame PIXHAWK PRO M9N Flight Control Carbon Ardupilot Radio Telemetry Quadcopter BLHELI 40A 3508 380KV Motor ESC

B-CUBE 550 Hexa Frame PIXHAWK PRO M9N Flight Control Carbon Ardupilot Radio Telemetry Quadcopter BLHELI 40A 3508 380KV Motor ESC

$381.04 USD
$381.04 USD $381.04 USD
Sale Ausverkauft
Color
PIXHAWK PRO
Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;

Specifications:
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface

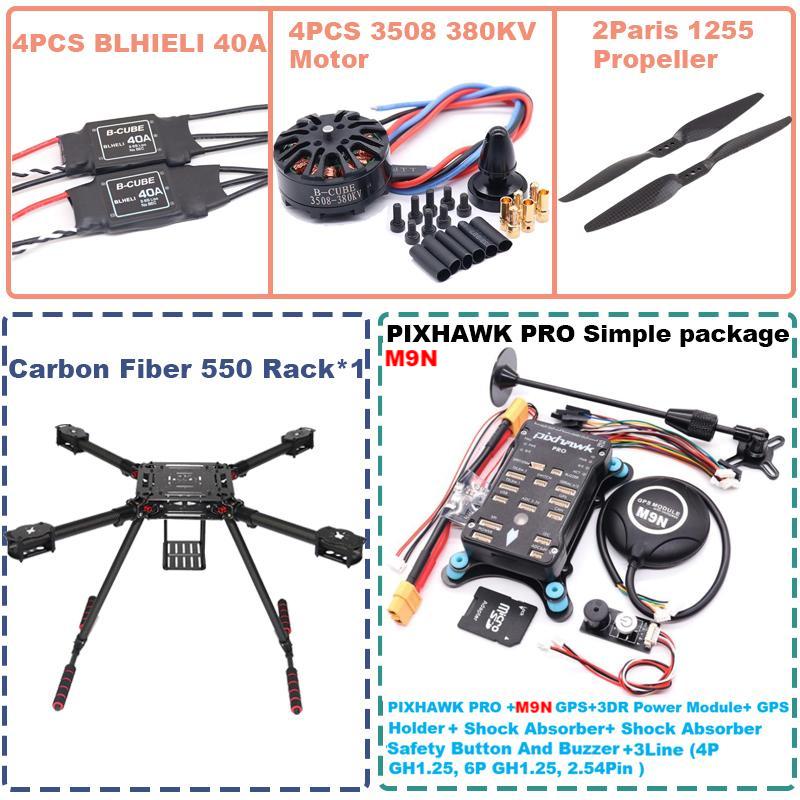

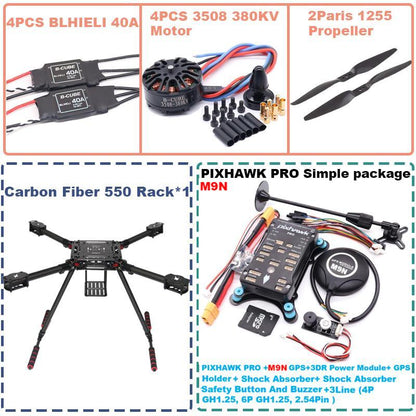

Simple Package:

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 380KV motor

PIXHAWK PRO +M9N GPS+3DR Power Module+ GPS Holder + Shock Absorber+ Shock  Absorber Safety Button And Buzze +3Line(4PGH1.25,6PGH1.25,2.54Pin)

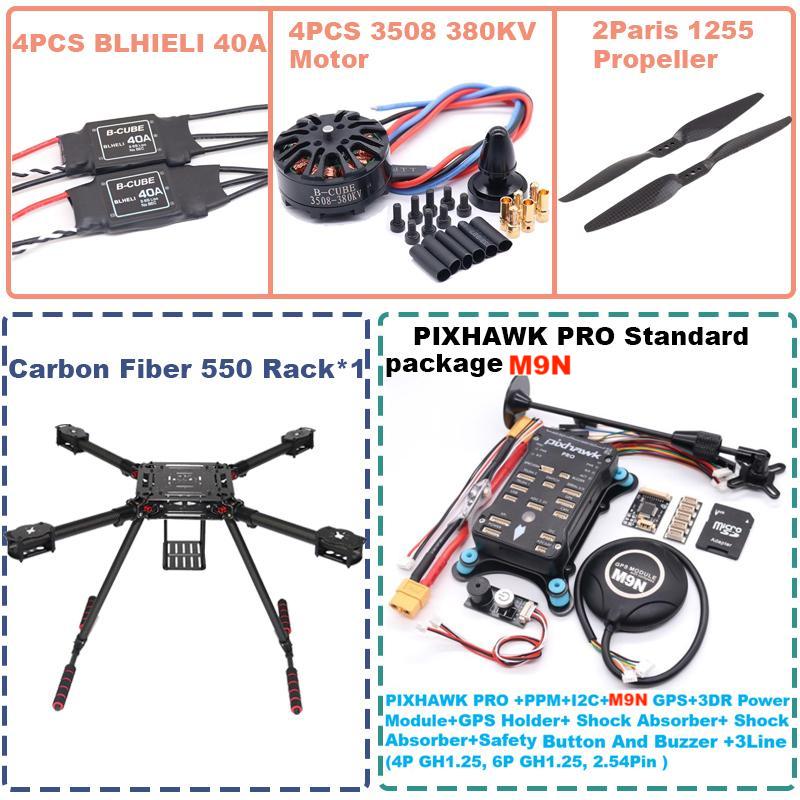

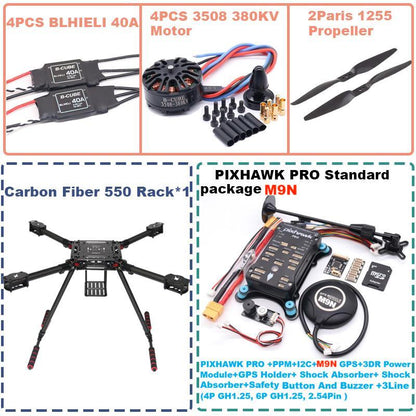

Stangard package:

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 380KV motor

PIXHAWK PRO+PPM+I2C+M9N GPS+3DR PoWer Module+GPS Holder+ Shock Absorber+ Shock Absorber+Safety
Button And Buzzer+3Line(4P GH1.25,6PGH1.25,2.54Pin)

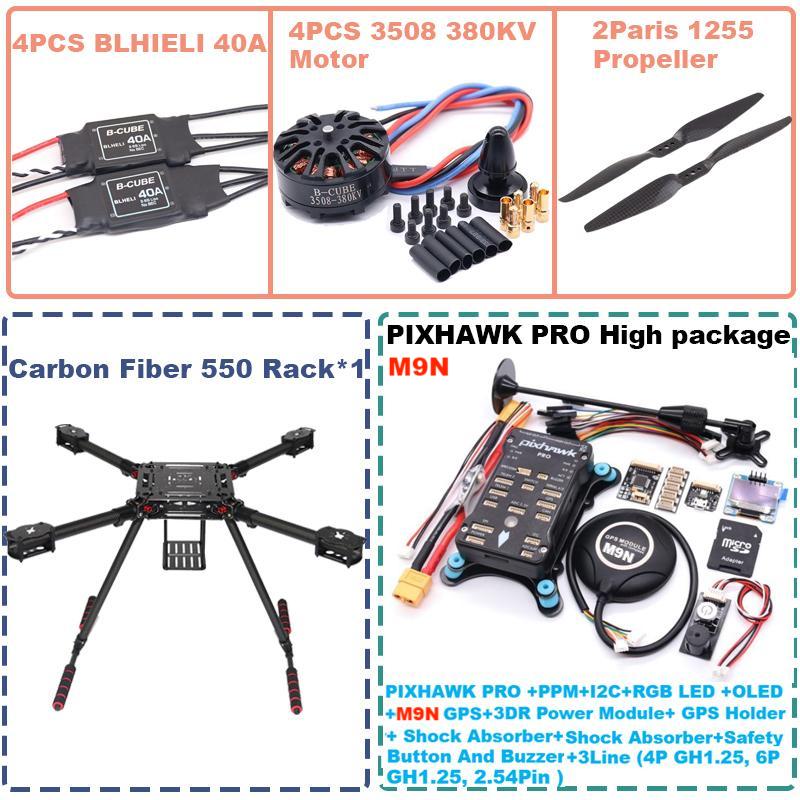

High Pacage:

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 380KV motor

PIXHAWK PRO+PPM+I2C+RGB LED+OLED+M9N GPS+3DR Power Module+ GPS Holder+ Shock Absorber+Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)

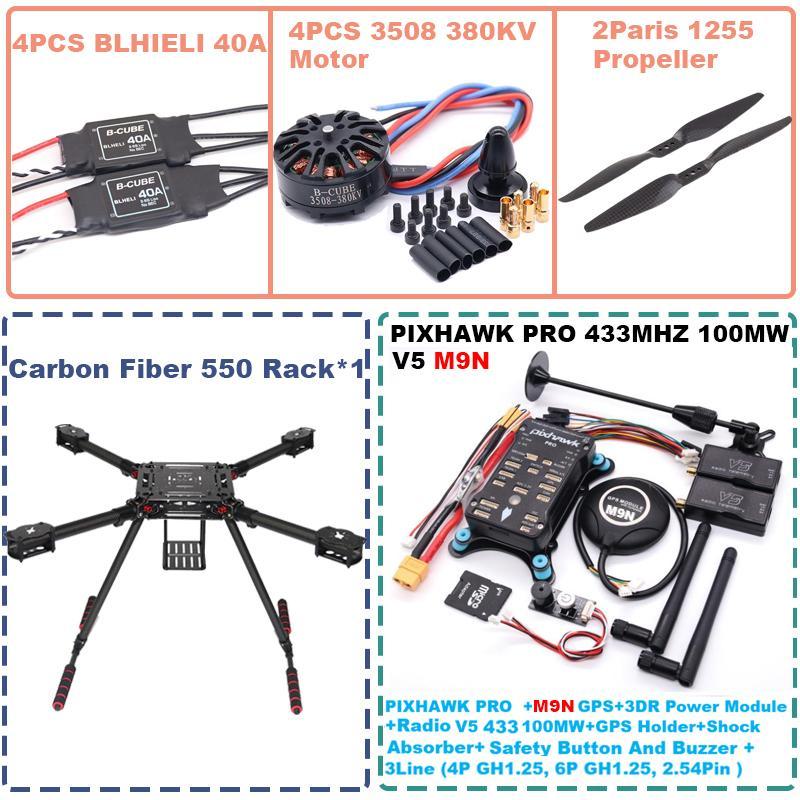

433/915MHZ 100MW :

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 380KV motor

PIXHAWK PRO +M9N GPS+3DR Power Module+Radio V5 433/915 100MW+GPS Holder+Shock Absorber+Safety Button And Buzzer +
3Line(4PGH1.25,6PGH1.25,2.54Pin)

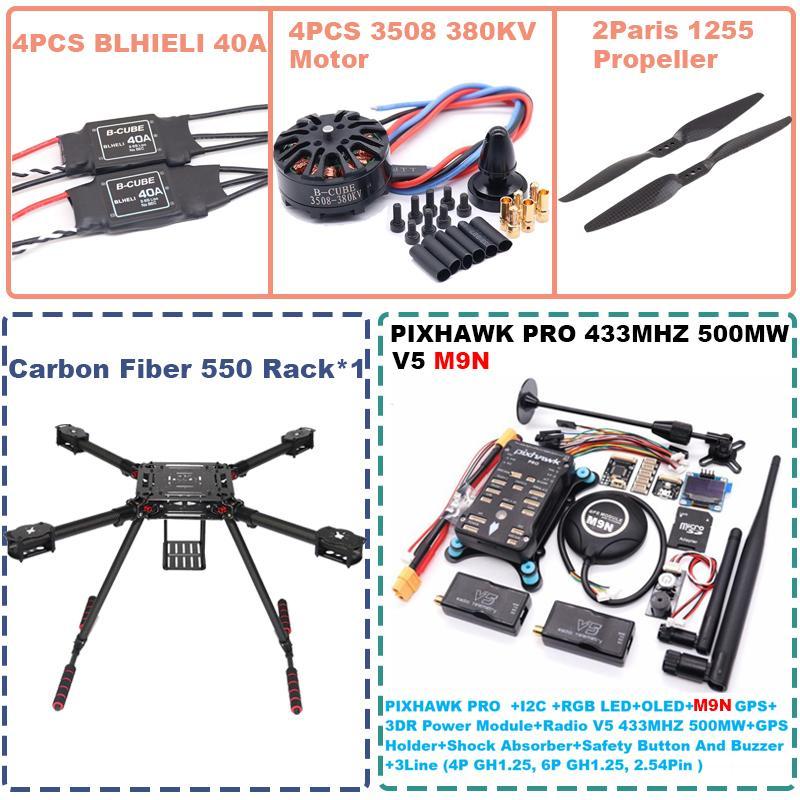

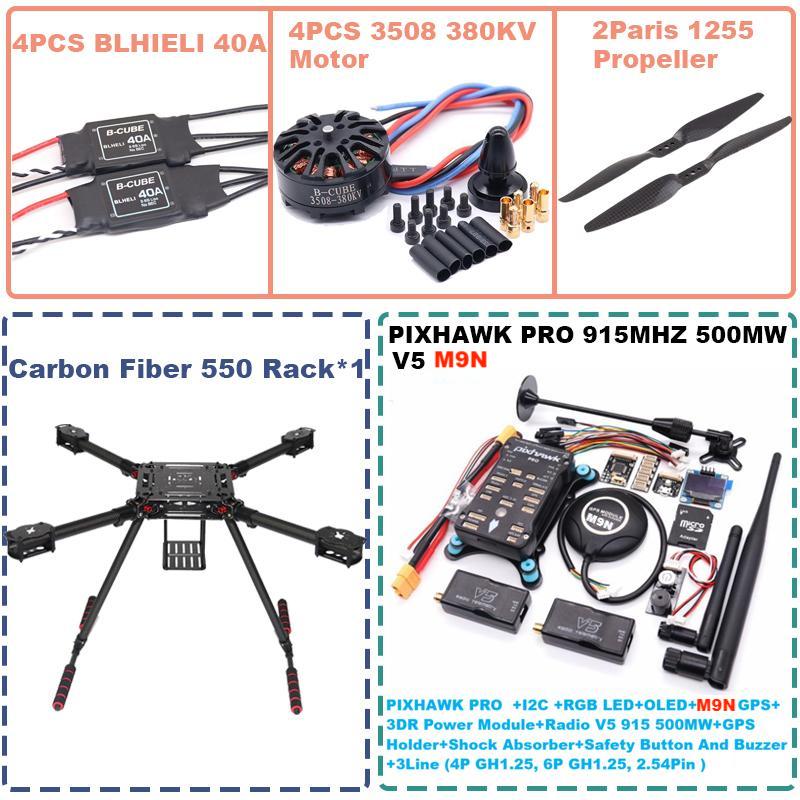

433/915MHZ 500MW :

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 380KV motor

PIXHAWK PRO +I2C +RGB LED+OLED+M9N GPS+3DR Power Module+Radio V5 433/915MHZ 500MW+GPSHolder+Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)

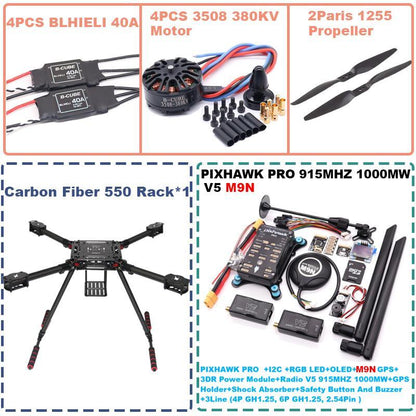

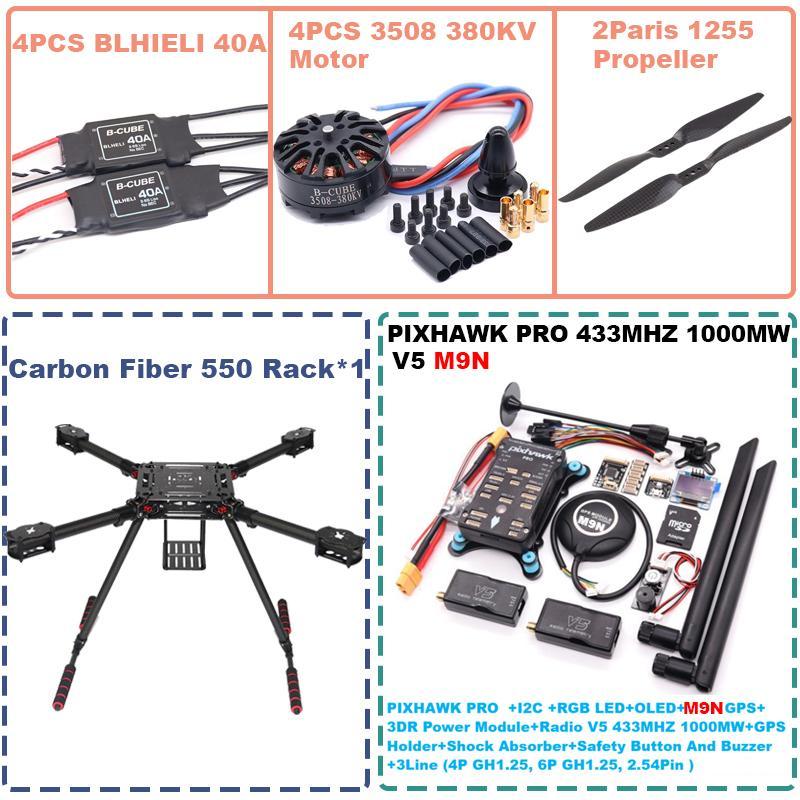

433/915MHZ 1000MW :

F550+4 PCS BLHELI 40A +2 pairs self-locking 1255 Propellers +4 PCS 3580 380KV motor

PIXHAWK PRO +I2C +RGB LED+OLED+M9N GPS+3DR Power Module+RadioV5 433/915MHZ 1000MW+GPSHolder+Shock Absorber+Safety Button And Buzzer+3Line(4P GH1.25,6PGH1.25,2.54Pin)

Carbon Fiber 550Frame*1

4PCS BLHELI 40A

Features:


- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;
- Firmware was optimized specifically for disc motor, and it has a very good compatibility;
- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;
- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;
- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);
- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;
- Ultra-low resistance MOSFET, strong flow capacity.

Brand:B-CUBE

Color Classification: Black
Motor Technical Parameters:

KV Value: KV380

Model: MX3508

Motor Diameter: 42mm

Motor Length (No Shaft): 24mm

Stator Diameter: 35mm

Stator Length: 8mm

Shaft Diameter: 4mm

Weight: 90g

Recommended Battery: 3-6 Cells

Idle Current: 0.3A

Top Mounting Hole: 12mm x 12mm

Bottom Mounting Hole: 25mm x 25mm

Suitable for:

Quadcopters

Hexacopters

Octocopters

Agricultural drones (plant protection machines)

Regarding Dynamic Balance:

We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.

Note: No 3-socket pad is provided. Please refer to the diagram for specific components.

MX3508 Motor Features:

Flat design

Multiple slot extreme outer brushless motor

High torque and efficiency

Competitive price

Compatible with most market-leading drone frames (with multiple mounting holes)

Aesthetically pleasing design

Propeller Installation:

We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.

Motor Dynamic Test Results:

Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.

  • M9N GPS Module

    M9N is a GPS module commonly used in unmanned aerial vehicles, with the following characteristics and applications:


    High precision positioning: The M9N adopts advanced GNSS technology, supports multiple satellite navigation systems, and can provide high-precision position positioning information. For unmanned aerial vehicles, it can achieve accurate positioning and navigation.


    Multi system support: The M9N supports multiple satellite navigation systems, including GPS, GLONASS, Galileo, BeiDou, etc. This allows drones to receive multiple satellite signals simultaneously, improving positioning accuracy and reliability.


    Quick positioning: M9N has fast cold start and hot start times, which can quickly obtain satellite signals and perform positioning, making it crucial for the rapid takeoff and task execution of unmanned aerial vehicles.



    M9N can search for more satellites outdoors with higher accuracy, faster search speed, and better stability.(The specific number of star searches is determined by the environment at that time.)

2Paris 1255 Propeller

Radio Telemetry V5:
