PIXHAWK2.4.8 Flight Control Carbon Fiber Smart550 Frame Kit Ardupilot 100MW Radio Telemetry Quadcopter BLHELI 30A ESC 2212 Motor
PIXHAWK2.4.8 Flight Control Carbon Fiber Smart550 Frame Kit Ardupilot 100MW Radio Telemetry Quadcopter BLHELI 30A ESC 2212 Motor
Verfügbarkeit für Abholungen konnte nicht geladen werden
Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.
Simple Package:
Smart 550 Frame + 4 PCS BLHELI 40A + 2 pairs self-locking 1255 Propellers + 4 PCS 3508 700KV Motor + PDB V3.0
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer +M8N GPS+ GPS Holder+3DR Power Module+ Shock Absorber+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

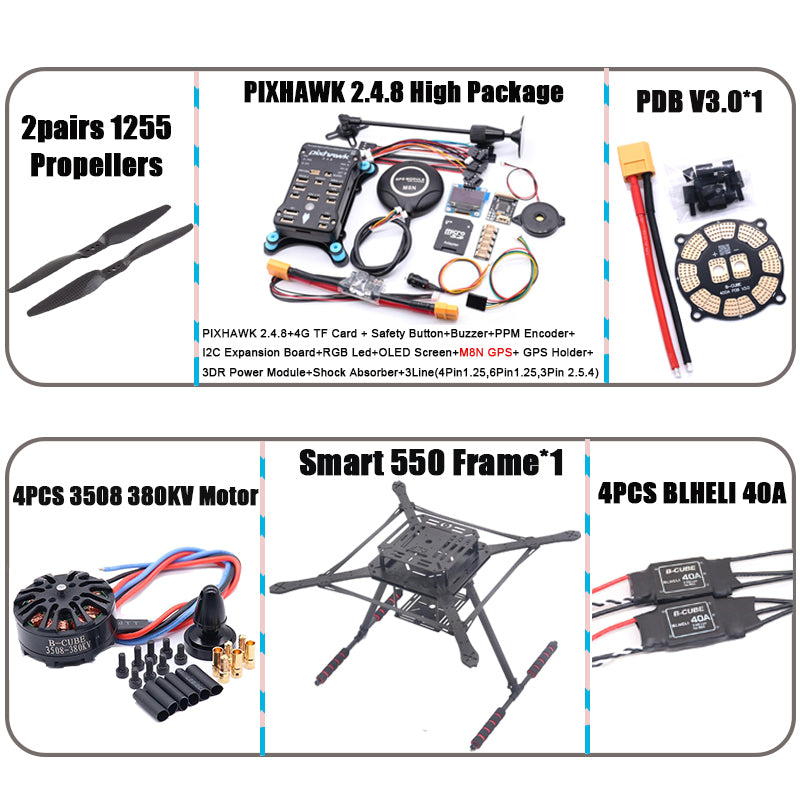

High Package:
Smart 550 Frame + 4 PCS BLHELI 40A + 2 pairs self-locking 1255 Propellers + 4 PCS 3508 700KV Motor + PDB V3.0
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber
+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

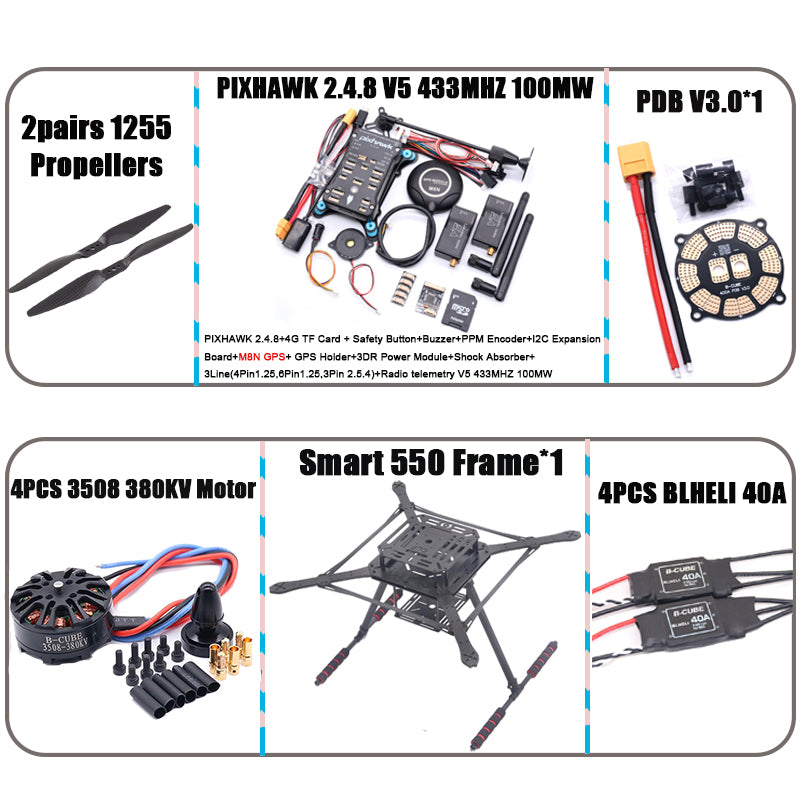

433MHZ 100MW V5:
Smart 550 Frame + 4 PCS BLHELI 40A + 2 pairs self-locking 1255 Propellers + 4 PCS 3508 700KV Motor + PDB V3.0
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry V5
+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
433MHZ 1000MW :
Smart 550 Frame + 4 PCS BLHELI 40A + 2 pairs self-locking 1255 Propellers + 4 PCS 3508 700KV Motor + PDB V3.0
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+3DR Power Module+Shock Absorber+433MHZ 1000MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
PIXHAWK PRO
Features:
Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
10.TYPE-C USB port
11.GH1.25 port
Specifications:
Interface
1.5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External TYPEC USB Interface

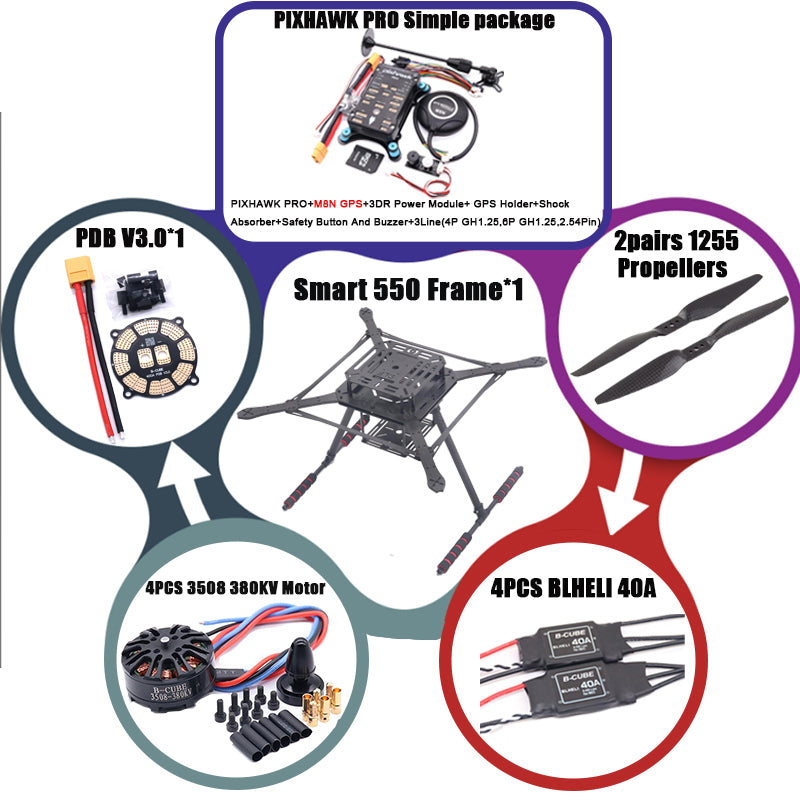

Simple Package:
Smart 550 Frame + 4 PCS BLHELI 40A + 2 pairs self-locking 1255 Propellers + 4 PCS 3508 700KV Motor + PDB V3.0
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer +M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

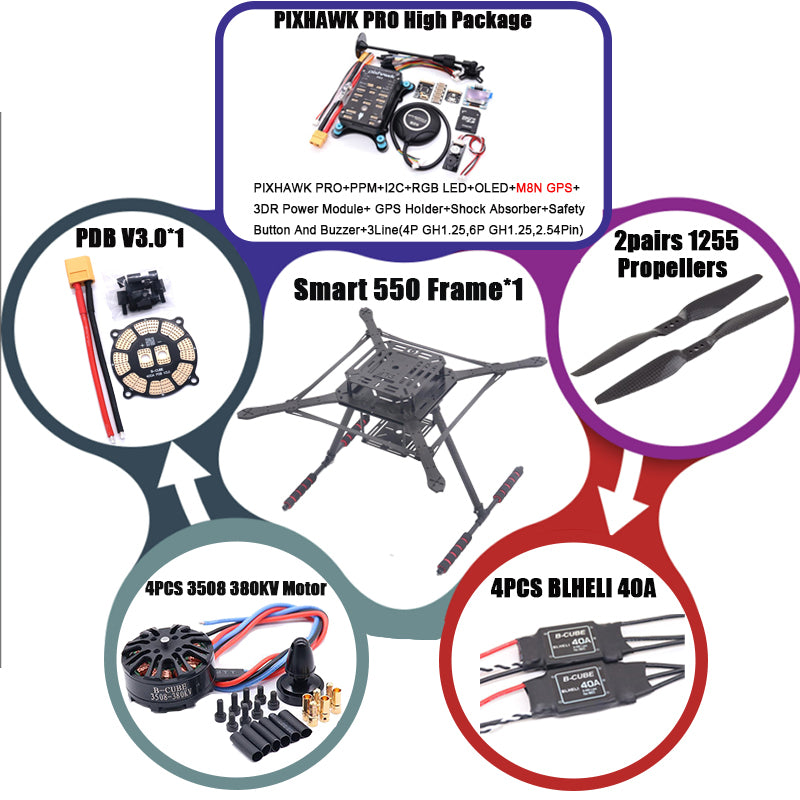

High Package:
Smart 550 Frame + 4 PCS BLHELI 40A + 2 pairs self-locking 1255 Propellers + 4 PCS 3508 700KV Motor + PDB V3.0
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

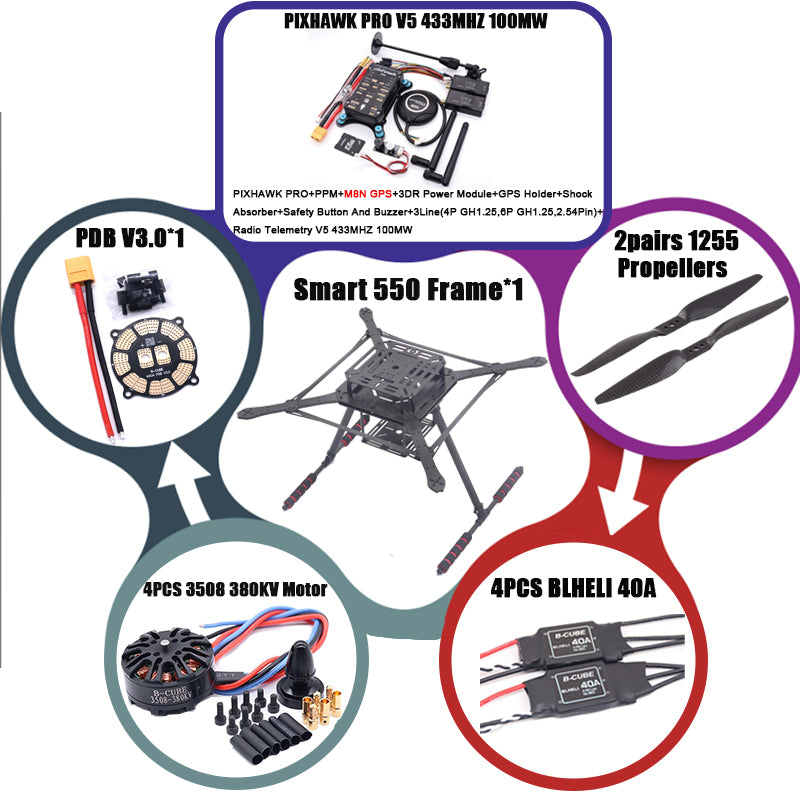

433MHZ 100MW :
Smart 550 Frame + 4 PCS BLHELI 40A + 2 pairs self-locking 1255 Propellers + 4 PCS 3508 700KV Motor + PDB V3.0
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

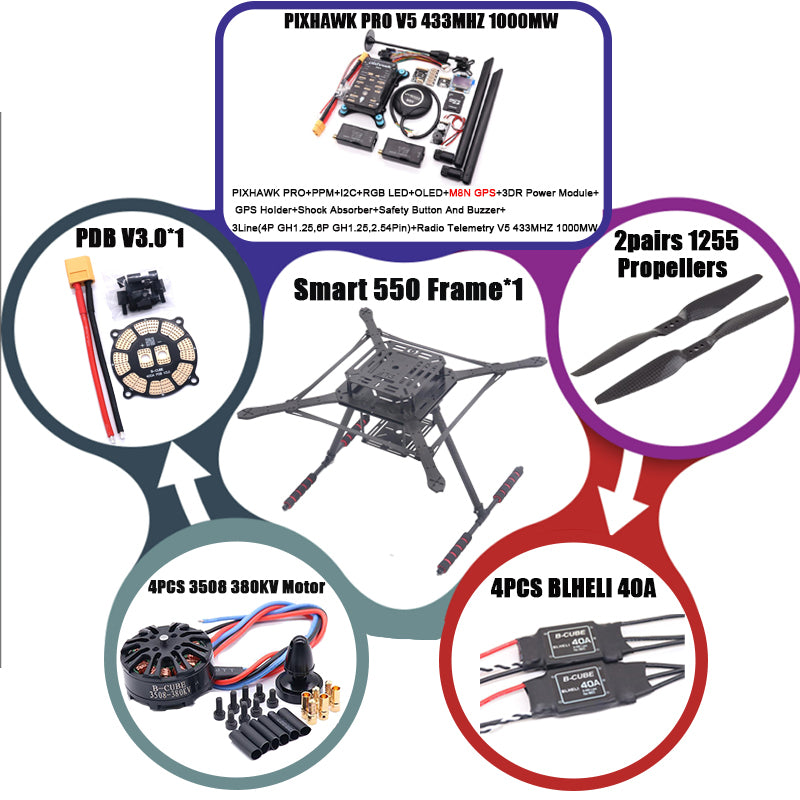

433MHZ 1000MW :
Smart 550 Frame + 4 PCS BLHELI 40A + 2 pairs self-locking 1255 Propellers + 4 PCS 3508 700KV Motor + PDB V3.0
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+3DR Power Module+Shock Absorber+433MHZ 1000MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
PIXHAWK 6C PRO
The Pixhawk® 6C PRO is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.
The Pixhawk® 6C PRO's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.
The Pixhawk 6C PRO includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.
The Pixhawk® 6C PRO is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.
Key Design Points
High performance STM32H743 Processor with more computing power & RAM
Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case
New cost-effective design with low-profile form factor
Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs
Technical Specification
Processors & Sensors
FMU Processor: STM32H743
32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
IO Processor: STM32F103
32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
On-board sensors
Accel/Gyro: ICM-42688-P
Accel/Gyro: BMI055
Mag: IST8310
Barometer: MS5611
Electrical data
Voltage Ratings:
Max input voltage: 6V
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~36V
Current Ratings:
TELEM1 Max output current limiter: 1.5A
All other port combined output current limiter: 1.5A
Mechanical data
Dimensions: 85 * 45 * 10 mm
Weight (Plastic Case) : 33g

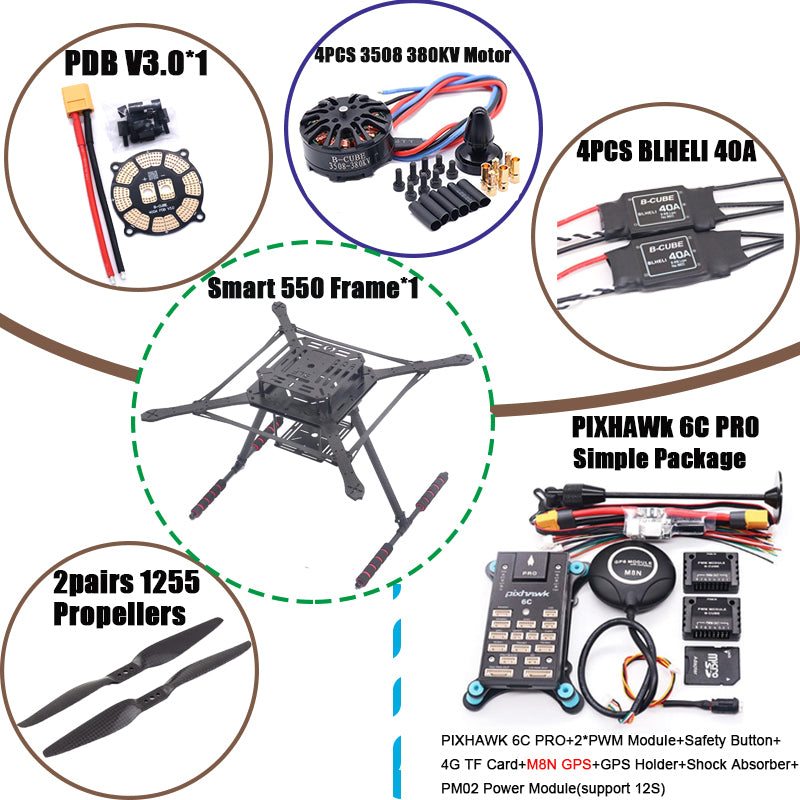

Simple Package:
Smart 550 Frame + 4 PCS BLHELI 40A + 2 pairs self-locking 1255 Propellers + 4 PCS 3508 700KV Motor + PDB V3.0
PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer +M8N GPS+GPS Holder+PM02 Power Module+ Shock Absorber

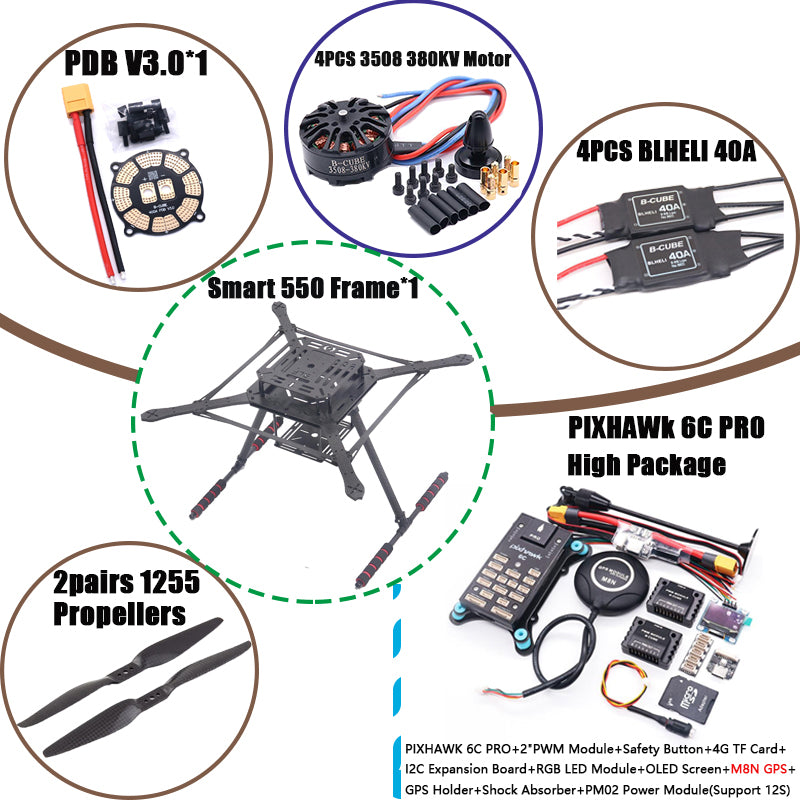

High Package:
Smart 550 Frame + 4 PCS BLHELI 40A + 2 pairs self-locking 1255 Propellers + 4 PCS 3508 700KV Motor + PDB V3.0
PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+I2C Expansion Board+ RGB Led + OLED Screen+M8N GPS+GPS Holder+PM02 Power Module+ Shock Absorber

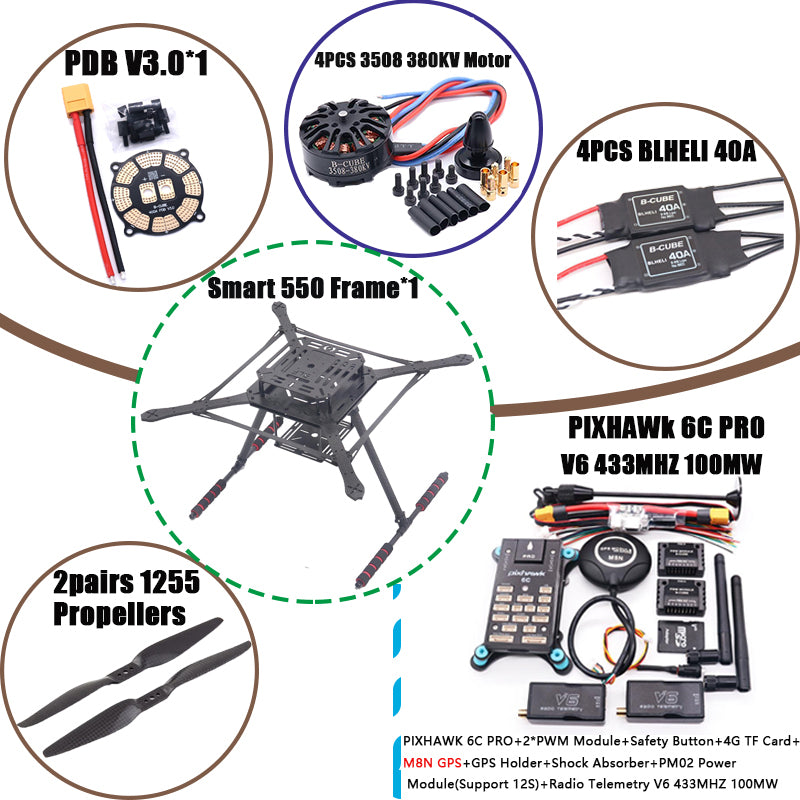

433MHZ 100MW :
Smart 550 Frame + 4 PCS BLHELI 40A + 2 pairs self-locking 1255 Propellers + 4 PCS 3508 700KV Motor + PDB V3.0
PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+M8N GPS+ GPS Holder+ PM02 Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry V6

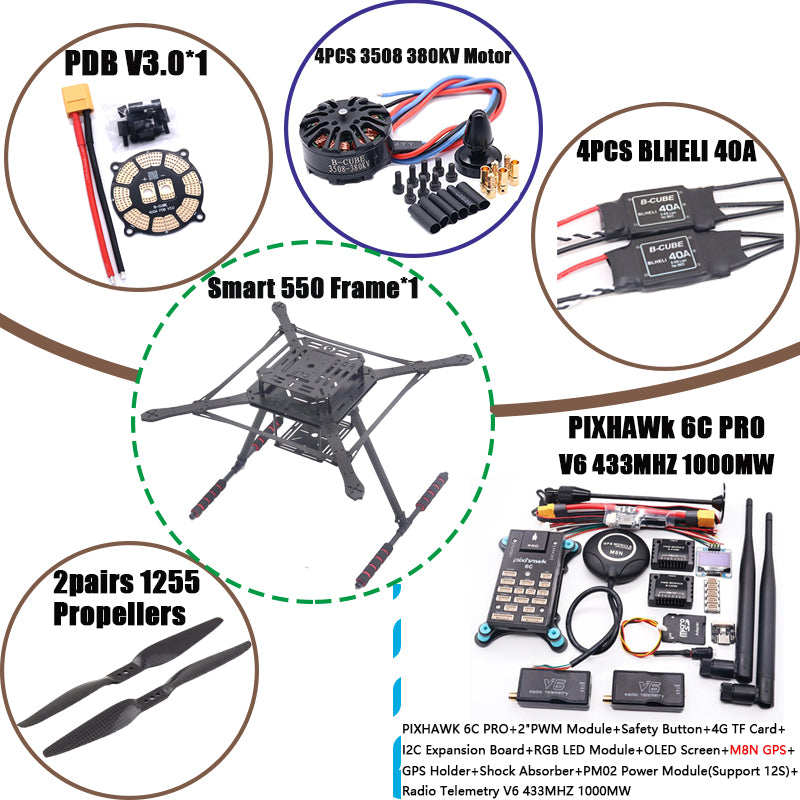

433MHZ 1000MW :
Smart 550 Frame + 4 PCS BLHELI 40A + 2 pairs self-locking 1255 Propellers + 4 PCS 3508 700KV Motor + PDB V3.0
PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+PM02 Power Module+Shock Absorber+433MHZ 1000MW Radio telemetry V6
M8N GPS:
550 Drone Frame
Product Description: ZD550 550MM Carbon Fiber Drone Frame FPV Quad APM Pixhawk Ardupilot Quadrotor Rack RC Multicopter Multi-Rotor (With Landing Gear)
Overview
Explore the ZD550 550MM Carbon Fiber Drone Frame, crafted from premium 3K pure carbon fiber for exceptional strength, durability, and lightweight performance. Ideal for FPV racing, aerial photography, and recreational flying, this 550mm quadrotor frame supports APM, Pixhawk, and Ardupilot platforms. Includes sturdy landing gear for stable takeoffs and landings.
Key Features
Material: 3K pure carbon fiber – Lightweight, robust, and wear-resistant.
Design: 550mm wheelbase 4-axis quadrotor frame, compatible with open-source flight controllers.
Landing Gear: Integrated for enhanced stability on various terrains.
Recommended Components (Not Included)
Motors: 4 x 3508 700KV Brushless Motors – Powerful and efficient for smooth, responsive flight.
Electronic Speed Controllers (ESCs): 4 x 40A ESCs – Reliable for precise motor control.
Propellers: 2 pairs of 1255 Propellers – Designed for excellent thrust and stability.
Battery: 5200mAh Battery – Provides long-lasting power for extended flights.
Benefits
Lightweight yet durable carbon fiber construction for optimal performance.
Open-source compatibility for easy customization and upgrades.
Sturdy design withstands challenging flying conditions.
Order Now!
Build your high-performance quadcopter with the ZD550 550MM Drone Frame. Add to cart today and take flight with confidence!
Specifications
Material: 3K Pure Carbon Fiber
Wheelbase: 550mm
Frame Type: 4-Axis Quadrotor
4PCS 3508 700KV Motor
Color Classification:Black
Motor Technical Parameters:
KV Value:KV380, KV700
Model:MX3508
Motor Diameter:42mm
Motor Length (No Shaft):24mm
Stator Diameter:35mm
Stator Length:8mm
Shaft Diameter:4mm
Weight:90g
Recommended Battery:3-6 Cells
Idle Current:0.3A
Top Mounting Hole:12mm x 12mm
Bottom Mounting Hole:25mm x 25mm
Suitable for:
Quadcopters
Hexacopters
Octocopters
Agricultural drones (plant protection machines)
Regarding Dynamic Balance:
We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.
Note:No 3-socket pad is provided. Please refer to the diagram for specific components.
MX3508 Motor Features:
Flat design
Multiple slot extreme outer brushless motor
High torque and efficiency
Competitive price
Compatible with most market-leading drone frames (with multiple mounting holes)
Aesthetically pleasing design
Propeller Installation:
We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.
Motor Dynamic Test Results:
Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.
4PCS BLHELI 40A
Features:
-
Connect OLED to I2C port of Pixhawk
-
Upload ardupilot firmware, at least 3.5 version, below 3.5 version will not be display.
-
Use Mission Planner to modify parameters NTF_DISPLAY_TYPE to 1. After modify, remember to click “Write Params” button.
-
Now the OLED is only supported for ardupilot firmware,can not be supported PX4 firmware
5. Reboot the board.
2Pairs T-Motor 3K Carbon Fiber Propeller 1255
The new T-motor propeller-type aerial dedicated full carbon paddle paddle-type three-hole installationUsing carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.
PDB V3.0
Number of Supported ESCs:8
Maximum Current Capacity:400A
Copper Thickness:7 oz
Weight:8.4g
Dimensions:Diameter 50mm, Mounting Hole Pattern 38mm
Screw Hole Size:M3
The upgraded V3.0 version has been improved based on the original design:
Copper thickness increased from 6 oz to 7 oz.
Output pad spacing enlarged to preent soldering errors.
Main current pad area enlarged.
Dimensions and mounting hole pattern remain unchanged.
