Pixhawk PX4 PRO White Shell M9N PIX 32 Bit Flight Controller Autopilot with 4G SD RC Quadcopter Ardupilot ArduPlane ArduRover

$99.92 USD

~~$99.92 USD~~ $99.92 USD

Sale Ausverkauft

Color Simple package Standard package High package 433MHZ 100MW M9N 433MHZ 500MW M9N 433MHZ 1000MW M9N 915MHZ 100MW M9N 915MHZ 500MW M9N 915MHZ 1000MW M9N

Anzahl

The product has passed strict CE certification. If you need a PDF or more complete test certificate, please leave a message.

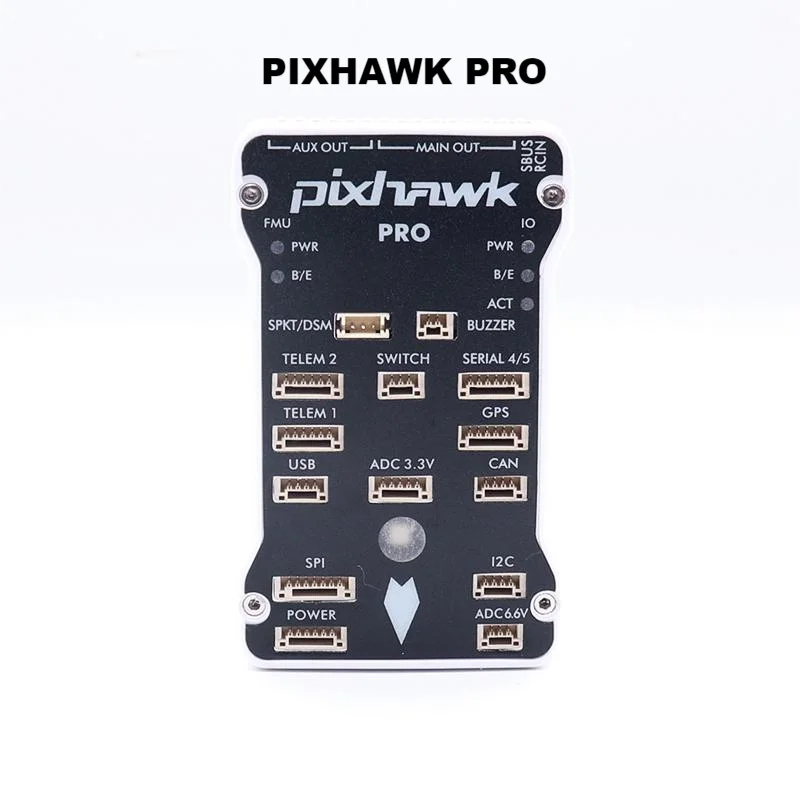

PIXHAWK PRO

Features:

Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

10.TYPE-C USB port

11.GH1.25 port

Specifications:

Interface

1.5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External TYPEC USB Interface

Simple package:

PIXHAWK PRO +M9N GPS+3DR Power Module+ GPS Holde + Shock Absorber+ Shock AbsorberSafety Button And Buzze+3Line(4PGH1.25,6PGH1.25,2.54Pin)

Standard package:

PIXHAWK PRO +PPM+I2C+M9N GPS+3DR Power Module GPs Holder+ shock Absorber+ Shock Absorber+Safety

Button And Buzzer+3Line(4P GH1.25,6PGH1.25,2.54Pin

High package:

PIXHAWK PRO+PPM+I2C+RGB LED+OLED+M9N GPS+3DR Power Module+ GPS Holder+ Shock Absorber+

Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)

433/915MHZ 100MW :

PIXHAWK PRO+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M9N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry

433/915MHZ 500MW :

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M9N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry

433/915MHZ 1000MW :

OLED Module can display some message.

M9N GPS Module

M9N is a GPS module commonly used in unmanned aerial vehicles, with the following characteristics and applications:

High precision positioning: The M9N adopts advanced GNSS technology, supports multiple satellite navigation systems, and can provide high-precision position positioning information. For unmanned aerial vehicles, it can achieve accurate positioning and navigation.

Multi system support: The M9N supports multiple satellite navigation systems, including GPS, GLONASS, Galileo, BeiDou, etc. This allows drones to receive multiple satellite signals simultaneously, improving positioning accuracy and reliability.

Quick positioning: M9N has fast cold start and hot start times, which can quickly obtain satellite signals and perform positioning, making it crucial for the rapid takeoff and task execution of unmanned aerial vehicles.

Strong anti-interference ability: M9N has excellent anti-interference performance, which can work stably in complex electromagnetic environments and is not susceptible to interference from other electronic devices.

In drone applications, M9N can be used in the following aspects:

Positioning and Navigation: The M9N provides accurate position and speed information to help drones achieve precise navigation and flight control.

Waypoint navigation: By inputting pre-set waypoint information into M9N, unmanned aerial vehicles can automatically fly according to the route, achieving autonomous waypoint navigation tasks.

Multi aircraft collaboration: Multiple drones can use the M9N module for positioning and synchronization to achieve applications such as team collaborative flight and formation flight.

Return to return: The M9N can provide accurate return positioning information, enabling the drone to safely return to the takeoff point or preset return point.

M9N can search for more satellites outdoors with higher accuracy, faster search speed, and better stability.(The specific number of star searches is determined by the environment at that time.)
