Pixhawk PX4 PRO M10 GPS PIX 32 Bit Flight Controller Autopilot with 4G SD RC Quadcopter Ardupilot ArduPlane ArduRover

$108.30 USD

~~$108.30 USD~~ $108.30 USD

Sale Ausverkauft

Color Simple package Standard package High package 433MHZ 100MW M10 433MHZ 500MW M10 433MHZ 1000MW M10 915MHZ 100MW M10 915MHZ 500MW M10 915MHZ 1000MW M10

Anzahl

The product has passed strict CE certification. If you need a PDF or more complete test certificate, please leave a message.

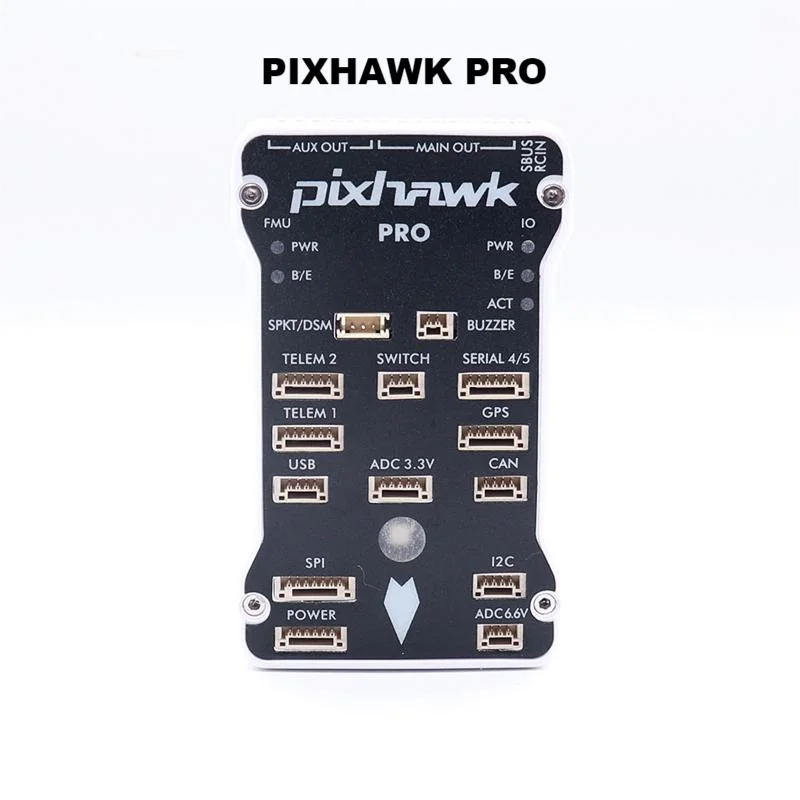

PIXHAWK PRO

Features:

Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

10.TYPE-C USB port

11.GH1.25 port

Specifications:

Interface

1.5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External TYPEC USB Interface
Simple package:

PIXHAWK PRO +M10 GPS+3DR Power Module+ GPS Holde + Shock Absorber+ Shock AbsorberSafety Button And Buzze+3Line(4PGH1.25,6PGH1.25,2.54Pin)

Standard package:

PIXHAWK PRO +PPM+I2C+M10 GPS+3DR Power Module GPs Holder+ shock Absorber+ Shock Absorber+Safety

Button And Buzzer+3Line(4P GH1.25,6PGH1.25,2.54Pin

High package:

PIXHAWK PRO+PPM+I2C+RGB LED+OLED+M10 GPS+3DR Power Module+ GPS Holder+ Shock Absorber+

Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)

433/915MHZ 100MW :

PIXHAWK PRO+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M10 GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry

433/915MHZ 500MW :

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M10 GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry

433/915MHZ 1000MW :

OLED Module can display some message.

PX4 1.14, ArduPilot 4.3, or newer is required.

Firmware Support for M10 GPS:

The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

It also comes with the IST8310 compass.This module ships with a baud rate of 115200 5Hz.

The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

Specification

	M10 GPS	M9N GPS
GNSS Receiver	Ublox M10	Ublox M9N
Number of Concurrent GNSS	Up to 4 GNSS	Up to 4 GNSS
	BeiDou	BeiDou
	Galileo	Galileo
	GLONASS	GLONASS
	GPS	GPS
	QZSS	QZSS
Frequency Band	GPS L1	GPS L1
	Galileo E1	Galileo E1
	GLONASS L1	GLONASS L1
	BeiDou B1	BeiDou B1
	SBAS L1	SBAS L1
	QZSS L1	QZSS L1
Compass	IST8310	IST8310
Output Protocol	UBX (U-blox)	UBX (U-blox)
Output Protocol	NMEA	NMEA
Accuracy	2.0m CEP	1.5m CEP
Nav. Update Rate	Up to 25 Hz (single GNSS),	Up to 25 Hz (4 concerrent GNSS)
Nav. Update Rate	Up to 10 Hz (4 concurrent GNSS)	Up to 25 Hz (4 concerrent GNSS)
GNSS Augmentation System	EGNOS, GAGAN, MSAS and WAAS	EGNOS, GAGAN, MSAS and WAAS
GNSS Augmentation System	QZSS: L1S	QZSS: L1S
Default Baud Rate	115200	115200
Input Voltage	4.7-5.2V	4.7-5.2V
Port Type	JST-GH-6P	JST-GH-6P
Antenna	25 x 25 x 4 mm ceramic patch antenna	25 x 25 x 4 mm ceramic patch antenna
Power consumption	Less than 200mA @ 5V	Less than 200mA @ 5V
Operating Temperature	-40~80C	-40~80C
Dimension	φ50 x14.4 mm	φ50 x14.4 mm
Weight	32g	32g
Cable Length	26cm (42cm cable purchase separately)	26cm (42cm cable purchase separately)
