NEW ZD680 Full Carbon Fiber Frame Kit

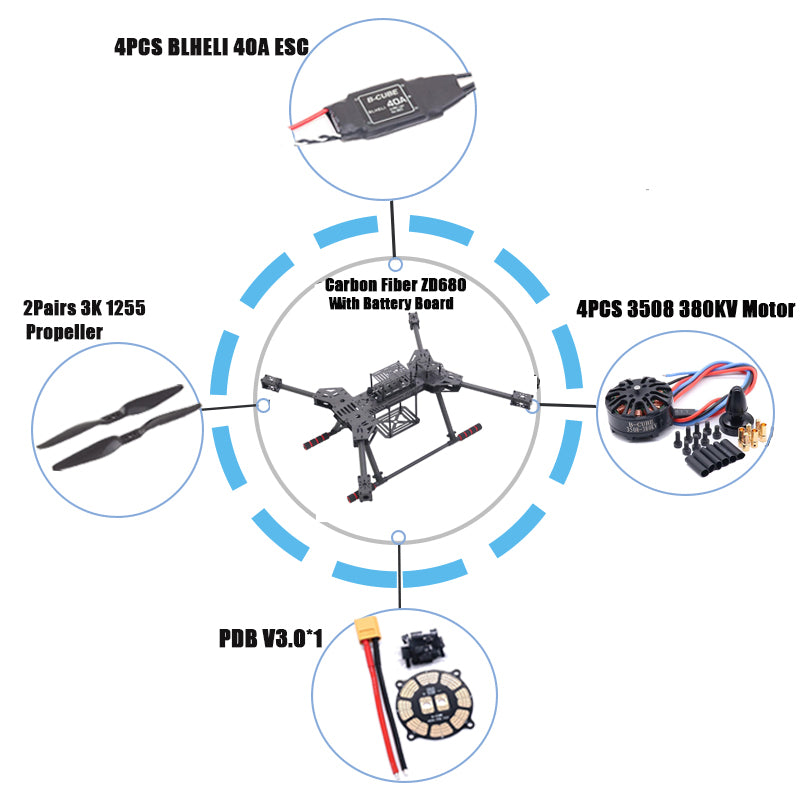

ZD680 Frame Kit：NEW ZD680 Full Carbon Fiber + 4PCS BLHELI 40A Brushless ESC+2Pairs 3K Carbon Fiber Propeller 1255 + 4PCS 3508 380KV Motor + PDB V3.0
NEW ZD680 Full Carbon Fiber
Product Overview: FPV New F680 All 3K Carbon Fiber ZD 680 Foldable Arm Aircraft Frame Kit
High-Performance Design: A frame kit crafted for drone enthusiasts and professionals, made from high-strength 3K carbon fiber for exceptional durability and lightweight performance.
Foldable Arm Structure: Features a unique foldable arm design with 16MM carbon fiber tubes, allowing quick collapsing and deployment for enhanced portability and storage convenience while maintaining structural stability during flight.
Robust Body: Constructed with a 2MM carbon fiber body, ensuring strong support and rigidity.
Flight Control Recommendation: We recommend pairing with the PIXHAWK flight control system, renowned for its advanced navigation and stability, making the F680 ideal for FPV racing, aerial photography, and custom drone projects.
Recommended Configuration:
Flight Controller: PIXHAWK flight control system, offering precise navigation and stable performance.
ESC: 40A Electronic Speed Controller, ensuring reliable power management.
Motor: 3508 380KV motors, delivering powerful thrust and high efficiency.
Propeller: 12-inch (1255) propellers, achieving a perfect balance of lift and agility.
Battery: Supports 4S to 6S LiPo batteries, meeting diverse flight duration needs.
Key Benefits:
Material Strength: Benefits from the toughness of 3K carbon fiber and the convenience of foldable 16MM arms, combined with the rigidity of a 2MM carbon fiber body.
Versatile Application: An ideal platform for a wide range of applications, whether for racing enthusiasts or aerial photography experts.
Customizable Solution: Provides a high-quality, customizable drone solution for various projects.
4PCS 3508 380KV Motor
Color Classification:Black
Motor Technical Parameters:
KV Value:KV380
Model:MX3508
Motor Diameter:42mm
Motor Length (No Shaft):24mm
Stator Diameter:35mm
Stator Length:8mm
Shaft Diameter:4mm
Weight:90g
Recommended Battery:4-6 Cells
Idle Current:0.3A
Top Mounting Hole:12mm x 12mm
Bottom Mounting Hole:25mm x 25mm
Suitable for:
Quadcopters
Hexacopters
Octocopters
Agricultural drones (plant protection machines)
Regarding Dynamic Balance:
We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.
Note:No 3-socket pad is provided. Please refer to the diagram for specific components.
MX3508 Motor Features:
Flat design
Multiple slot extreme outer brushless motor
High torque and efficiency
Competitive price
Compatible with most market-leading drone frames (with multiple mounting holes)
Aesthetically pleasing design
Propeller Installation:
We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.
Motor Dynamic Test Results:
Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.
Features:
- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;
- Firmware was optimized specifically for disc motor, and it has a very good compatibility;
- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;
- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;
- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);
- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;
- Ultra-low resistance MOSFET, strong flow capacity.
2Pairs T-Motor 3K Carbon Fiber Propeller 1255
The new T-motor propeller-type aerial dedicated full carbon paddle paddle-type three-hole installation
Using carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.
PDB V3.0
Product Name: High-current ESC Power Distribution Board PDB V3.0
Number of Supported ESCs: 8
Maximum Current Capacity: 400A
Copper Thickness: 7 oz
Weight: 8.4g
Dimensions: Diameter 50mm, Mounting Hole Pattern 38mm
Screw Hole Size: M3
The upgraded V3.0 version has been improved based on the original design:
Copper thickness increased from 6 oz to 7 oz.
Output pad spacing enlarged to preent soldering errors.
Main current pad area enlarged.
Dimensions and mounting hole pattern remain unchanged.
