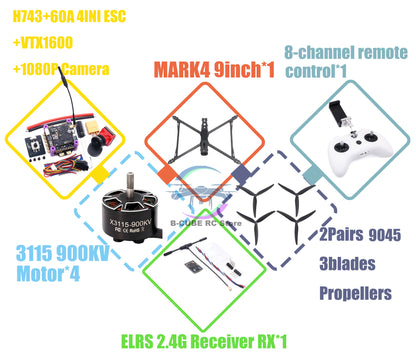

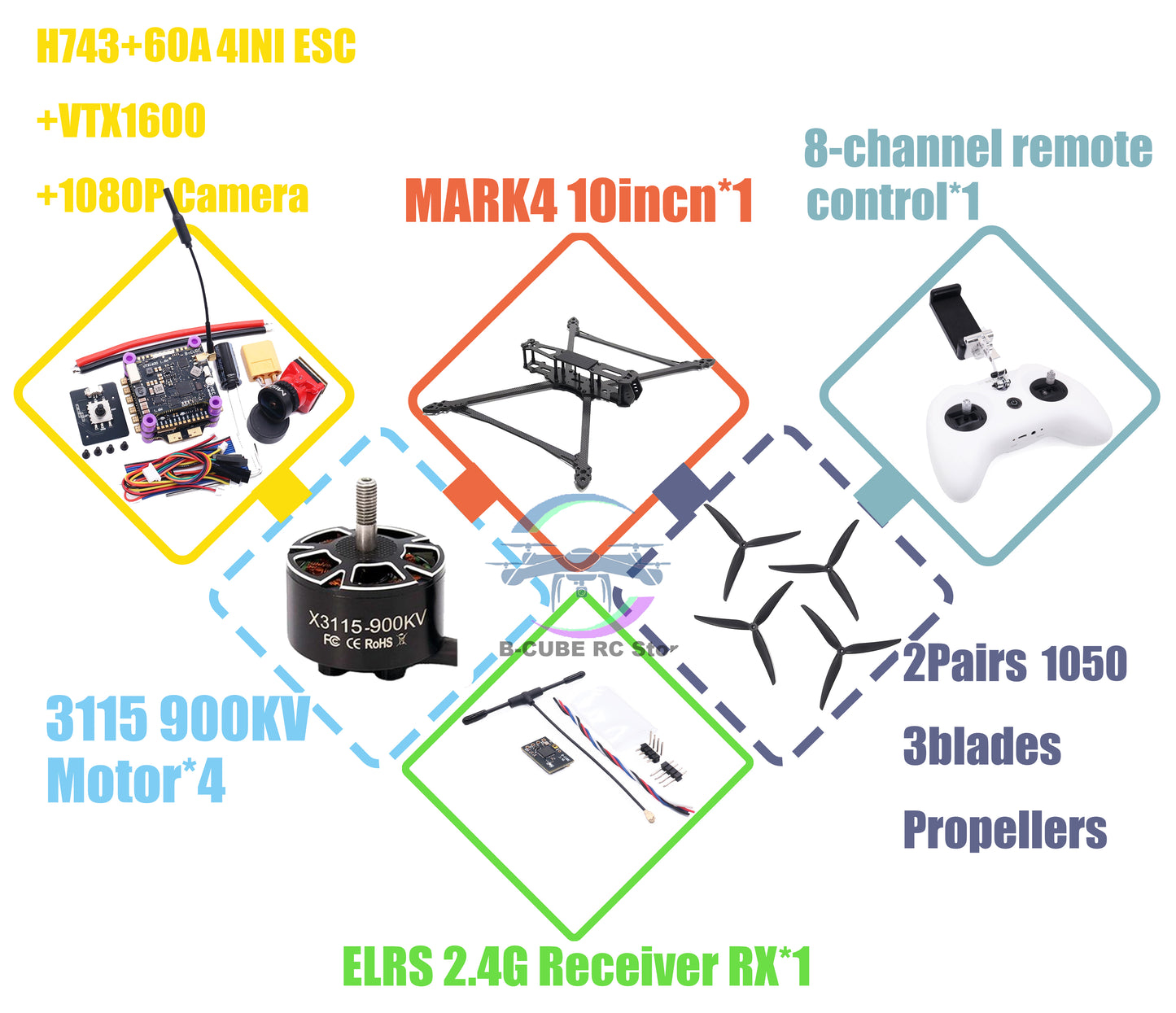

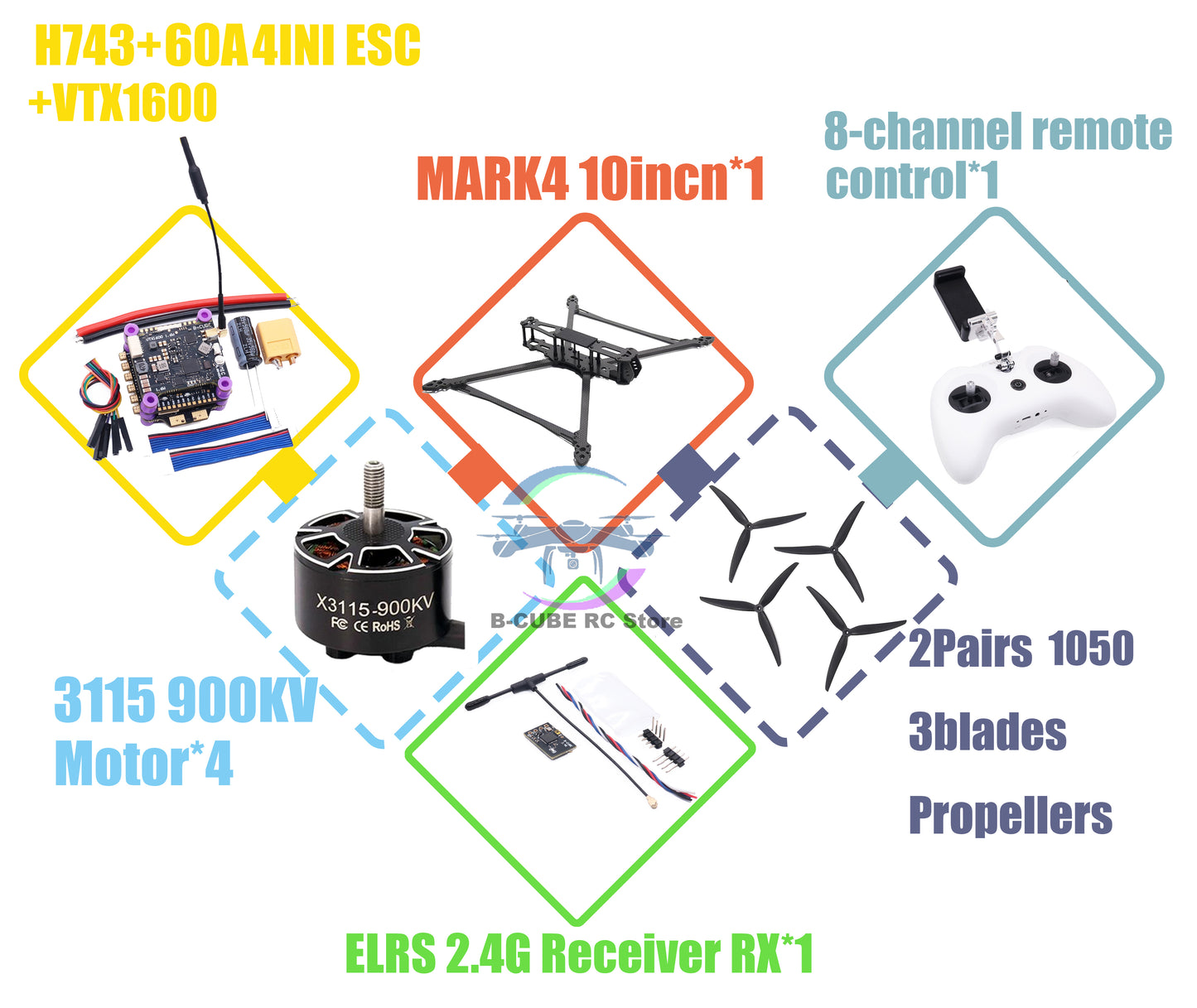

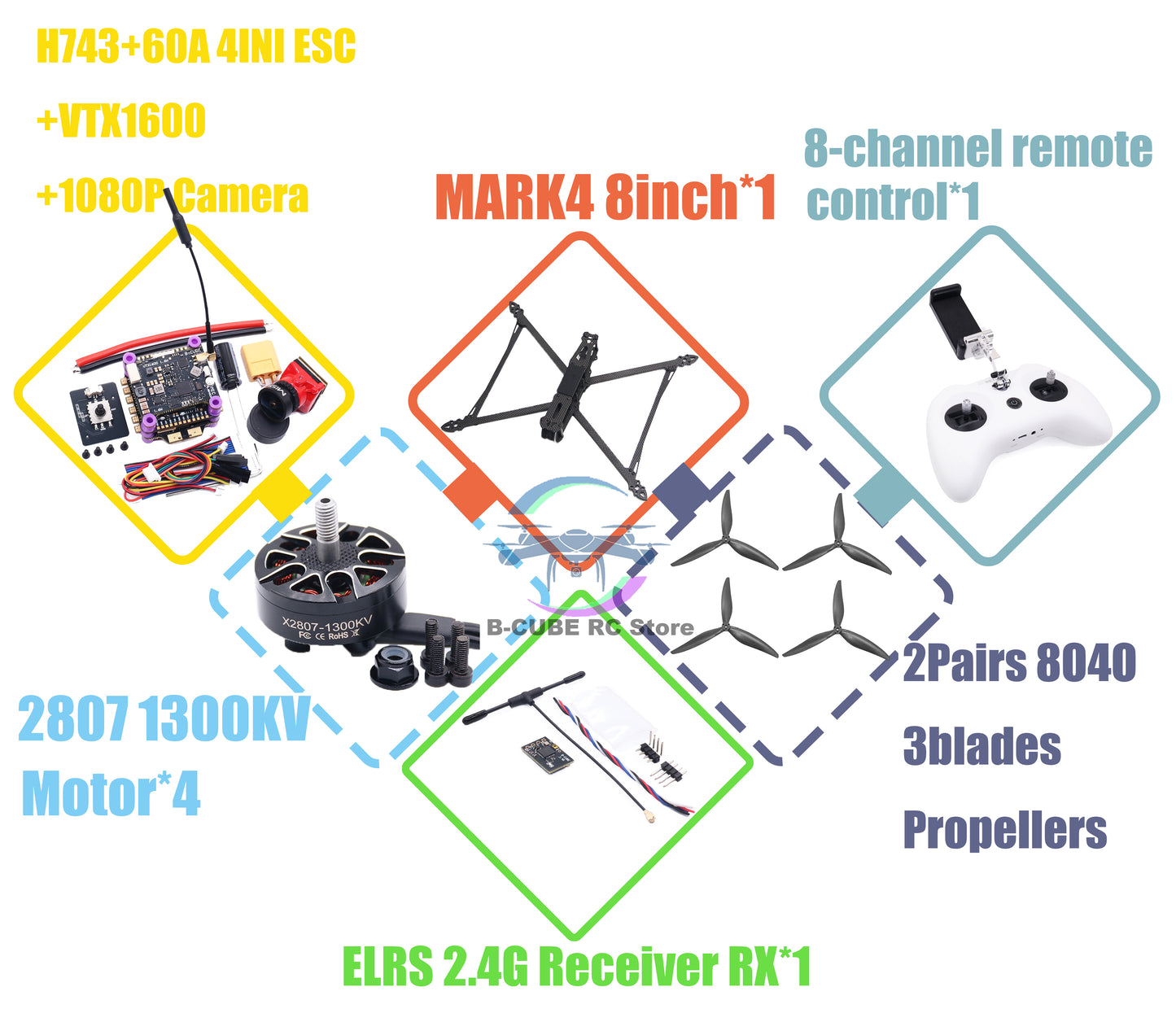

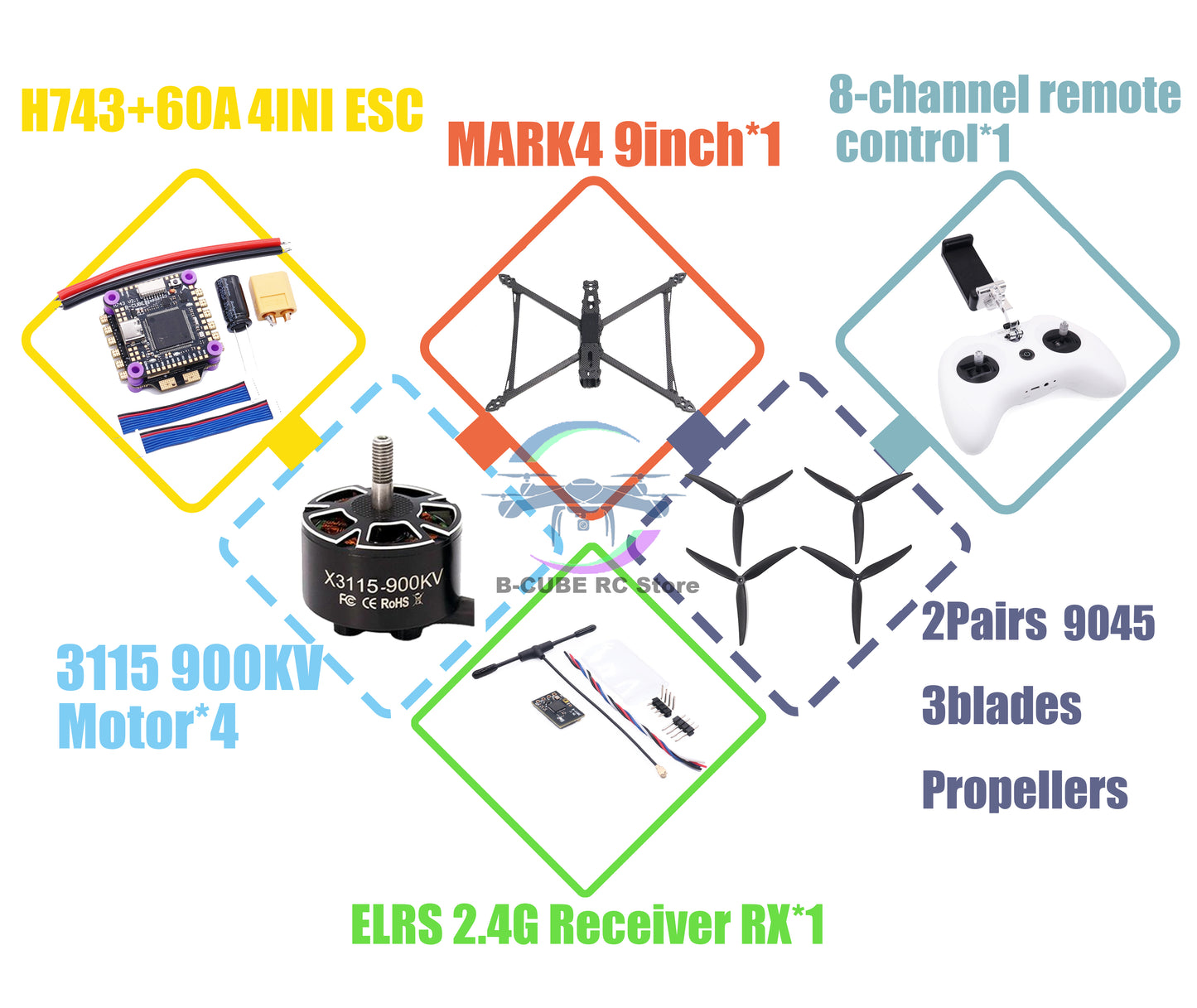

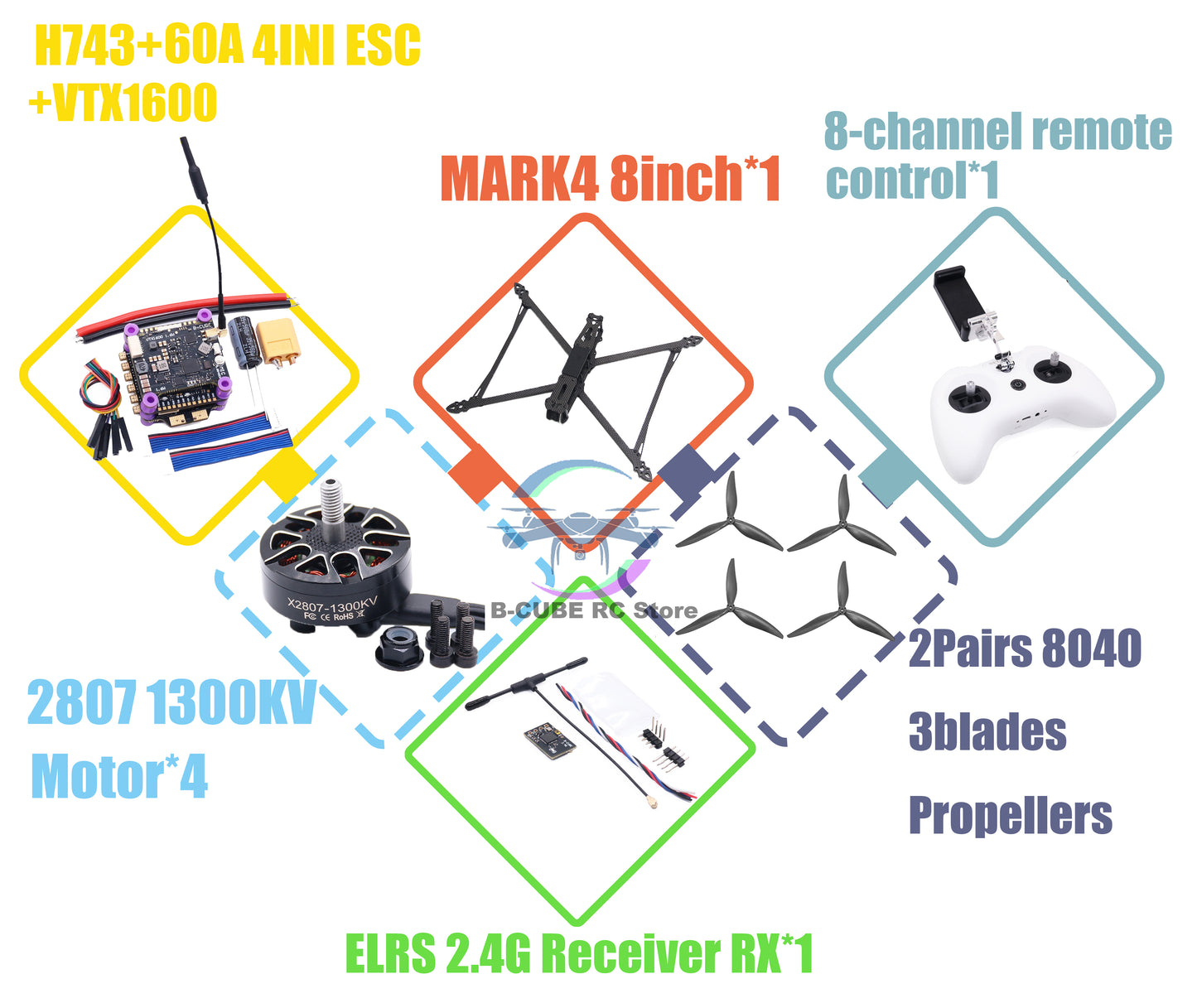

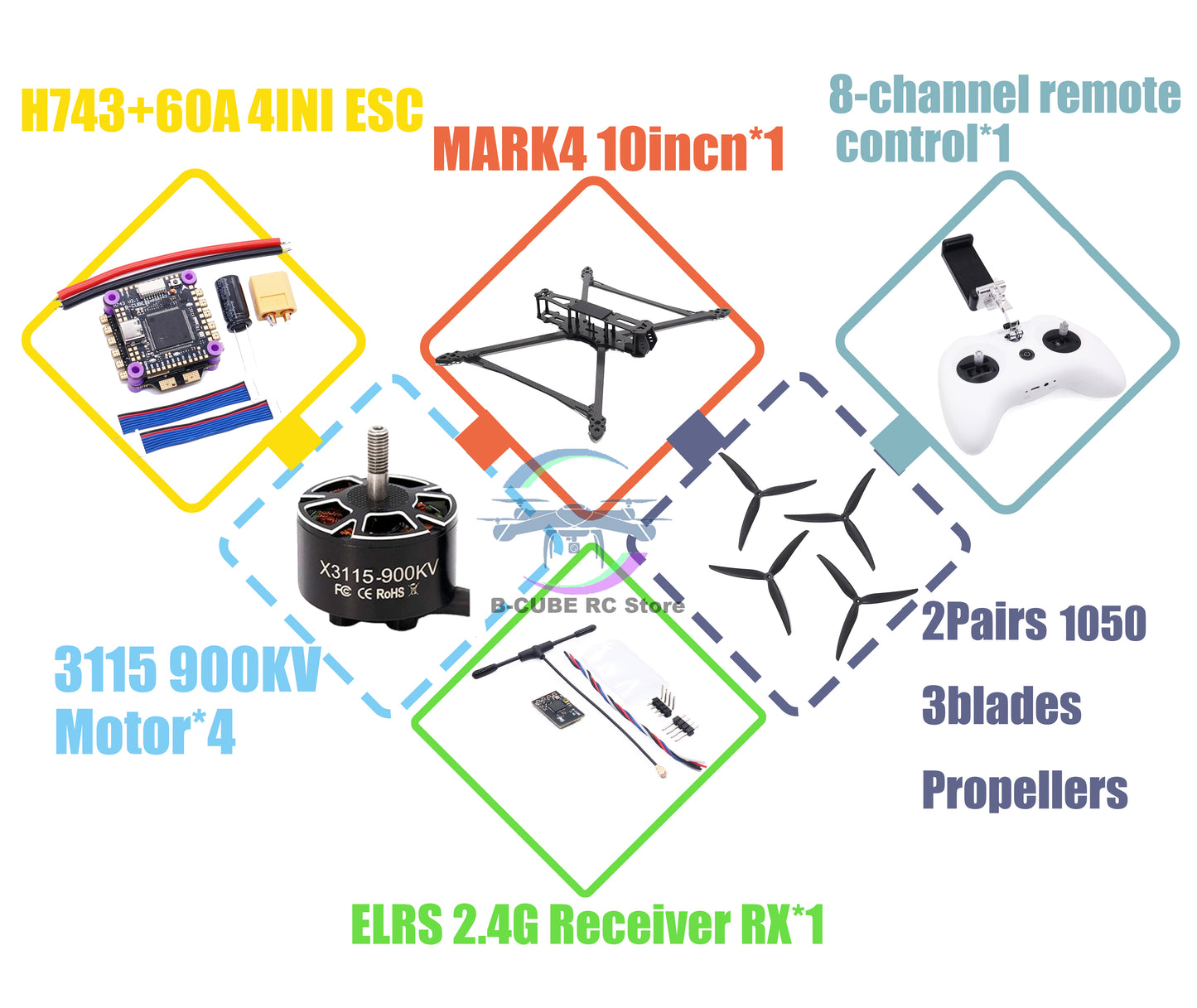

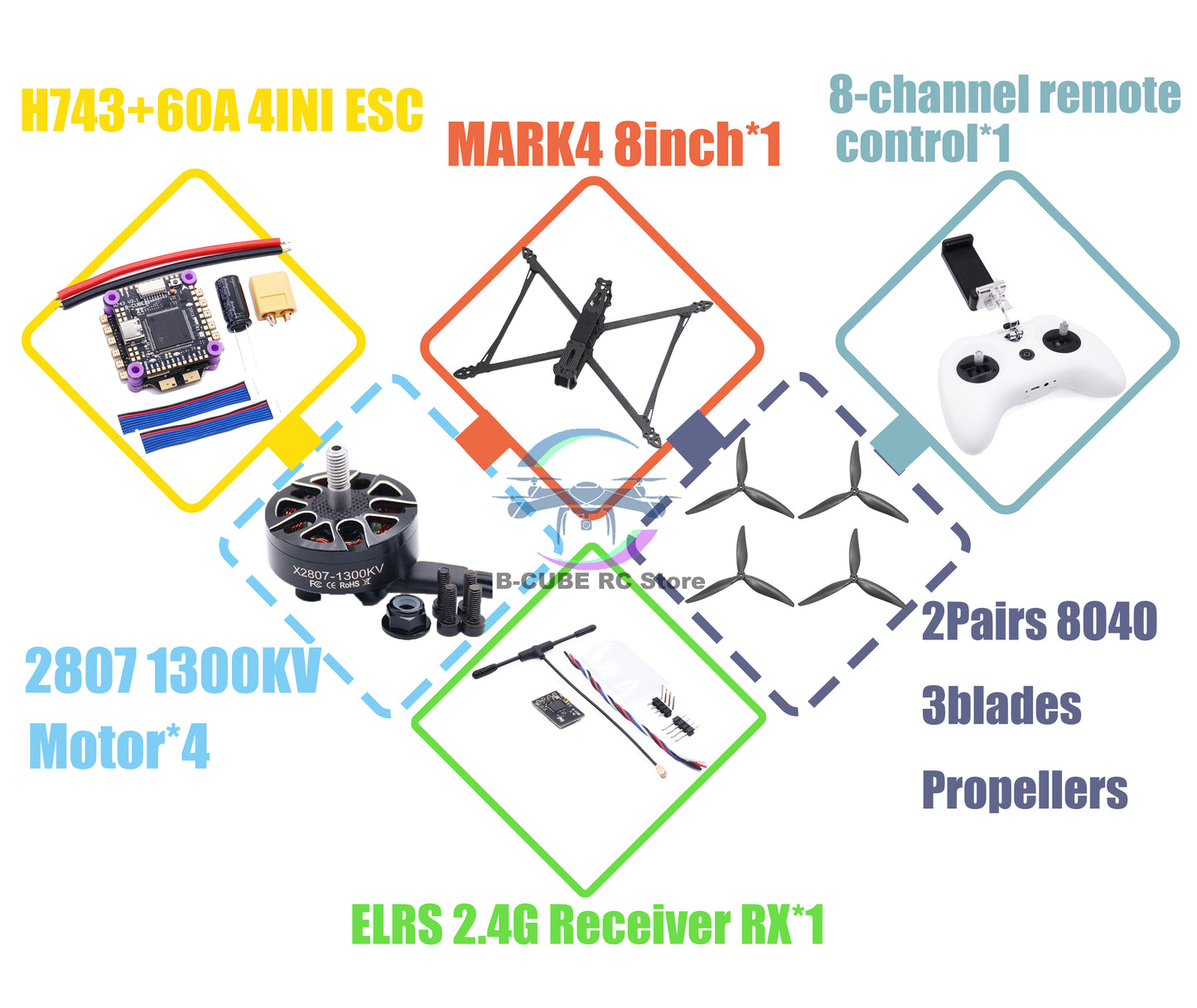

MARK4 V2 8inch 9inch 10inch H743 Flight Control 60A 4INI ESC rack drone FPV carbon fiber PV Racing Drone Quadcopter Freestyle

MARK4 V2 8inch 9inch 10inch H743 Flight Control 60A 4INI ESC rack drone FPV carbon fiber PV Racing Drone Quadcopter Freestyle

$31.00 USD
$31.00 USD
Sale Ausverkauft
Type

3K Carbon Fiber Frame MARK4 V2 8inch 367mm 9inch 387mm 10inch 427mm WheelBase RC FPV Freestyle Racing Drone Frame Kit

Description:
Model: MAK4 V2 8inch
Wheelbase: 367mm
Weight: about 214g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm
Model: MAK4 V2 9inch
Wheelbase: 387mm
Weight: about 220g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm
Model: MAK4 V2 10inch
Wheelbase: 427mm
Weight: about 227g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

The rack uses external nuts, not nuts built into the carbon fiber board. Nuts built into the carbon fiber board are prone to loosening during flying , so using external nuts is more secure and safe.When fixing, please use external nuts to secure.

B-CUBE H743 Flight Controller

Features:

  1. The H743 is a 3-6S 36x36mm mini flight controller with a 128MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
  2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
  3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
  4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
  5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:

H743 is a major upgrade, offering enhanced performance and precision.Boosting processing power for faster response and improved flight stability. The IMU has been upgraded todouble ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, H743delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.

Specifications:

l Chip:STM32H743VIT6(480MHZ)

l Gyro:ICM-42688-P*2

l Barometer:DPS310

l OSD Chip:AT7456E

l Black box:128MM

l LED Program:Support

l BB buzzer:Support

l Input voltage:3-6S

l I2C Connector:Support

l BEC:5V/2.5A

l BEC:10V/2.0A

l Cam Input:Support

l USART:UART1,UART2.UART3.UART4.UART6.UART7

l Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX

l GPS:YES

l COMPASS:YES

l HD O3:YES

l ESC Signal:Dshoot150.Dshot300,Dshot600

l USB:TYPE-C

l Current Port:Yes.

l Voltage Sensor:Yes

l Firmware: cleanflight/betaflight/inav/ardupilot

l FC firmware:betaflight_4.5.2_STM32H743_JHEH743_HD.hex/ inav_8.0.1_JHEMCUH743HD.hex / arducopter4.6_with_bl.hex

l Install hole:30.5*30.5*4MM

l Board size:36*36MM

l Weight:7.9g

BLHELI_S 60A 4IN1 3-6S Brushless ESC


BLHELI_S 60A 4IN1 3-6S Brushless ESC

Size: 41*39.5*5mm

Hole distance: 30.5*30.5/5mm

Weight: 13g

Input voltage: LIPO 2-6S

Continuous current: 60A

Maximum current: 70A (5 seconds)

Firmware: BLS J_H_30_REV16_7

Drive signal support: DShot300-600/Multishot/Oneshot/PWM

Current sensor: Support


The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision

VTX1600 1.6W Video Transmitter

Attention: Before powering on, please make sure to reliably connect the antenna, otherwise it will burn when powered on.

VTX1600 will generate heat during use, which is normal. Please do not touch with your hands to avoid burns.The higher the power, the more heat it generates. The PCB uses high-end customized materials, and high temperatures will not burn out the circuit board. VTX1600 should be kept away from the flight control and in a ventilated position on the aircraft.The heat dissipation module should face upwards and be in a ventilated position in order to continuously dissipate heat.

Support manual adjustment of power and frequency, support IRC protocol OSD parameter adjustment.Built in microphone for real-time sound transmission.

Short press to adjust channel (corresponding to blue light, 1-8, a total of 8 times) Long press for 2 seconds to adjust the group (corresponding to green light, A, B, E, F, R, a total of 5 times)

Long Press for 5 seconds to adjust the power (corresponding to the red light, a total of 5 times)

Long press for more than 10 seconds to open 11 prohibited USA channels.

Default does not output prohibited USA channels: 5705,5685,5665,5885,5905,5880,5658,5695,5732,5880,5917

Download the VTX table from here: https://github.com/BCUBE-RC/VTX/archive/refs/tags/vtx1600.zip

Default output: 5865MHZ (5.865GHZ)/1.6W

Model: VTX1600

Frequency: 5645-5945MHZ

Input voltage: 7-26V

Output voltage: 5V/1A

Channel : 40CH

Transmission power: PIT/25MW/200/400/800/1600MW

Boundary dimension: 36 * 36MM

Screw hole: 30.5 * 30.5MM

Screw aperture: 3MM

Weight: 7.3g

Packaging List:

VTX1600 Board * 1

Shock-absorbing ball *4

Fixed Nylon Column *4

Heat dissipation module *1

5.8G 5DB antenna *1

6P * 1.0MM plug cable * 1

Description:

Model: MINI MS-1672 FPV cameras

Sensor: 1/1/8 "CMOS D1080H

Horizontal resolution: 2000TVL

Horizontal field of view: 165

Lens: 2.1mm lens

Video format: NTC&PAL (adjustable)

Image scale: 4:3&16:9 (automatic recognition)

Wide Dynamic Range: Super WDR

Noise reduction: 3DNR

Low illumination: 0.001LUX

Video output: CVBS

Day and night: external/internal/black and white/color

Language: (English/Chinese/Traditional Chinese/pyccnna)

ESOABIK/TTASSNO/FRABCAUS/

POSDIM/PORTUGUES/Japanese

Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000

Wide voltage input: 5-36V

Working temperature: -20-60

Weight: 110g

Dimensions: 19 * 19 * 19mm

Resolution: 960 * 1080



Feature:

Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.

Package included: 1 x Upgraded Mista FPV Camera
