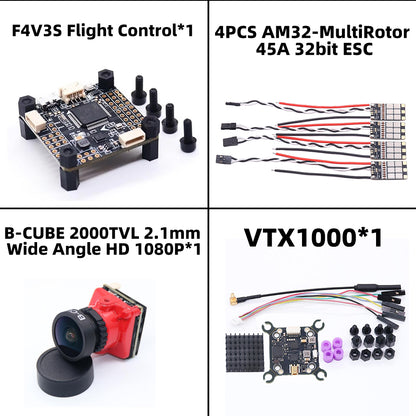

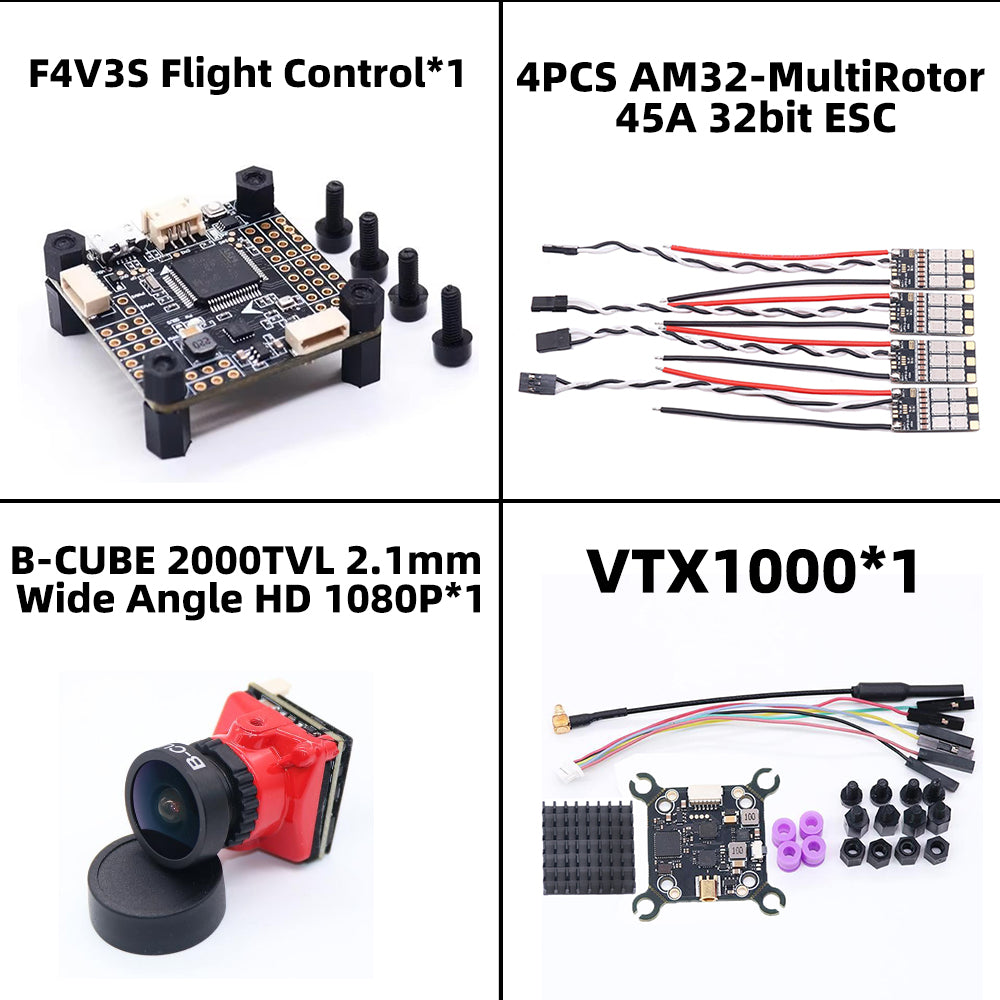

B-CUBE F4V3S/ F4V3S PLUS+45A/60A 4IN1 ESC+VTX1000+1080P Camera INAV Betaflight Board Barometer OSD Quadcopter RC Drone FPV Racing
B-CUBE F4V3S/ F4V3S PLUS+45A/60A 4IN1 ESC+VTX1000+1080P Camera INAV Betaflight Board Barometer OSD Quadcopter RC Drone FPV Racing
Verfügbarkeit für Abholungen konnte nicht geladen werden

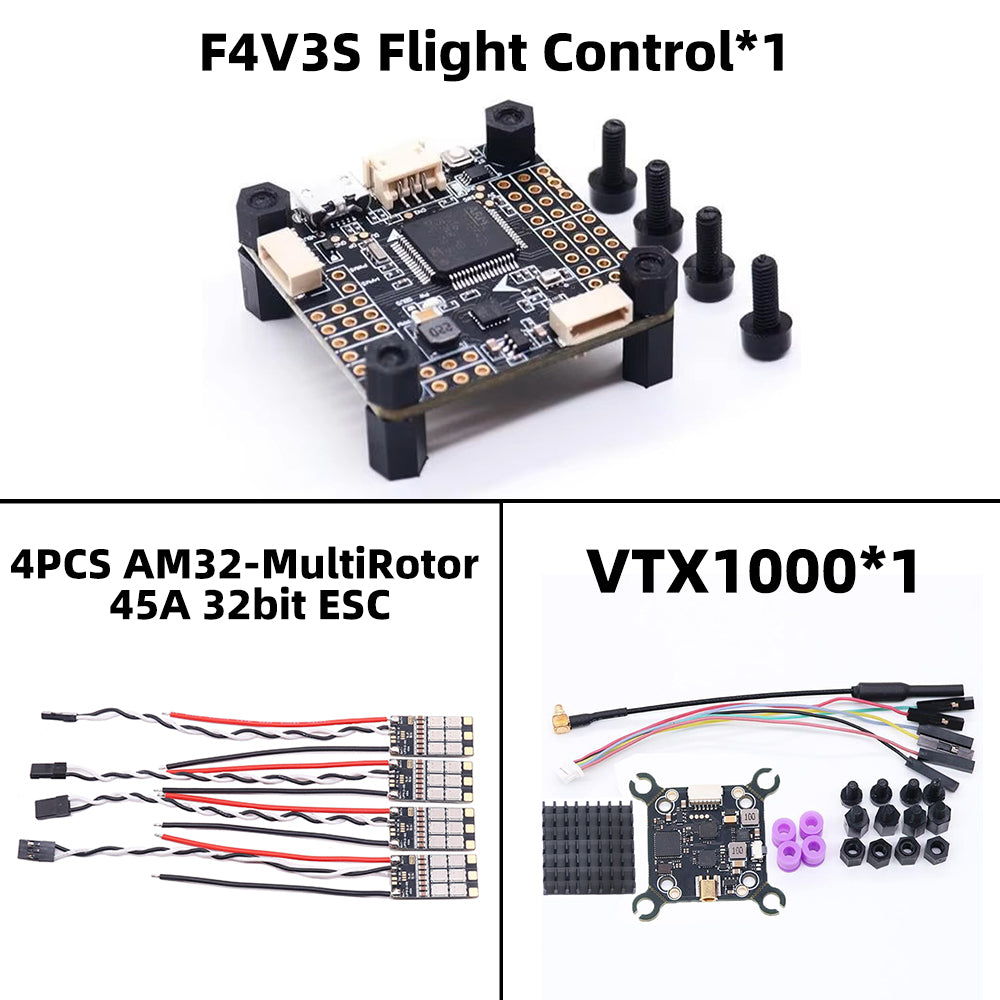

F4V3S & PLUS flight controller
F4V3S flight controller Item Specifics:
Product Name: F4 Flight Controller Board
Material: Electronic component
Standard Board Size: about 36x36mm
Standard Size of Mount Hole: 30.5x30.5mm
Features:
-STM32 F405 MCU
-Dshot support
-Drag and Drop OSD configured via Betaflight Configurator
-Smartaudio v2 support Tune your PID's and configure the omnibus F C from your Transmitter
-MPU6500 6 axis SPI Gyro & Accelerometer (show as MPU6500 at inav-configurator if upload INAV firmware)
-SBUS/PPM AND Spketrum dsm-x Ports
-SD card blackbox
-Baro(BMP280)
-5V 3A SBEC
-On-board Video Filter(only can supply 5V to VTX and Camera)
-SmartAudio V2 via tx6 on J10
-4×3 pin ESC pin layout
-IR pins for lap timing transponder
Note : F4V3S PLUS uses a TYPE-C USB port. Please ensure that you have a TYPEC USB cable that can communicate normally. Some USB cables can only be charged and cannot communicate data with flight control. If the USB cable you use cannot recognize the flight control USB port, it indicates that your USB cable cannot communicate with data normally. We upload firmware to the flight control through USB and conduct testing, so it can be very guaranteed that the USB port of the flight control is normal.
If you are unable to confirm if your USB cable is communicating properly, please purchase one.
Specification:
Item name: F4V3S PLUS Flight Controller
Firmware:OMNIBUSF4SD(AIRB)
USB Port: TYPE-C
Size: 36x36mm
Mounting holes: 30.5x30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
MPU6500 6 axis SPI gyro & accelerometer
SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
5V3A 9V3A BEC
On-board video filters
Properties:
measured.
Boasting a F4 processor, on-board Betaflight OSD, MicroSD Black Box, 5v3a sbec, video filter, you'll be tuning PIDS with your transmitter and tear it to the track in no time!
Note ： F4V3S PLUS supports cleanflight ,betaflight and INAV firmware.

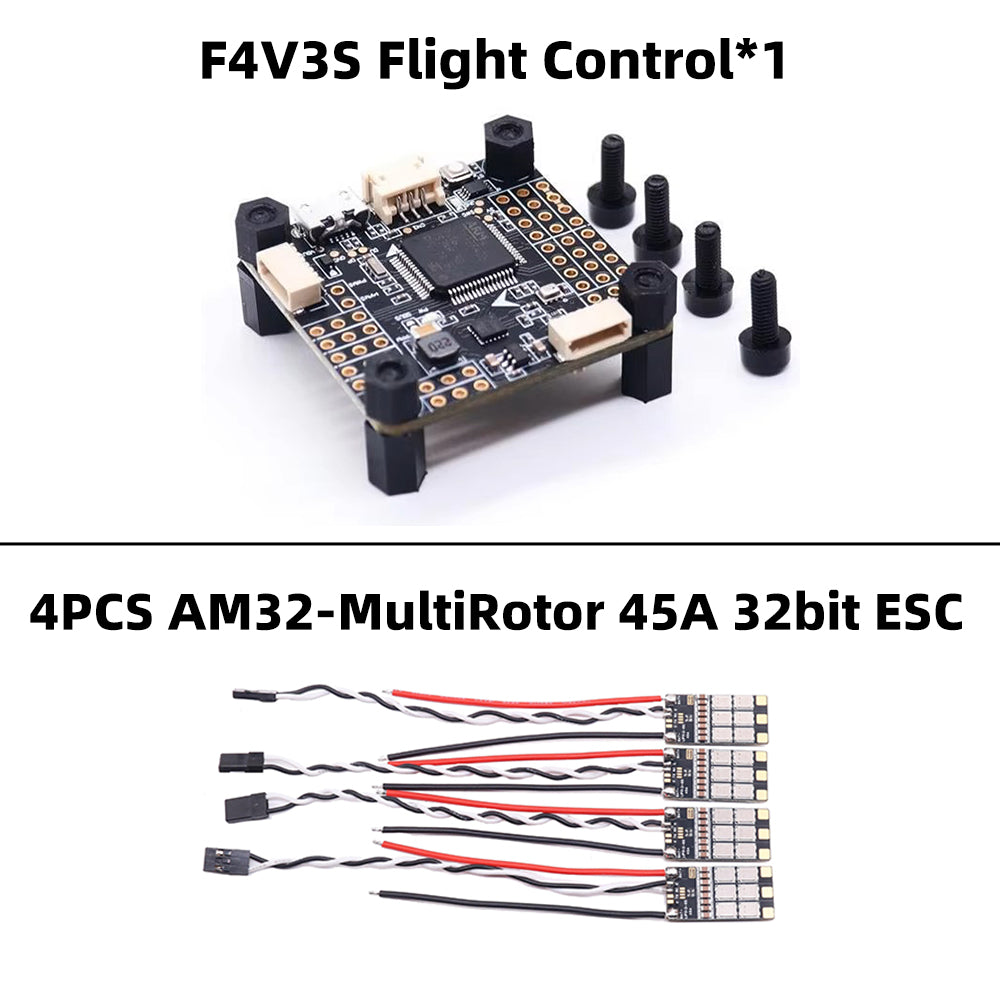

AM32-45A ESC Hardware:
- ESC Firmware: AM32_NEUTRON_G071_1.91.hex
- Processor: 32-bit ARM Cortex STM32G071GBU6TR, frequency up to 64 MHz
- PWM carrier frequency: 48kHz
- ESC protocol: PWM/DShot300/DShot600 (Recommended to use DShot300)
- Power input support: 3-6S (11.1V-27V)
- Maximum continuous operating current: 45A (requires adequate heat dissipation and cannot operate in a sealed environment)
- MOSFET Parameters: 40V 0.75mΩ Ultra-Low On-Resistance
- Galvanometer output: 12.75 mV/A
- Weight: 3.2g（Not include Line),6.6g(include Line)
- Board size: 35MM * 18MM
- Recommended Usage Scenario: 3.5-10 inch FPV Racing Drone
AM32-MultiRotor-ESC Firmware
Firmware for ARM based speed controllers The AM32 firmware is designed for STM32 ARM processors to control a brushless motor (BLDC). The firmware is intended to be safe and fast with smooth fast startups and linear throttle. It is meant for use with multiple vehicle types and a flight controller. The firmware can also be built with support for crawlers. For crawler usage please read this wiki page Crawler Hardware
Features
AM32 has the following features:
- Firmware upgradable via betaflight passthrough, single wire serial or arduino
- Servo PWM, Dshot(300, 600) motor protocol support,Recommended to use Dshot300
- Bi-directional Dshot
- KISS standard ESC telemetry
- Variable PWM frequency
- Sinusoidal startup mode, which is designed to get larger motors up to speed
BLHELI_S 45A 4IN1 3-6S Brushless ESC
Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 45A
Maximum current: 50A (10 seconds)
Processor: EFM8BB21F16G
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PWM
Current sensor: Support
The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision
BLHELI_S 60A 4IN1 3-6S Brushless ESC
Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 60A
Maximum current: 70A (5 seconds)
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PWM
Current sensor: Support
The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision
VTX1000 1W Video Transmitter
Description:
Model: MINI MS-1672 FPV cameras
Sensor: 1/1/8 "CMOS D1080H
Horizontal resolution: 2000TVL
Horizontal field of view: 165
Lens: 2.1mm lens
Video format: NTC&PAL (adjustable)
Image scale: 4:3&16:9 (automatic recognition)
Wide Dynamic Range: Super WDR
Noise reduction: 3DNR
Low illumination: 0.001LUX
Video output: CVBS
Day and night: external/internal/black and white/color
Language: (English/Chinese/Traditional Chinese/pyccnna)
ESOABIK/TTASSNO/FRABCAUS/
POSDIM/PORTUGUES/Japanese
Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000
Wide voltage input: 5-36V
Working temperature: -20-60
Weight: 110g
Dimensions: 19 19 19mm
Resolution: 960 * 1080
Feature:
Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.
Package included:
1 x Upgraded Mista FPV Camera
