F4V3S F4 V3 V3S PLUS LC INAV Betaflight Flight Controller Board Barometer OSD TF BN880 M8N GPS Quadcopter RC Drone FPV Racing
F4V3S F4 V3 V3S PLUS LC INAV Betaflight Flight Controller Board Barometer OSD TF BN880 M8N GPS Quadcopter RC Drone FPV Racing
Verfügbarkeit für Abholungen konnte nicht geladen werden

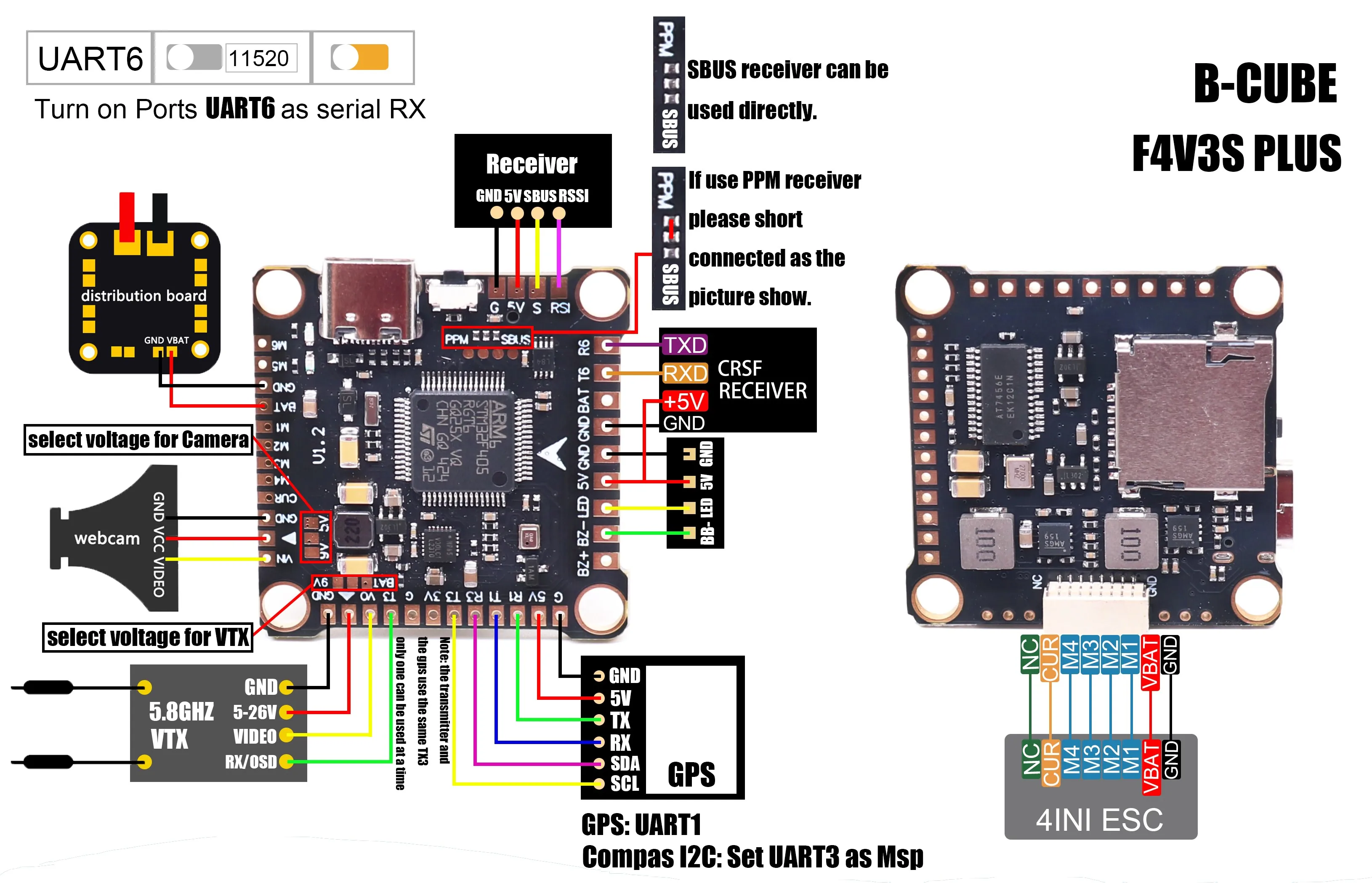

F4V3S PLUS Flight Controller
Note : F4V3S PLUS uses a TYPE-C USB port. Please ensure that you have a TYPEC USB cable that can communicate normally. Some USB cables can only be charged and cannot communicate data with flight control. If the USB cable you use cannot recognize the flight control USB port, it indicates that your USB cable cannot communicate with data normally. We upload firmware to the flight control through USB and conduct testing, so it can be very guaranteed that the USB port of the flight control is normal.
If you are unable to confirm if your USB cable is communicating properly, please purchase one.
Specification:
Item name: F4V3S PLUS Flight Controller
Firmware:OMNIBUSF4SD(AIRB)
USB Port: TYPE-C
Size: 36x36mm
Mounting holes: 30.5x30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
MPU6500 6 axis SPI gyro & accelerometer
SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
5V3A 9V3A BEC
On-board video filters
Properties:
measured.
Boasting a F4 processor, on-board Betaflight OSD, MicroSD Black Box, 5v3a sbec, video filter, you'll be tuning PIDS with your transmitter and tear it to the track in no time!
Note ： F4V3S PLUS supports cleanflight ,betaflight and INAV firmware.
Package A:

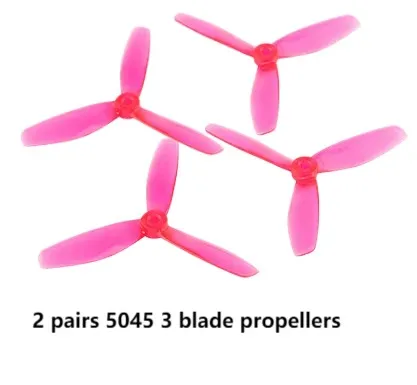

F4V3S PLUS flight control+ 3K Carbon fiber QAV250+ 45A 4INI ESC + 4 2205 2300KV Motor + 2pairs 5045 3-brad propeller black+2 pairs 5045 3-brade propeller pink
Package B:
F4V3S PLUS flight control+ 3K Carbon fiber QAV250+ 45A 4INI ESC + 4 2205 2300KV Motor + 2pairs 5045 3-brad propeller black+2 pairs 5045 3-brade propeller pink+FSI6AB remote control
Package C:
F4V3S PLUS flight control + VTX1000 + 3K Carbon fiber QAV250 + 45A 4INI ESC+ 4 2205 2300KV Motor + 2pairs 5045 3-brad propeller black+2 pairs 5045 3-brade propeller pink
Package D:
F4V3S PLUS flight control+ VTX1000 + 3K Carbon fiber QAV250+ 45A 4INI ESC + 4 2205 2300KV Motor +
2pairs 5045 3-brad propeller black+2 pairs 5045 3-brade propeller pink+FSI6AB remote control
Package E:
F4V3S PLUS flight control+ VTX1000 + 1080P Camera+ 3K Carbon fiber QAV250+ 45A 4INI ESC + 4 2205 2300KV Motor +
2pairs 5045 3-brad propeller black+2 pairs 5045 3-brade propeller pink
Package F:
F4V3S PLUS flight control+ VTX1000 + 1080P Camera+ 3K Carbon fiber QAV250+ 45A 4INI ESC + 4 2205 2300KV Motor + 2pairs 5045 3-brad propeller black+2 pairs 5045 3-brade propeller pink+FSI6AB remote control
Ublox NEO-M8n GPS with QMC5883 Compass
GPS :NEO-M8N
compass :QMC5883
Size: 36x36mm
Mounting holes: 30.5x30.5mm
M8N GPS is a commonly used GPS receiver module produced by u blox company. It adopts a u-blox M8N chip, which has high accuracy and sensitivity in positioning performance.
The M8N GPS module supports multiple Satellite navigation, including GPS, GLONASS, Galileo and BeiDou. It can receive and process satellite signals from these navigation systems, achieving accurate acquisition of position, velocity, and time information.
The M8N GPS module is usually provided in the form of a small circuit board, with UART serial port and I2C interface, facilitating communication with microcontrollers or other devices. It can also receive satellite signals through external antennas and has a power management circuit and backup battery to maintain the durability of satellite data and configuration.
This module provides rich configuration options that can be set and adjusted through serial port commands or configuration software. Users can choose appropriate working modes, update rates, navigation parameters, etc. according to their needs.
The M8N GPS module is widely used in fields such as unmanned aerial vehicles, vehicle tracking, navigation, and aviation, providing reliable positioning and navigation functions.
QAV250 250mm Carbon Fiber 4 Axis Mini Quadcopter Frame Kit
Features:
Main material: 3K Weave Carbon fiber
Arm thickness: 3mm
Upper and lower plate:1.5mm
Wheelbase: 250mm
With rubber damper to decrease vibration during flight
Aluminum alloy spacer, light weight,reliable
Specifications:
Wheelbase: 250mm
Weight: About 139g
Prop suggest: 5*3
Motor suggest: 2205-2208
Battery suggest: 3S 1300-1800ma
it come with only a carbon frame.
VTX1000 1W Video Transmitter
PDB:
BLHELI_S 45A 4IN1 3-6S Brushless ESC
Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 45A
Maximum current: 50A (10 seconds)
Processor: EFM8BB21F16G
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PWM
Current sensor: Support
The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision
Description:
Model: MINI MS-1672 FPV cameras
Sensor: 1/1/8 "CMOS D1080H
Horizontal resolution: 2000TVL
Horizontal field of view: 165
Lens: 2.1mm lens
Video format: NTC&PAL (adjustable)
Image scale: 4:3&16:9 (automatic recognition)
Wide Dynamic Range: Super WDR
Noise reduction: 3DNR
Low illumination: 0.001LUX
Video output: CVBS
Day and night: external/internal/black and white/color
Language: (English/Chinese/Traditional Chinese/pyccnna)
ESOABIK/TTASSNO/FRABCAUS/
POSDIM/PORTUGUES/Japanese
Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000
Wide voltage input: 5-36V
Working temperature: -20-60
Weight: 110g
Dimensions: 19 19 19mm
Resolution: 960 * 1080
Feature:
Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.
Package included:
1 x Upgraded Mista FPV Camera

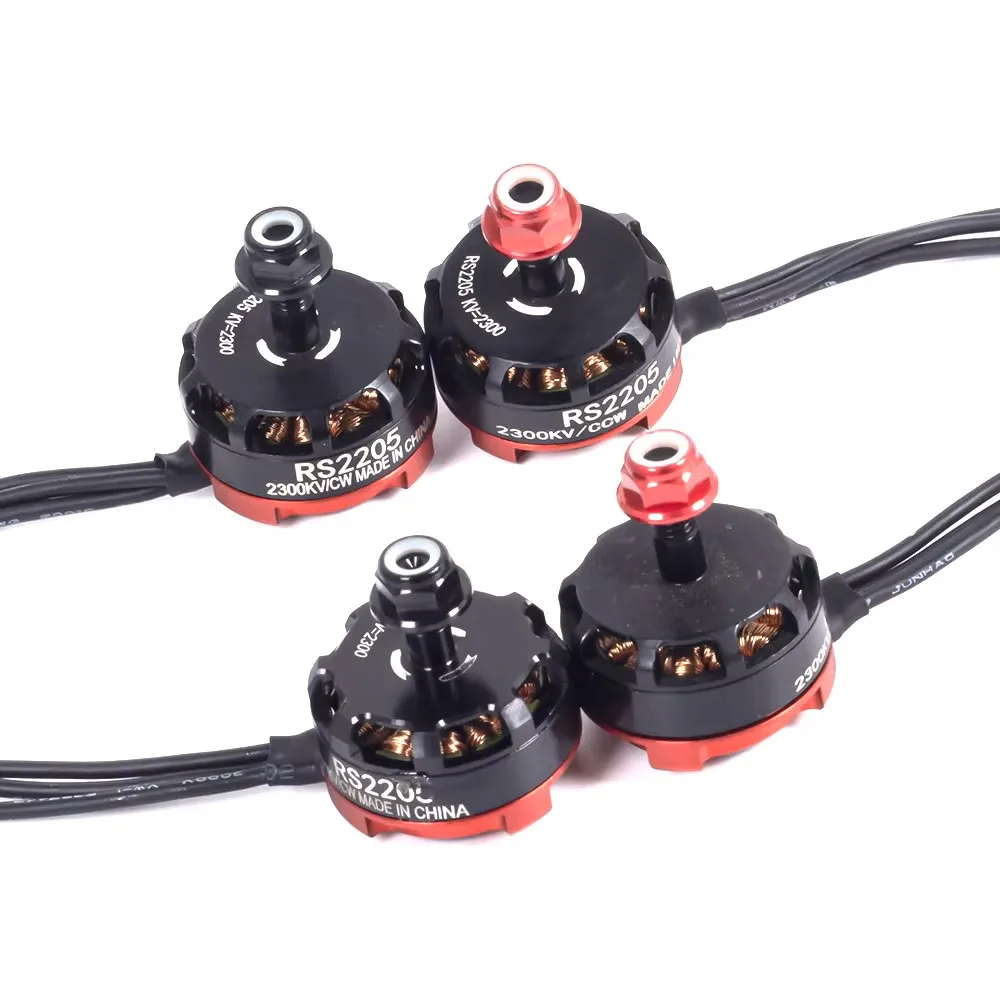

RS2205 2300kv Motor:
Model: RS2205-2300
Framework: 12N14P
No. of Cells: 3 - 4S
Length:31.7mm
Shaft: M5
KV: 2300
Max Thrust: 1024g
Diameter: 27.9mm
Propeller Suggested: HQ 5045 BN
Weight: 30g
Features:
- Race Spec Performances
- High Strength N52 Neodyum Magnets
- Active Cooling Fins Greatly Reduce Motor Temeratures
- Low CG, Light Weight Design
- Japanese Bearing For Performances
- Enchance Anti Off U Ring For Safety & Stablility
-
Dual Lock CW / CCW Locknuts

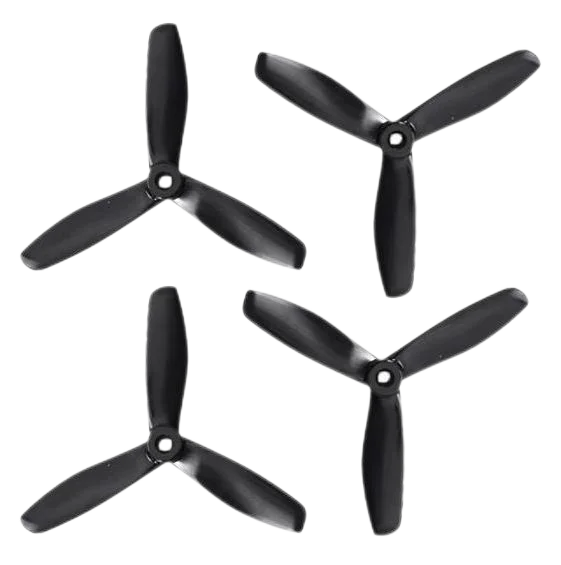

2pairs 5045 3-brad propeller black
