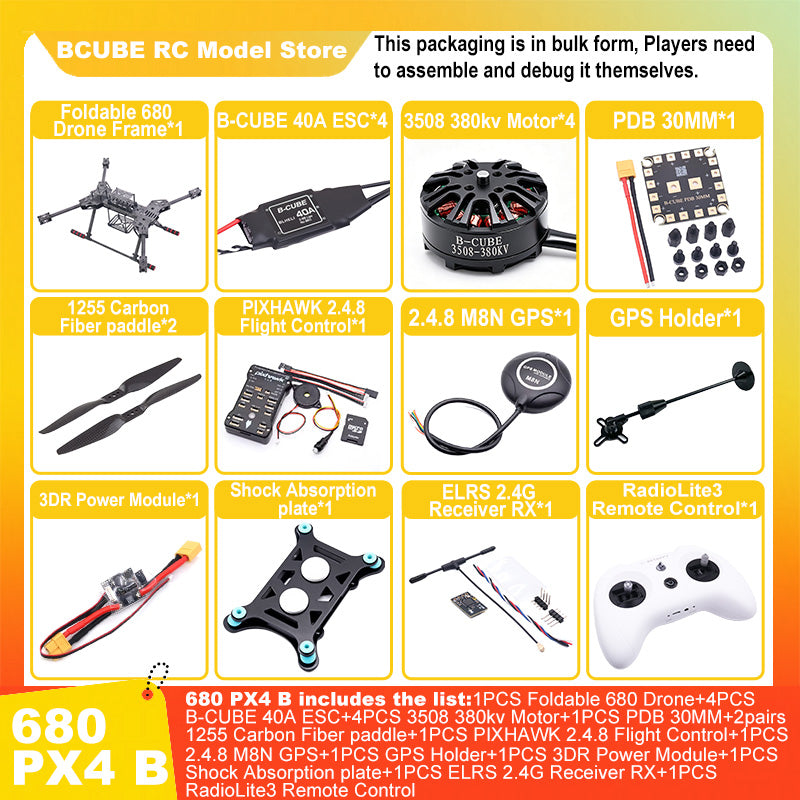

B-CUBE PIXHAWK2.4.8 6C Flight Control Carbon Fiber 680 Frame Kit Ardupilot Quadcopter BLHELI 40A 3508 Motor ESC Optical Flow

$429.50 USD

Sale Ausverkauft

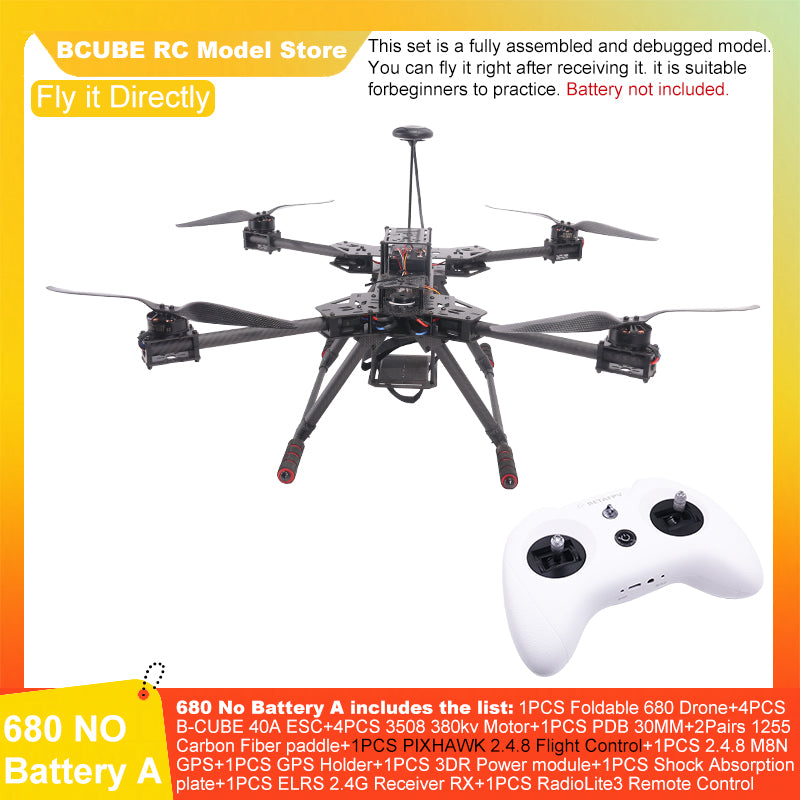

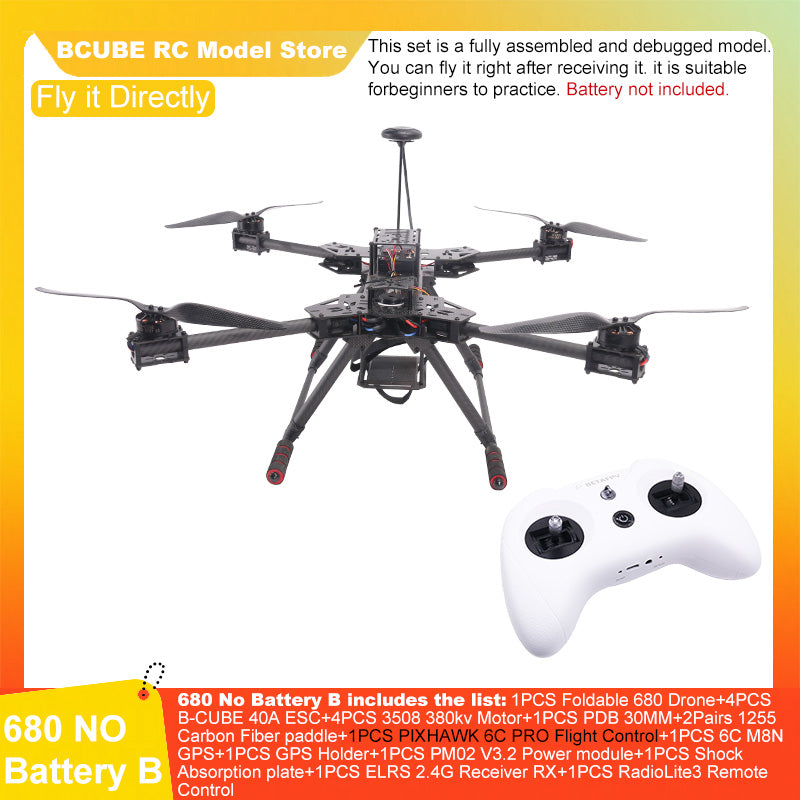

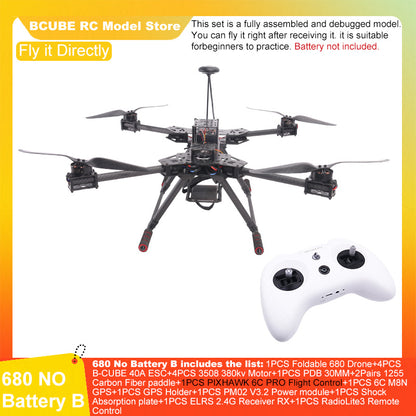

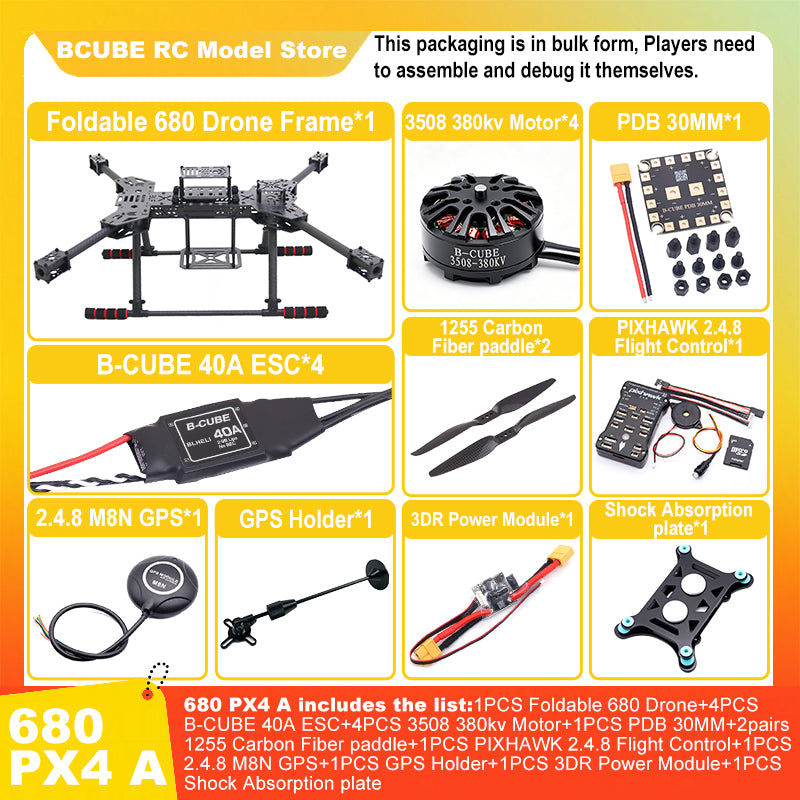

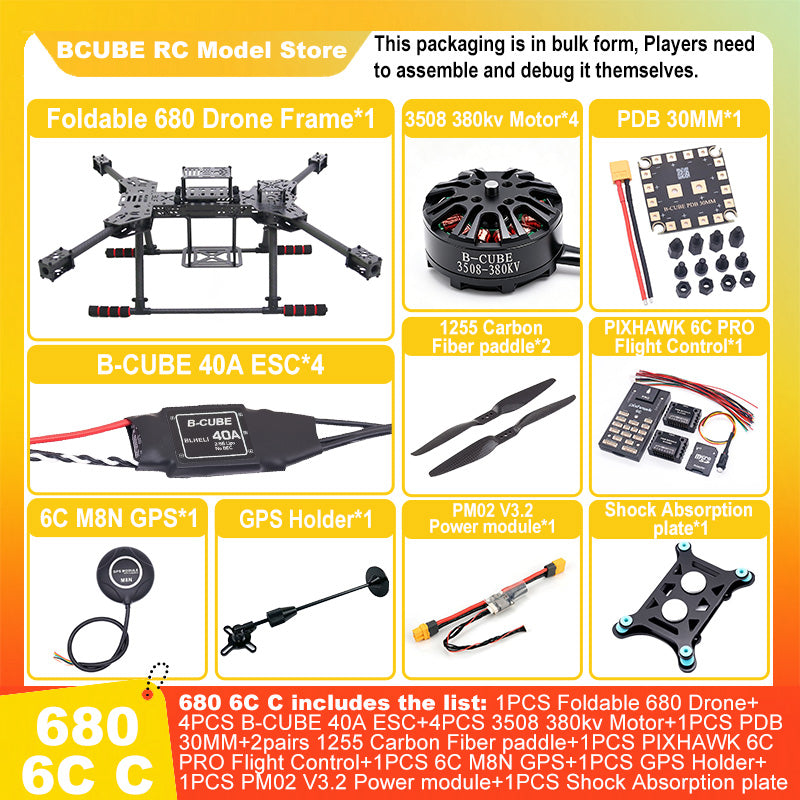

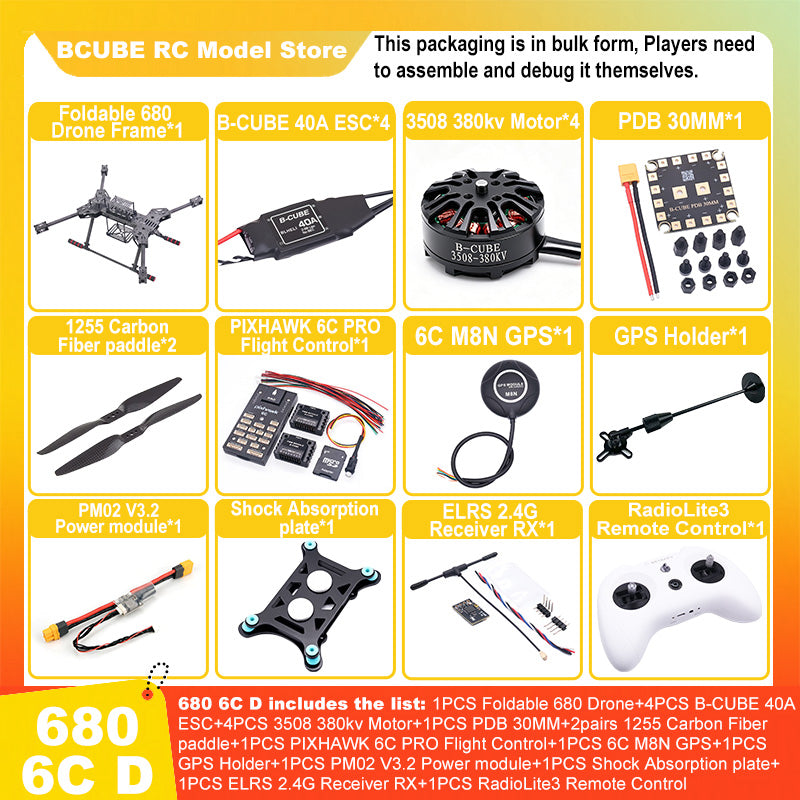

Type 680 PX4 A 680 PX4 B 680 6C C 680 6C D 680 NO Battery A 680 NO Battery B

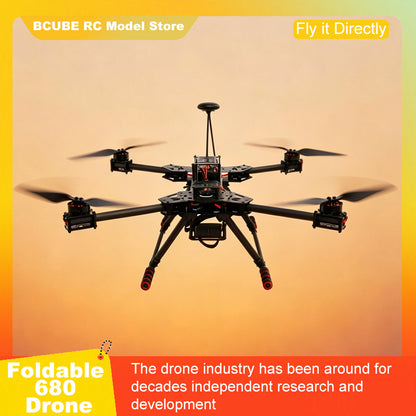

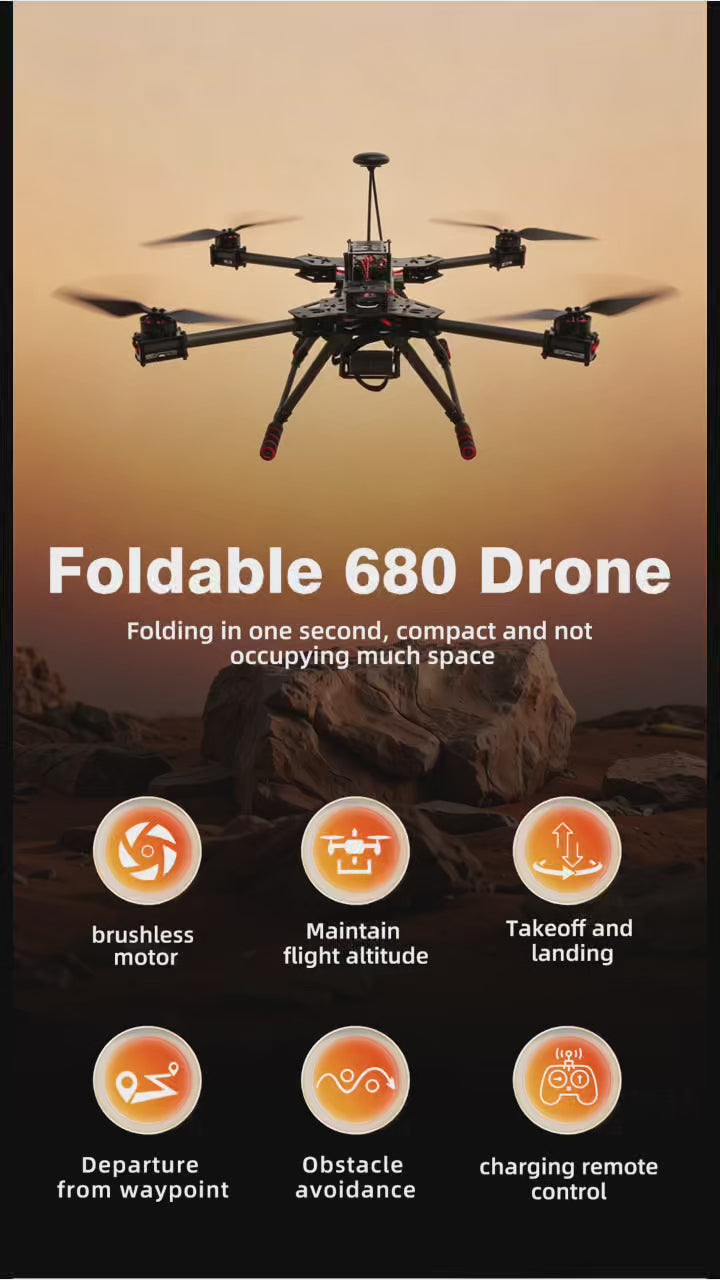

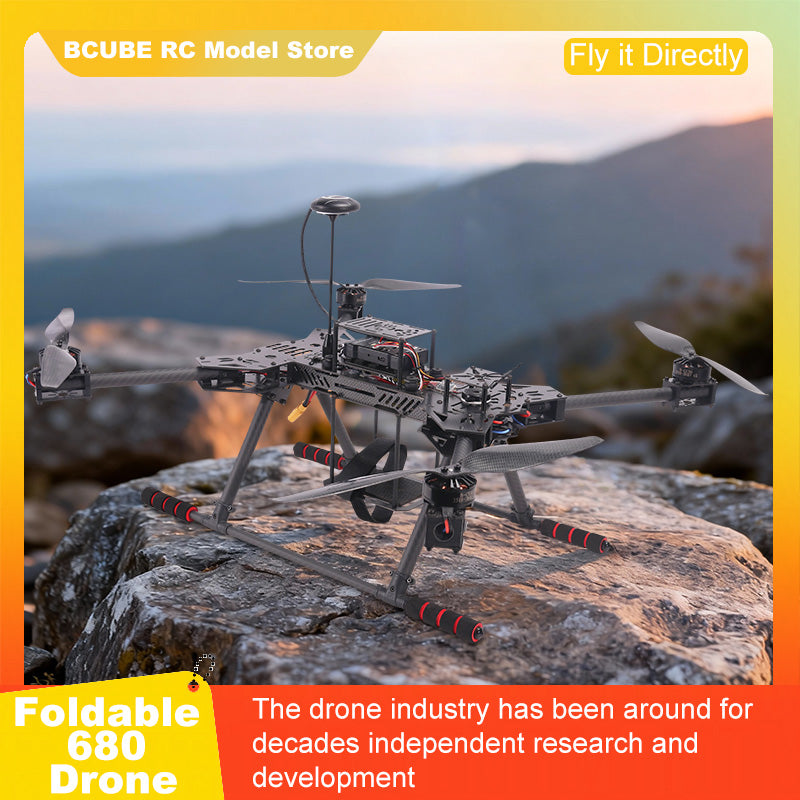

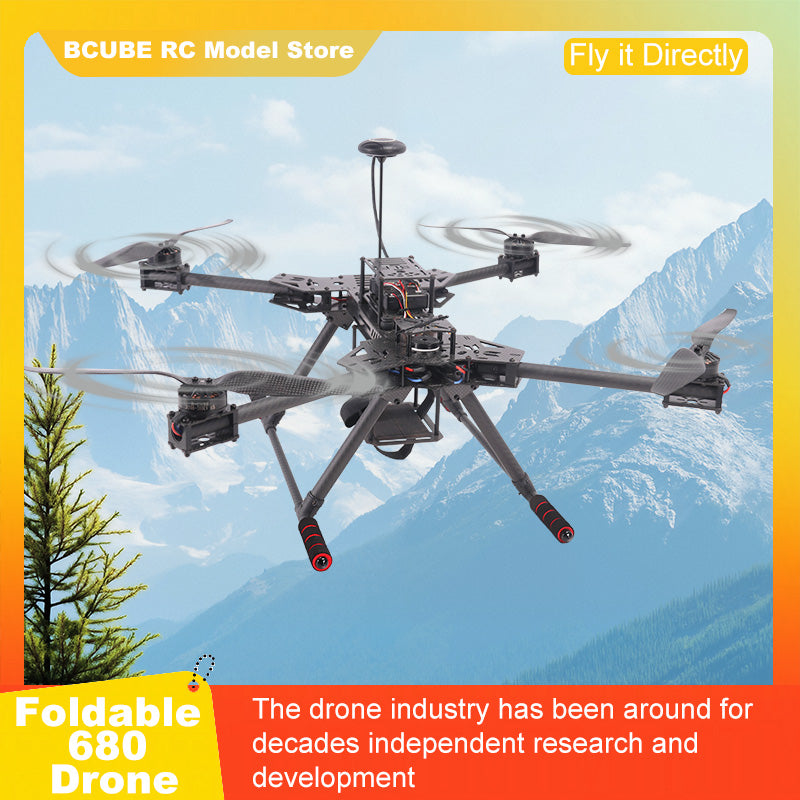

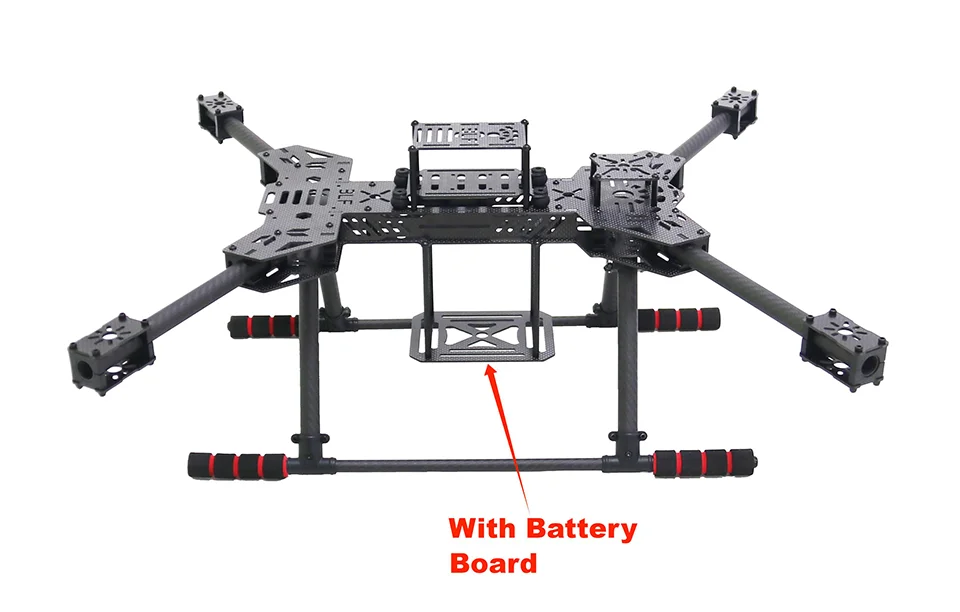

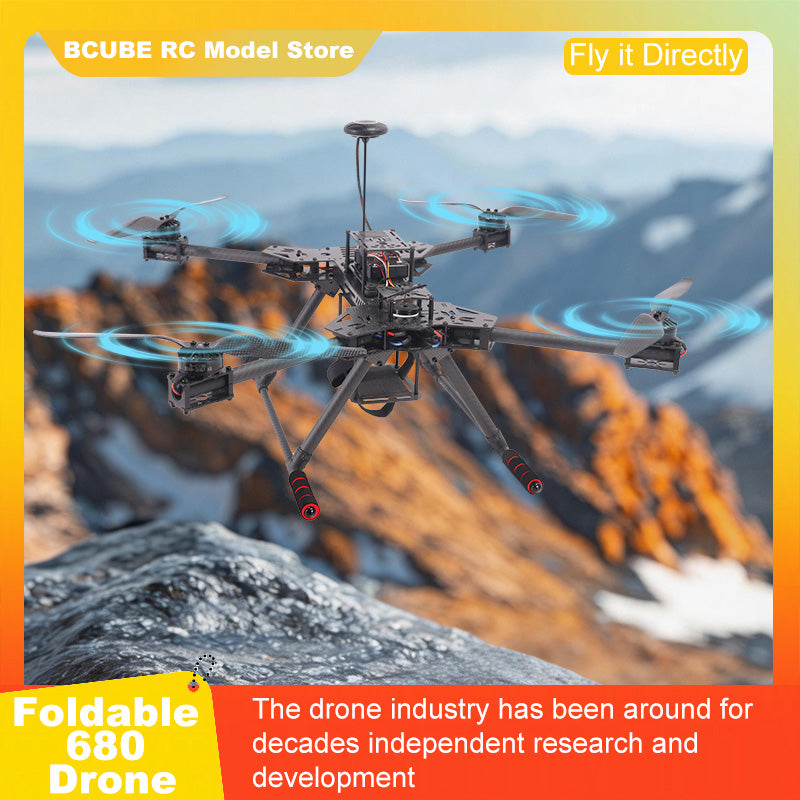

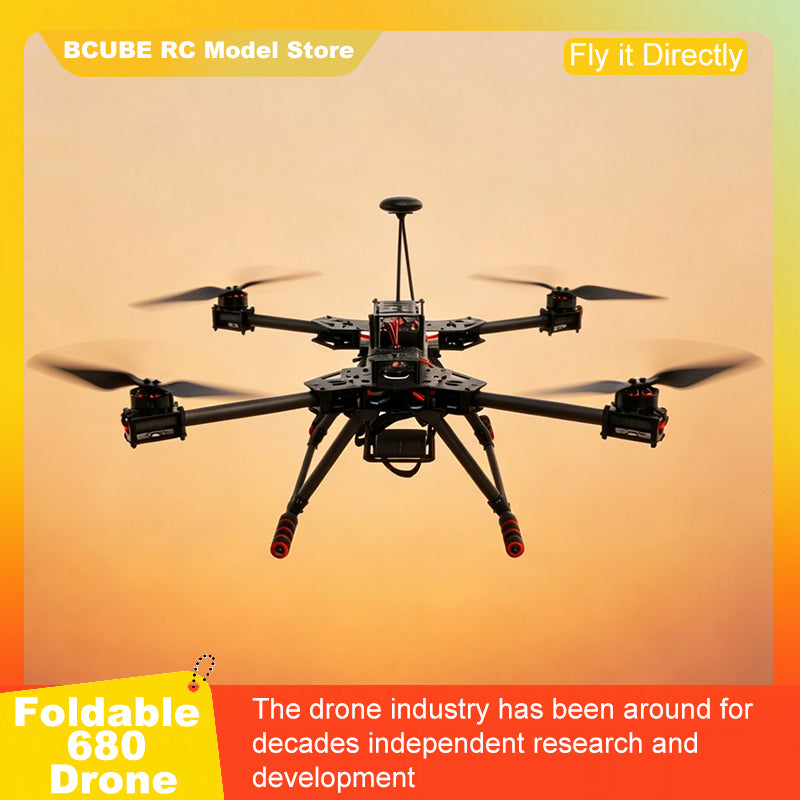

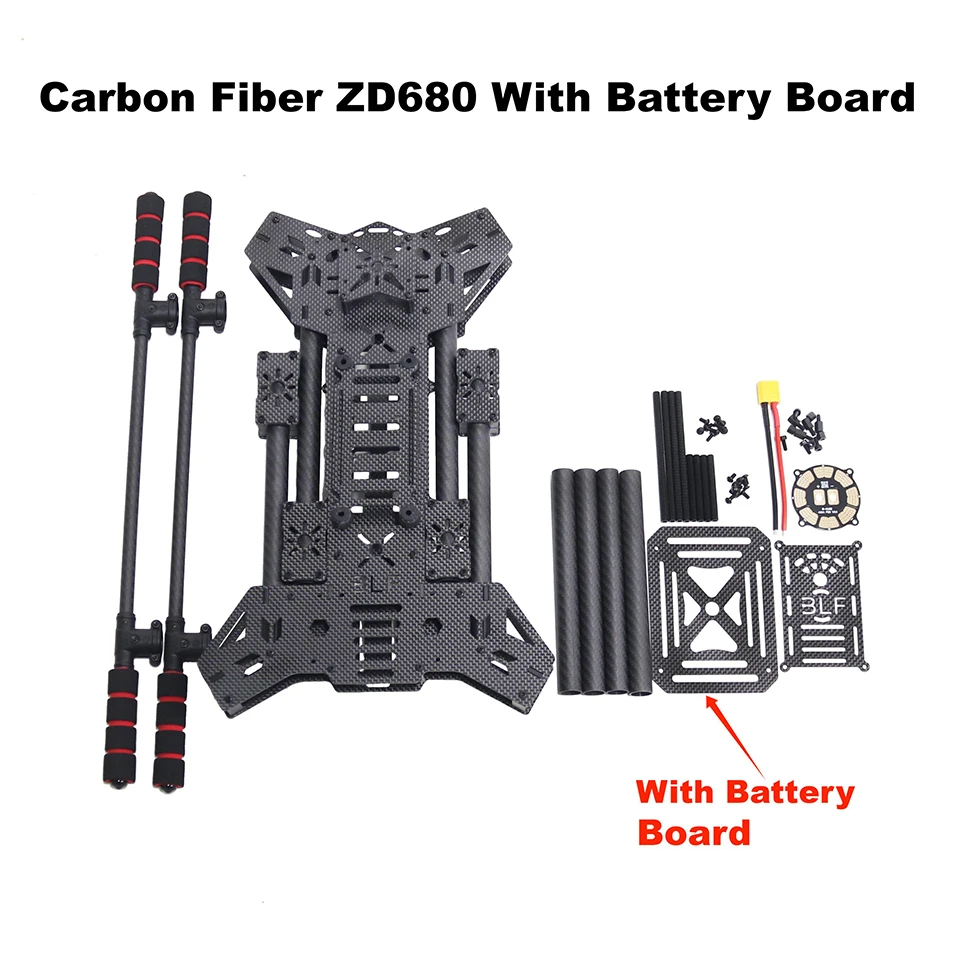

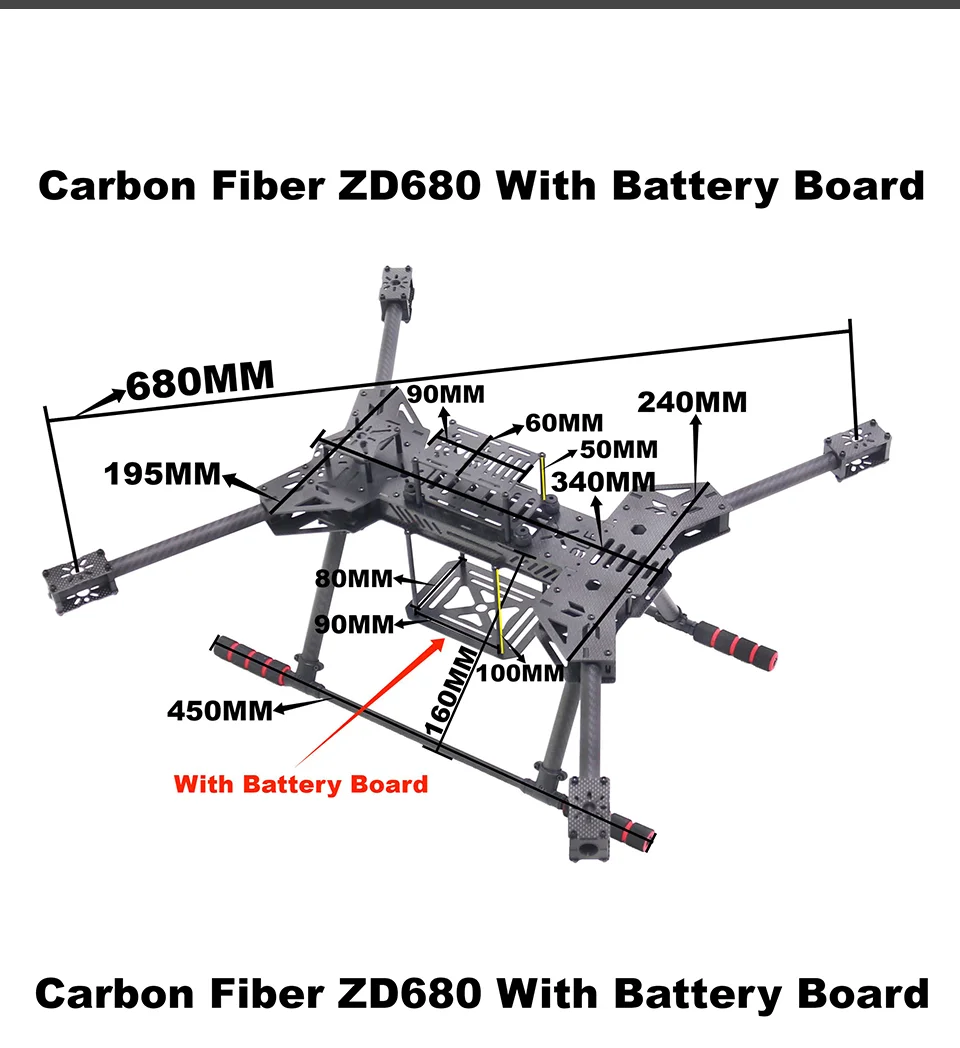

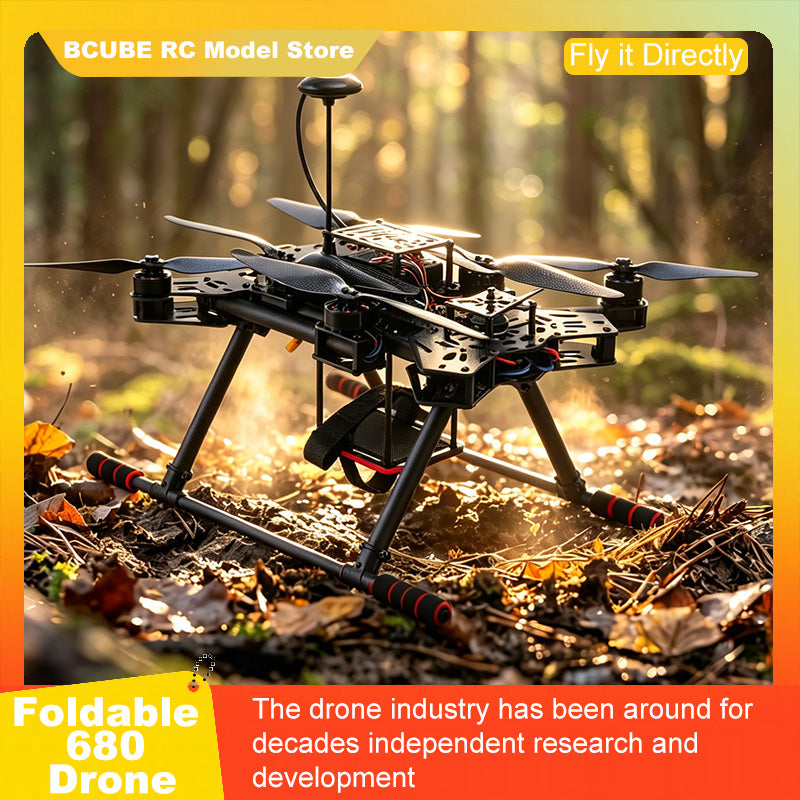

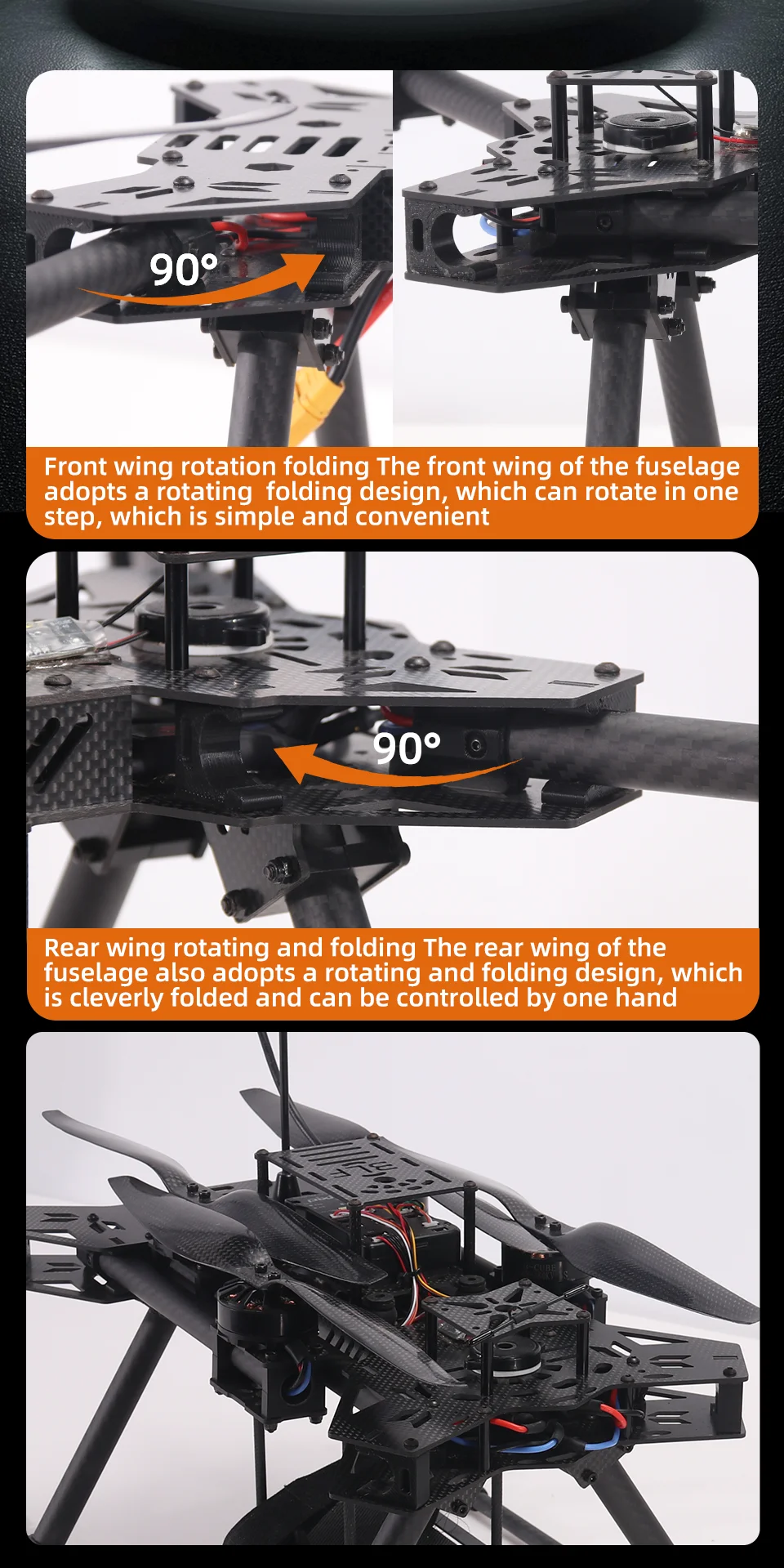

Foldable 680 Drone

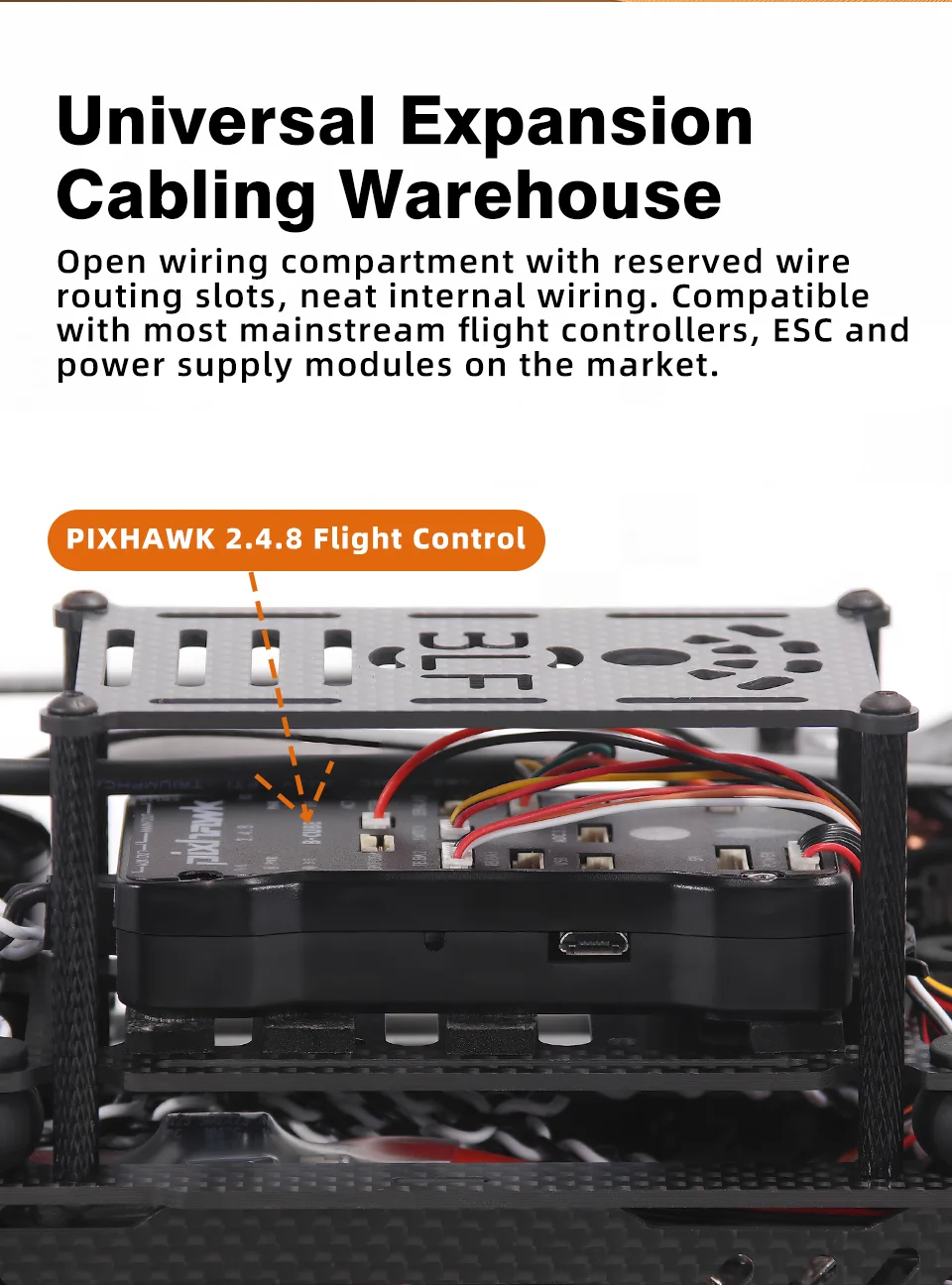

Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

Specifications:

Interface

1 .5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External MICRO USB Interface

PIXHAWK 6C PRO

The Pixhawk® 6C PRO is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk® 6C PRO's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

The Pixhawk 6C PRO includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.

The Pixhawk® 6C PRO is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.

Key Design Points

High performance STM32H743 Processor with more computing power & RAM

Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case

New cost-effective design with low-profile form factor

Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings

IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

Technical Specification

Processors & Sensors

FMU Processor: STM32H743 32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM

IO Processor: STM32F103 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

On-board sensors

Accel/Gyro: ICM-42688-P

Accel/Gyro: BMI055

Mag: IST8310

Barometer: MS5611

Electrical data

Voltage Ratings:

Max input voltage: 6V

USB Power Input: 4.75~5.25V

Servo Rail Input: 0~36V

Current Ratings:

TELEM1 Max output current limiter: 1.5A

All other port combined output current limiter: 1.5A

Mechanical data

Dimensions: 85 * 45 * 10 mm

Weight (Plastic Case) : 33g

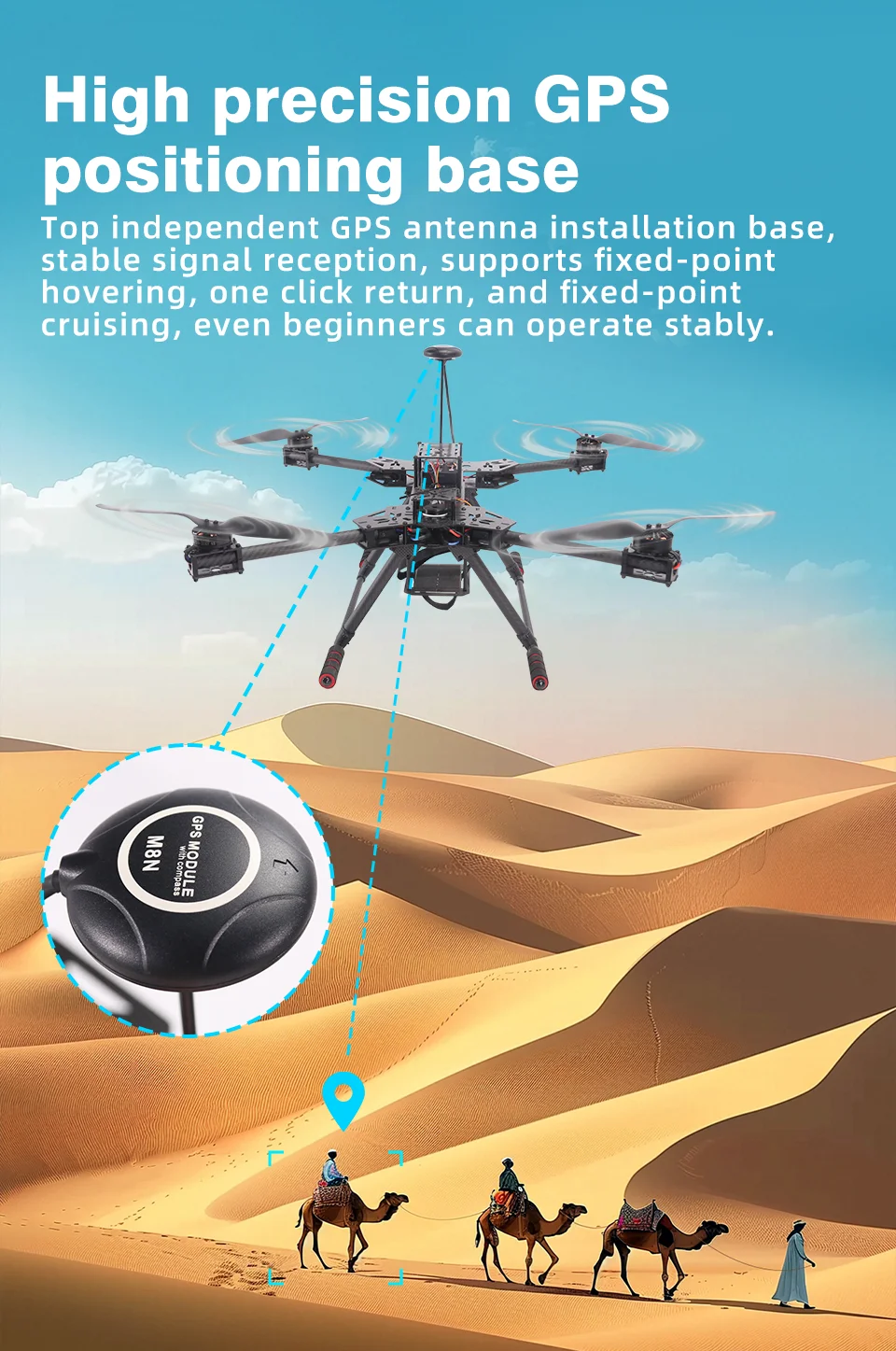

M8N GPS Module

Features:

- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;

- Firmware was optimized specifically for disc motor, and it has a very good compatibility;

- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;

- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;

- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);

- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;

- Ultra-low resistance MOSFET, strong flow capacity.

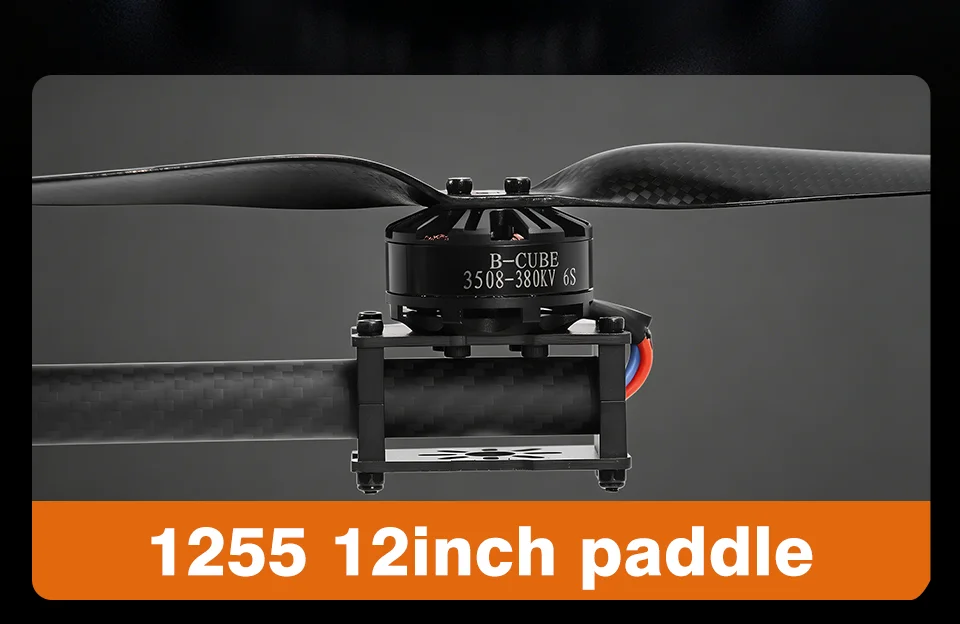

3 Pairs T-Motor 3K Carbon Fiber Propeller 1255

The new T-motor propeller-type aerial dedicated full carbon paddle paddle-type three-hole installation

Using carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.

ELRS 2.4G Receiver RX

Product Description: ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency.

SPECIFICATIONS 1

●Brand:B-CUBE

●Model:ELRS 2.4G NANO

●RF Freq:2.4Ghz

●IC:SX1281+ESP8285

●TX Power:100mW

●Color:Black

●Connector:IPEX 1

●Input Power:3.6-5.5V

●Weight:0.4g(receiver only)

●Size:11mm*18mm

●Firmware: BETAFPV Nano 2400 RX 3.3.0

Package Included: Nano Receiver x 1 T type receiver antenna x 1 Heat shrink tube x 1 30AWG Silicone Wire x 4

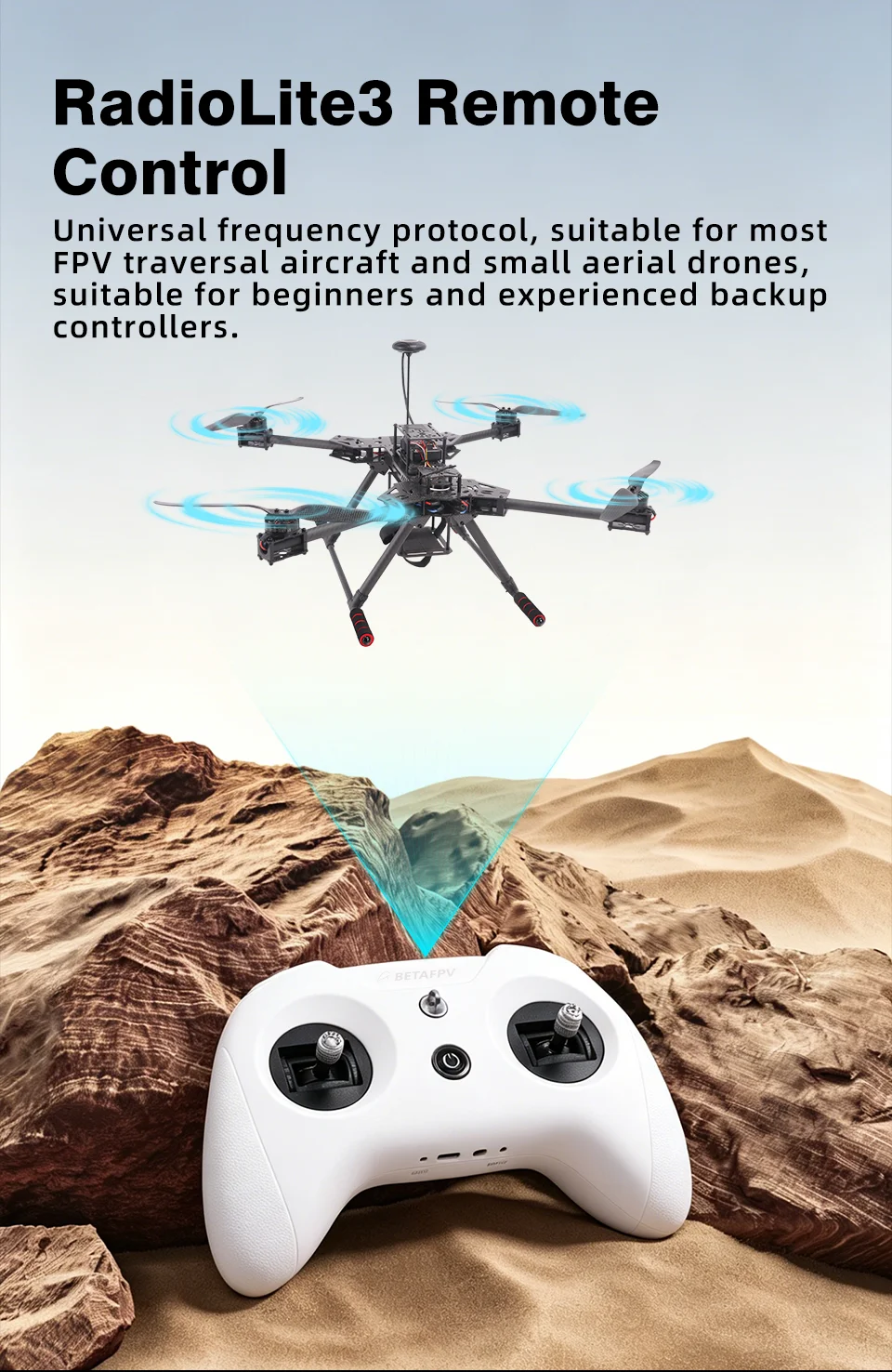

LiteRadio 3 Radio Transmitter

LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.
