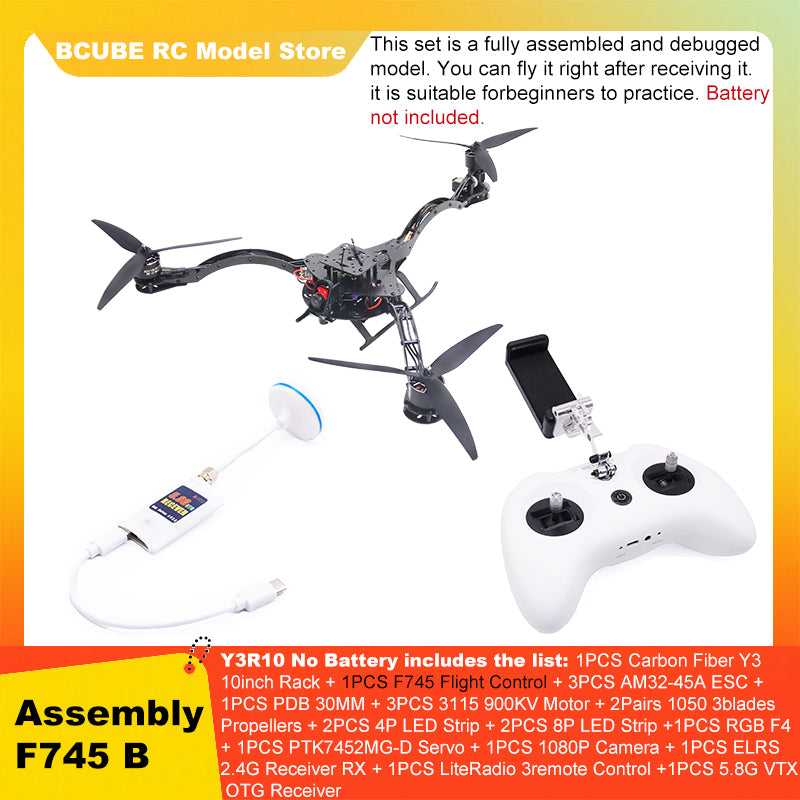

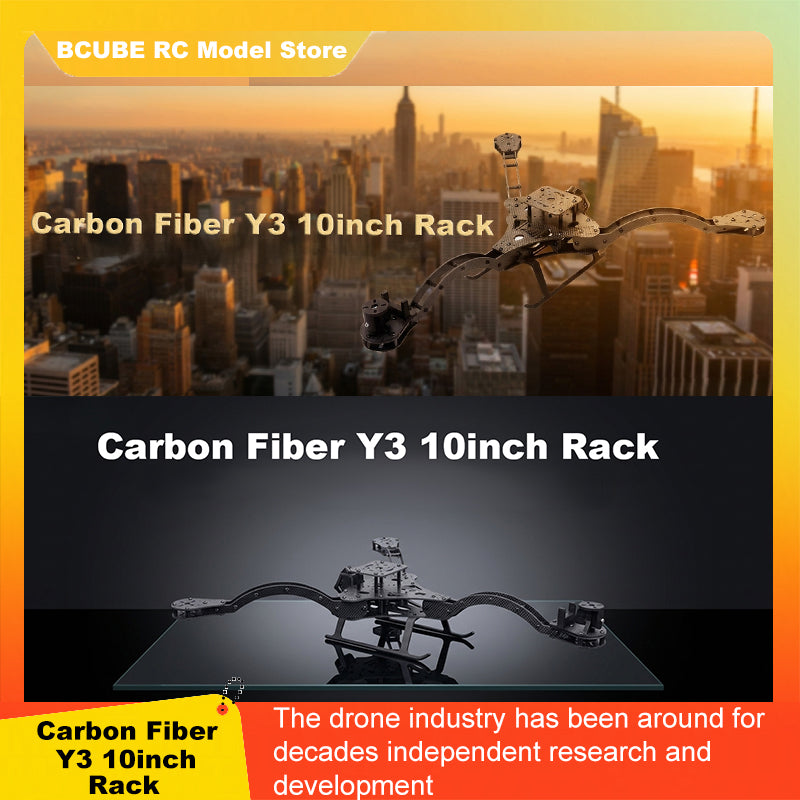

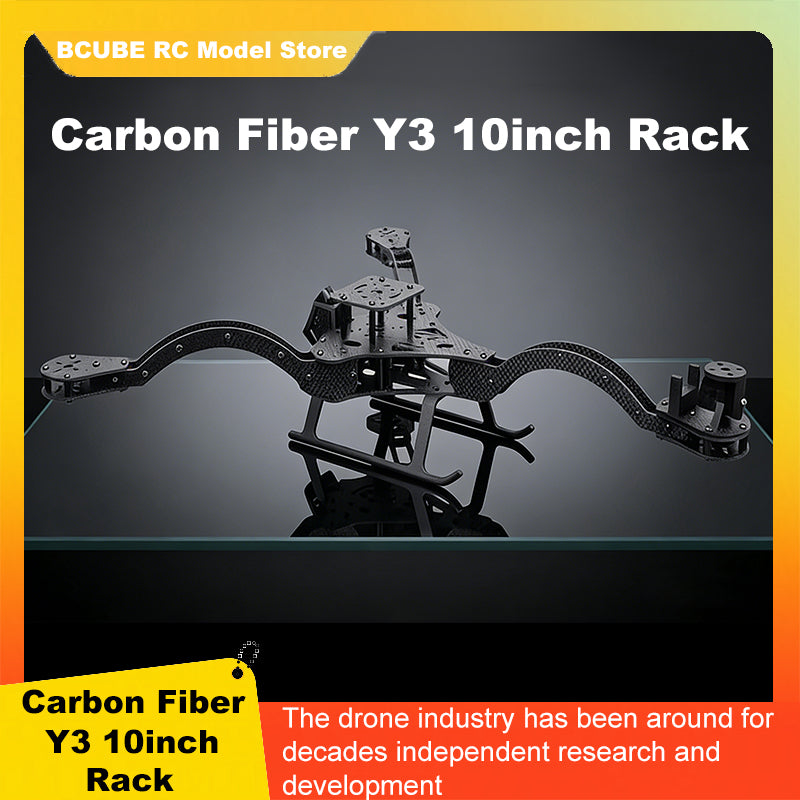

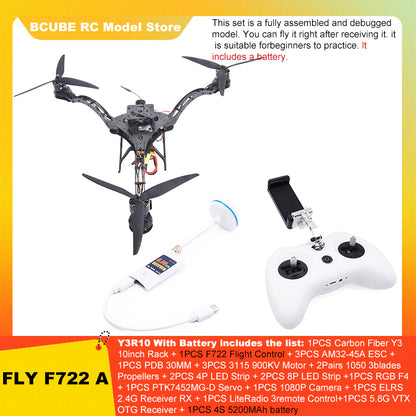

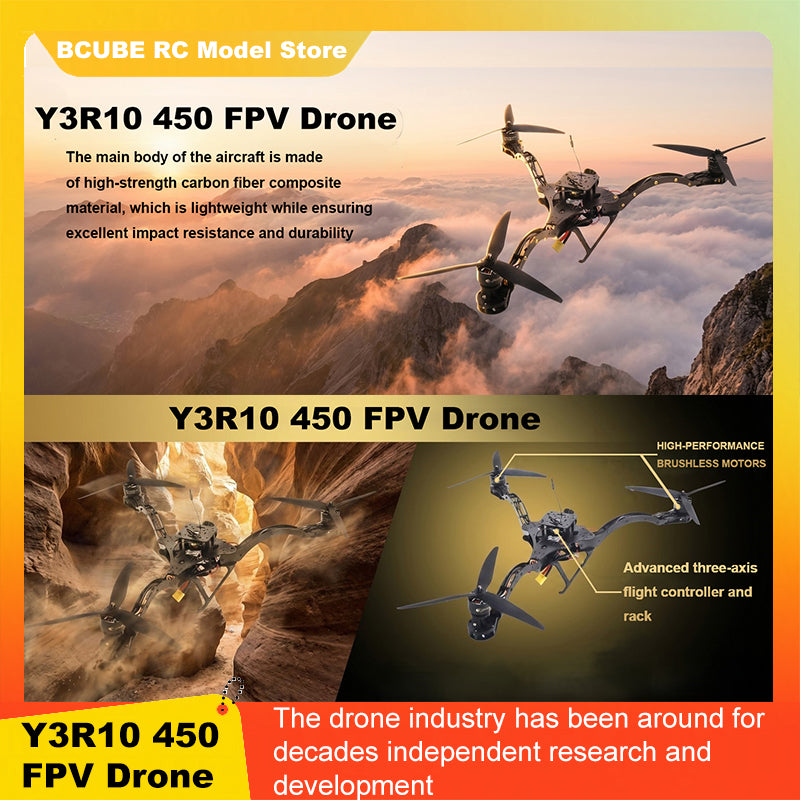

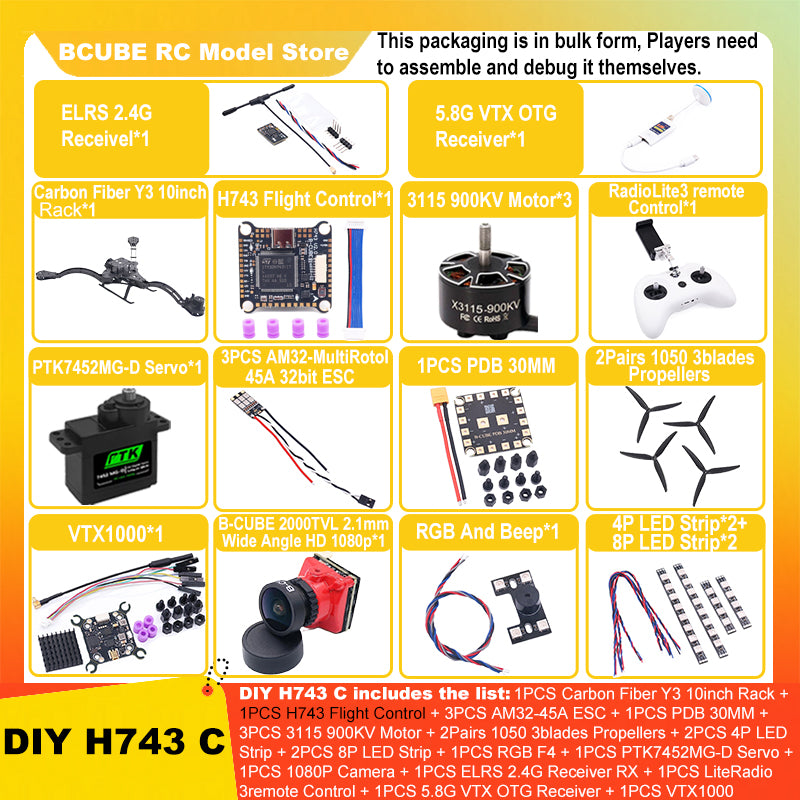

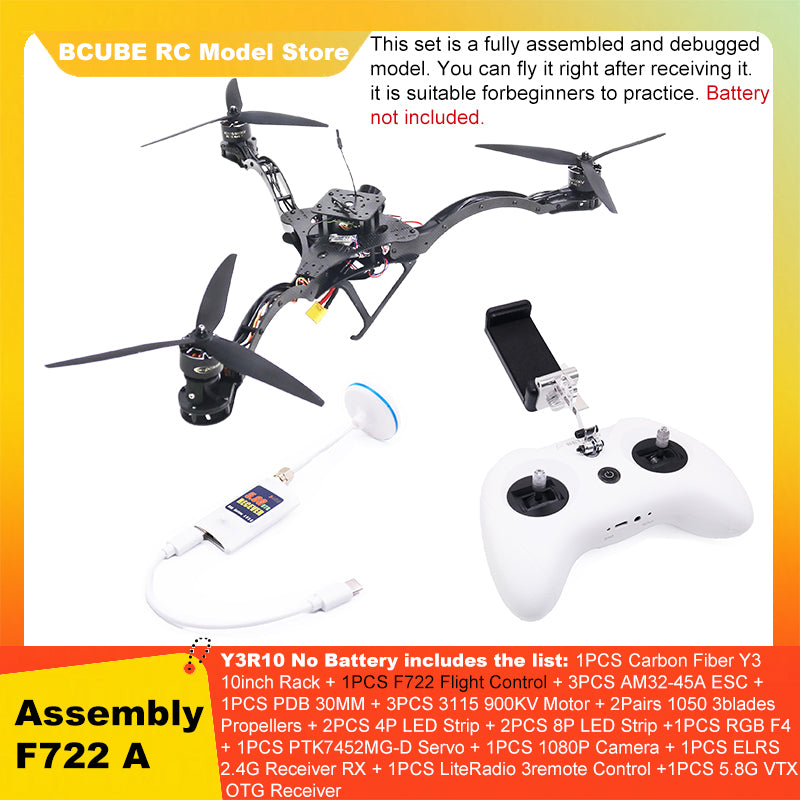

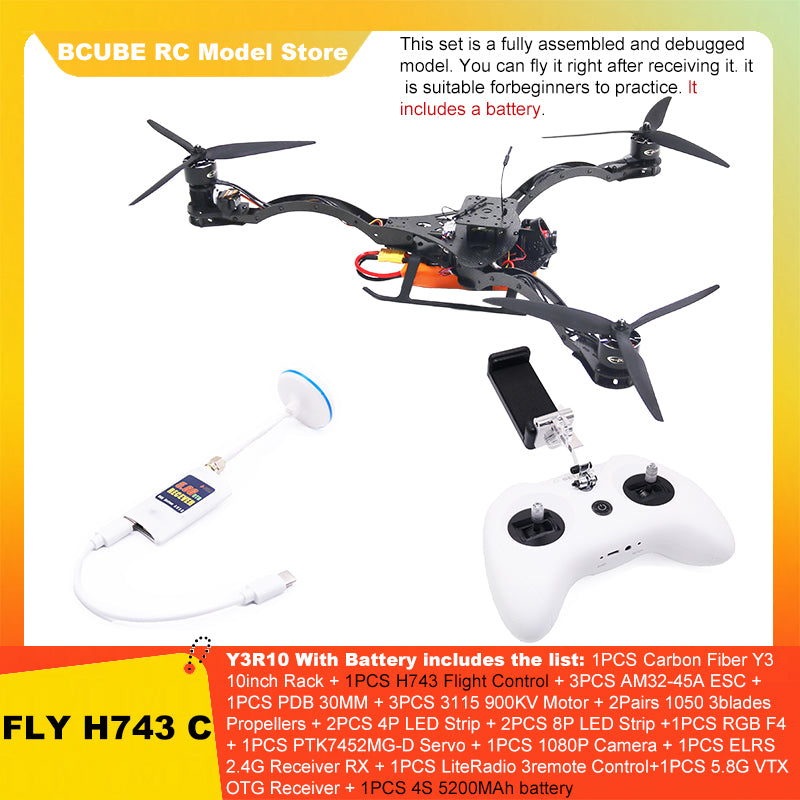

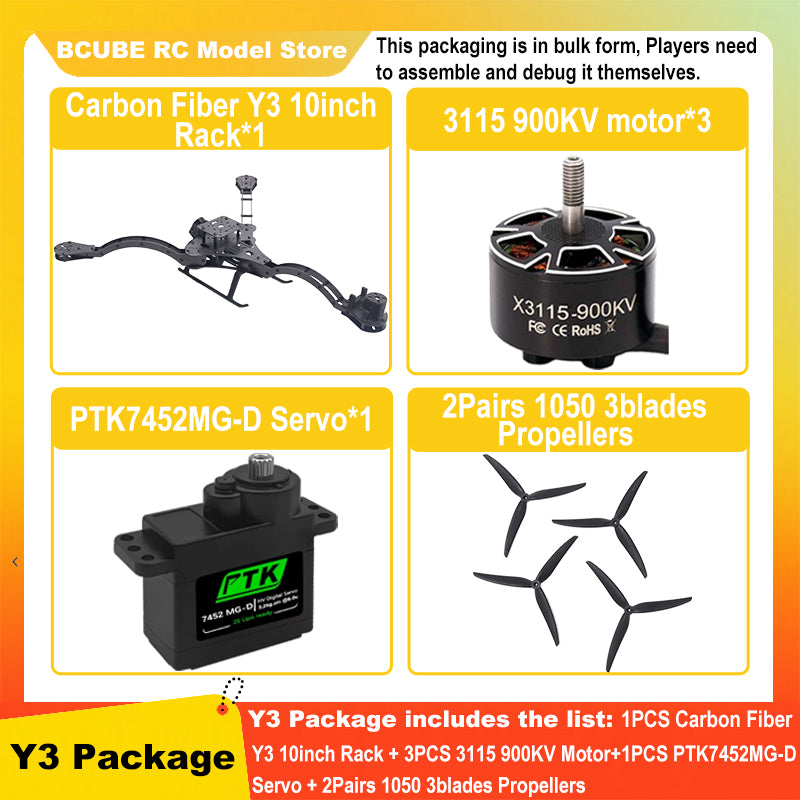

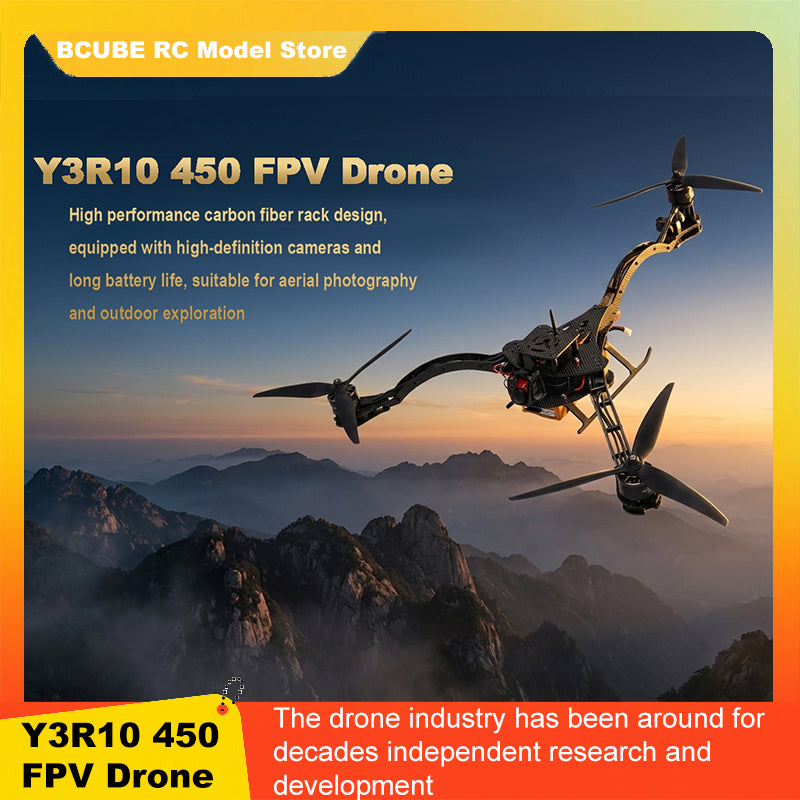

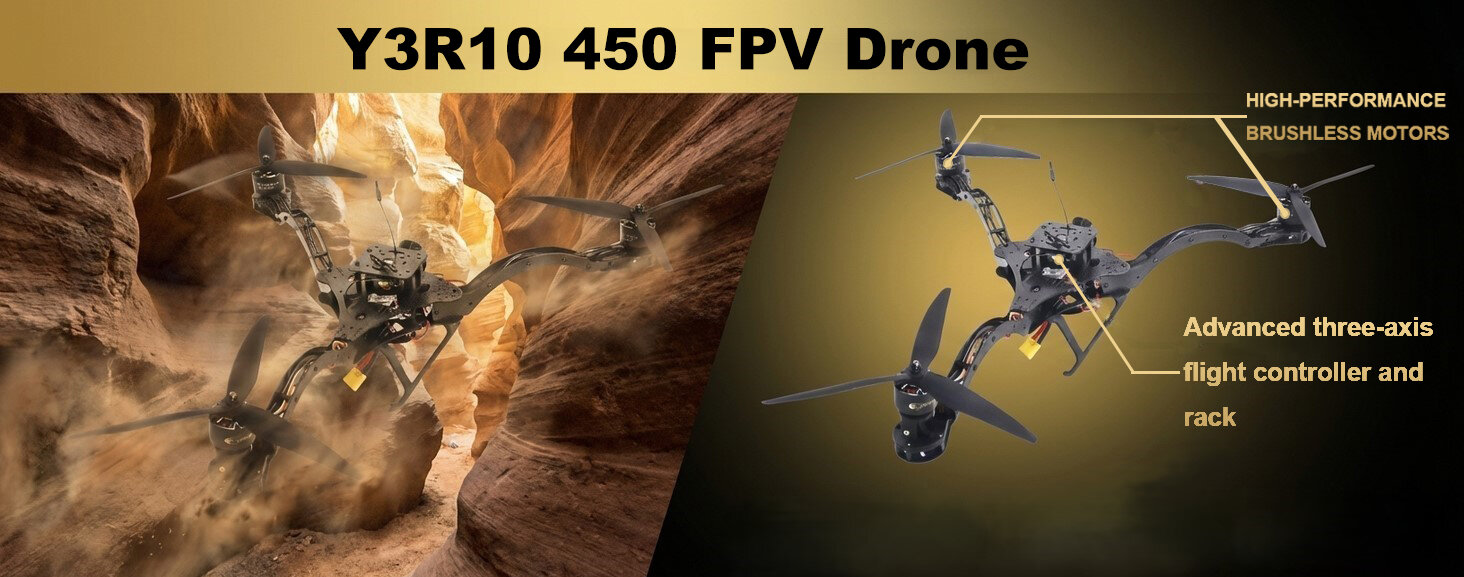

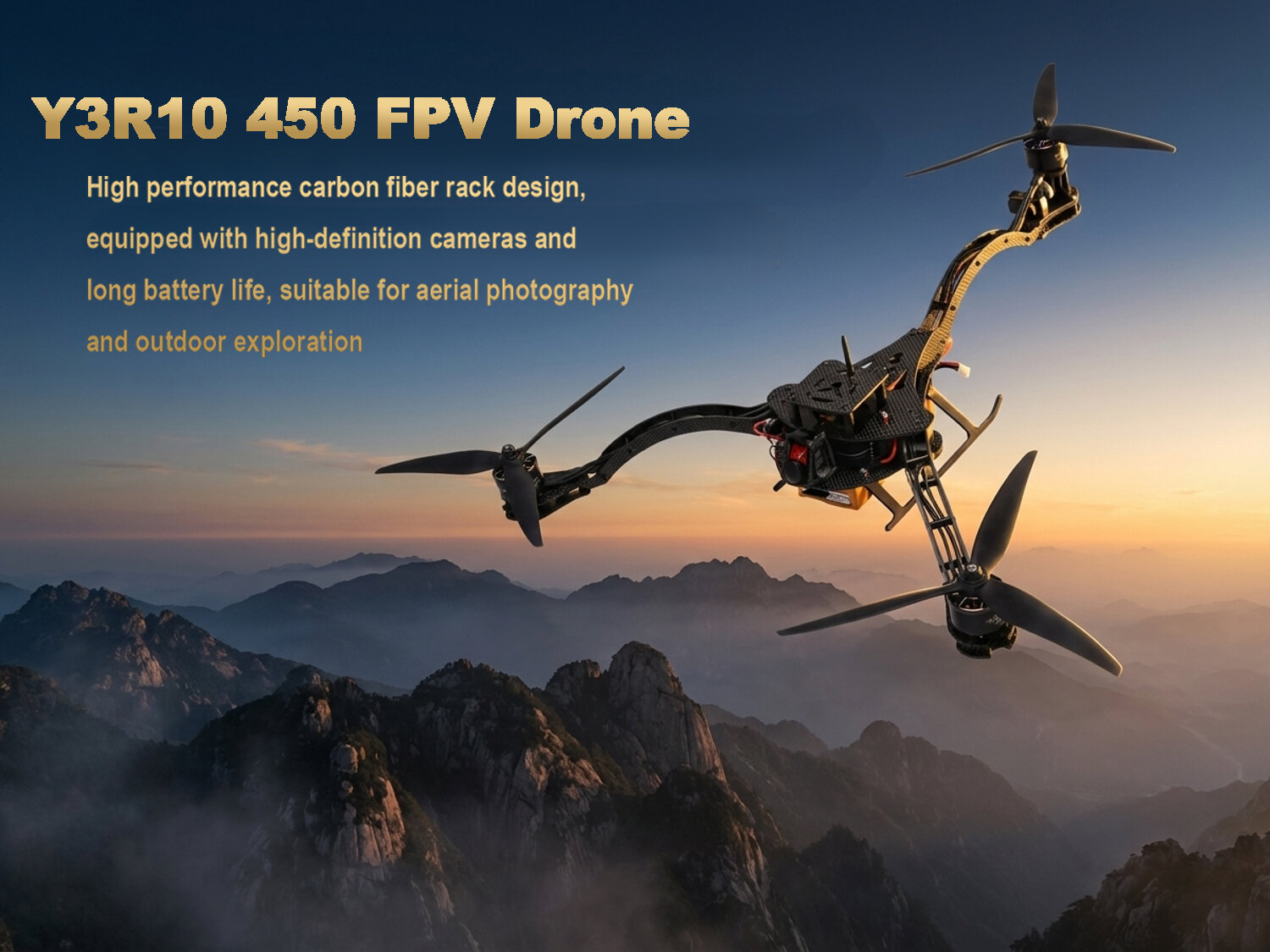

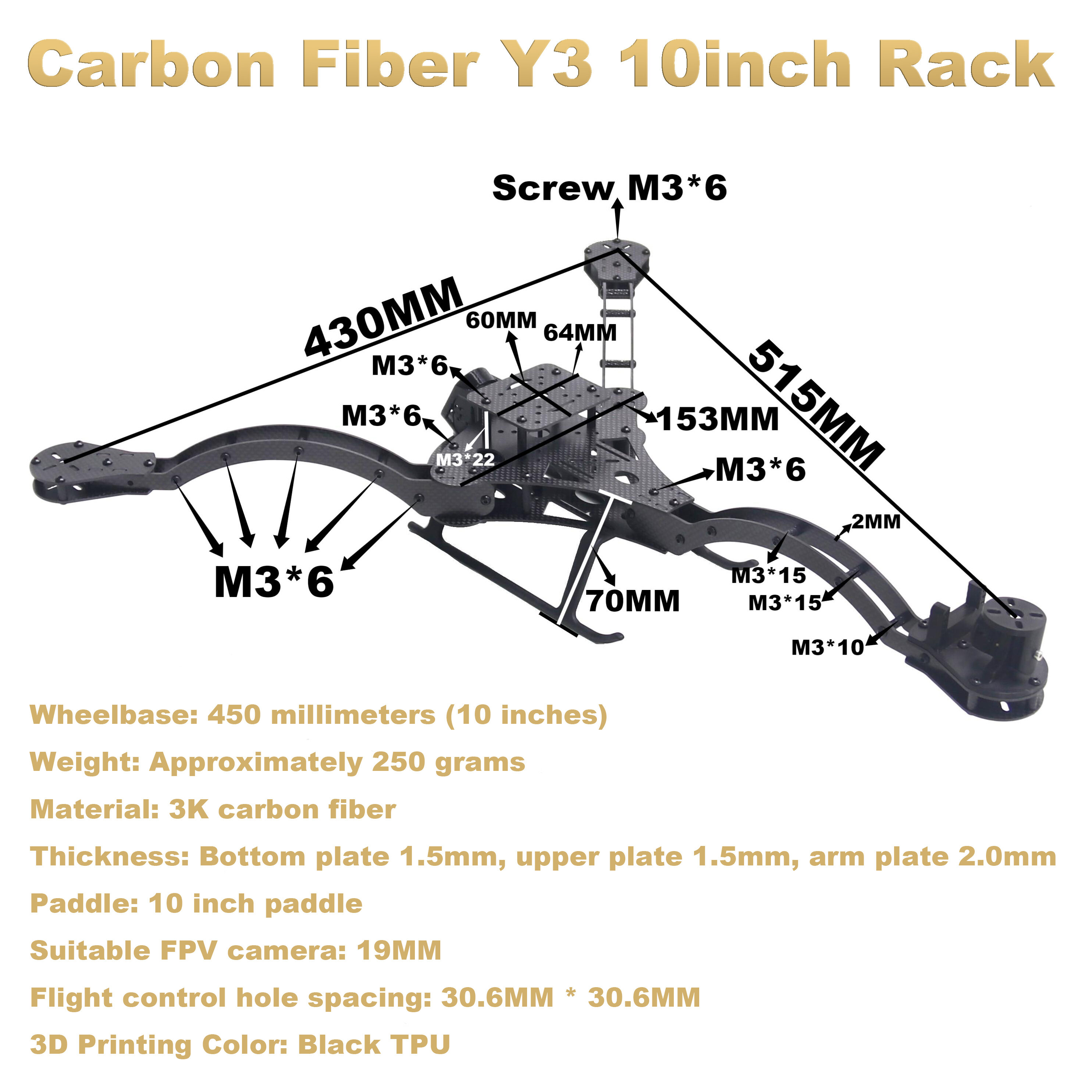

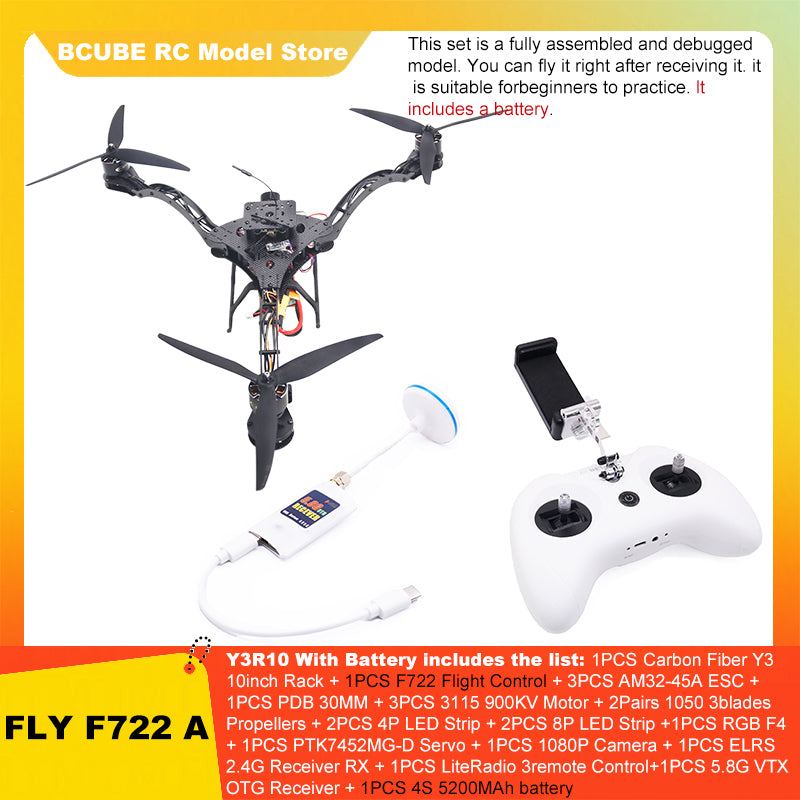

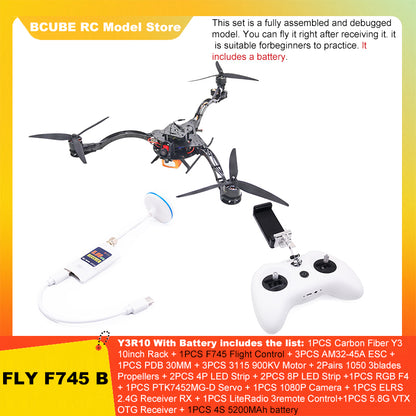

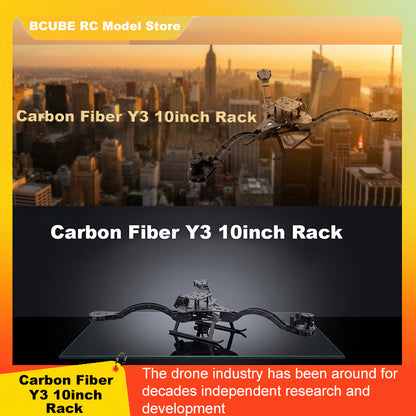

Y3R10 450 Carbon Fiber Frame

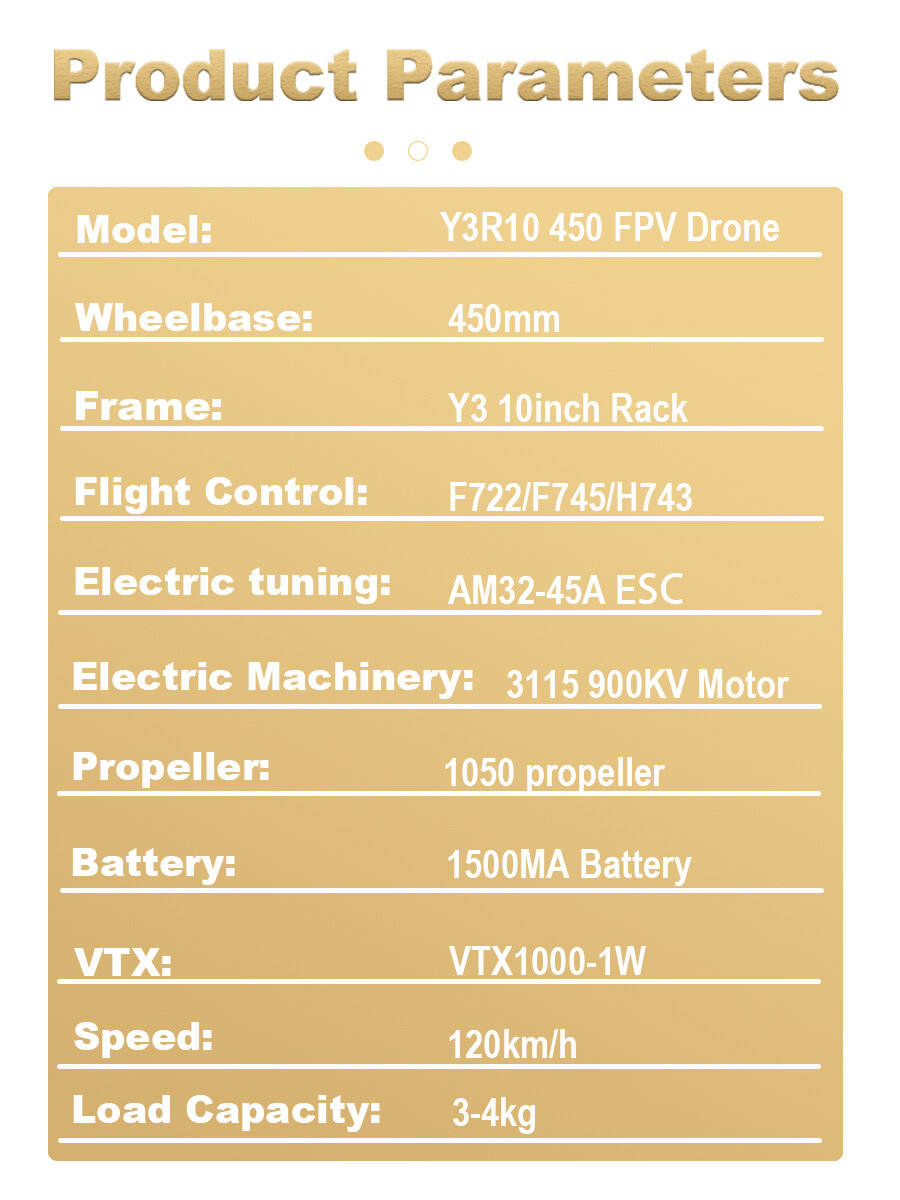

Product parameters:

Brand: B-CUBE

Wheelbase: 450mm (10inch)

Weight: Approximately 250g

Material:3K Carbon Fiber

Thickness: Bottom plate 1.5mm, upper plate 1.5mm, arm 2.0mm

Paddle: 10inch paddle

Suitable FPV camera: 19MM

Flight control hole spacing: 30.6MM * 30.6MM

Battery: 3S-6S 5200mAh

3D Print color: Black TPU

Servo: 9g

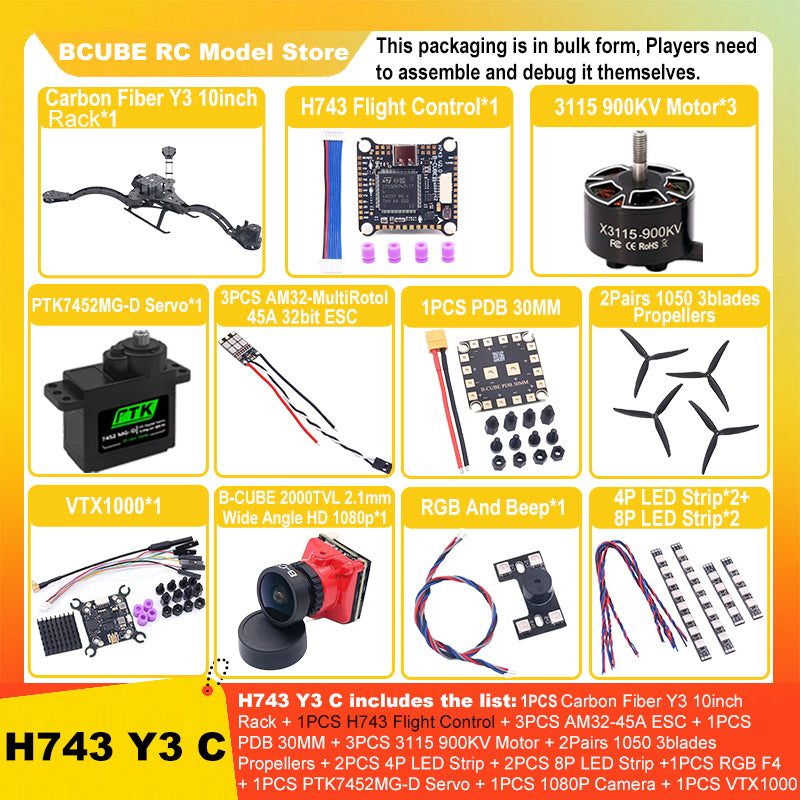

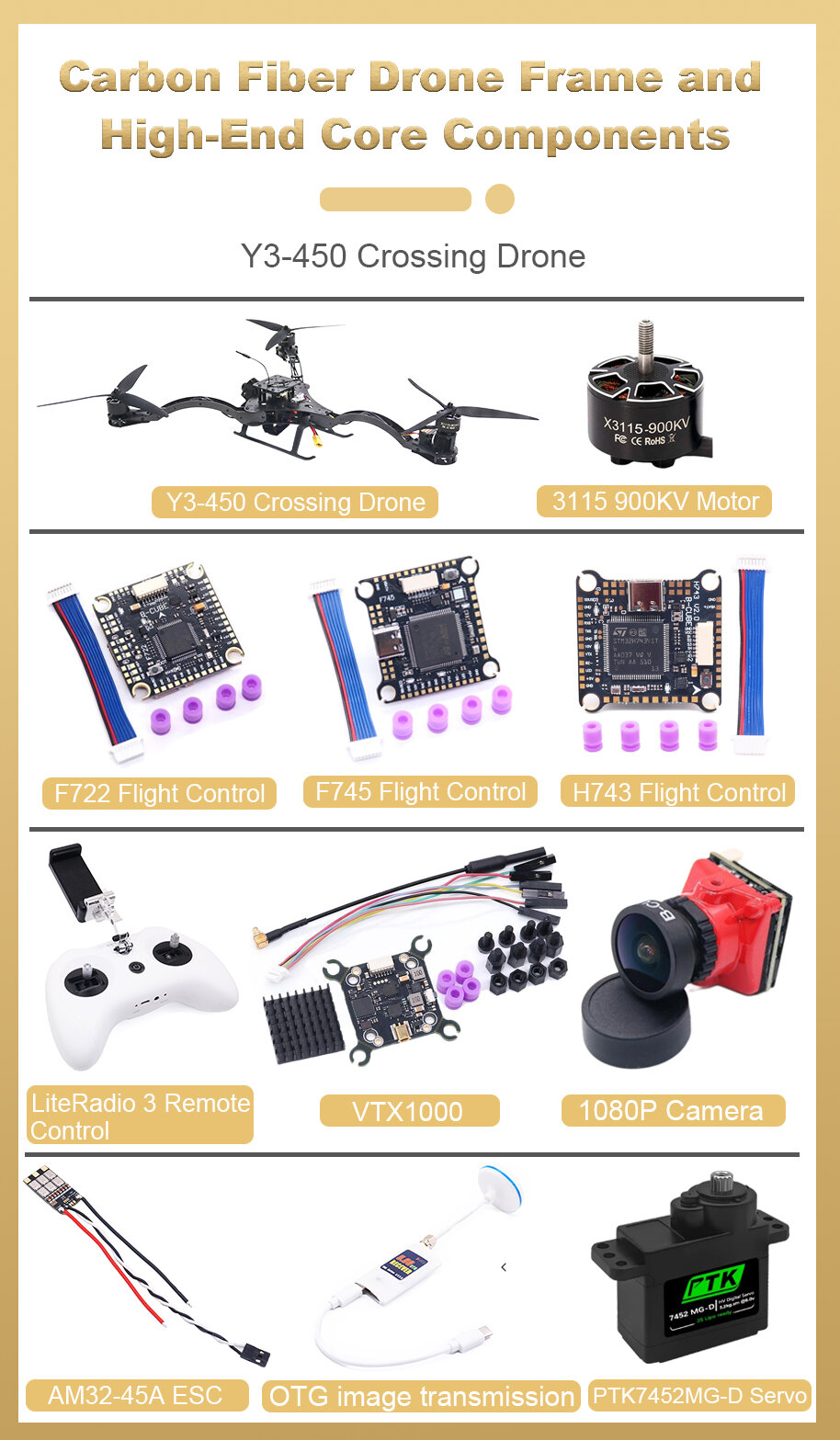

Recommended configuration:

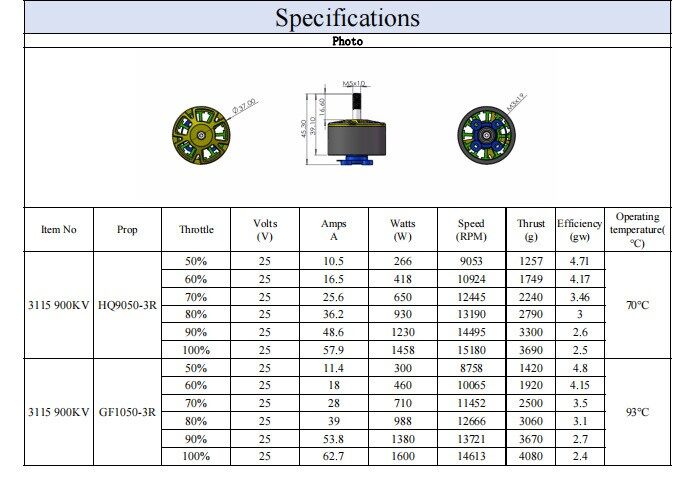

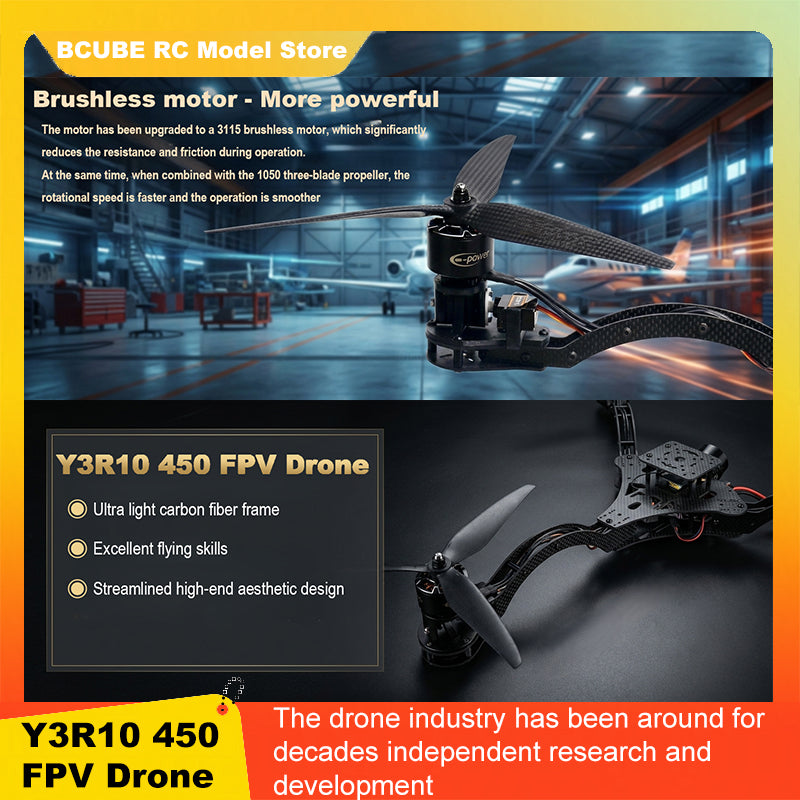

Motors: 3115 900KV

ESC: 45A/60A

Propellers: 1050(10inch)

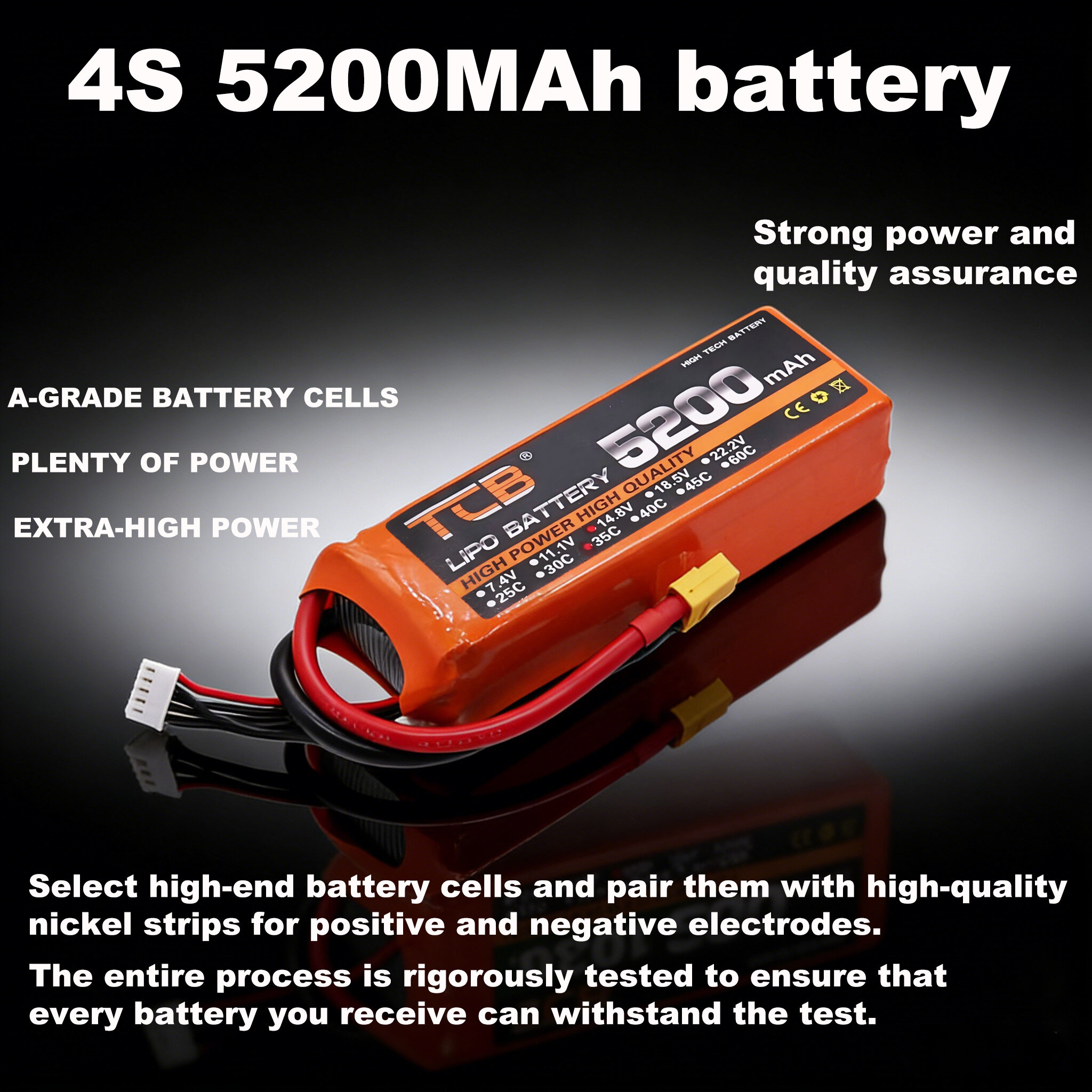

Battery: 3S-6S 5200mAh XT60 Battery

Description:

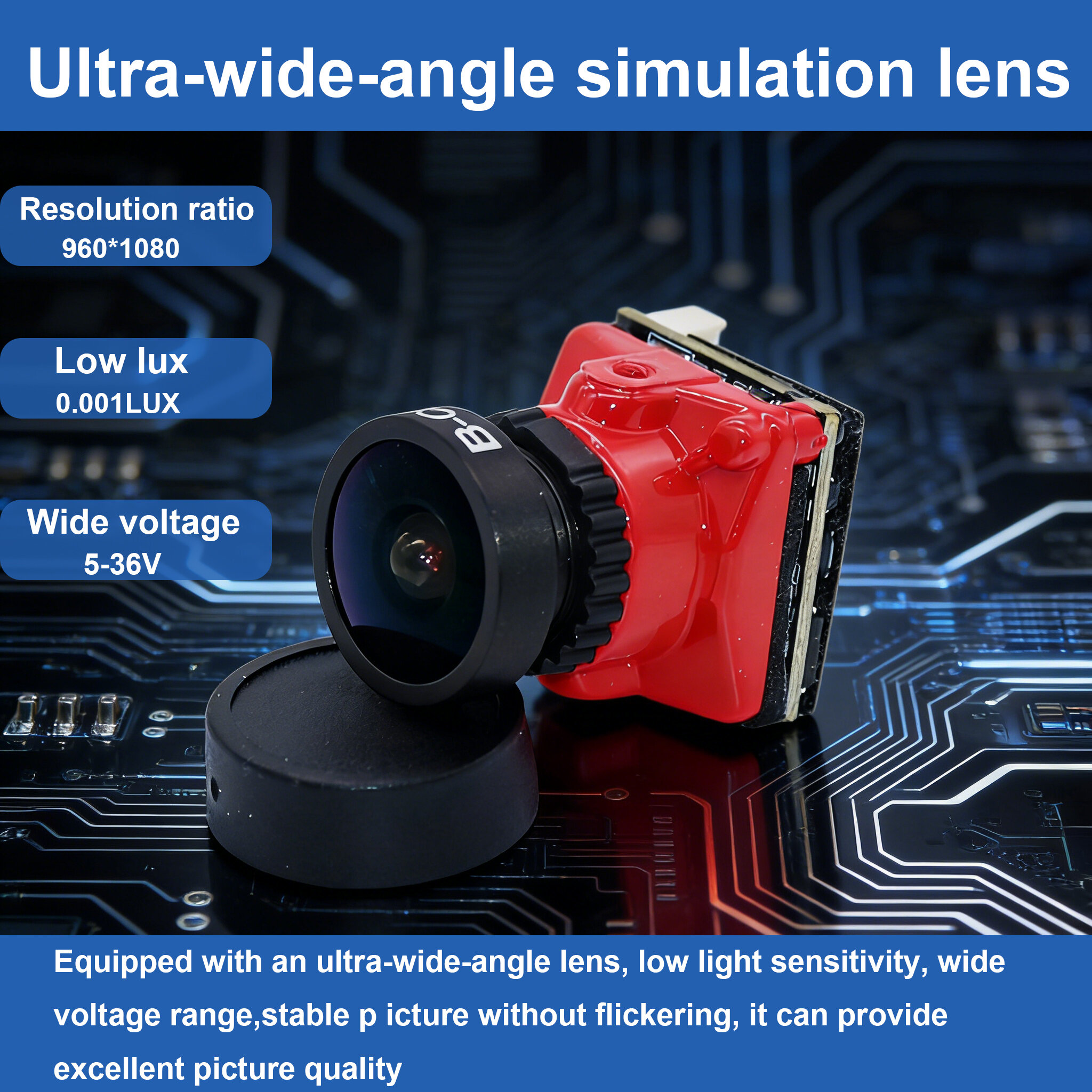

Model: MINI MS-1672 FPV cameras
Sensor: 1/1/8 "CMOS D1080H
Horizontal resolution: 2000TVL
Horizontal field of view: 165
Lens: 2.1mm lens
Video format: NTC&PAL (adjustable)
Image scale: 4:3&16:9 (automatic recognition)
Wide Dynamic Range: Super WDR
Noise reduction: 3DNR
Low illumination: 0.001LUX
Video output: CVBS
Day and night: external/internal/black and white/color
Language: (English/Chinese/Traditional Chinese/pyccnna)
ESOABIK/TTASSNO/FRABCAUS/
POSDIM/PORTUGUES/Japanese
Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000
Wide voltage input: 5-36V
Working temperature: -20-60
Weight: 110g
Dimensions: 19 19 19mm
Resolution: 960 * 1080

Feature:
Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.

Package included:
1 x Upgraded Mista FPV Camera

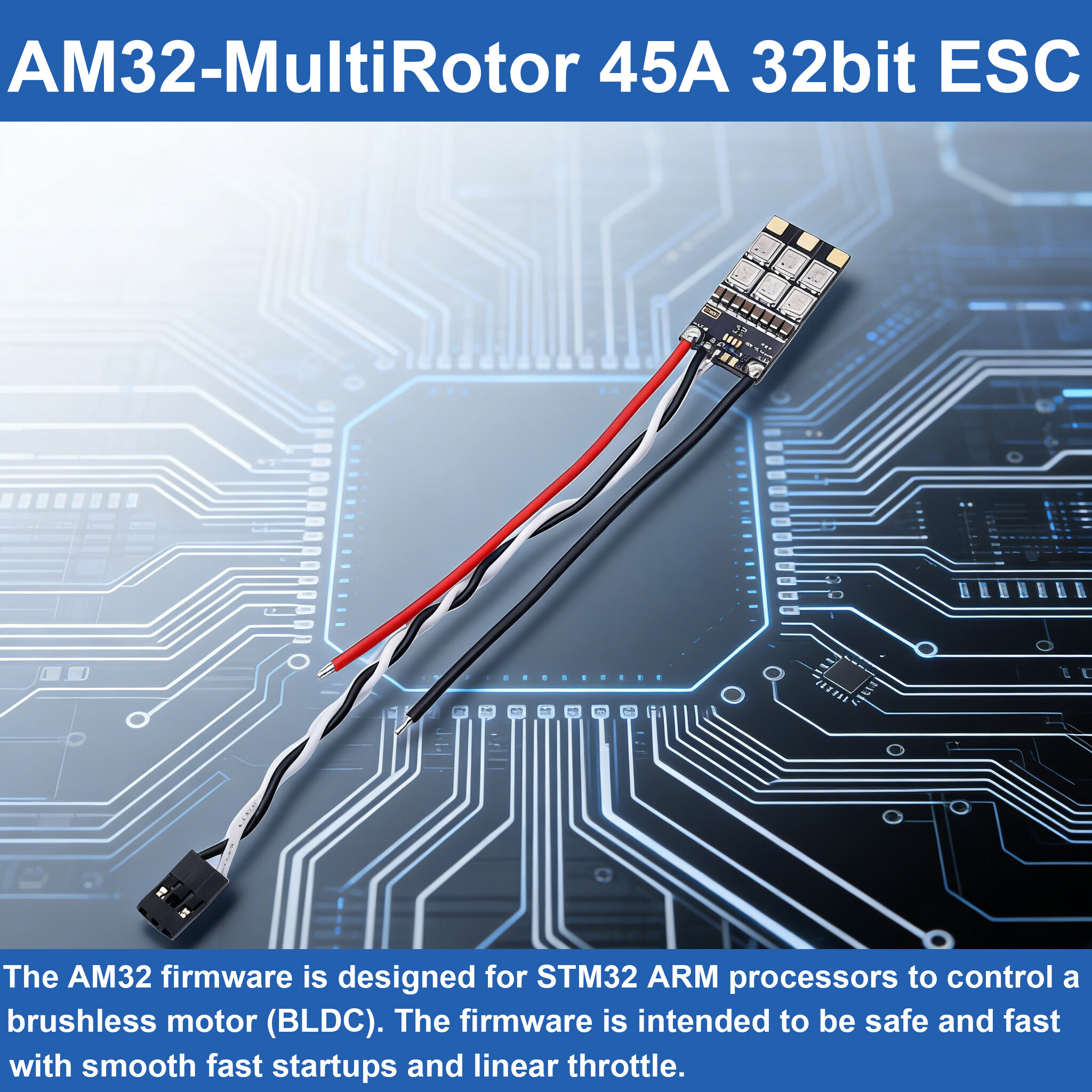

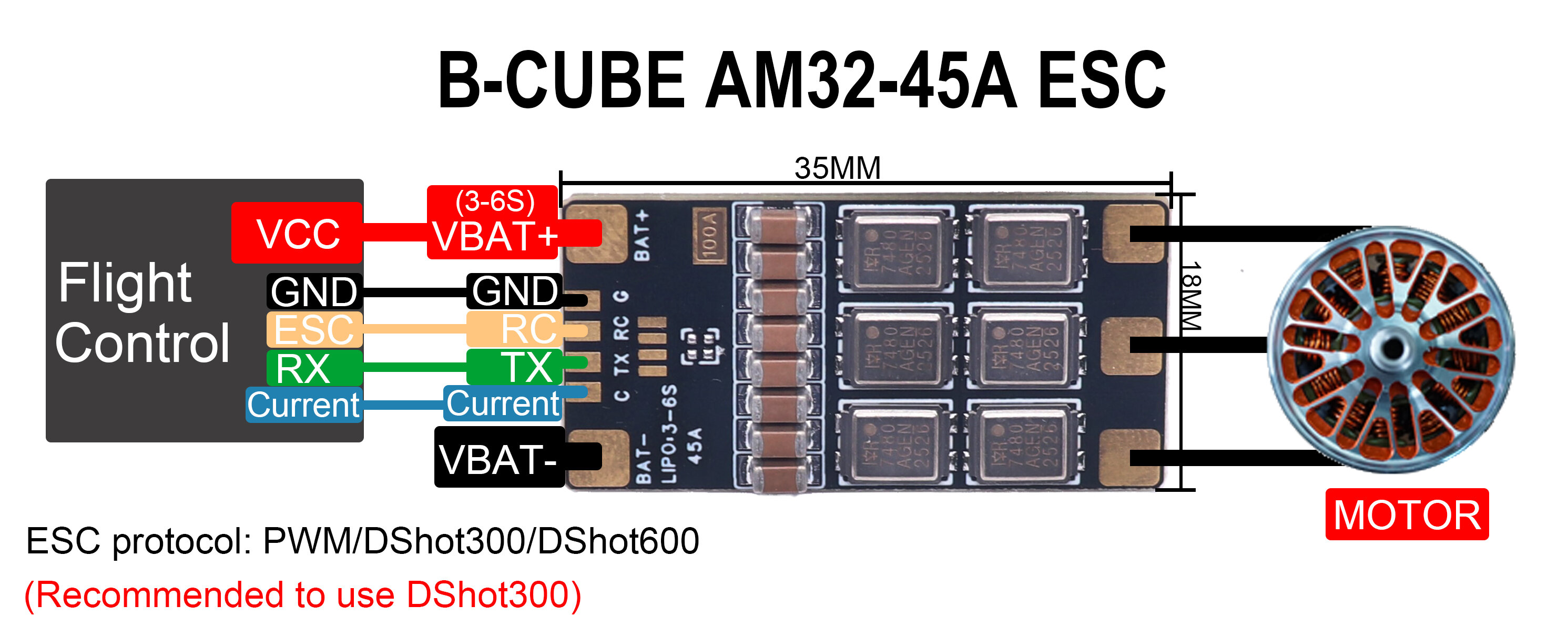

AM32-45A ESC Hardware

ESC Firmware: AM32_NEUTRON_G071_1.91.hex
Processor: 32-bit ARM Cortex STM32G071GBU6TR, frequency up to 64 MHz
PWM carrier frequency: 48kHz
ESC protocol: PWM/DShot300/DShot600 (Recommended to use DShot300)
Power input support: 3-6S (11.1V-27V)
Maximum continuous operating current: 45A (requires adequate heat dissipation and cannot operate in a sealed environment)
MOSFET Parameters: 40V 0.75mΩ Ultra-Low On-Resistance
Galvanometer output: 12.75 mV/A
Weight: 3.2g（Not include Line),6.6g(include Line)
Board size: 35MM * 18MM
Recommended Usage Scenario: 3.5-10 inch FPV Racing Drone

AM32-MultiRotor-ESC Firmware

Firmware for ARM based speed controllers The AM32 firmware is designed for STM32 ARM processors to control a brushless motor (BLDC). The firmware is intended to be safe and fast with smooth fast startups and linear throttle. It is meant for use with multiple vehicle types and a flight controller. The firmware can also be built with support for crawlers. For crawler usage please read this wiki page Crawler Hardware

Features

AM32 has the following features:

Firmware upgradable via betaflight passthrough, single wire serial or arduino
Servo PWM, Dshot(300, 600) motor protocol support,Recommended to use Dshot300
Bi-directional Dshot
KISS standard ESC telemetry
Variable PWM frequency
Sinusoidal startup mode, which is designed to get larger motors up to speed

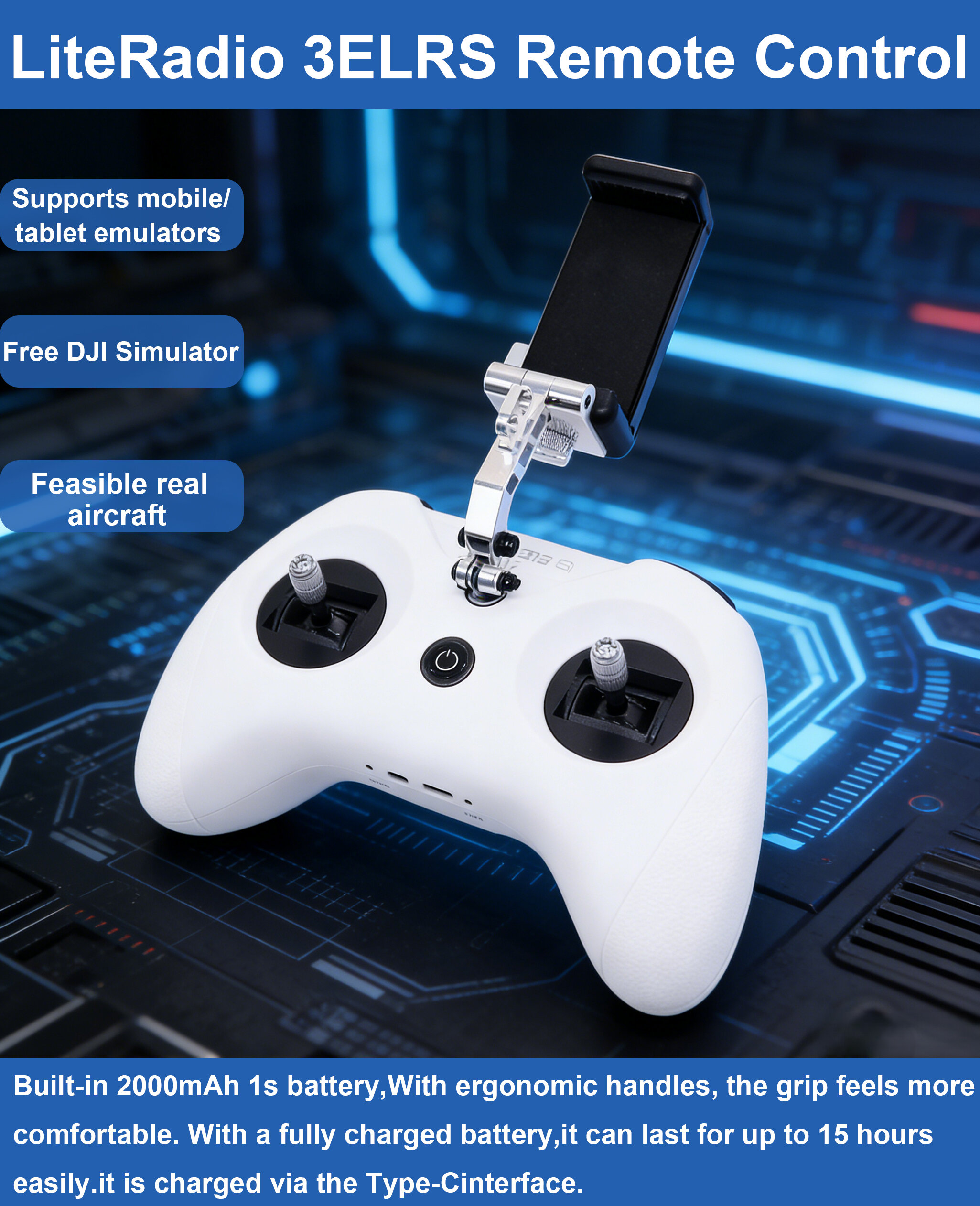

LiteRadio 3 Radio Transmitter

LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.

8 channels in total.
USB Joystick support for most practice simulators.
Nano module bay for external TX module.
Newly designed joystick gimbal for longer usage life.
Support BETAFPV Configurator for updating, configuring, and tuning.
Provide ExpressLRS 2.4G protocol version .
Built-in 2000mAh battery and USB charge supported.

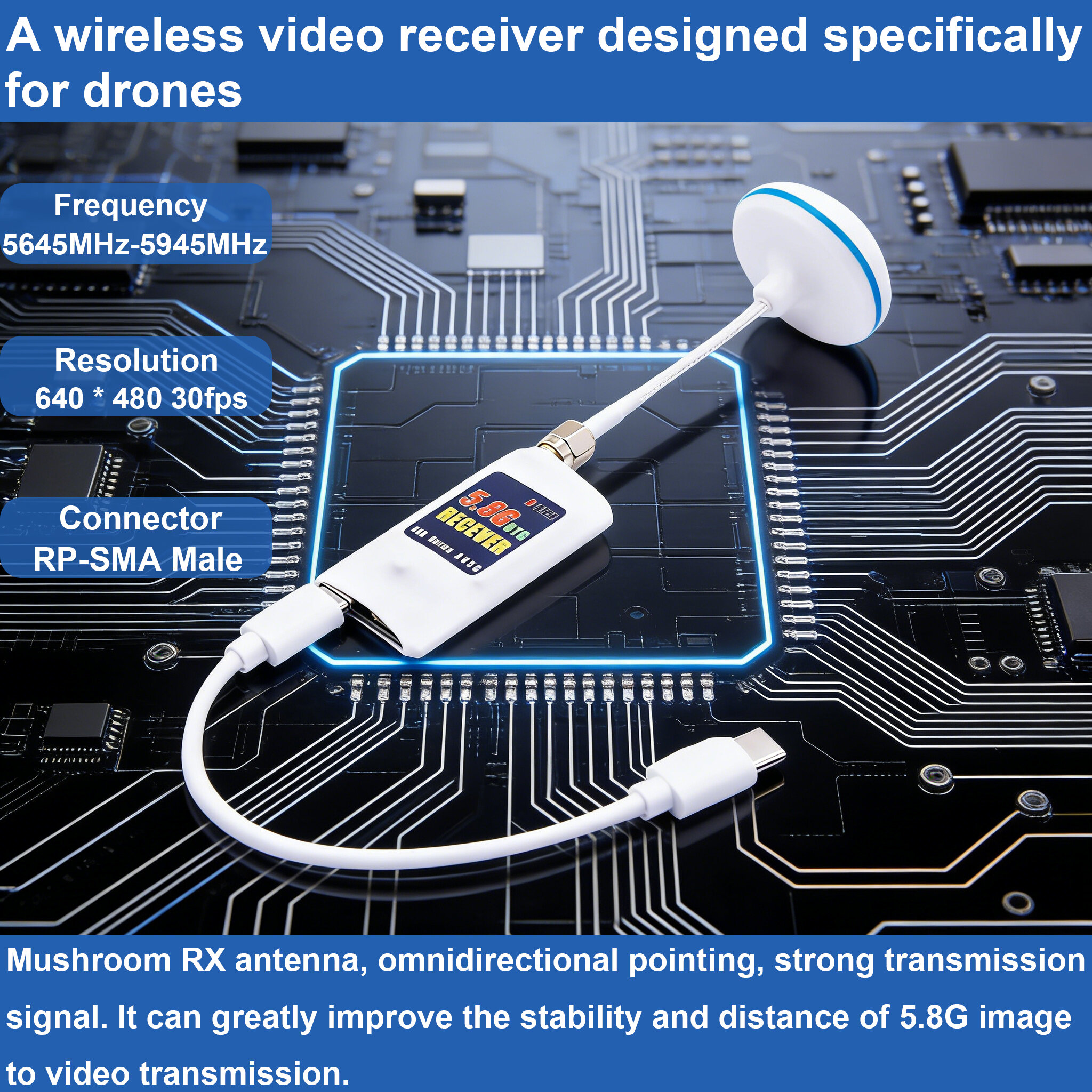

5.8G VTX OTG Receiver

Note:

If you use a 2.4G remote control, some remote controls may interfere with the 5.8G signal after increasing the frequency through the 2.4G frequency band. Using a high-frequency band frequency of 5945MHz for video transmitters can avoid this problem. Or keep the video receiver away from the 2.4G remote control.

Features:

1.150CH 5.8Ghz analog signal, 1500 scans cover all bands. 2.Resolution 640*480 30fps. 3.Mushroom RX antenna, omnidirectional pointing, strong transmission signal. It can greatly improve the stability and distance of 5.8G image to video transmission. 4.Can display frequency spectrum, to check the signal strength of antenna or transmitter. 5.Support dual display on smartphone, can be used as VR goggles. 6.Please calibrate it in open area, and keep away from transmitter more than 30m. Long press the menu button and power on receiver, enter into calibration mode.

Descriptions:

1.Support OTG cable connect to android smartphone or tablet. 2.Single Antenna FPV receiver for Android Tablet PC Monitor.

Specifications:

Frequency: 5645MHz-5945MHz Resolution: 640480 30fps Working Current: USB 5V 190mA Connector: RP-SMA USB: Type-C Working Temp.: -10°~65° Size: 50MM30MM Weight: 26g

Working Methods

Install APP:

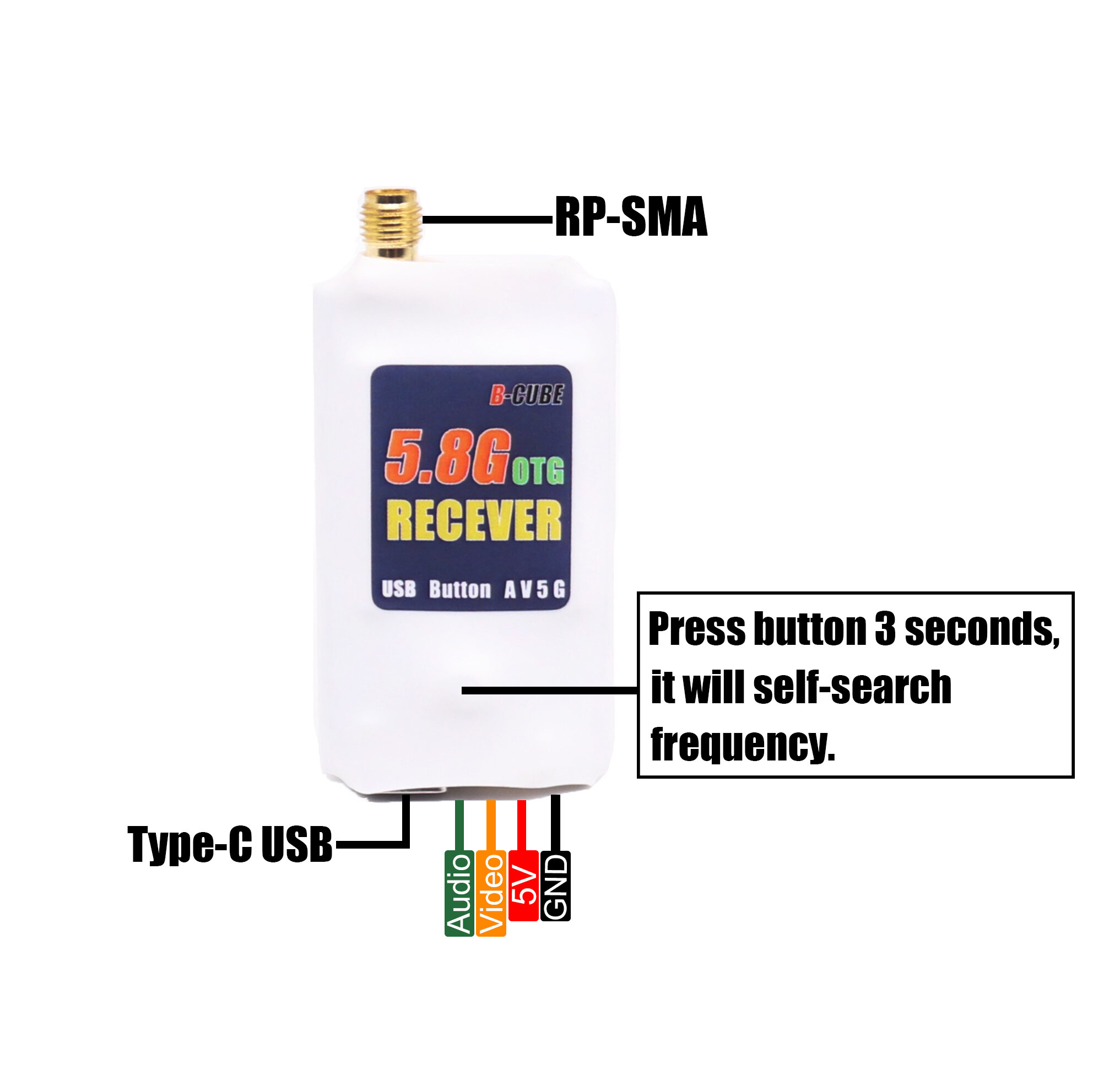

1.Download apk app from here,https://github.com/BCUBE-RC/VTX-OTG/ 2.Use OTG cable connect with receiver 3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal automatically.

PC:

1.Use usb cable to connect it with PC. 2.XP: open the camera;WIN7: install AMCP camera software;WIN10: open camera. Or MP groundstation. 3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.

AV:

1.Use 4P cable (should DIY by player), 5V power input. 2.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.

Note:

1.Do not support IOS system. 2.Some smartphones should open the otg function before use. 3.Some players have complained that it has the issue of flicker or short distance. After testing in open area, the reason has been found to be its high scanning accuracy,that the transmitted frequency is reflected by wall indoors and make the real frequency detected by receiver higher than it should be. So it is quite important to operate it in an open area and keep the receiver and transmitter more than 30m.

Package Included:

1 x 5.8Ghz 150ch Receiver 1 x Type-C OTG cable 1 x Mushroom head RX Antenna
