Product parameters:

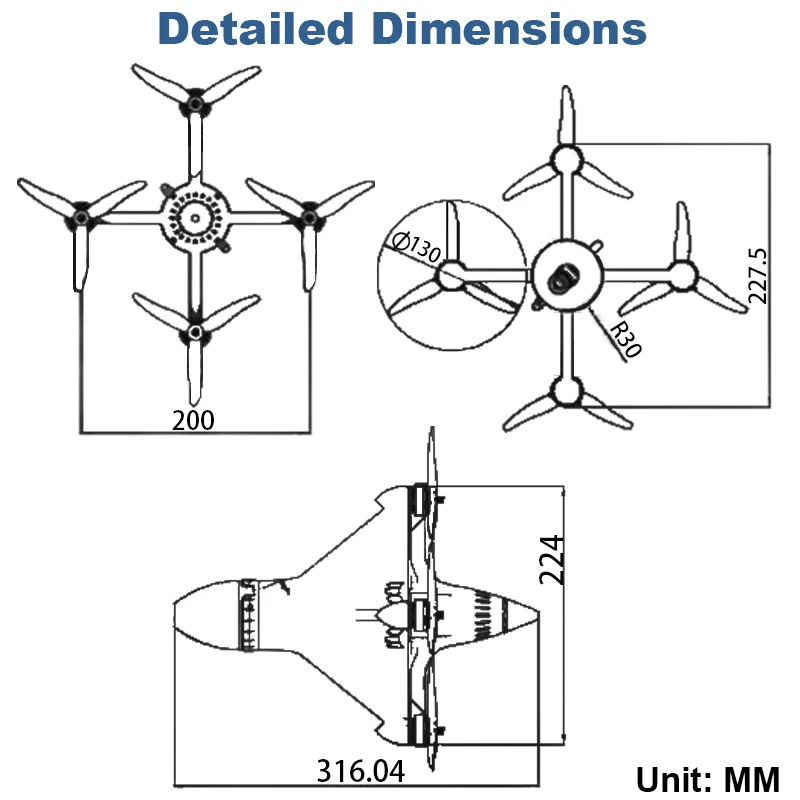

Wheelbase: 133mm (5inch)

Shell material: PLA 3D printed

Collor:Black/Origan/Green

Rocket Height: 316MM

Weight: Approximately 34g

Thickness: Center plate 1.0mm, arm 4.0mm

Paddle: 5inch paddle

Flight control hole spacing: 2020MM (M2) 3030MM (M3)

Video transfer hole spacing: 30*30MM (M3)

Motor installation hole positions: 12mm * 12mm (M3)

Battery: 3S 5200mAh

Recommended configuration:

Motor: 2205 2300KV motor

ESC: B-CUBE 4IN1 45A 30MM

Battery: 3S

Paddle: 5inch paddle

Video transfer: B-CUBE VTX1000

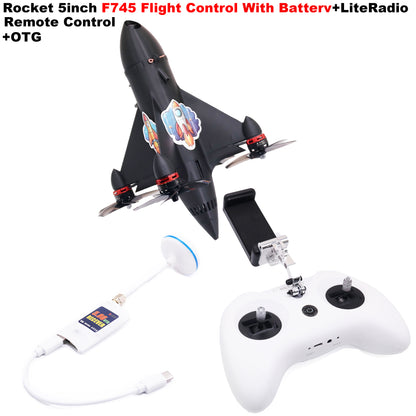

B-CUBE F745 V2 Flight Controller

Features:

1.The F745 V2 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.

2.  The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.

3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.

4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.

5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:

F745 V2 is a major upgrade, offering enhanced performance and precision. It features a CPU upgrade from STM32F745VG to STM32F746VG, boosting processing power for faster response and improved flight stability. The IMU has been upgraded from MPU6000 to ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, V2 delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.

Specifications:

• Chip:STM32F746VG(216MHZ)
• Gyro:ICM-42688-P
• Barometer:SPL06-001
• OSD Chip:AT7456E
• Black box:16MM
• LED Program:Support
• BB buzzer:Support
• Input voltage:3-6S
• I2C Connector:Support
• BEC:5V/2.5A
• BEC:10V/2.0A
• Cam Input:Support
• USART:UART1,UART2.UART3.UART4.UART6.UART7
• Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX
• GPS:YES
• COMPASS:YES
• HD O3:YES
• ESC Signal:Dshoot150.Dshot300,Dshot600
• USB:TYPE-C
• Current Port:Yes.
• Voltage Sensor:Yes
• DFU Button:YES
• FC firmware:betaflight_4.4.2_JHEF745V2.HEX / inav_8.0.0_JHEMCUF745.HEX
• Install hole:30.5*30.5*4MM
• Board size:36*36MM
• Weight:7.5g

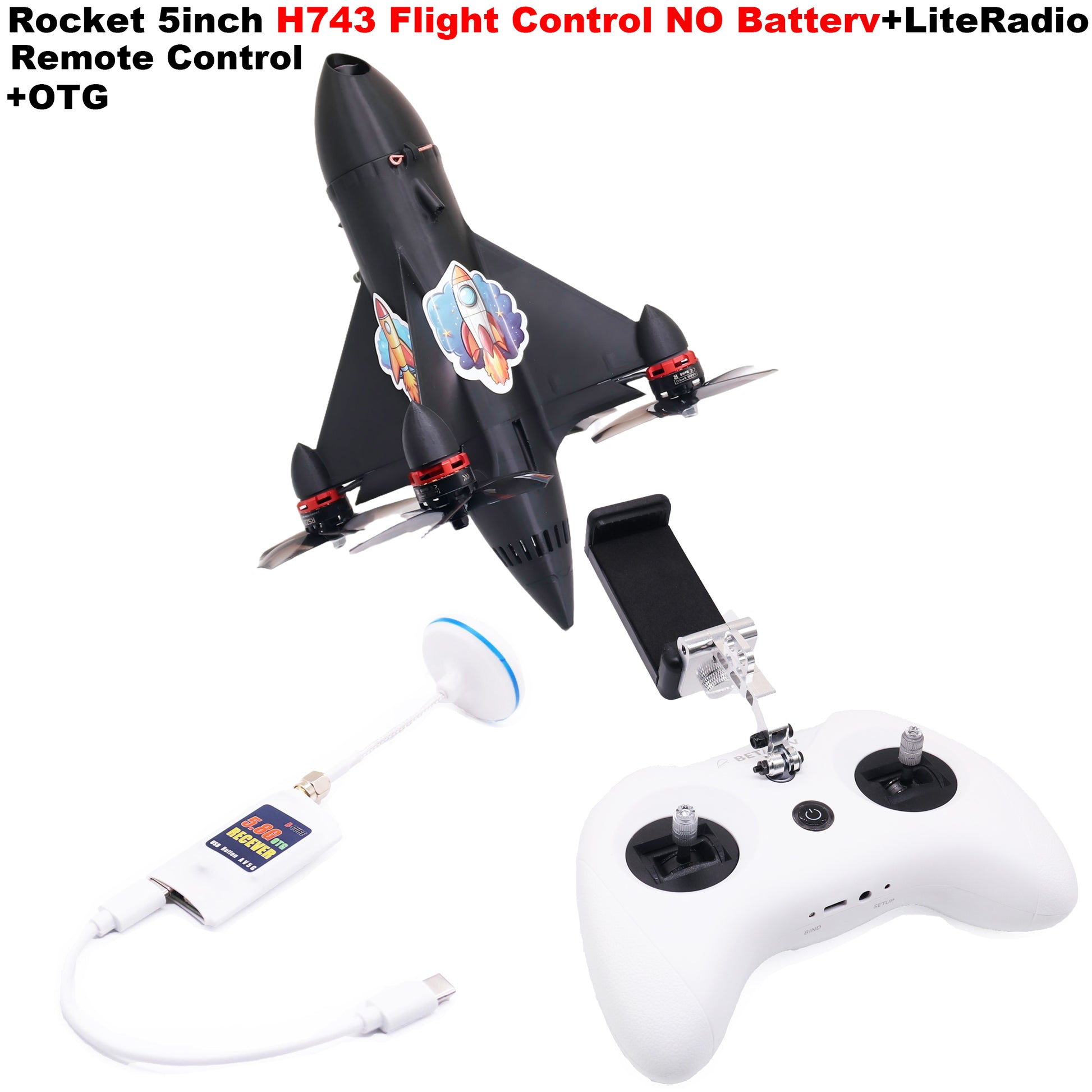

B-CUBE H743 Flight Controller

Features:

1.The H743 is a 3-6S 36x36mm mini flight controller with a 128MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.

2.  The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.

3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.

4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.

5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:

H743 is a major upgrade, offering enhanced performance and precision.Boosting processing power for faster response and improved flight stability. The IMU has been upgraded todouble ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, H743delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.

Specifications:

l Chip:STM32H743VIT6(480MHZ)

l Gyro:ICM-42688-P*2

l Barometer:SPL06-001

l OSD Chip:AT7456E

l Black box:128MM

l LED Program:Support

l BB buzzer:Support

l Input voltage:3-6S

l I2C Connector:Support

l BEC:5V/2.5A

l BEC:10V/2.0A

l Cam Input:Support

l USART:UART1,UART2.UART3.UART4.UART6.UART7

l Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX

l GPS:YES

l COMPASS:YES

l HD O3:YES

l ESC Signal:Dshoot150.Dshot300,Dshot600

l USB:TYPE-C

l Current Port:Yes.

l Voltage Sensor:Yes

l Firmware: cleanflight/betaflight/inav/ardupilot

l FC firmware:betaflight_4.5.2_STM32H743_JHEH743_HD.hex/ inav_8.0.1_JHEMCUH743HD.hex / arducopter4.6_with_bl.hex

l Install hole:30.5*30.5*4MM

l Board size:36*36MM

l Weight:7.9g

VTX1000 1W Video Transmitter

Lithium Polymer Battery Specification Sheet

Basic Information

• Brand: TCB
• Type: LiPo Battery (Lithium Polymer)
• Capacity: 5200 mAh
• Voltage: 11.1V (3S)
• Discharge Rate: 35C (Continuous)
• Connector: XT60
• Dimensions: 130mm x 40mm x 25mm
• Electrical Characteristics
• Nominal Voltage: 11.1V
• Charging Voltage: 12.6V (4.2V per cell)
• Discharge Rate: 35C (Continuous), potentially higher peak rate
• Internal Resistance: Low resistance design
• Compatible Voltage Range: 9.0V - 12.6V
• Physical Characteristics
• Weight: Approximately 310g (depending on design)
• Casing Material: High-strength polymer casing
• Color: Orange
• Dimensions: 130mm (Length) x 40mm (Width) x 25mm (Height)
• Usage and Maintenance
• Charging: Use a balance charger with a charging current not exceeding 1C (5.2A), charging temperature 0-45°C.
• Discharging: Maximum discharge current 182A (35C x 5.2Ah), avoid over-discharging (below 9V).
• Storage: Store at 3.8V per cell (11.4V), temperature 0-40°C, humidity < 70%.
• Safety Precautions: Avoid short circuits, overcharging, over-discharging, and high-temperature environments. Follow battery safety guidelines.

ELRS 2.4G Receiver RX

Product Description:

ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency.

SPECIFICATIONS 1

●Brand:B-CUBE

●Model:ELRS 2.4G NANO

●RF Freq:2.4Ghz

●IC:SX1281+ESP8285

●TX Power:100mW

●Color:Black

●Connector:IPEX 1

●Input Power:3.6-5.5V

●Weight:0.4g(receiver only)

●Size:11mm*18mm

●Firmware: BETAFPV Nano 2400 RX 3.3.0

Package Included: Nano Receiver x 1 T type receiver antenna x 1 Heat shrink tube x 1 30AWG Silicone Wire x 4

LiteRadio 3 Radio Transmitter

LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.

• 8 channels in total.
• USB Joystick support for most practice simulators.
• Nano module bay for external TX module.
• Newly designed joystick gimbal for longer usage life.
• Support BETAFPV Configurator for updating, configuring, and tuning.
• Provide ExpressLRS 2.4G protocol version .
• Built-in 2000mAh battery and USB charge supported.

5.8G VTX OTG Receiver

Note:

If you use a 2.4G remote control, some remote controls may interfere with the 5.8G signal after increasing the frequency through the 2.4G frequency band. Using a high-frequency band frequency of 5945MHz for video transmitters can avoid this problem. Or keep the video receiver away from the 2.4G remote control.

Features:

1.150CH 5.8Ghz analog signal, 1500 scans cover all bands. 2.Resolution 640*480 30fps. 3.Mushroom RX antenna, omnidirectional pointing, strong transmission signal. It can greatly improve the stability and distance of 5.8G image to video transmission. 4.Can display frequency spectrum, to check the signal strength of antenna or transmitter. 5.Support dual display on smartphone, can be used as VR goggles. 6.Please calibrate it in open area, and keep away from transmitter more than 30m. Long press the menu button and power on receiver, enter into calibration mode.

Descriptions:

1.Support OTG cable connect to android smartphone or tablet. 2.Single Antenna FPV receiver for Android Tablet PC Monitor.

Specifications:

Frequency: 5645MHz-5945MHz Resolution: 640480 30fps Working Current: USB 5V 190mA Connector: RP-SMA USB: Type-C Working Temp.: -10°~65° Size: 50MM30MM Weight: 26g

Working Methods

Install APP:

1.Download apk app from here,https://github.com/BCUBE-RC/VTX-OTG/ 2.Use OTG cable connect with receiver 3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal automatically.

PC:

1.Use usb cable to connect it with PC. 2.XP: open the camera;WIN7: install AMCP camera software;WIN10: open camera. Or MP groundstation. 3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.

AV:

1.Use 4P cable (should DIY by player), 5V power input. 2.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.

Note:

1.Do not support IOS system. 2.Some smartphones should open the otg function before use. 3.Some players have complained that it has the issue of flicker or short distance. After testing in open area, the reason has been found to be its high scanning accuracy,that the transmitted frequency is reflected by wall indoors and make the real frequency detected by receiver higher than it should be. So it is quite important to operate it in an open area and keep the receiver and transmitter more than 30m.

Package Included:

1 x 5.8Ghz 150ch Receiver 1 x Type-C OTG cable 1 x Mushroom head RX Antenna

Gemfan D4-5Size: 4 inches
Pitch: 3.8 inches
Weight: 5.5g
Aperture: M5
Color: Midnight Grey
Recommended motor: 24082506
Takeoff weight: 600g
Packaging method: 2CW+2CCW
Material: PC

Features:
Suitable for 4-inch culvert machines
Can provide high tensile strength
The noise of the propeller blade is low
