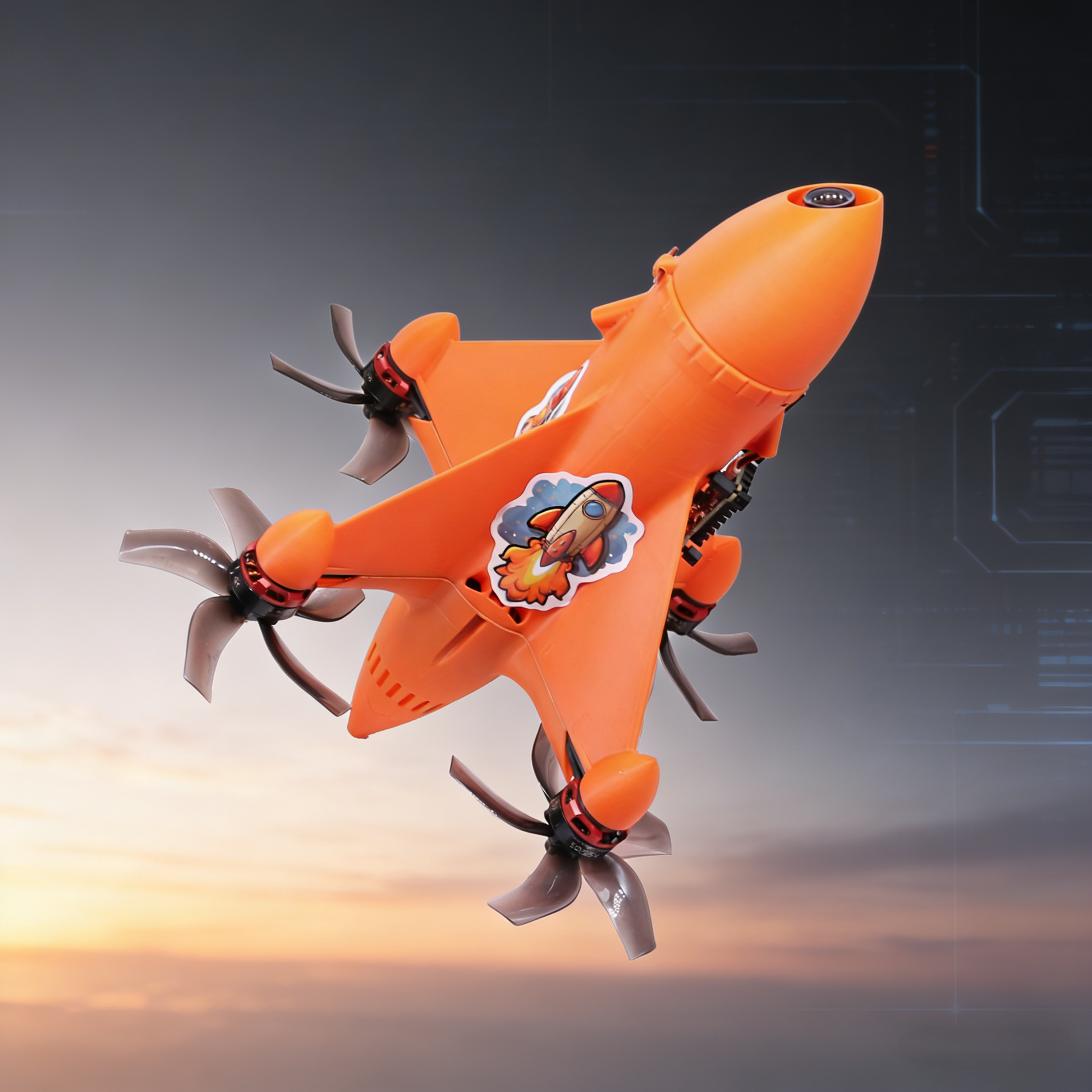

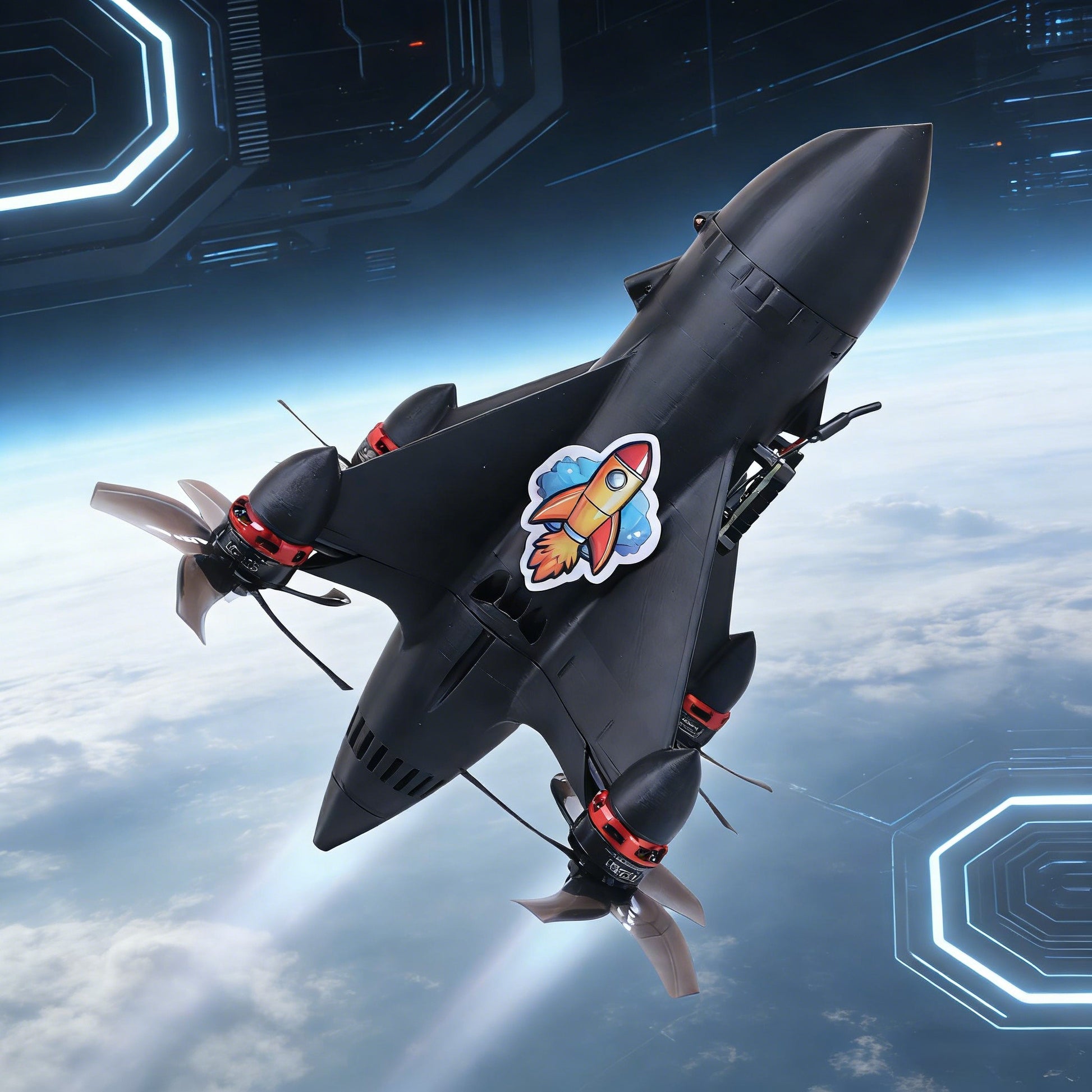

Rocket high-speed 5-inch FPV Drone

Product parameters:

Wheelbase: 133mm (5inch)

Shell material: PLA 3D printed

Collor:Black/Origan/Green Rocket Height: 316MM Weight: Approximately 34g Thickness: Center plate 1.0mm, arm 4.0mm Paddle: 5inch paddle Flight control hole spacing: 2020MM (M2) 3030MM (M3) Video transfer hole spacing: 30*30MM (M3) Motor installation hole positions: 12mm * 12mm (M3) Battery: 3S 5200mAh

Recommended configuration:

Motor: 2205 2300KV motor ESC: B-CUBE 4IN1 45A 30MM Battery: 3S Paddle: 5inch paddle Video transfer: B-CUBE VTX1000

F4V3S PLUS Flight Controller

Note : F4V3S PLUS uses a TYPEC USB port. Please ensure that you have a TYPEC USB cable that can communicate normally. Some USB cables can only be charged and cannot communicate data with flight control. If the USB cable you use cannot recognize the flight control USB port, it indicates that your USB cable cannot communicate with data normally. We upload firmware to the flight control through USB and conduct testing, so it can be very guaranteed that the USB port of the flight control is normal.

If you are unable to confirm if your USB cable is communicating properly, please purchase one.

TYPEC USB line:

https://www.aliexpress.us/item/3256805282876420.html

Specification:

Item name: F4V3S PLUS Flight Controller

Firmware:OMNIBUSF4SD(AIRB)

USB Port: TYPE-C

Size: 36x36mm

Mounting holes: 30.5x30.5mm

STM32 F405 MCU

Dshot support

Drag and Drop OSD configured via Betaflight

MPU6500 6 axis SPI gyro & accelerometer

SBUS / PPM AND Spketrum DSMX ports

MicroSD card blackbox

Baro (BMP280)

5V3A 9V3A BEC

On-board video filters

Properties:

measured.

Boasting a F4 processor, on-board Betaflight OSD, MicroSD Black Box, 5v3a sbec, video filter, you'll be tuning PIDS with your transmitter and tear it to the track in no time!

Note F4V3S PLUS supports cleanflight ,betaflight and INAV firmware.

Use UART1 for external GPS if you use GPS.

Use UART6 for remote control receiver (PPMor SBUS)

B-CUBE F722 Flight Controller

Features:

1. The F722is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.

2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.

3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.

4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.

5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:

F722 Flight controllerbaro: the fpv-freestyle flight controller has been designed for optimal control of flight, which allows you to have more control over the flight. The controller is equipped with fpv, ac adapter, and a power cable. it can be used to connect the drone to the controller.

Specifications:

(Model): F722 Flight Controller

(MCU) STM32F722RET6

(IMU) ICM-42688-P/Gyro/Accel

(OSD): AT7456E

(Baro) SPL06-001

(Blackbox): 16MB

(Input voltage): 3-8S Lipo(11.4-36V)

5V-BEC: 5V/2.5A ±0.1V

10V-BEC: 10V/2A(USER1)

IO2: USER2

(Receiver): ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX

UART: UART1/2/3/4/5/6

IIC: 12C1

Led Strip:YES

(Buzzer): 5V

(ESCsignal): Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600

USB: TYPE-C

(Current port): YES

(Voltage sensor) YES

DFU (DFU button): YES

(Firmware): Betaflight 4.3.1 JHEF7DUAL.HE, inav_7.1.0_JHEMCUF722.hex

(Size): 36*36MM

(Mounting Hole) 30.5*30.5*4MM

(Weight) 8.8g

B-CUBE F745 V2 Flight Controller

Features:

1. The F745 V2 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference. 2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity. 3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance. 4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button. 5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:

F745 V2 is a major upgrade, offering enhanced performance and precision. It features a CPU upgrade from STM32F745VG to STM32F746VG, boosting processing power for faster response and improved flight stability. The IMU has been upgraded from MPU6000 to ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, V2 delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.

Specifications:

Chip:STM32F746VG(216MHZ)
Gyro:ICM-42688-P
Barometer:SPL06-001
OSD Chip:AT7456E
Black box:16MM
LED Program:Support
BB buzzer:Support
Input voltage:3-6S
I2C Connector:Support
BEC:5V/2.5A
BEC:10V/2.0A
Cam Input:Support
USART:UART1,UART2.UART3.UART4.UART6.UART7
Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX
GPS:YES
COMPASS:YES
HD O3:YES
ESC Signal:Dshoot150.Dshot300,Dshot600
USB:TYPE-C
Current Port:Yes.
Voltage Sensor:Yes
DFU Button:YES
FC firmware:betaflight_4.4.2_JHEF745V2.HEX / inav_8.0.0_JHEMCUF745.HEX
Install hole:30.5*30.5*4MM
Board size:36*36MM
Weight:7.5g

B-CUBE H743 Flight Controller

Features:

1. The H743 is a 3-6S 36x36mm mini flight controller with a 128MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference. 2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity. 3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance. 4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button. 5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight. Descriptions:

H743 is a major upgrade, offering enhanced performance and precision.Boosting processing power for faster response and improved flight stability. The IMU has been upgraded todouble ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, H743delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.

Specifications:

l Chip:STM32H743VIT6(480MHZ)

l Gyro:ICM-42688-P*2

l Barometer:SPL06-001

l OSD Chip:AT7456E

l Black box:128MM

l LED Program:Support

l BB buzzer:Support

l Input voltage:3-6S

l I2C Connector:Support

l BEC:5V/2.5A

l BEC:10V/2.0A

l Cam Input:Support

l USART:UART1,UART2.UART3.UART4.UART6.UART7

l Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX

l GPS:YES

l COMPASS:YES

l HD O3:YES

l ESC Signal:Dshoot150.Dshot300,Dshot600

l USB:TYPE-C

l Current Port:Yes.

l Voltage Sensor:Yes

l Firmware: cleanflight/betaflight/inav/ardupilot

l FC firmware:betaflight_4.5.2_STM32H743_JHEH743_HD.hex/ inav_8.0.1_JHEMCUH743HD.hex / arducopter4.6_with_bl.hex

l Install hole:30.5*30.5*4MM

l Board size:36*36MM

l Weight:7.9g

VTX1000 1W Video Transmitter

Lithium Polymer Battery Specification Sheet

Basic Information

Brand: TCB
Type: LiPo Battery (Lithium Polymer)
Capacity: 5200 mAh
Voltage: 11.1V (3S)
Discharge Rate: 35C (Continuous)
Connector: XT60
Dimensions: 130mm x 40mm x 25mm

Electrical Characteristics

Nominal Voltage: 11.1V
Charging Voltage: 12.6V (4.2V per cell)
Discharge Rate: 35C (Continuous), potentially higher peak rate
Internal Resistance: Low resistance design
Compatible Voltage Range: 9.0V - 12.6V

Physical Characteristics

Weight: Approximately 310g (depending on design)
Casing Material: High-strength polymer casing
Color: Orange
Dimensions: 130mm (Length) x 40mm (Width) x 25mm (Height)

Usage and Maintenance

Charging: Use a balance charger with a charging current not exceeding 1C (5.2A), charging temperature 0-45°C.
Discharging: Maximum discharge current 182A (35C x 5.2Ah), avoid over-discharging (below 9V).
Storage: Store at 3.8V per cell (11.4V), temperature 0-40°C, humidity < 70%.
Safety Precautions: Avoid short circuits, overcharging, over-discharging, and high-temperature environments. Follow battery safety guidelines. ELRS 2.4G Receiver RX

Product Description: ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency.

SPECIFICATIONS 1 ●Brand:B-CUBE ●Model:ELRS 2.4G NANO ●RF Freq:2.4Ghz ●IC:SX1281+ESP8285 ●TX Power:100mW ●Color:Black ●Connector:IPEX 1 ●Input Power:3.6-5.5V ●Weight:0.4g(receiver only) ●Size:11mm*18mm ●Firmware: BETAFPV Nano 2400 RX 3.3.0

Package Included: Nano Receiver x 1 T type receiver antenna x 1 Heat shrink tube x 1 30AWG Silicone Wire x 4 LiteRadio 3 Radio Transmitter

LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.
