B-CUBE PRO V5 5inch FPV Drone Frame Kit Carbon Fiber Racing Quadcopter Freestyle INAV Beatflight F722 Ardupilot Flight Control
B-CUBE PRO V5 5inch FPV Drone Frame Kit Carbon Fiber Racing Quadcopter Freestyle INAV Beatflight F722 Ardupilot Flight Control
Verfügbarkeit für Abholungen konnte nicht geladen werden

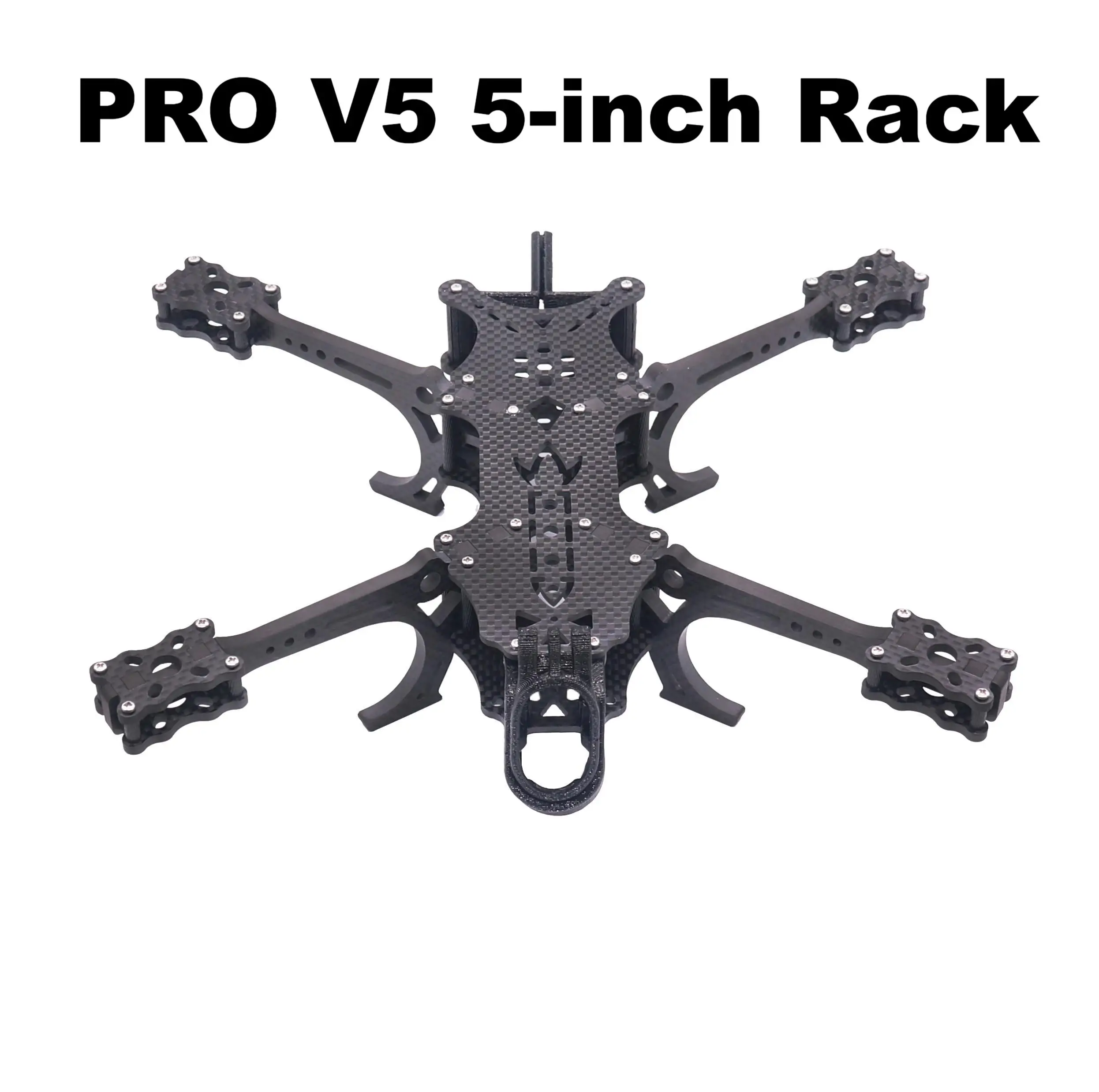

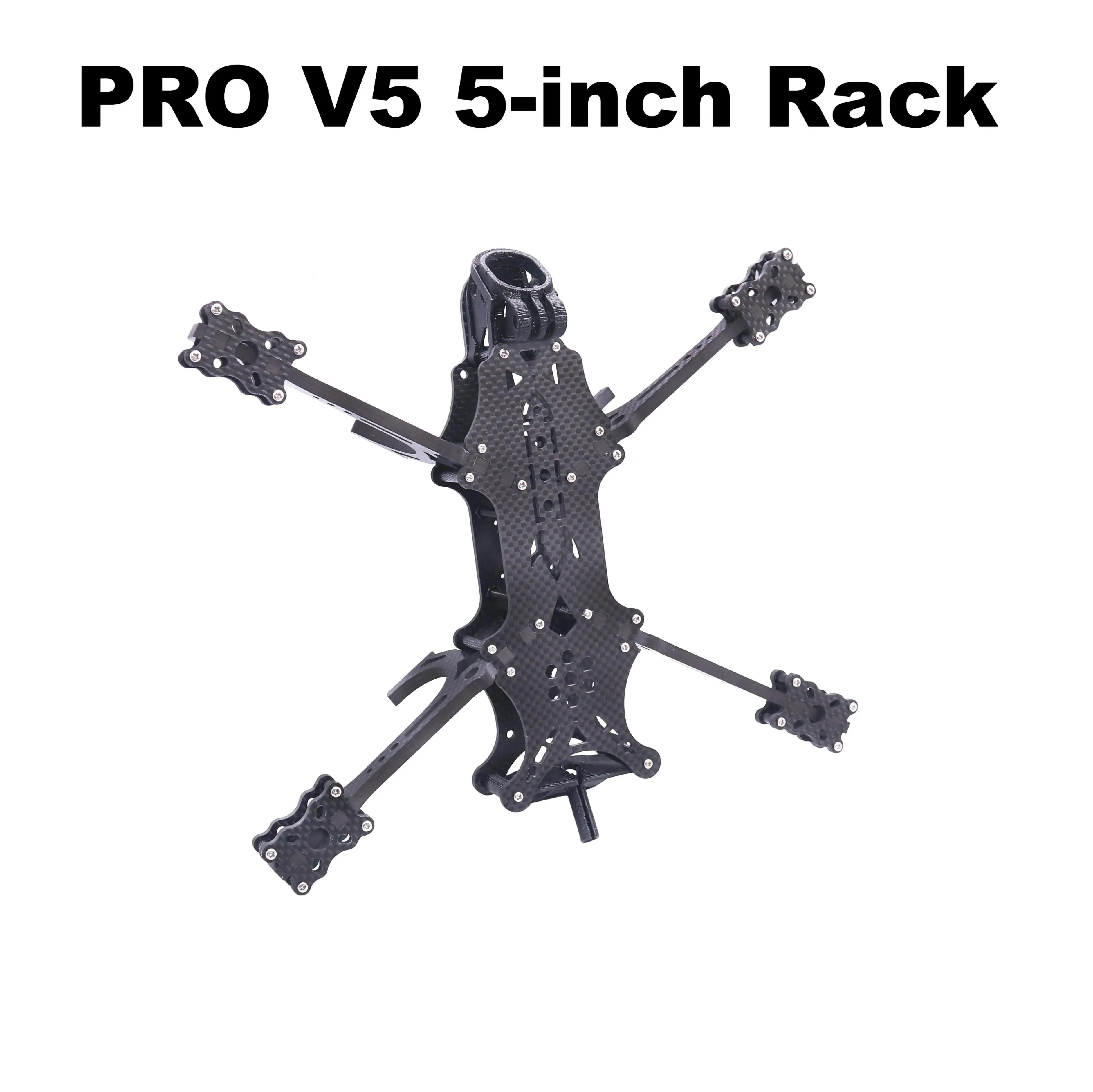

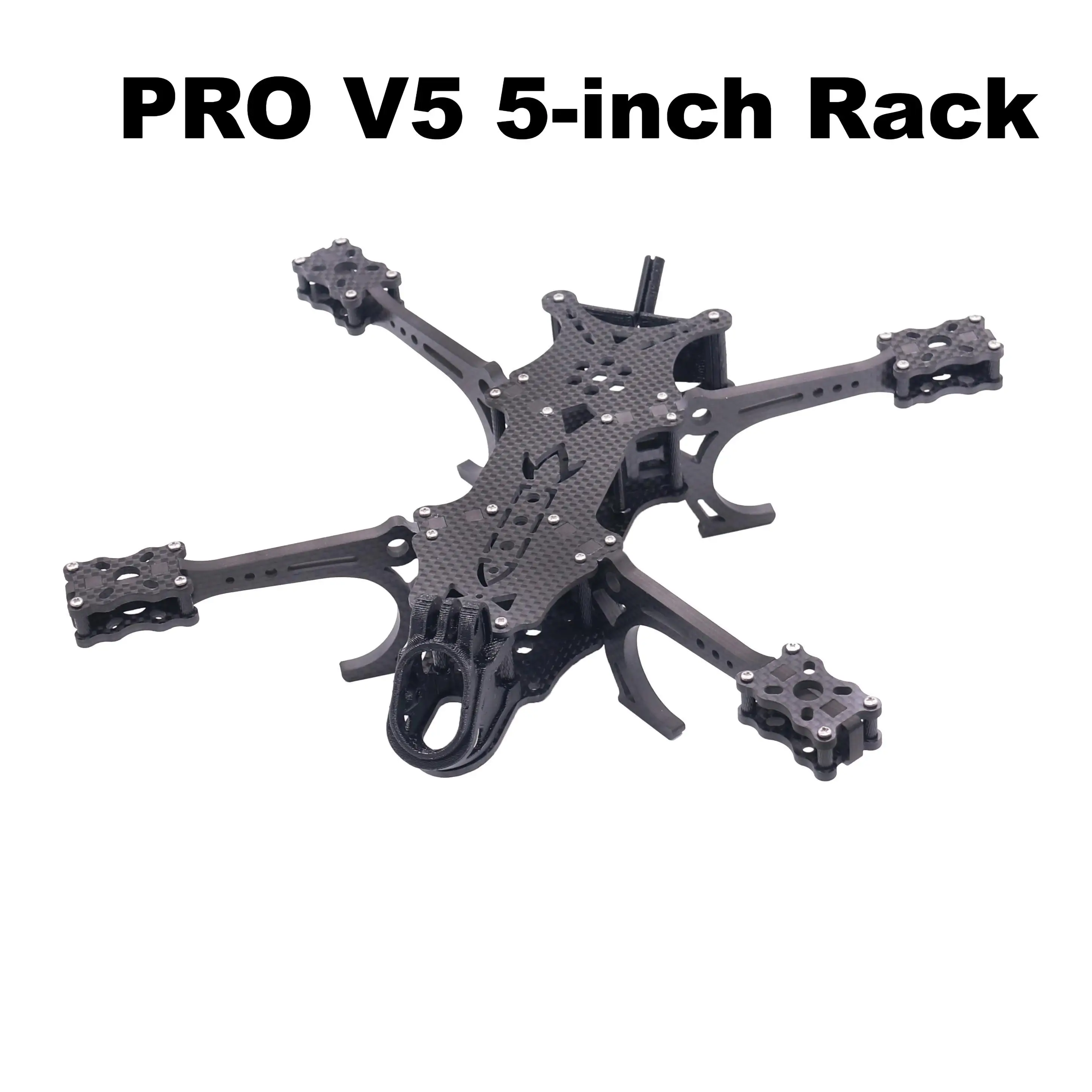

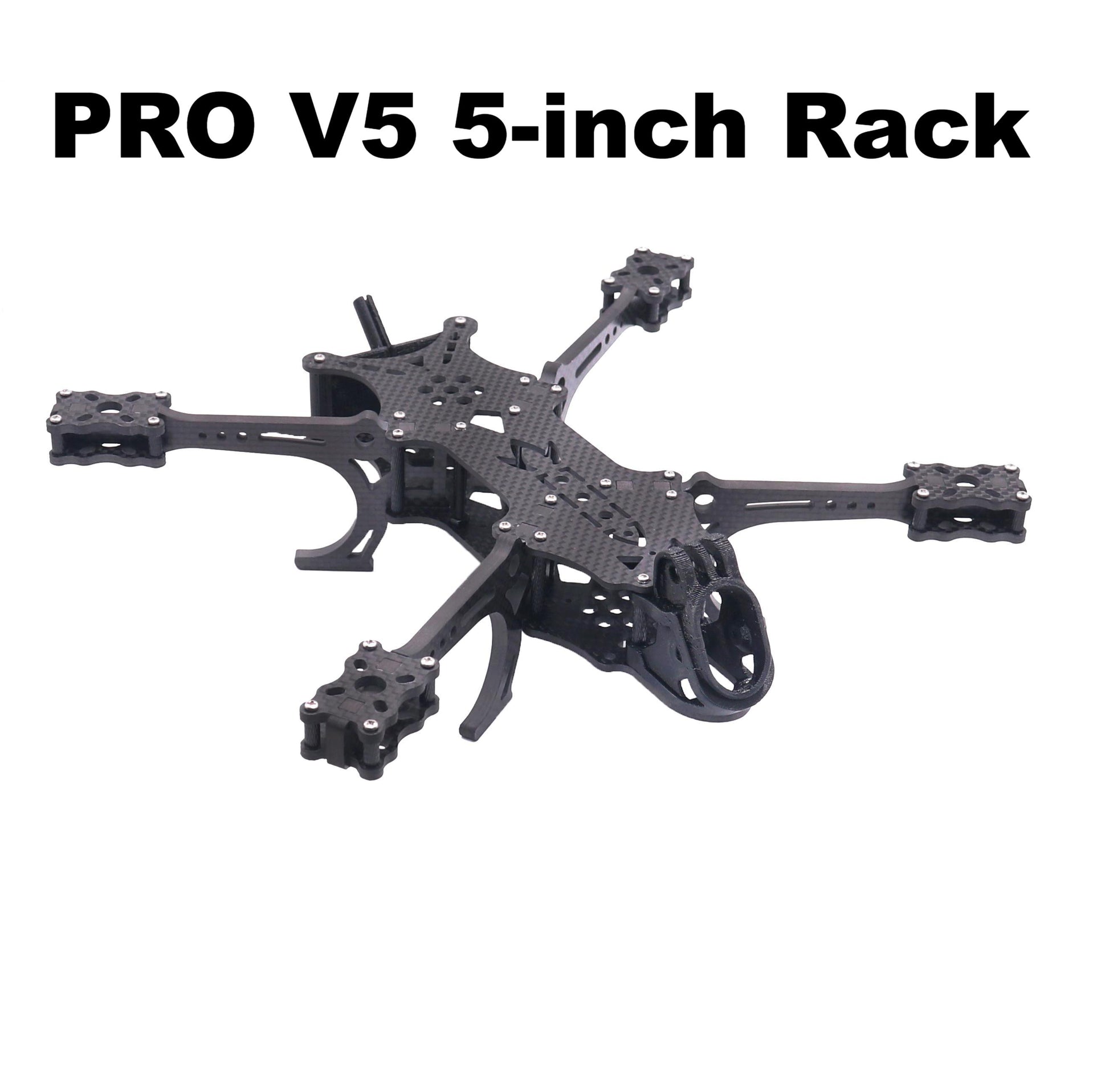

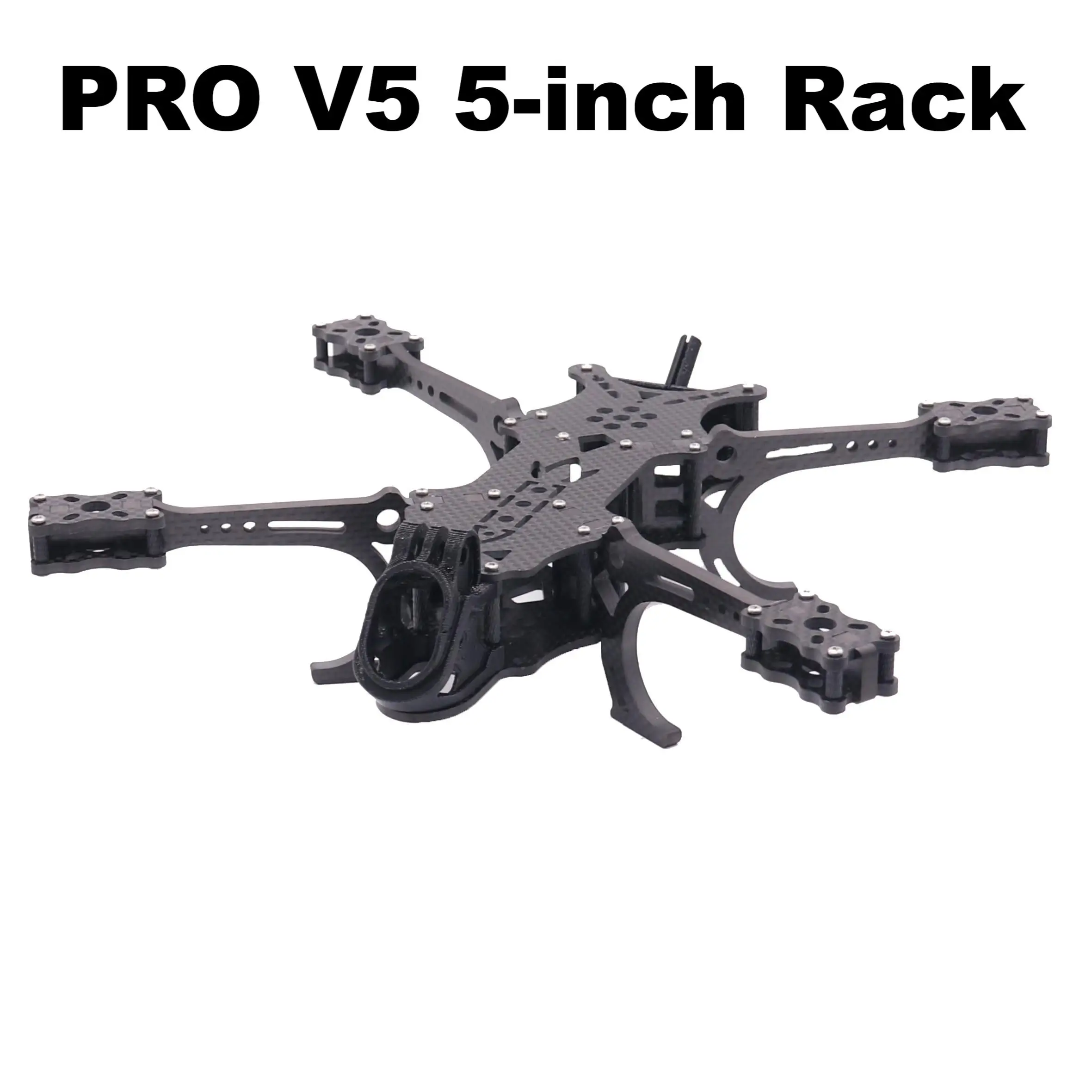

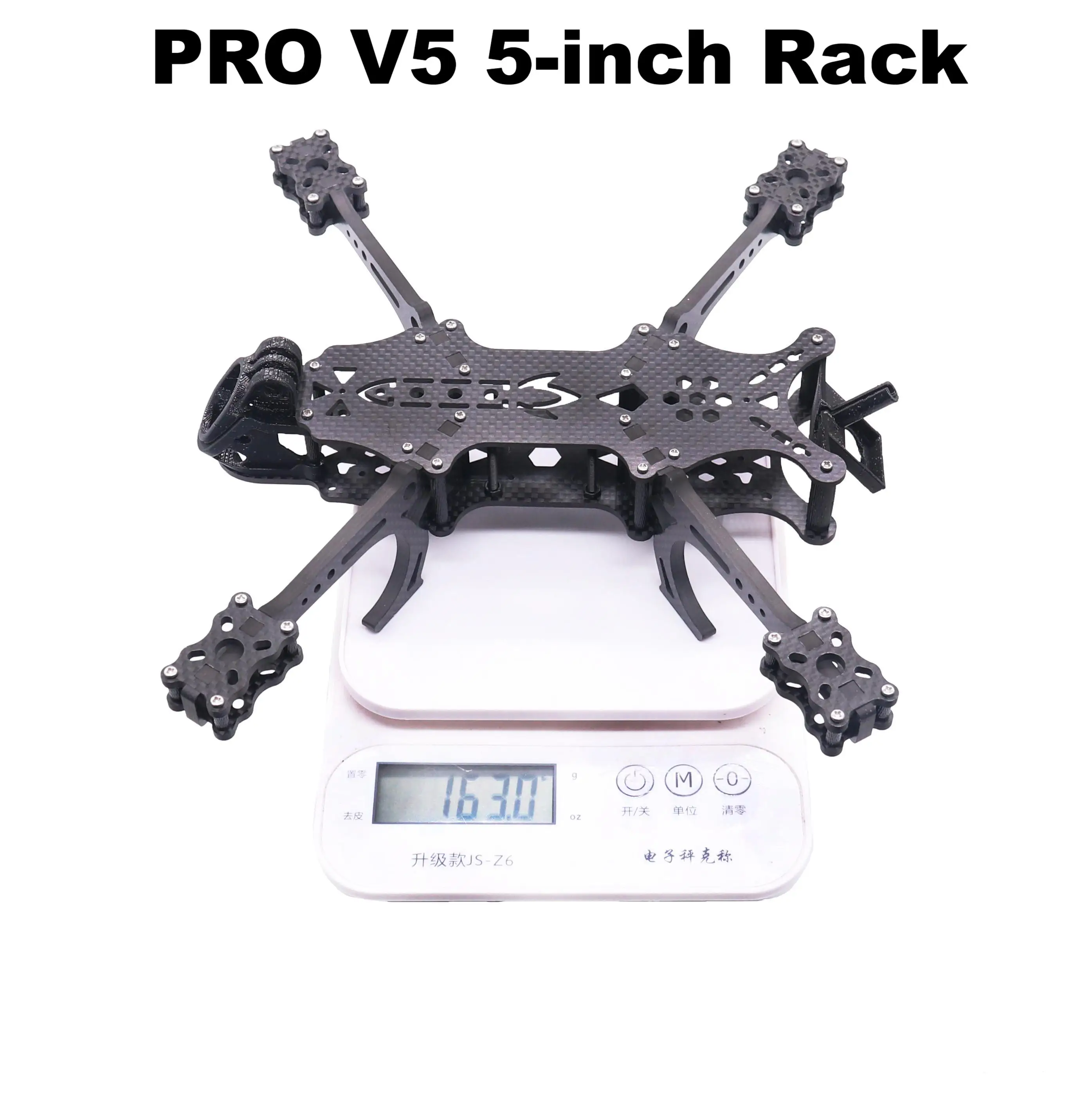

PRO V5 5-inch Rack
Product parameters:
Wheelbase: 260mm (5inch)
Weight: Approximately 163g (including printed copies)
Thickness: Bottom plate 2.5mm, upper plate 2.0mm, arm 5.0mm
Paddle: 5-inch paddle

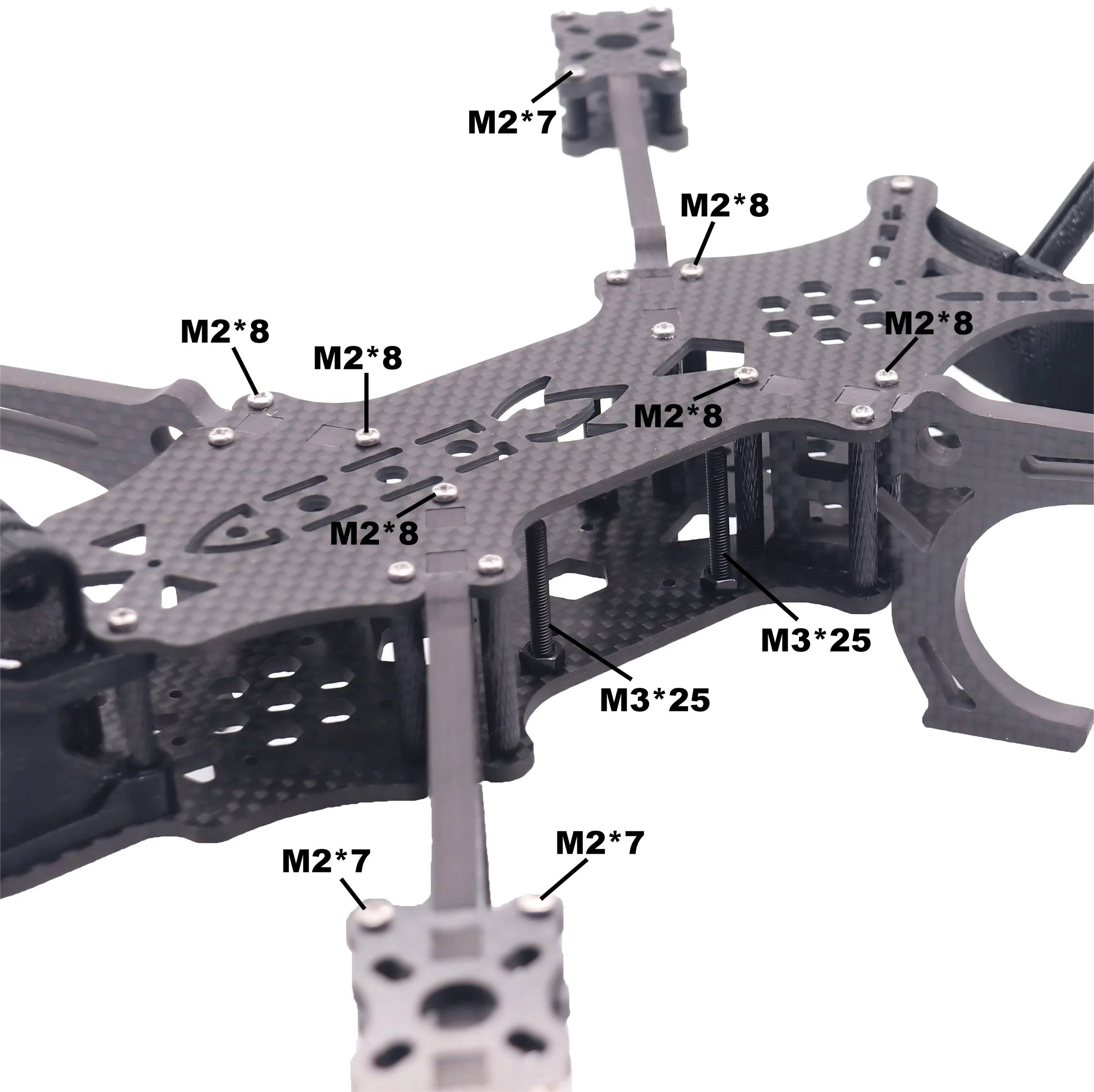

Flight control hole spacing: 30.6 * 30.6mm (M3)，20 * 20mm (M2)
Hole spacing for image transmission: 30.6 * 30.6mm (M3),20 * 20mm (M2)
Camera installation width: 19mm
Motor installation hole positions: 9 * 9mm (M2) and 12mm * 12mm (M2)
Battery: 3S/4S 5200mAh

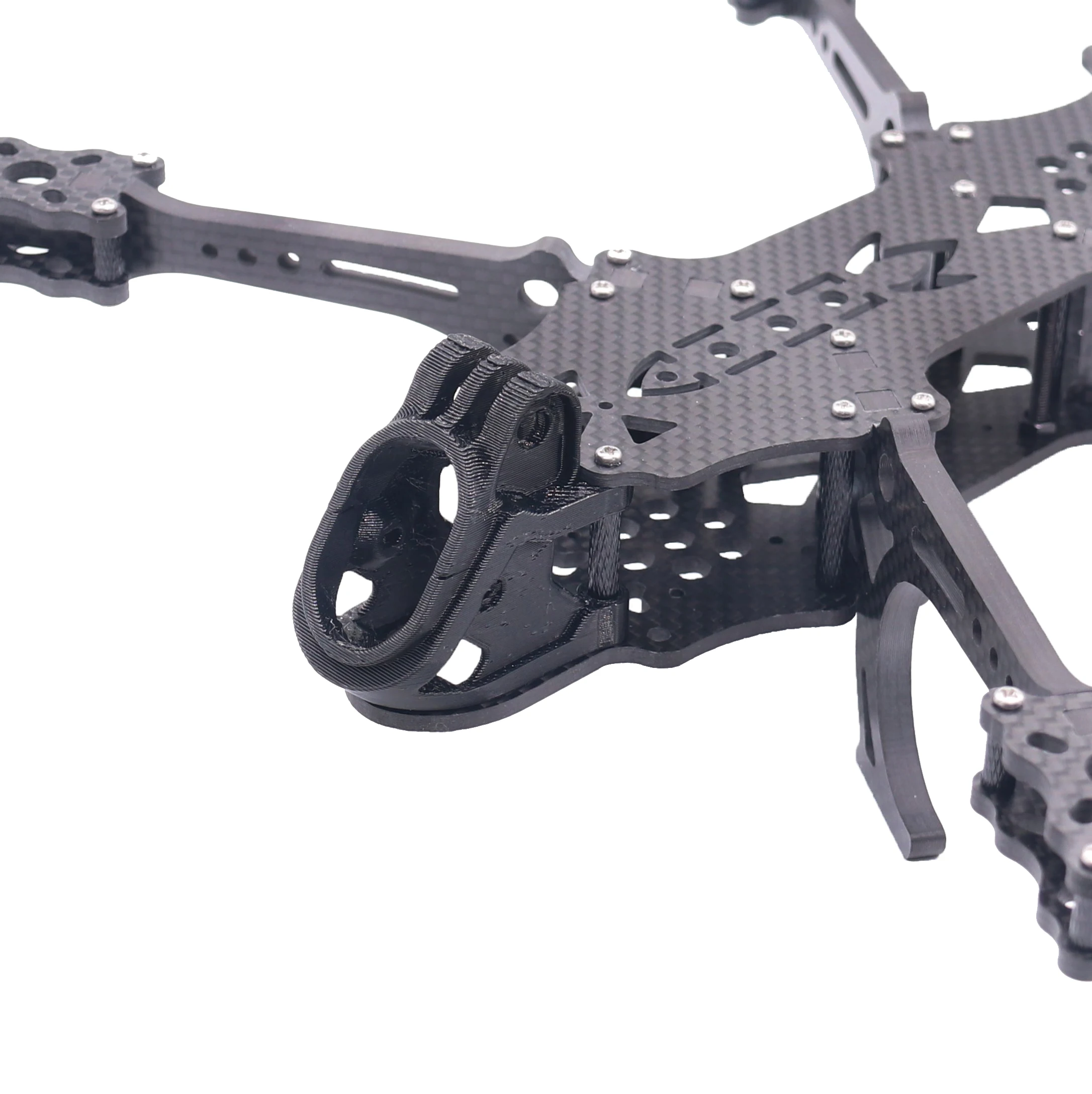

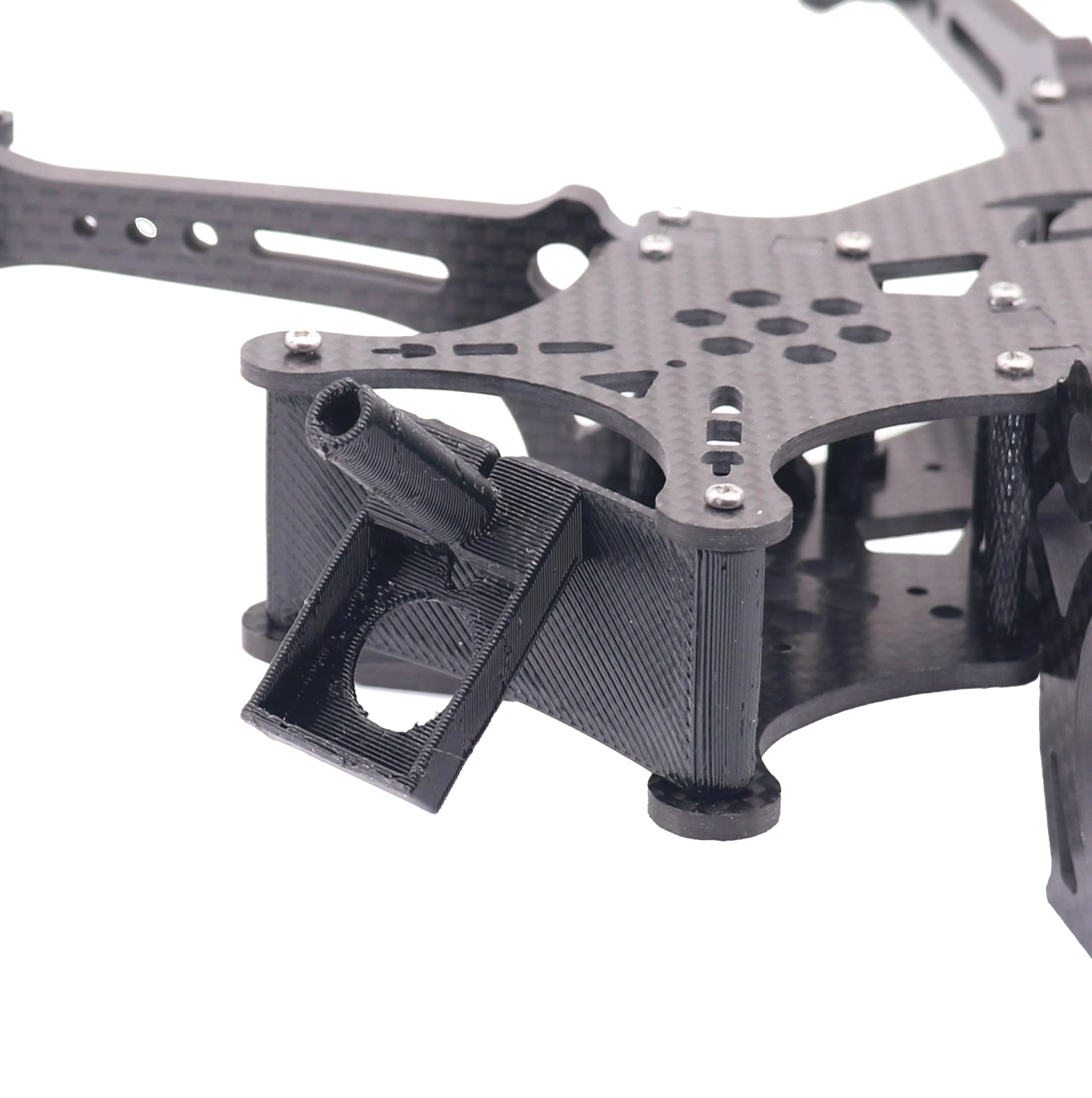

3D print: 1 camera brackets, 1 antenna pedestal,
Print color: Black TPU
Recommended configuration: Motor: 2205 2300KV motor
ESC: B-CUBE 4IN1-30MM or 20MM 45A
Battery: 3S-4S

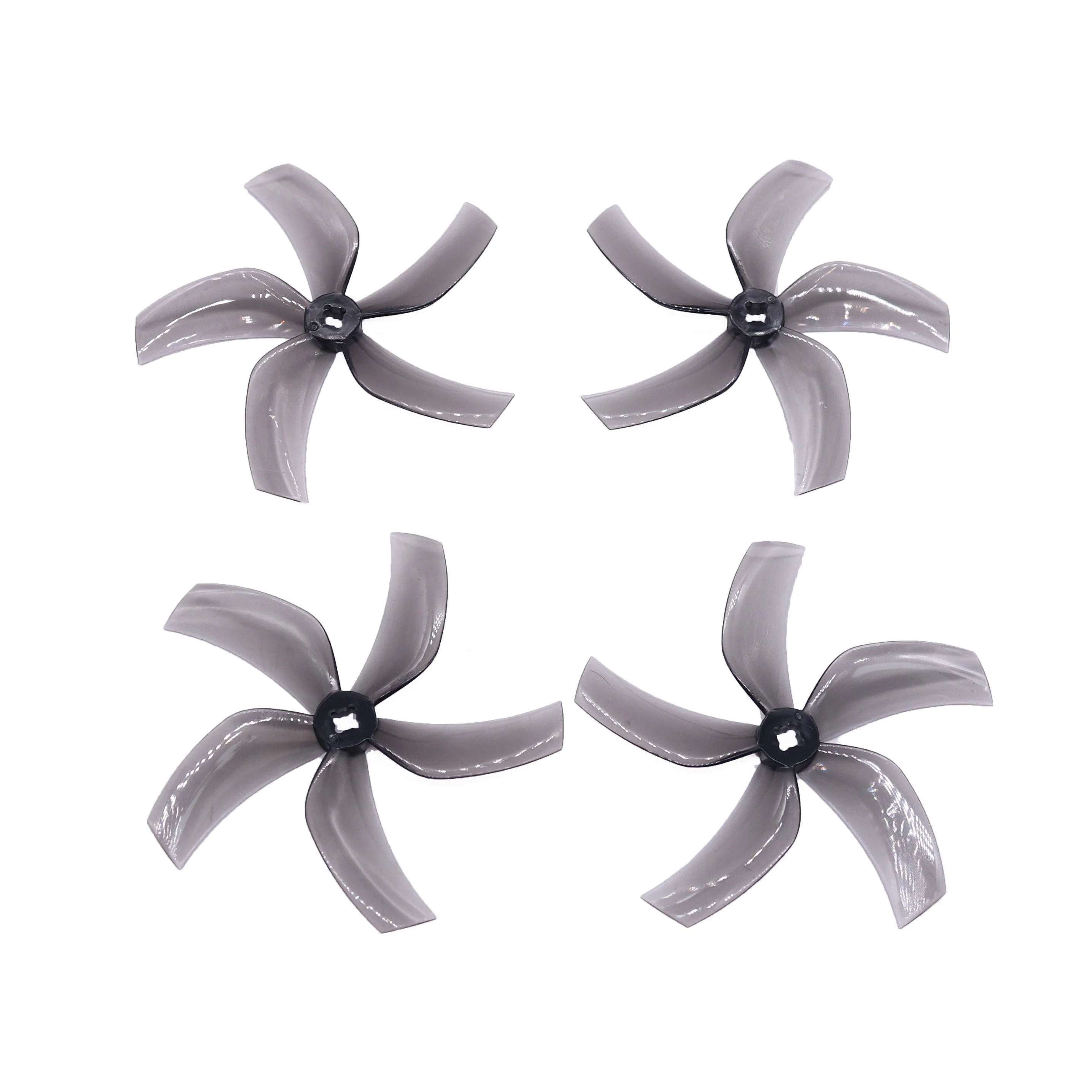

Paddle: 5045
Image transfer: B-CUBE VTX800 VTX1000 VTX1600 VTX2500

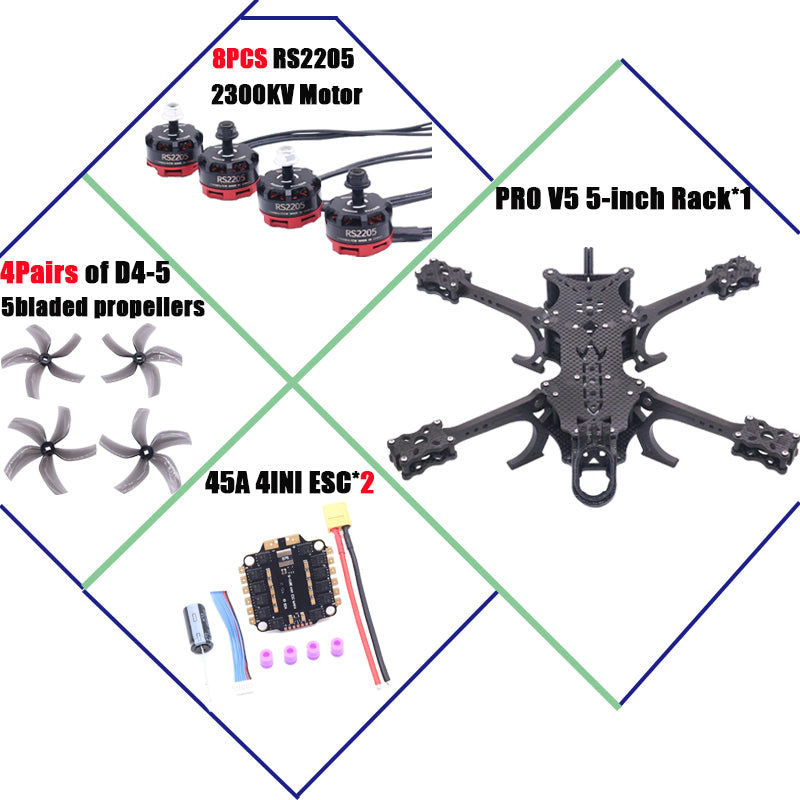

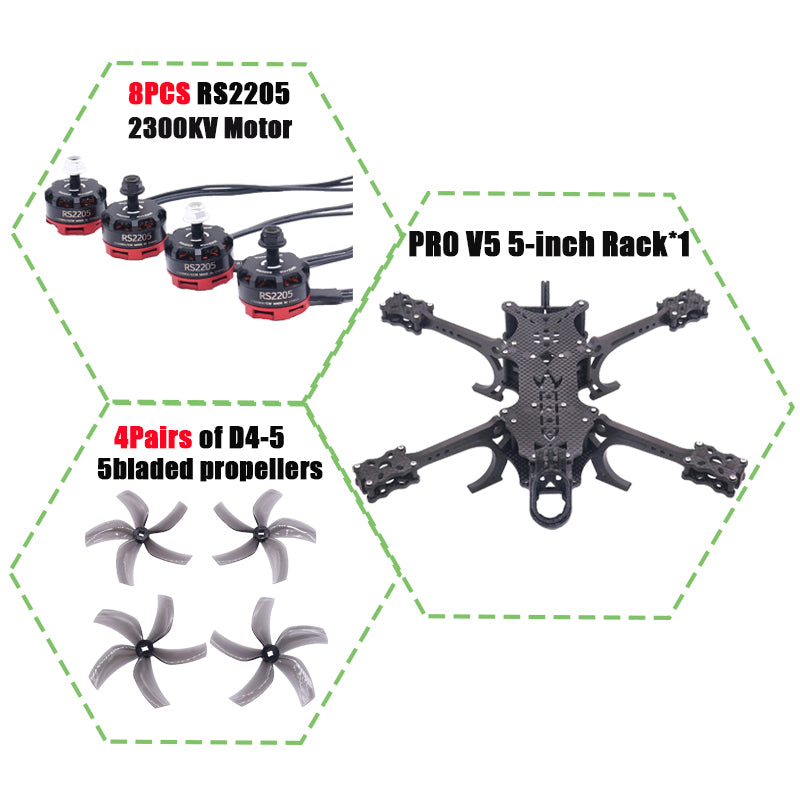

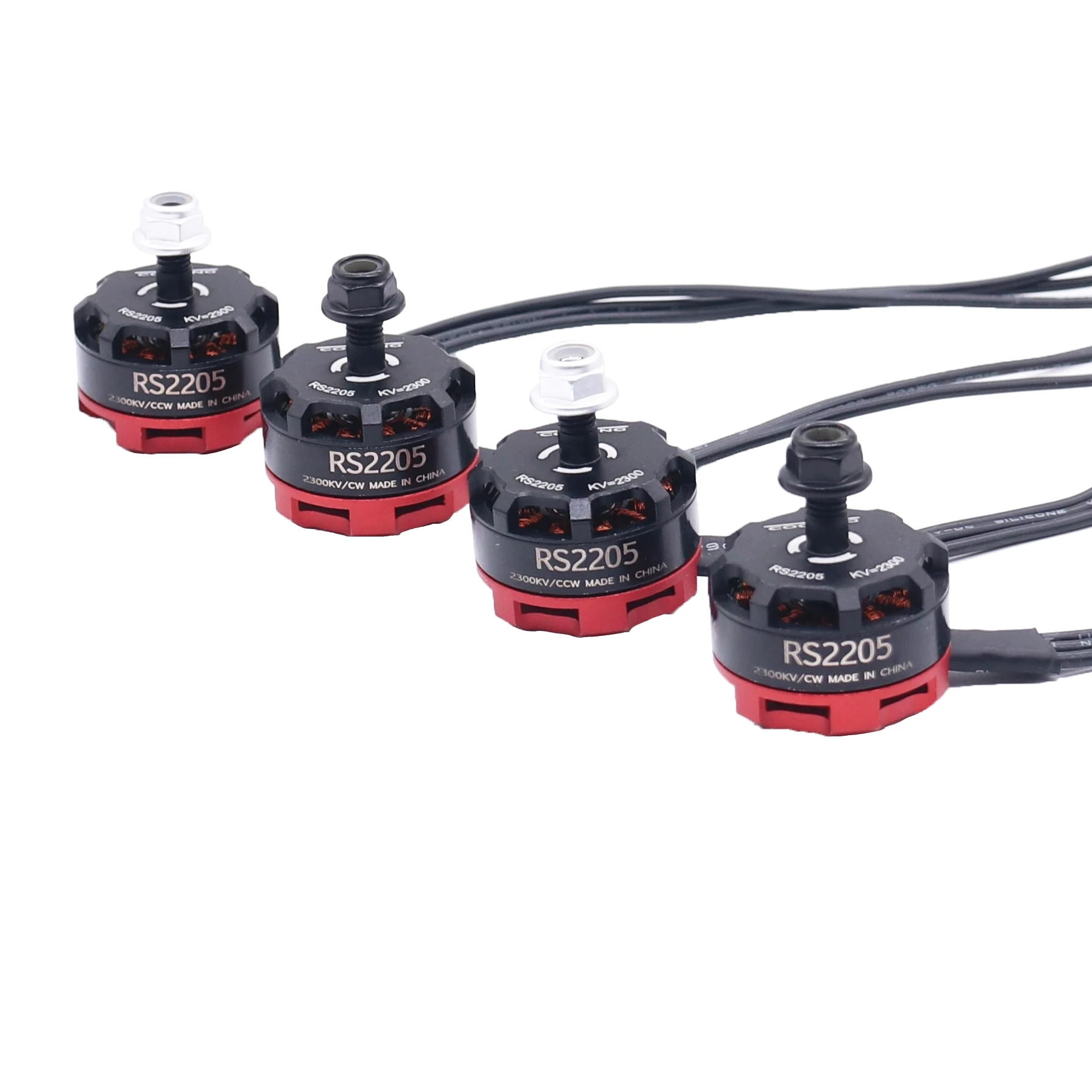

RS2205 2300kv Motor:
Race Spec Performances
High Strength N52 Neodyum Magnets
Active Cooling Fins Greatly Reduce Motor Temeratures
Low CG, Light Weight Design
Japanese Bearing For Performances
Enchance Anti Off U Ring For Safety & Stablility
Dual Lock CW / CCW Locknuts
BLHELI_S 45A 4IN1 3-6S Brushless ESC
