B-CUBE 1MHz to 6GHz One Open Source Software Defined Radio Accurate Tuning SDR Transmitting Receiving Radio Signals Antennas

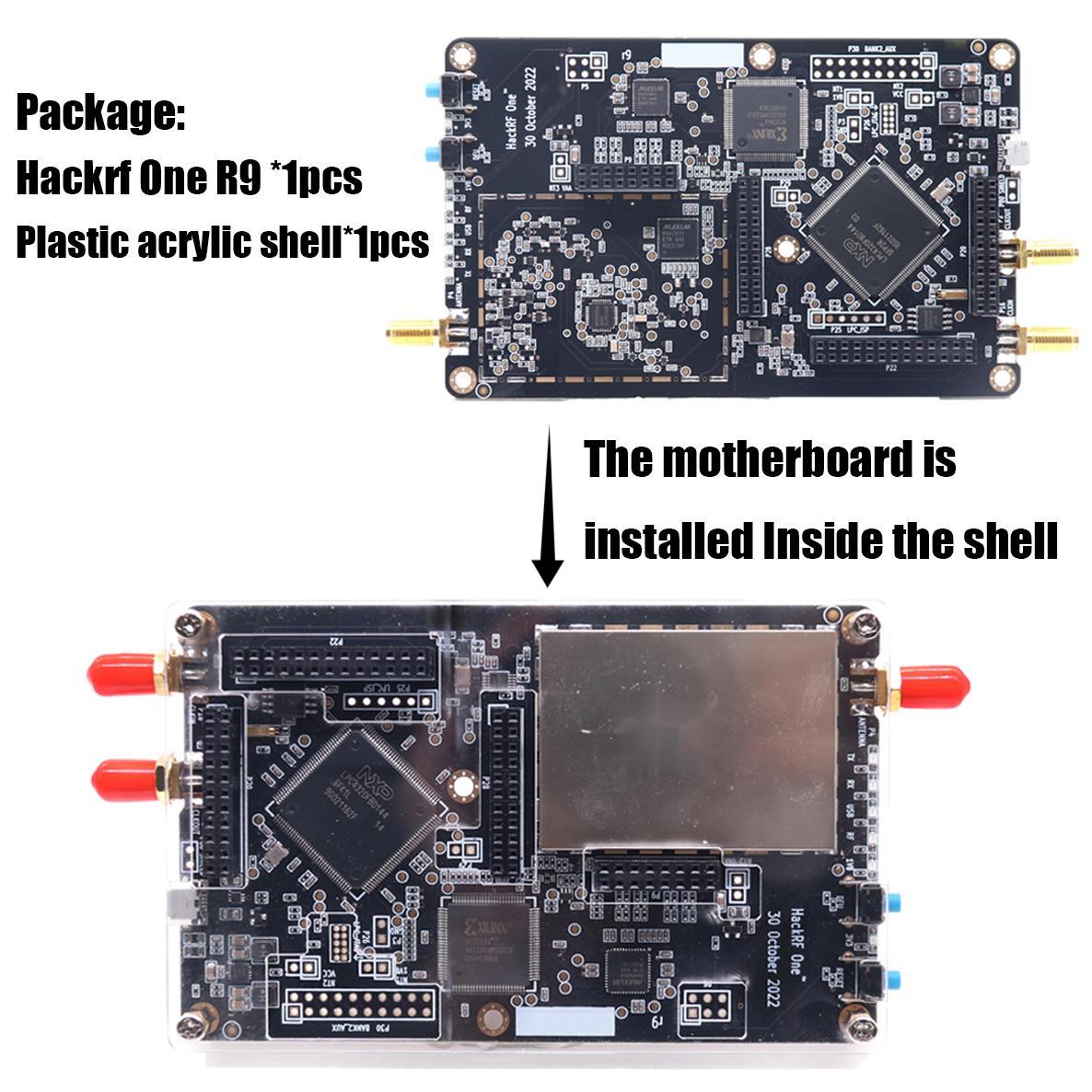

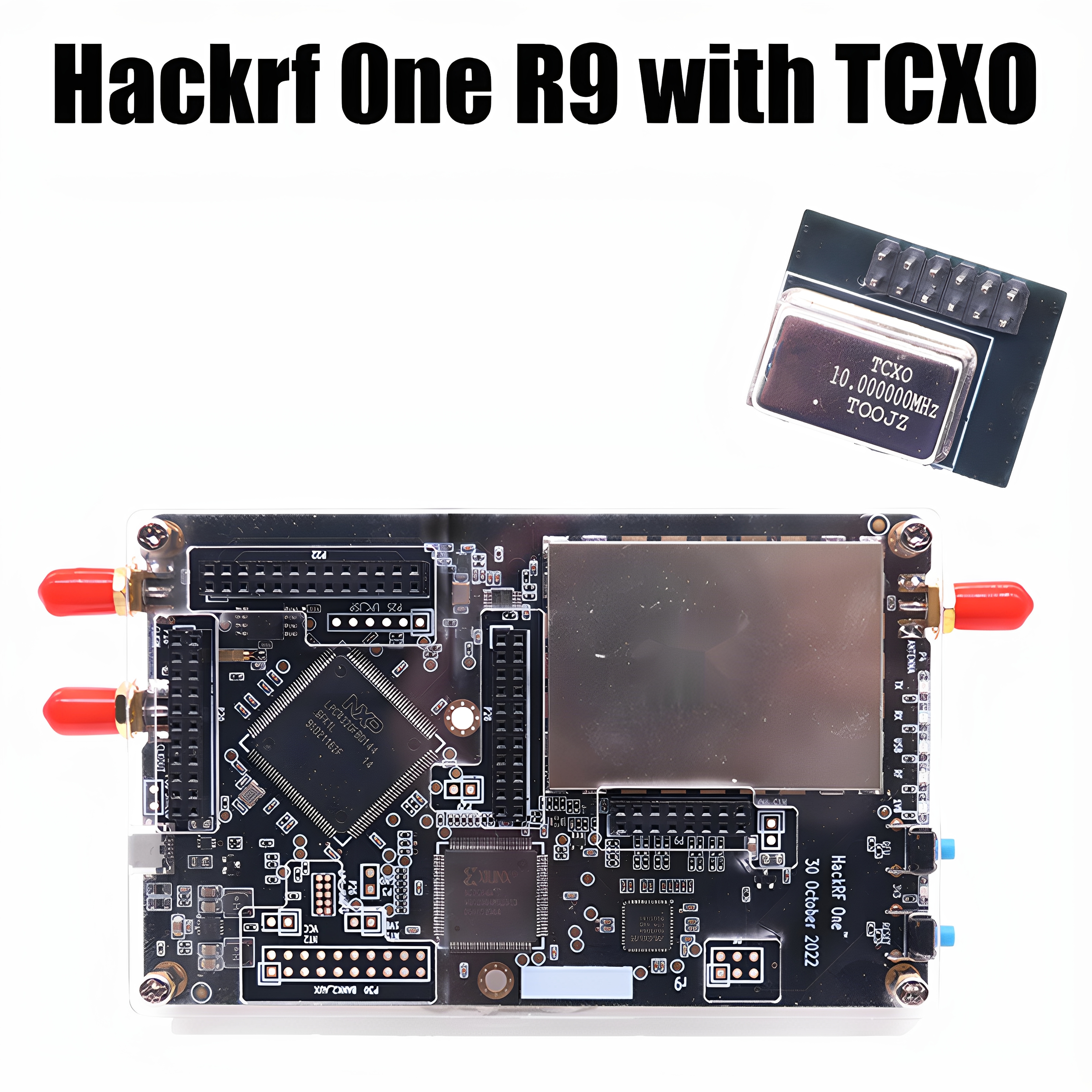

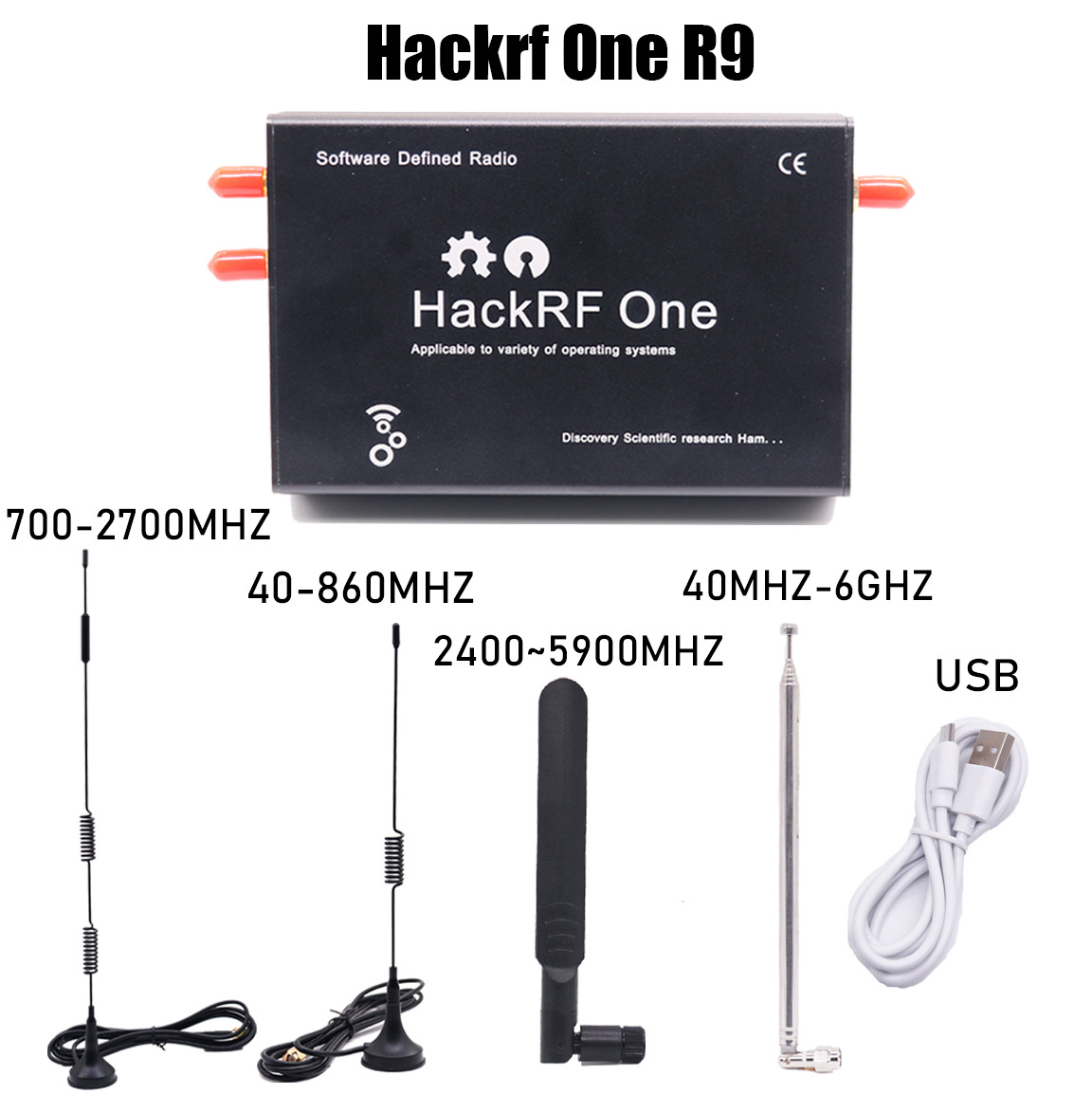

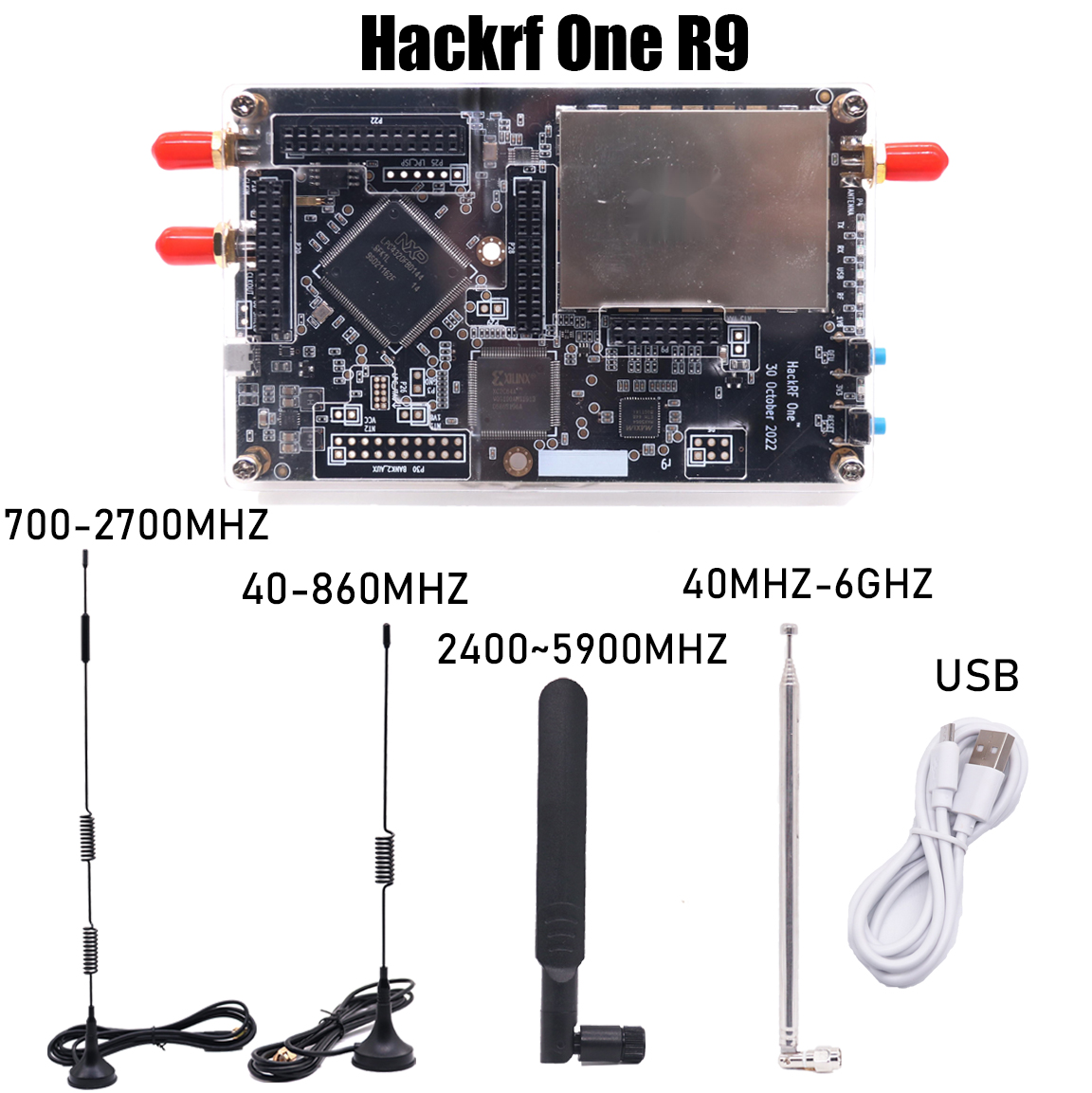

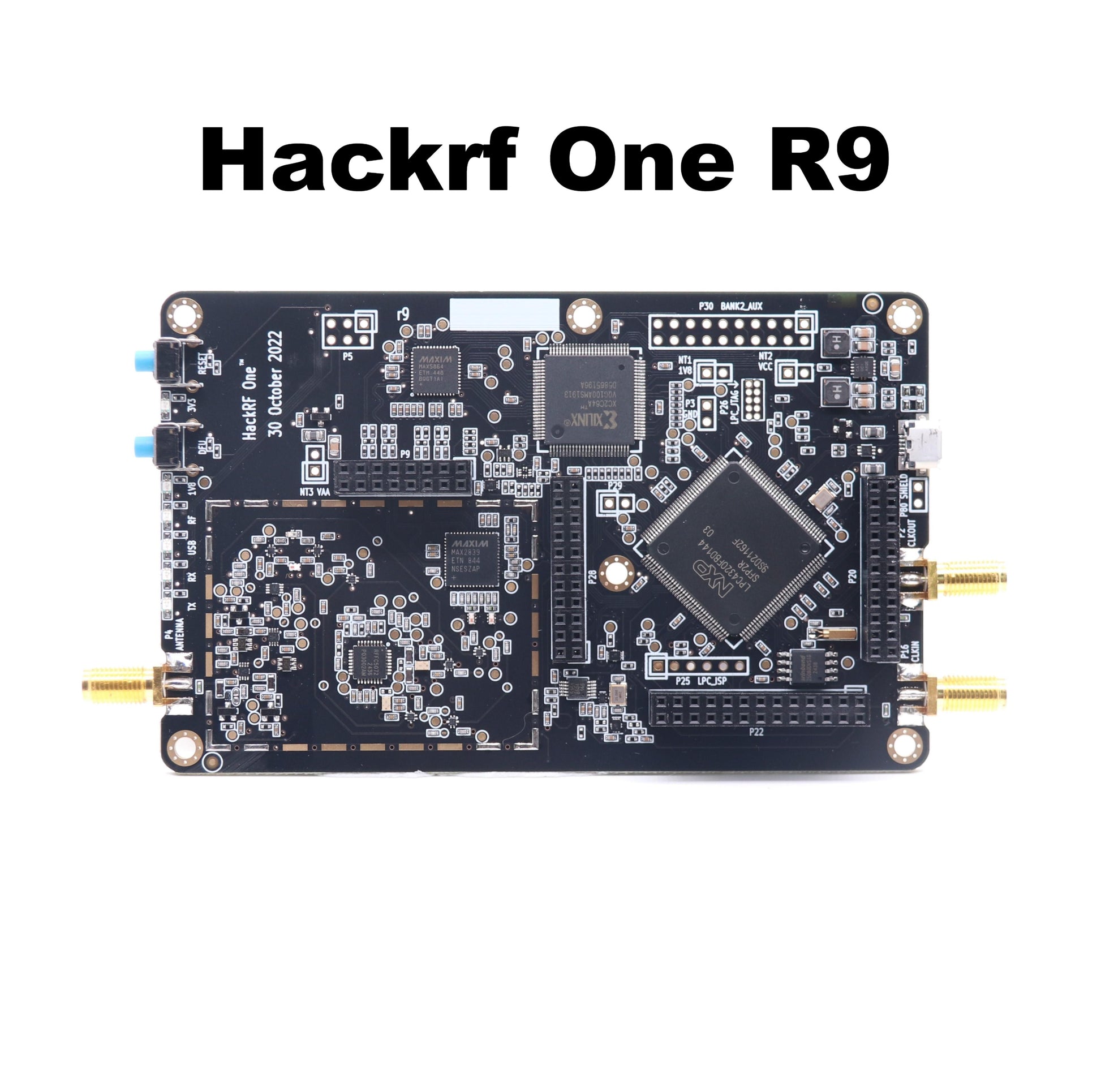

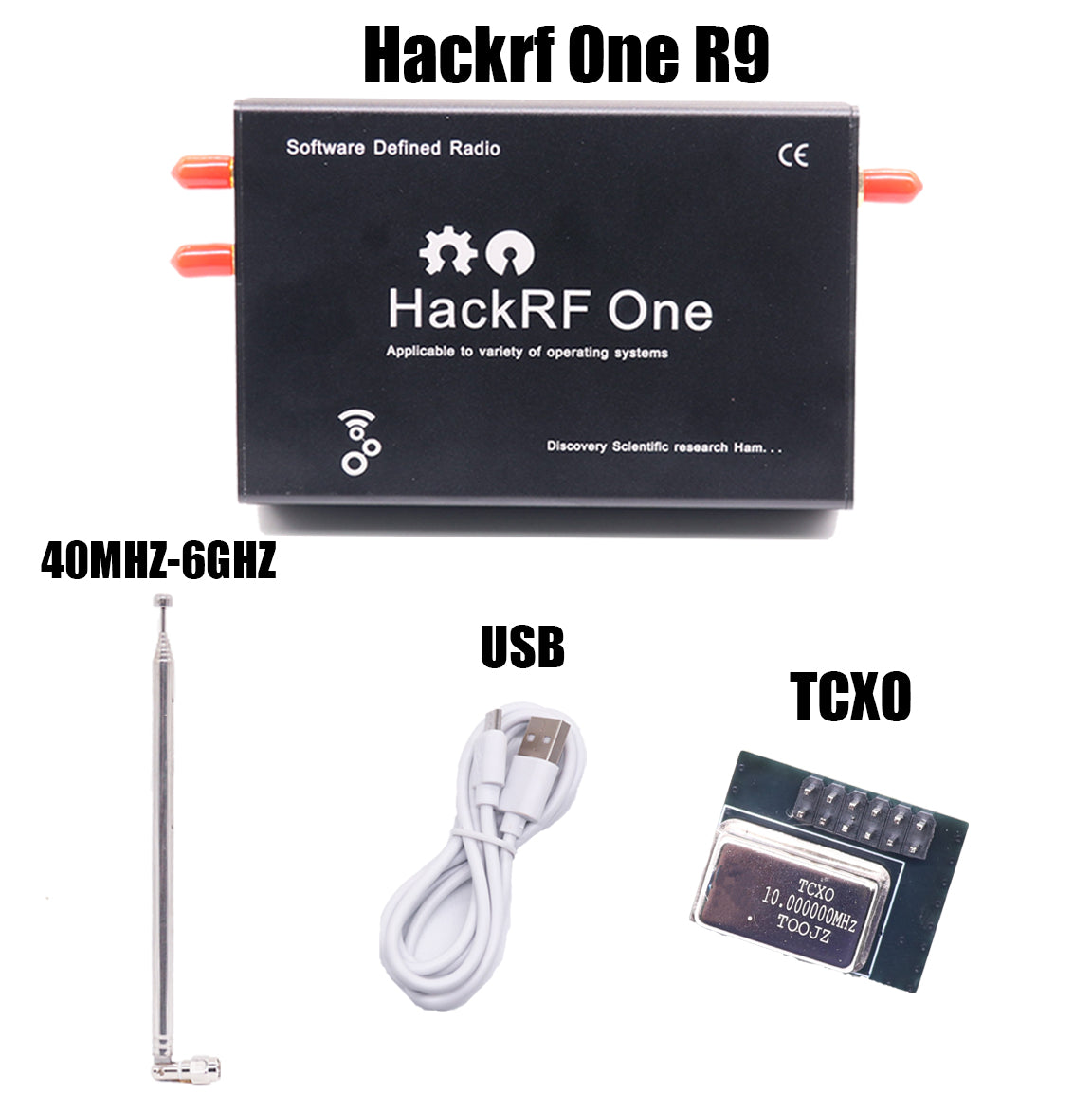

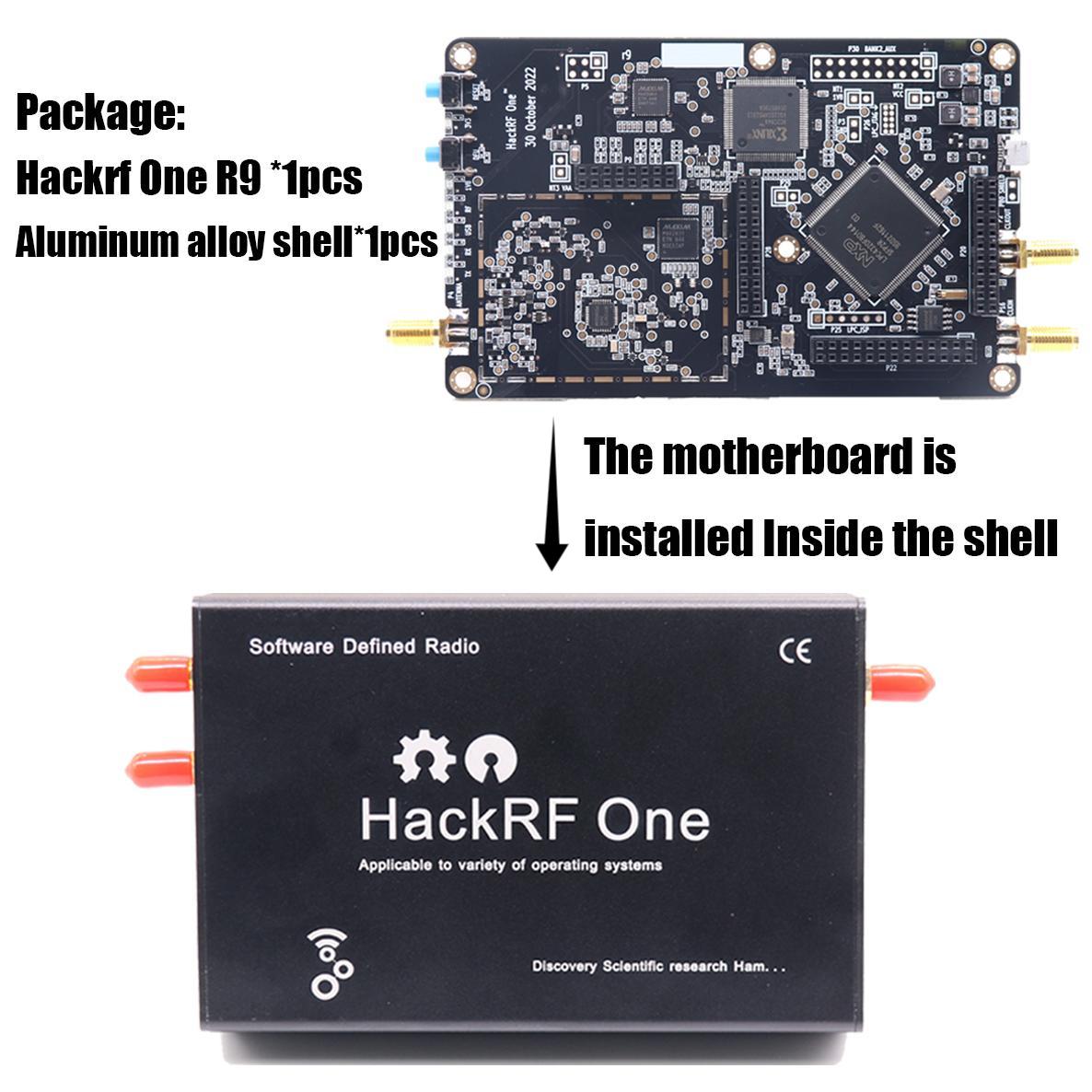

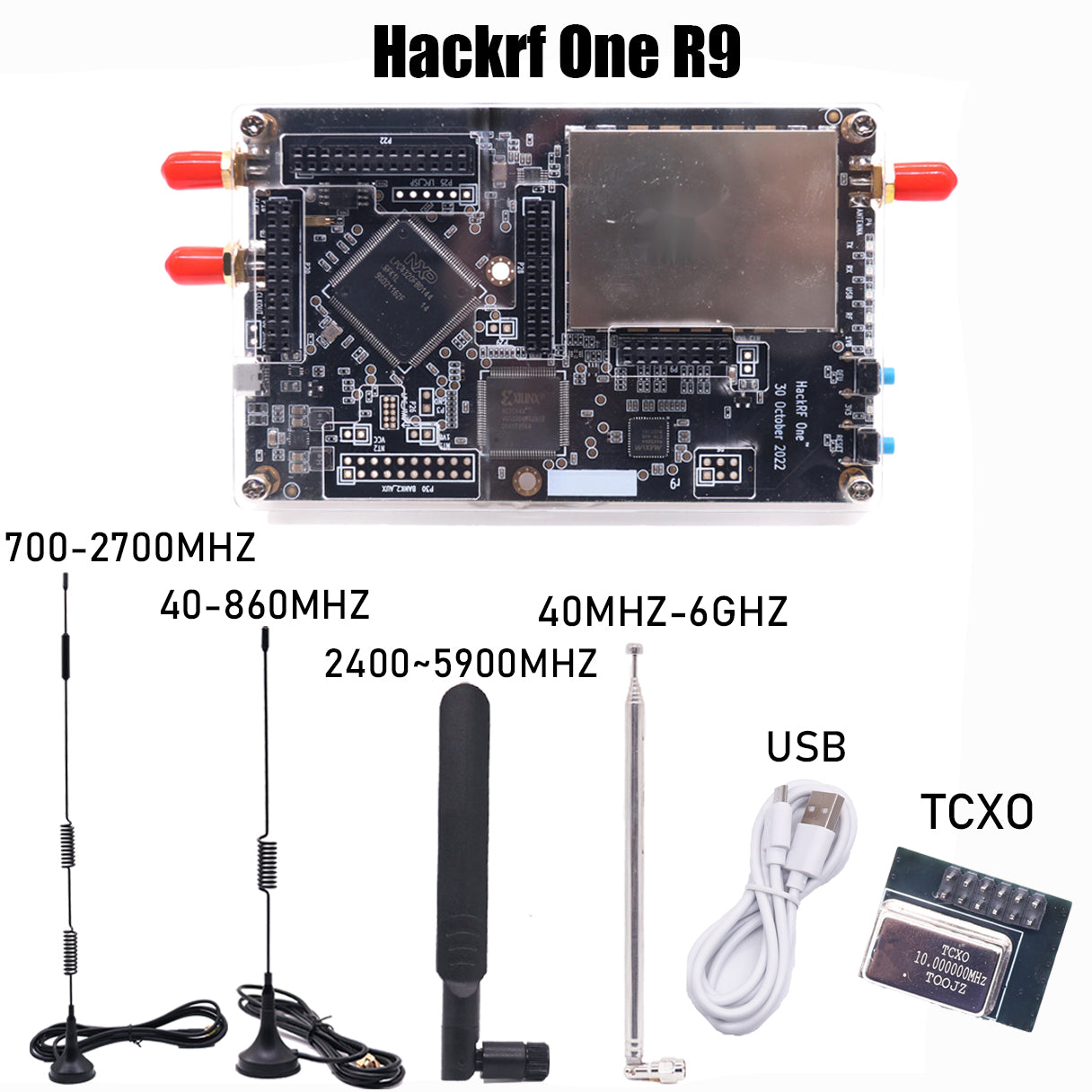

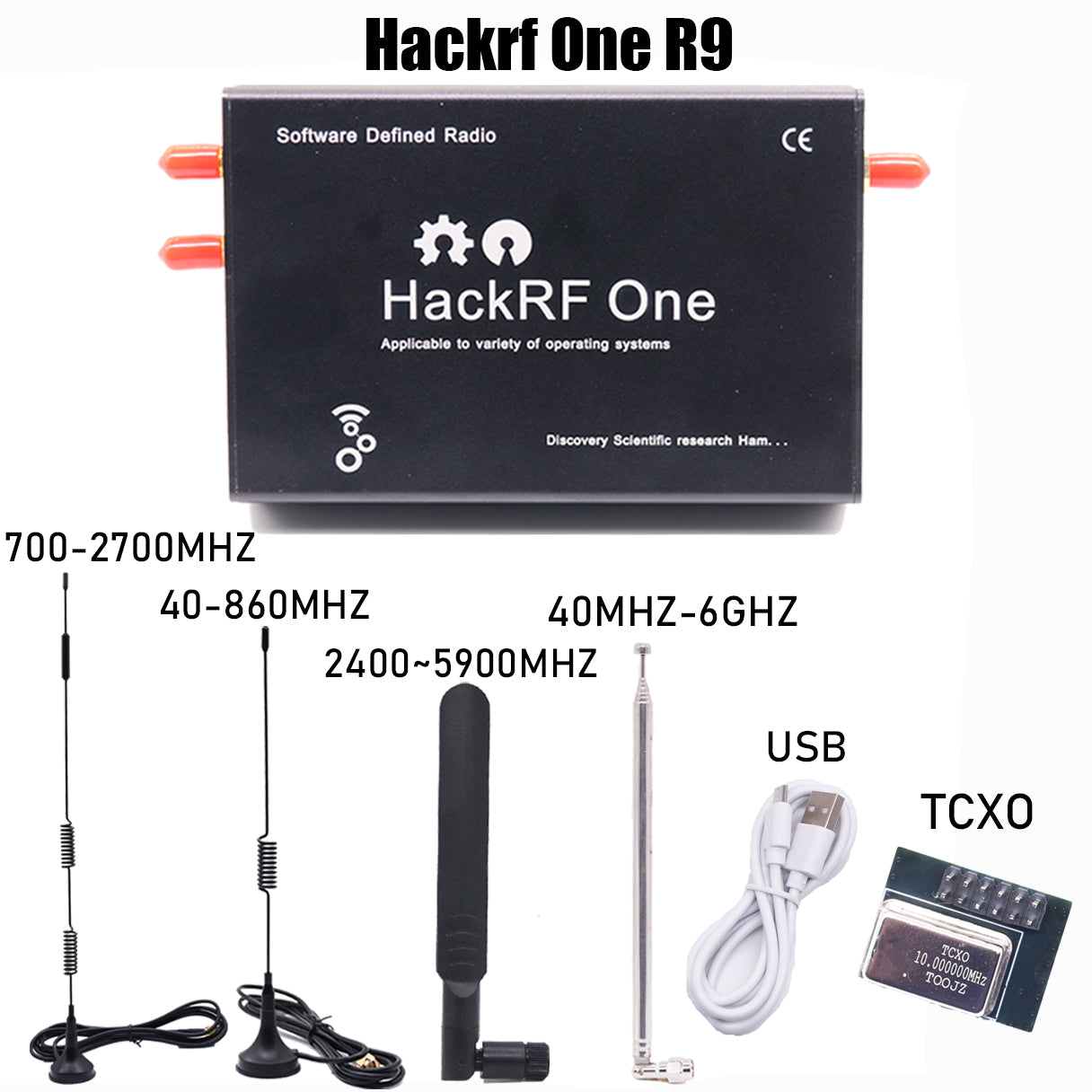

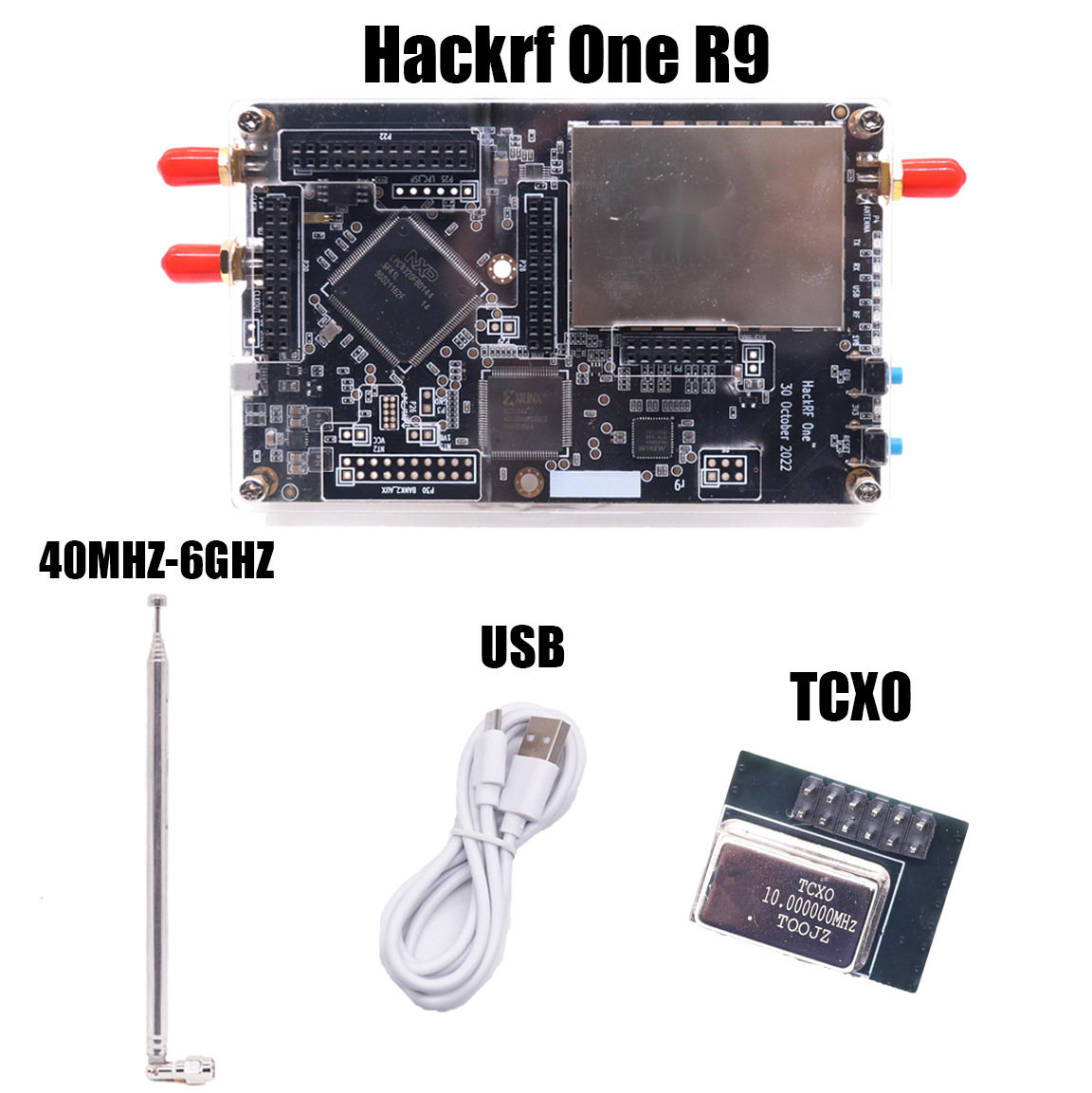

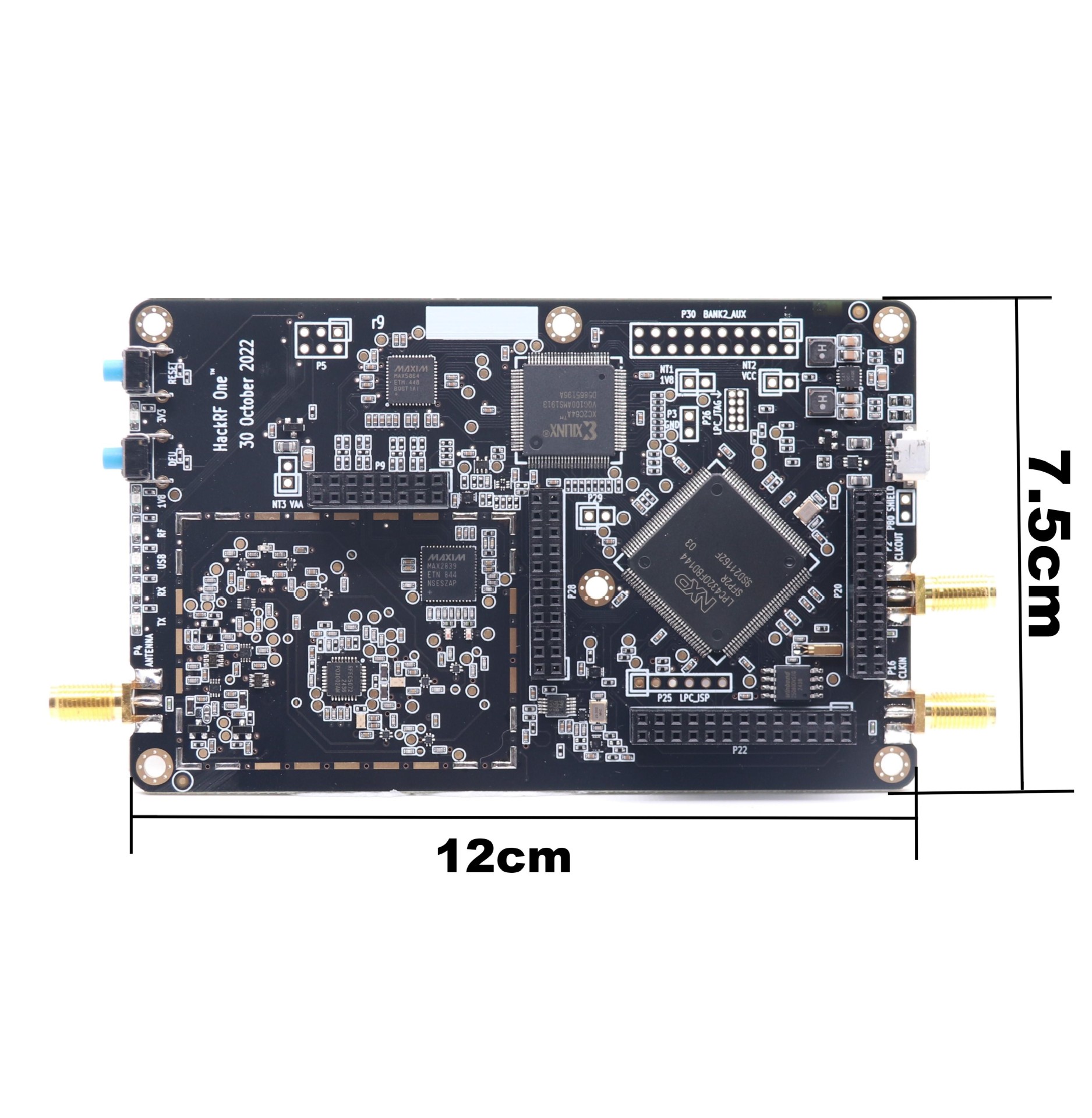

Hackrf one R9

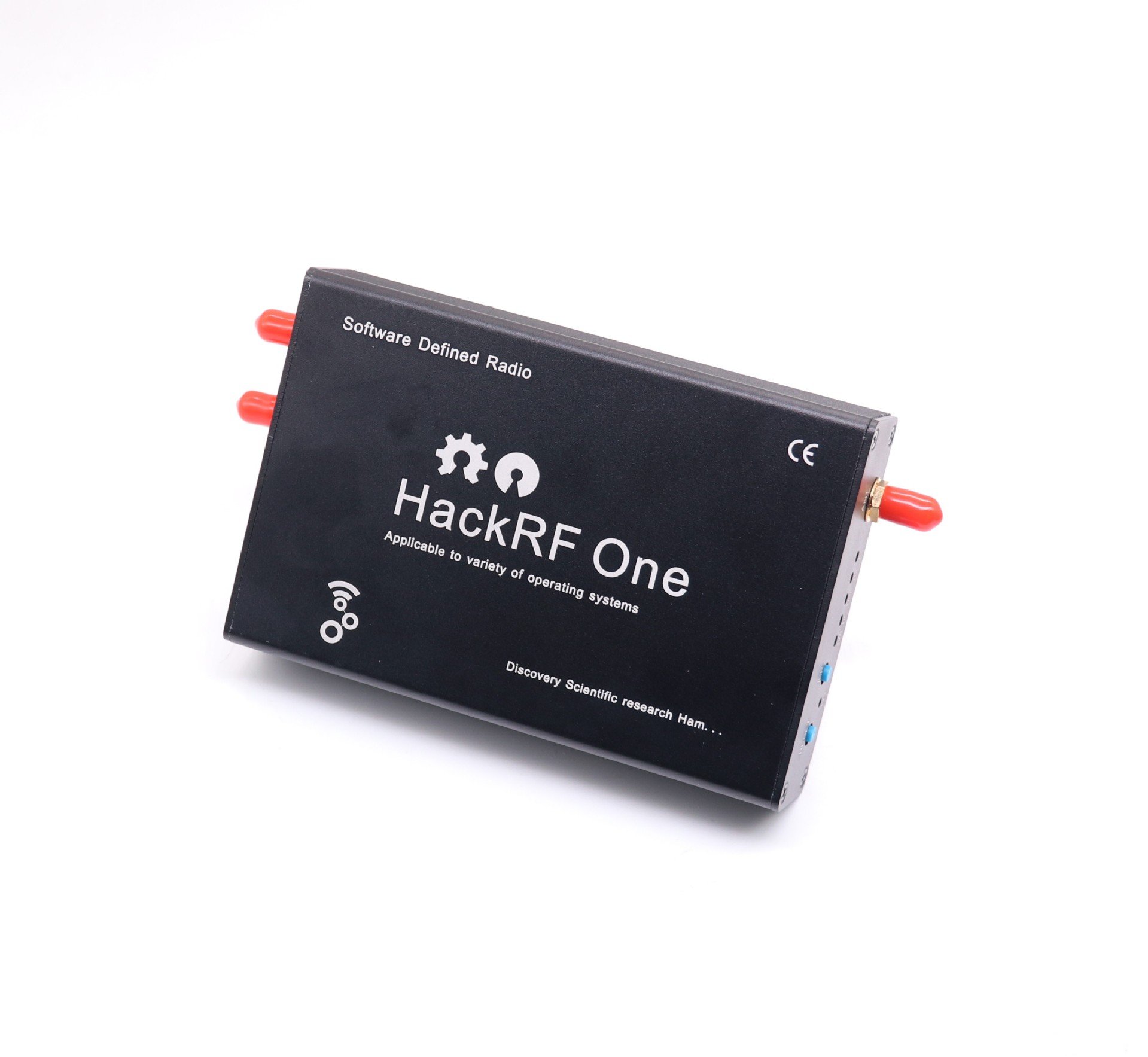

HackRF One is an open source Software Defined Radio (SDR) that offers powerful capabilities for transmitting and receiving radio signals spanning from 1 MHz to 6 GHz. It is designed to be an ideal instrument for research and development of modern radio technologies, either as a connected USB peripheral or programmed for standalone applications.

HackRF One from Great Scott Gadgets is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz. Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

1 MHz to 6 GHz operating frequency

half-duplex transceiver up to 20 million samples per second

8-bit quadrature samples (8-bit I and 8-bit Q)

compatible with GNU Radio, SDR#, and more

software-configurable RX and TX gain and baseband filter

software-controlled antenna port power (50 mA at 3.3 V)

SMA female antenna connector

SMA female clock input and output for synchronization

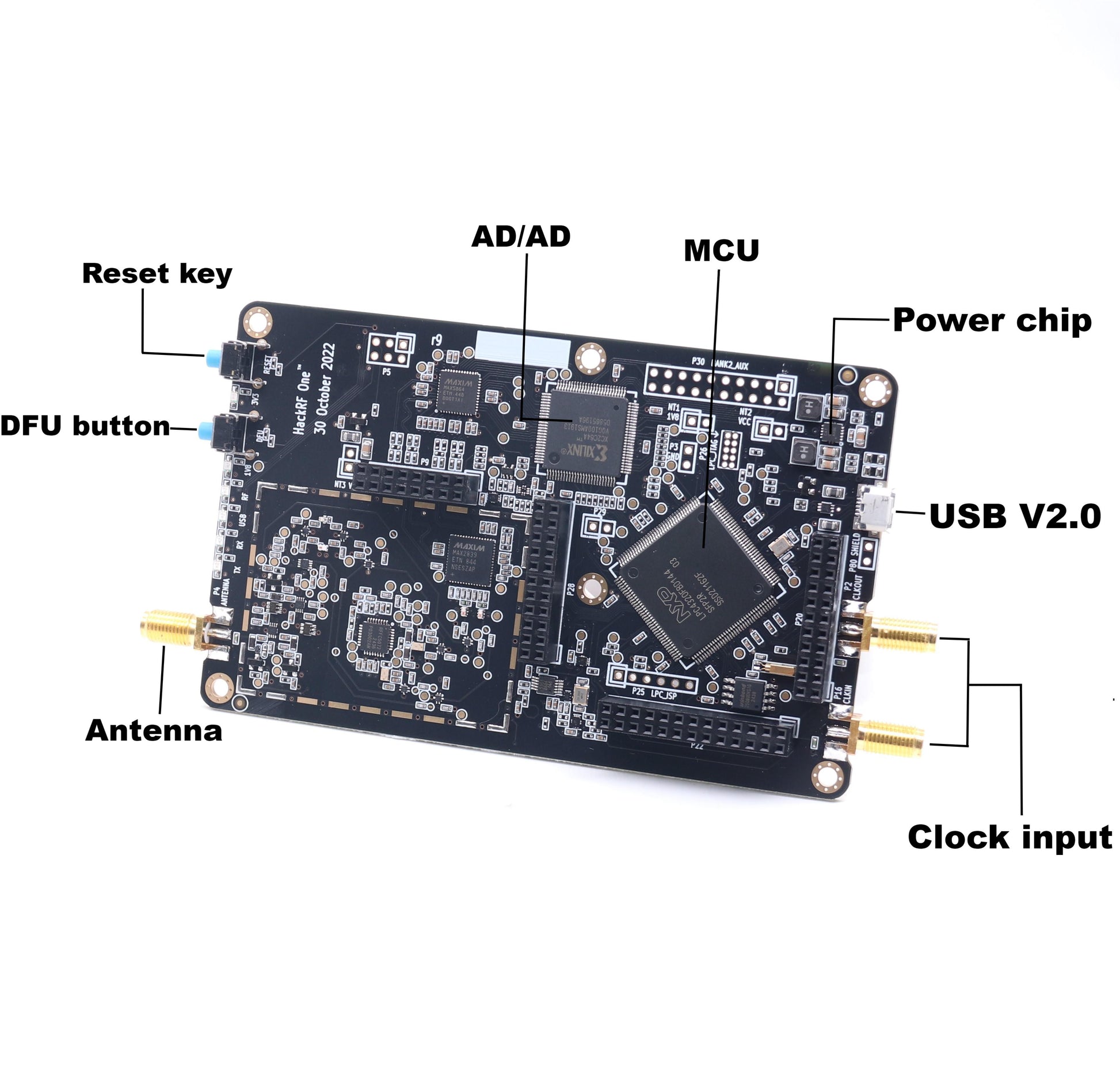

convenient buttons for programming

internal pin headers for expansion

Hi-Speed USB 2.0

USB-powered
